35.40 m (200 Kg) Spider Articulated Platform

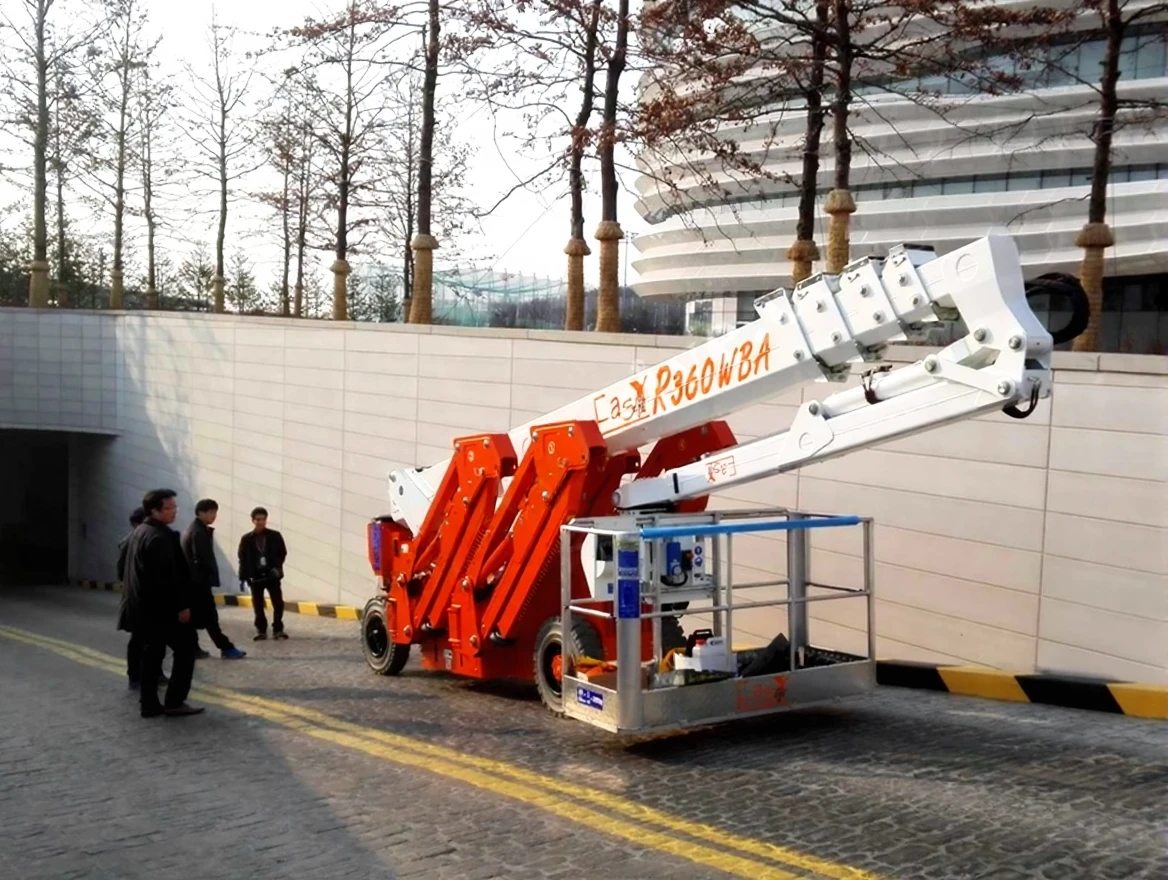

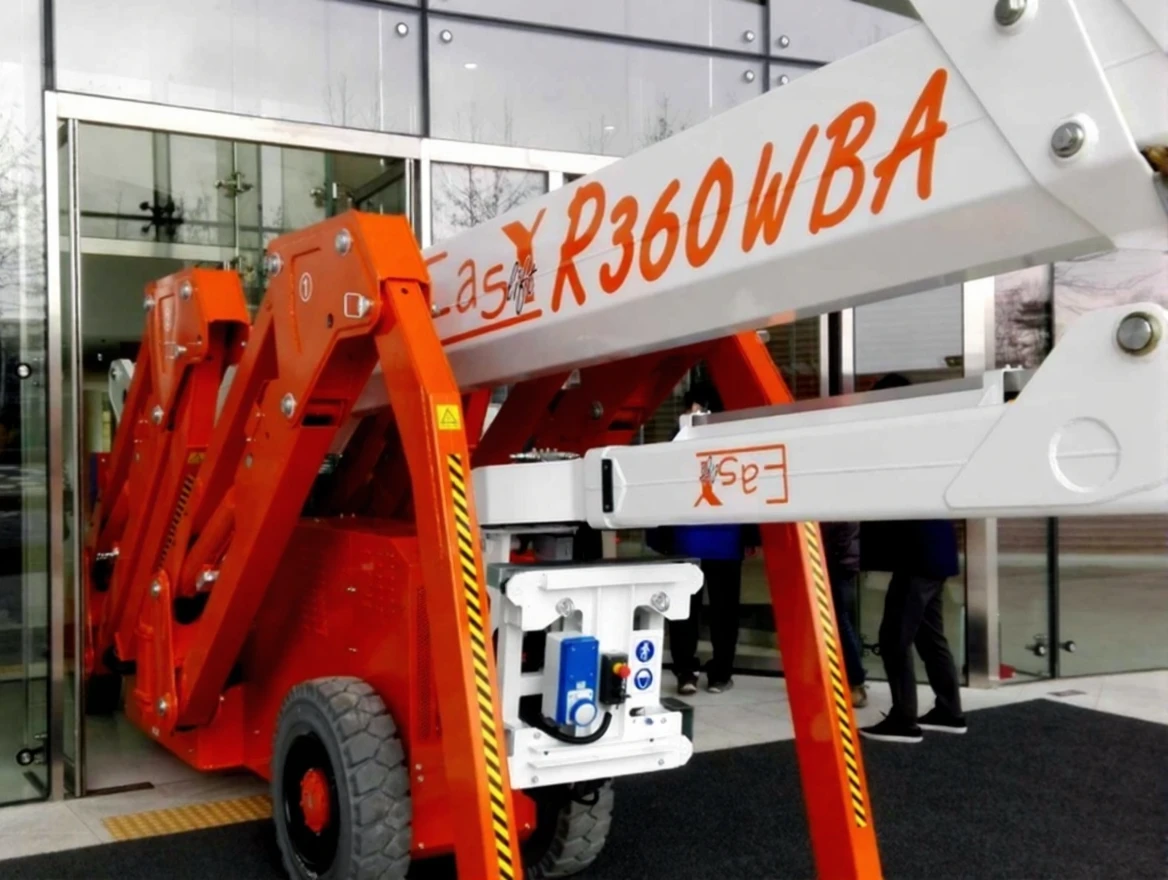

Easy Lift R360WBA is a spider articulated platform that can reach up to 35.40 meters in height.

This platform offers a wide working area with a horizontal reach of 16.00 meters and a 360° turning angle.

With a maximum lifting capacity of 200 kg, the R360WBA can safely carry various equipment.

Since the basket dimensions of the platform are 2.0 x 0.8 meters, users can have a wide working area and easily place the necessary equipment. Additionally, the weight of the platform is 6500 kg, which provides stability and safety.

Easy Lift R360WBA is equipped with a powerful Hatz diesel engine and a high-capacity Traction battery. It also has an electric motor option for environmentally friendly operation.

With these features, the Ertek Easy Lift R360WBA offers a reliable and efficient solution for construction, maintenance, cleaning, and similar industrial applications. It facilitates users’ access to high places while enhancing safety and work efficiency.

Easy Lift R360WBA Technical Specifications

Max Height: 35.40 m

Horizontal Reach Distance: 16.00 m

Turning Angle: 360°

Max Lifting Capacity: 200 Kg

Weight: 6500 Kg

Basket Dimensions: 2.0 x 0.8 m

Diesel Engine: Hatz 8.5 kW

Battery: Traction 465 Ah/h

Electric Motor: 3.0 kw-230V-50Hz
