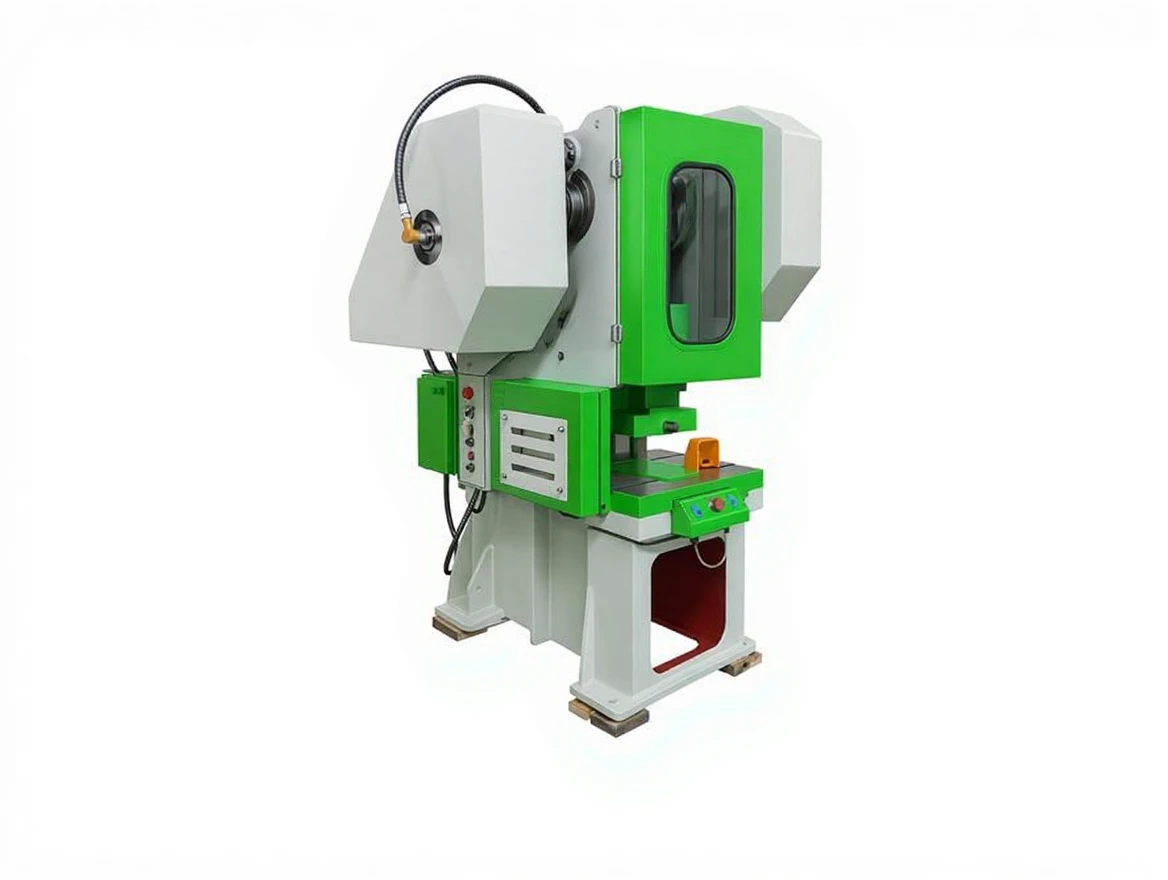

35 Ton C Type Eccentric Press

C Type Eccentric Press – CECP 35 Ton

Standard Features

• Steel construction body

• Recorded bearing on 4 surfaces

• Spheroidal cast iron connecting rod and gear bearings

• 4140 tempered steel crankshaft and transmission shafts

• Central system fully automatic grease lubrication

• Pneumatic clutch and brake combination

• Compliance with CE safety directives

• Double-coil safety valve

• Manually adjustable stroke

• Beam barrier finger – hand protection safety system

• PLC control system

• Double foot pedal control system

• Mechanical fuse system

• Emergency reverse motor movement

• Compliant with occupational safety regulations

• Compliant with CE standards

Optional Features

• Vibration damping block

• Spare table

• Press feeding systems

• 1 set of mold with desired specifications

• 8-bearing sliding

Technical Specifications

• Capacity: 35 Ton

• Available Area of Bottom Table: 400 × 600 mm

• Stroke Distance: 0 – 70 mm

• Nominal Material Thickness: 2.5 mm

• Strokes Per Minute (SPM): 120

• Table – Ram Distance: 330 mm

• Adjustment (Ram Adjustment): 45 mm

• Bottom Table Hole Diameter: 130 mm

• Ram Mold Pin Diameter: 35 mm

• Operation System: Pneumatic Clutch – Brake

• Mounting Type: Floor Type

• Body Type: C Type Steel Construction

• Motor Power: 3 kW

• Motor Speed: 1450 RPM

• Approximate Machine Size (W x L x H): 1100 × 1400 × 1800 mm

• Approximate Weight: 1500 kg

Production Information

This machine is manufactured by CronossTech in Turkey.

Note

If you have any change requests regarding technical specifications, please contact us.
