350 Kg/Hour Plastic Material Drying Oven

350 kg/h Plastic Raw Material Drying Oven

Operation Sequence (EWT)

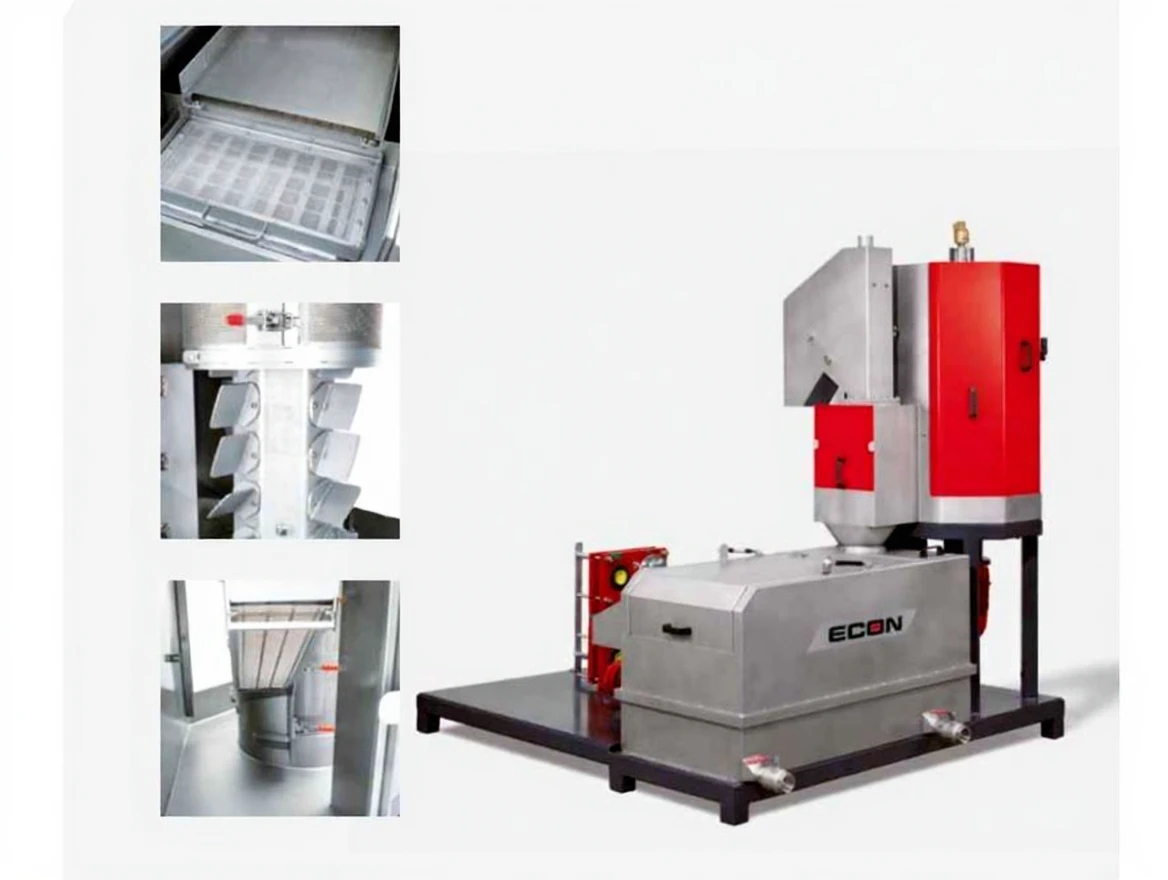

The pellet-water mixture coming out of the pelletizing body is directed to the water treatment and drying system. Thanks to the unique design feature of the ECON system, there is no need for a water bypass pipe in the process water cycle. An agglomerate separation unit is installed above the pellet dryer to remove pellet lumps before they enter the dryer.
In the next stage, the pellets flow into the rotor section of the dryer along with the remaining water; thanks to the design of the blades that use centrifugal force, the pellets are thrown towards the screens. As the water separates from the screens, the pellets are continuously moved to the upper part of the dryer where they are discharged from the pellet outlet (e.g. with a conveyor fan).
The cleaning process is optimized to allow material change within a few minutes with the special design of the pellet dryer (body and water drainage screens). The separated water is directed to the water tank, filtered through fine screens, and then recirculated. An heat exchanger with a cooling cycle is integrated into the system to control the process water temperature to a specific value.

ECON Model | Efficiency Rate | Suitable Material Types
