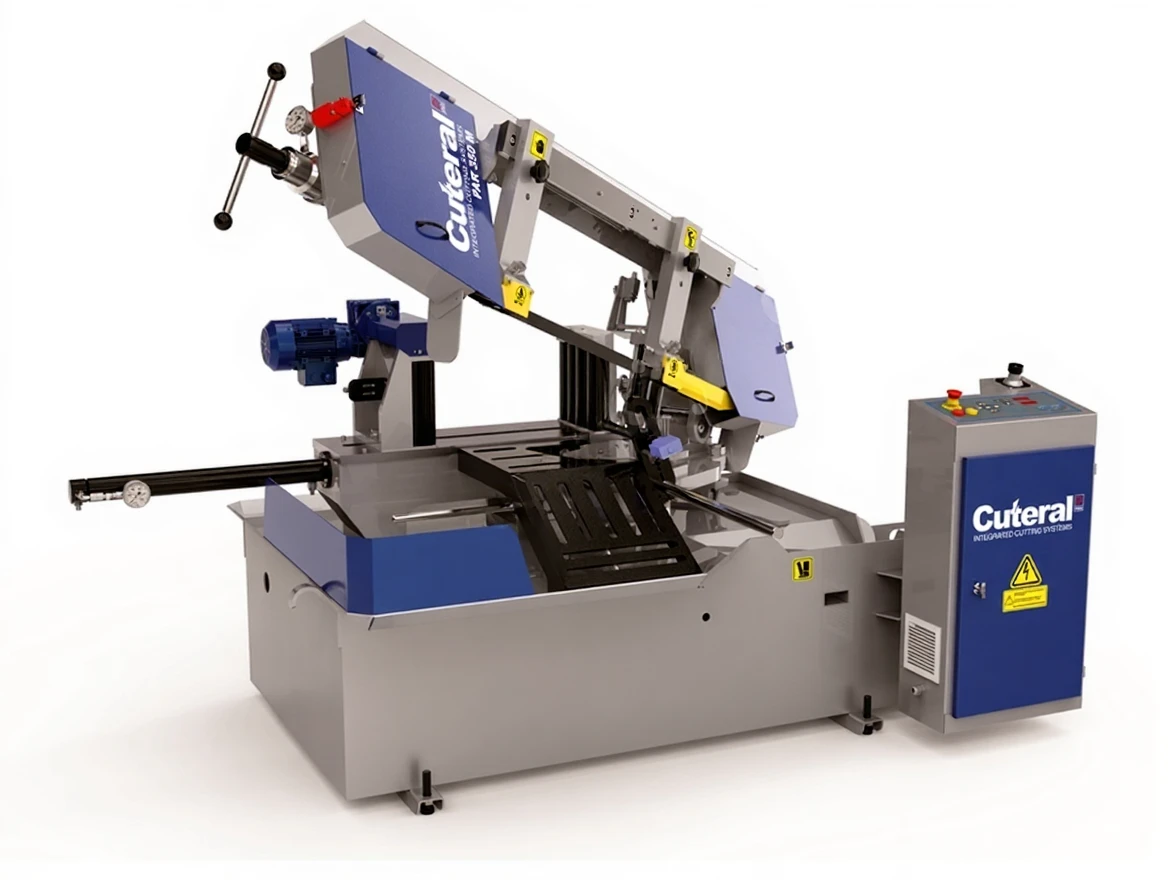

350 mm Angled Fully Automatic Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
PAR 350 M |
Description
Cuteral PAR 350 M
350 mm Angled Fully Automatic Band Saw Machine
Cuteral PAR 350 M Technical Specifications
| A | 1370 mm | |||
| B | 2600 mm | |||
| C | 1480 mm | |||
| D | 775 mm | |||
| E | 525 mm | |||
| F | 2800 mm | |||
| hmax | 2150 mm | |||
| Semi-Automatic | ||||
| Blade Size | 34 x 1.1 x 4570 mm | |||
| Blade Motor | 4 kW – 1500 rpm | |||
| Drive Motor | 0.25 kW – 1500 rpm | |||
| Hydraulic Motor | 0.75 kW – 1400 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 5.12 kW | |||
| Cutting Speed | 15 m/min – 115 m/min | |||
| Weight | 1150 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 350 mm | |||
| Cutting Capacity 90° Width | 460 mm | |||
| Angle of Cut Material | 0° | 350 mm | 350 x 350 mm | 350 x 460 mm |
| 30° | 350 mm | 350 x 350 mm | 250 x 400 mm | |
| 45° | 320 mm | 300 x 300 mm | 320 x 180 mm | |
