350 mm Semi-Automatic Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
PSM 350 U |
Description

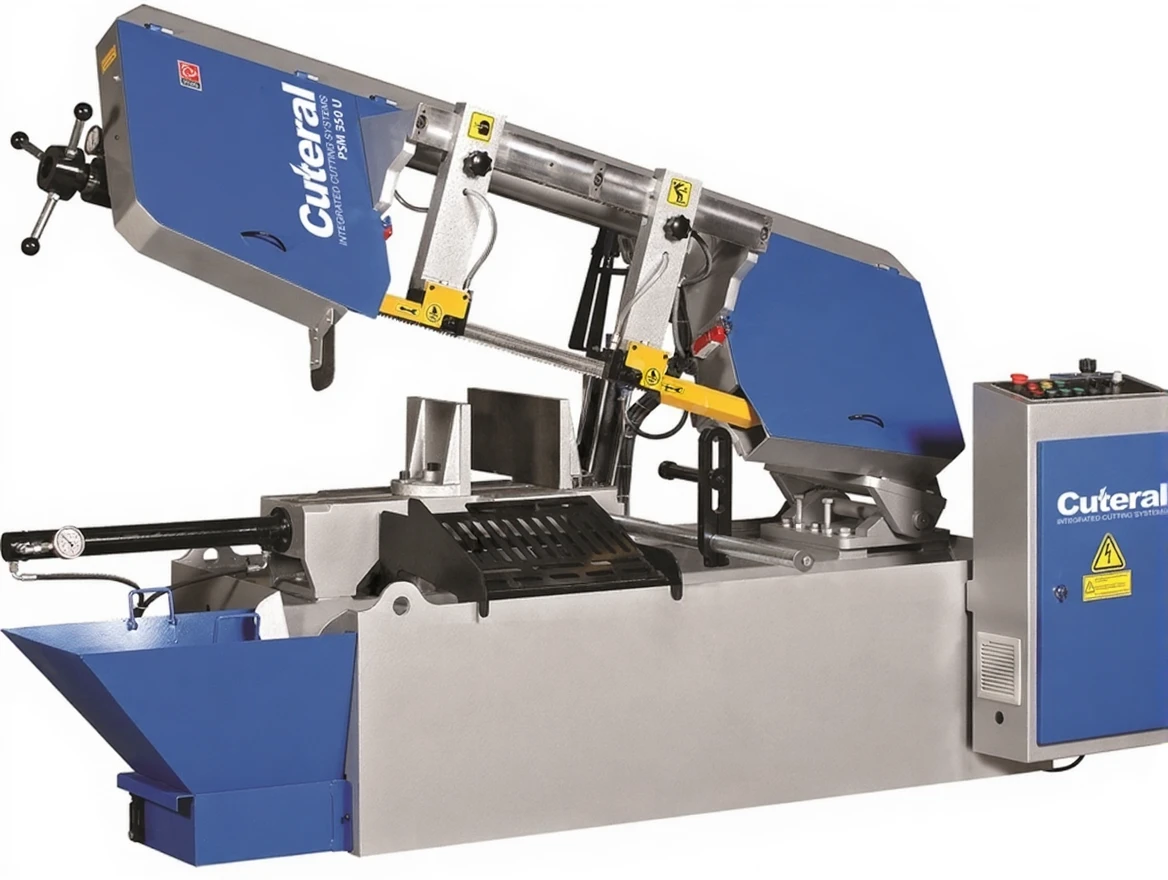

Cuteral PSM 350 U
350 mm Inclined Semi-Automatic Band Saw Machine
Cuteral PSM 350 U Technical Specifications
| A | 1335 mm | |||
| B | 2655 mm | |||
| C | 1310 mm | |||
| D | 740 mm | |||
| E | 1500 mm | |||
| F | 1450 mm | |||
| hmax | 2000 mm | |||
| Semi-Automatic | ||||
| Blade Size | 41 x 1.3 x 4635 mm | |||
| Blade Motor | 4 kW – 1500 rpm | |||
| Drive Motor | Manual | |||
| Hydraulic Motor | 0.75 kW – 1400 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 4.87 kW | |||
| Cutting Speed | 15 m/min – 49 m/min | |||
| Weight | 1200 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 350 mm | |||
| Cutting Capacity 90° Width | 400 mm | |||
| Angle of Cut Material | -45° | 300 mm | 280 x280 mm | 200 x 300 mm |
| -30° | 350 mm | 350 x 350 mm | 260 x 350 mm | |
| 0° | 350 mm | 350 x 350 mm | 210 x 400 mm | |
