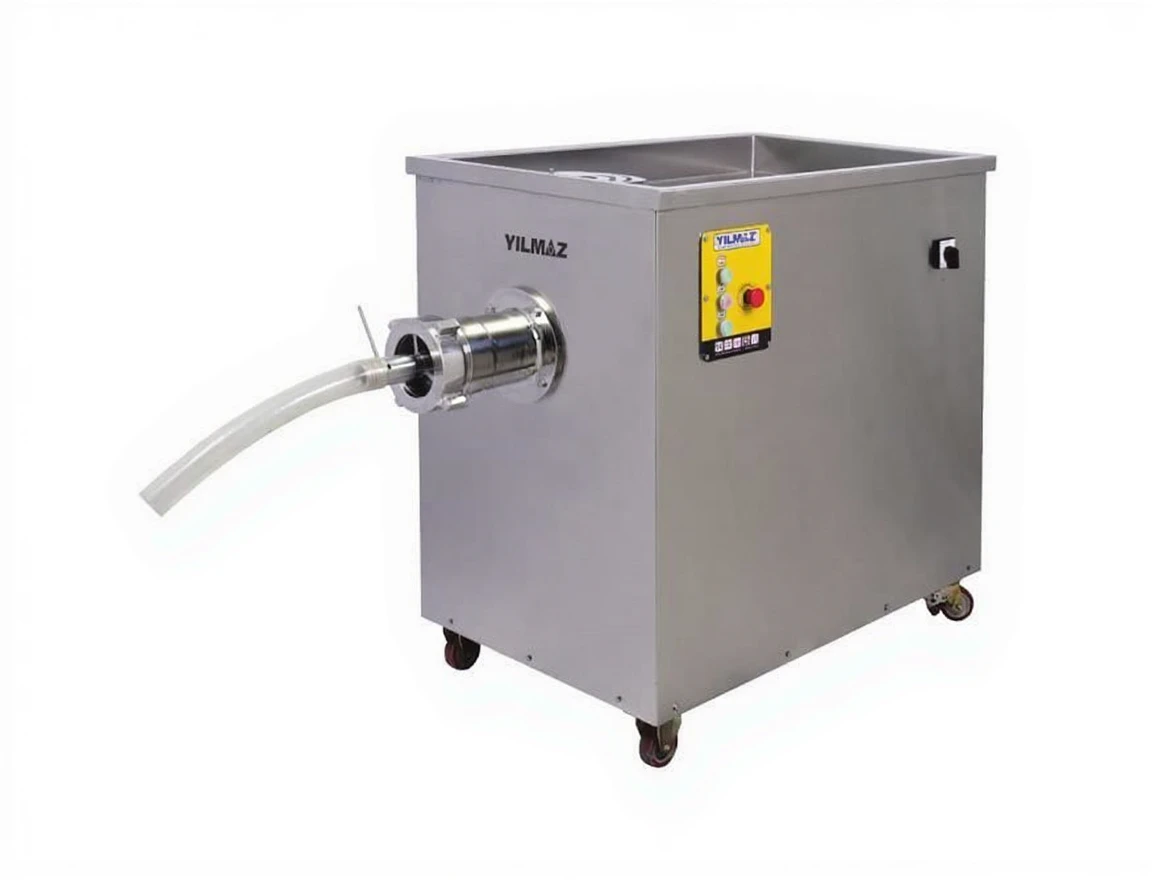

363 Kg 130 Mm Non-Cooling Meat Grinder

Product Advantages;

• The machine is designed for the first time by our company to comply with CE Standards considering hygiene and human health.

• The machine has a 7.5 Kw 10 Hp three-phase motor.

• Capacity;1150 Kg / h

• The machine has a high efficiency helical conical gear system monoblock body reducer.

• The machine is equipped with 2 (two) motor protective contactors.

• The upper tray of the machine (meat loading hopper) and its body are made of 304 quality stainless steel sheet.

• The casing of the machine (meat outlet hopper), helix (worm or ball) bearing, and meat inlet throat are made of 304 quality stainless steel casting.

• There is a stainless steel key to remove and install the machine’s bearing (nut).

• All the connections and equipments of meat and meat processing units in the machine are made of 304 quality stainless steel casting.

• There is an emergency stop button for forward-backward-stop and emergency situations on the machine.

• The machine has 2 movable and 2 fixed wheels.

• There is a carrying handle on the rear cover of the machine.

• Our machines are equipped with stainless steel hand protection device for work and worker health.

• There is a lubrication system for external lubrication of the machine’s grip shaft bearing.

• There is a protective housing wire on the bottom surface of the machine to prevent non-heating insects from entering.

• The machine has an oil and flame resistant electrical connection cable.

• The machine uses 3 mirrors and 2 blades.

• The machine has a nerve separator apparatus.

  CODE	INOX E130-332 TR
  CAPACITY	1,150  Kg / H
  MOTOR POWER	7.5 Kw. 10Hp 400 Volt 50 Hz.
  MIRROR / BLADE / SLEEVE	3 / 2 / 1
  WIDTH/LENGTH/HEIGHT	750 x 1500 x 1115 mm
  NERVE SEPARATOR APPARATUS	1
  WEIGHT	363 kg
