365 Kg 14.2 Meter Personnel Hydraulic Platform
| Brand | Platfon |
|---|---|
| Model Type |
PRT14E |

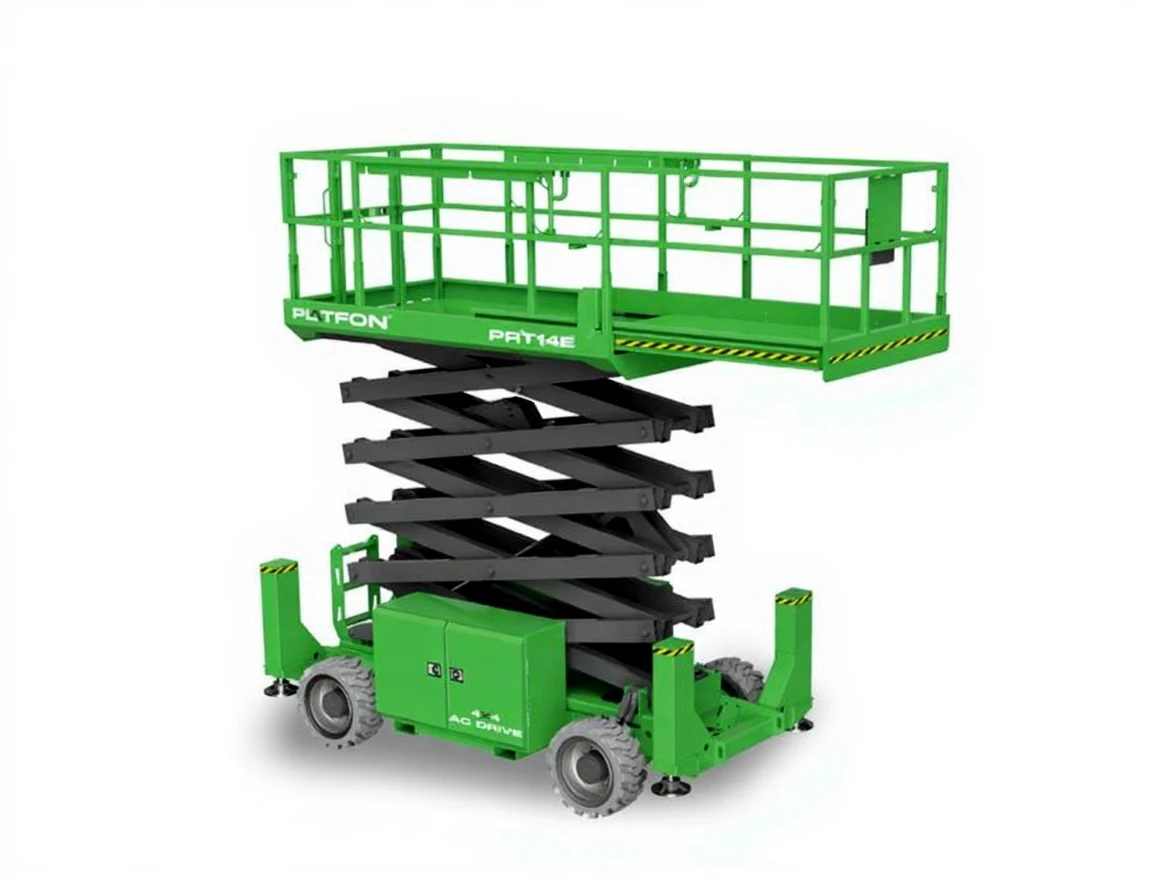

Platfon PRT14E 365 Kg 14.2 Meter Personnel Scissor Lift Platform
PRT14E Scissor Platform, thanks to Platfon's safety-focused design and user-friendly control systems, provides operators with a safe working environment. Its wide working height and fast access features allow it to be effectively used in various industrial applications such as construction, maintenance, assembly, and cleaning.
|
Feature |
Feature |
|---|---|
|
Maximum number of people |
2 |
|
Lifting capacity |
365kg |
|
Lifting capacity (Platform extension) |
140kg |
|
Driving speed (Closed) |
5.5km/h |
|
Driving speed (Open) |
0.5km/h |
|
Gradeability |
%40 |
|
Ascending and descending time |
60/45sec |
|
Wheel sizes |
26×12 – 16.5 |
|
Maximum front-to-back leveling of foot (Front to rear) |
5° |
|
Maximum lateral leveling of foot (Side) |
11° |
|
Driving – Steering |
4WD (AC drive) – 2WS |
|
Battery |
48V – 480Ah |
|
System voltage |
24V |
|
Hydraulic oil tank capacity |
75L |
|
Weight |
5580kg |
|
STANDARD |
OPTIONS |
|---|---|
|
4WD AC motor terrain mode |
Platform collision prevention system |
|
Proportional control |
Platform air line |
|
Automatic foot balance |
Pipe carrying attachment |
|
Double-sided platform extension |
AC power on platform |
|
Full-size entry doors |
Platform LED work light |
|
Oscillating axle |
Custom color option |
|
Foldable railing |
|
|
Emergency descent |
|
|
Overload protection |
|
|
Descent protection alarm |
|
|
Safety arm |
|
|
Motion alarm |
|
|
Double-sided LED |
|
|
Horn |
|
|
Operating hour indicator |
|
|
Off-road non-marking tires |
|
|
Fault diagnosis system |
|
|
Self-lubricating bearing |
|
|
Cathodic dip coating |
|
|
Slope level protection |
|
