38⌀ 5 Axis CNC Pipe Profile Bending Machine

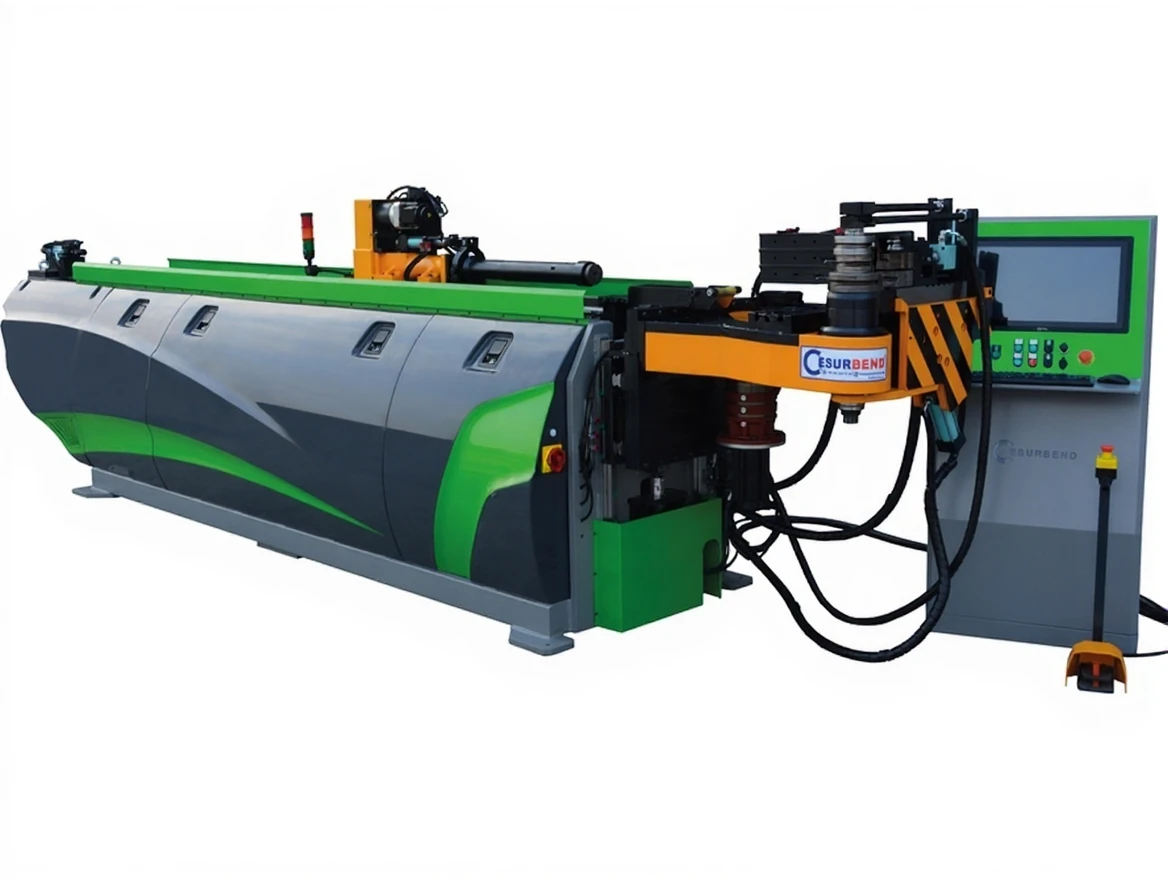

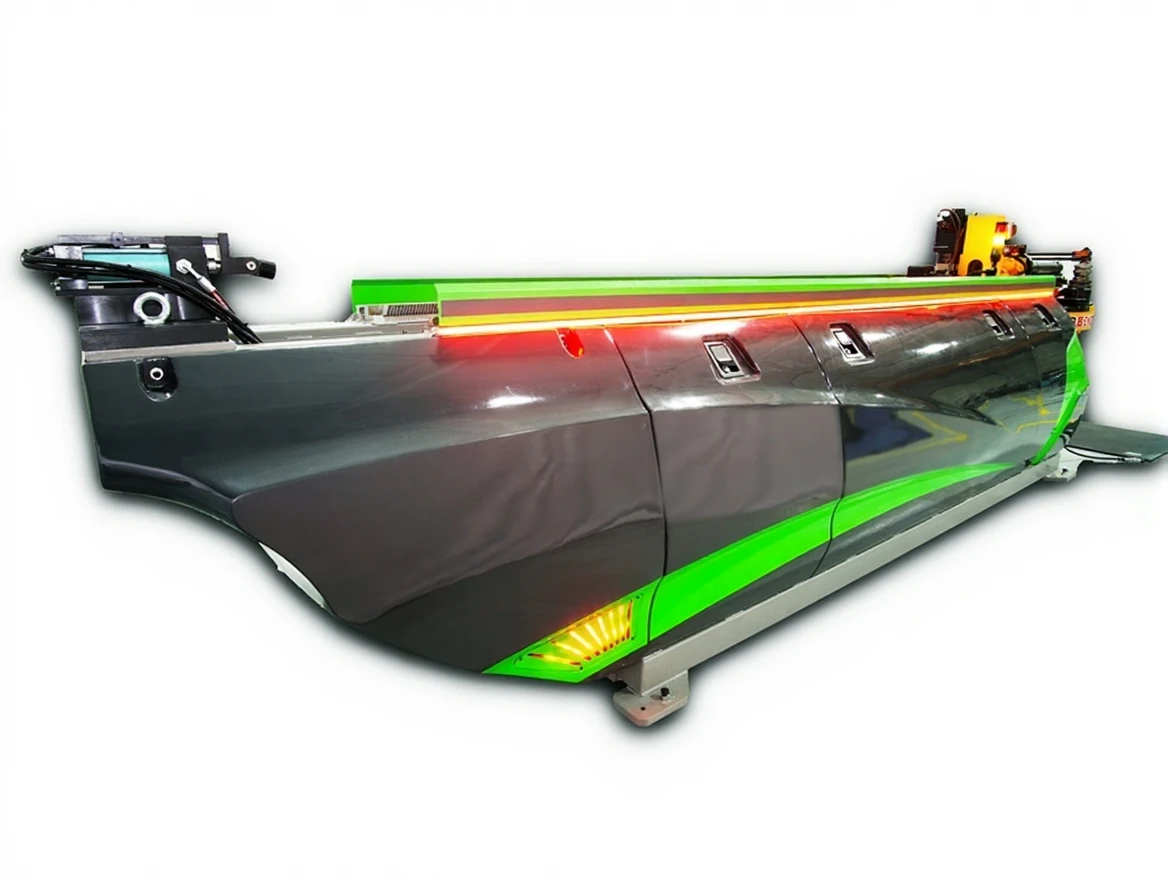

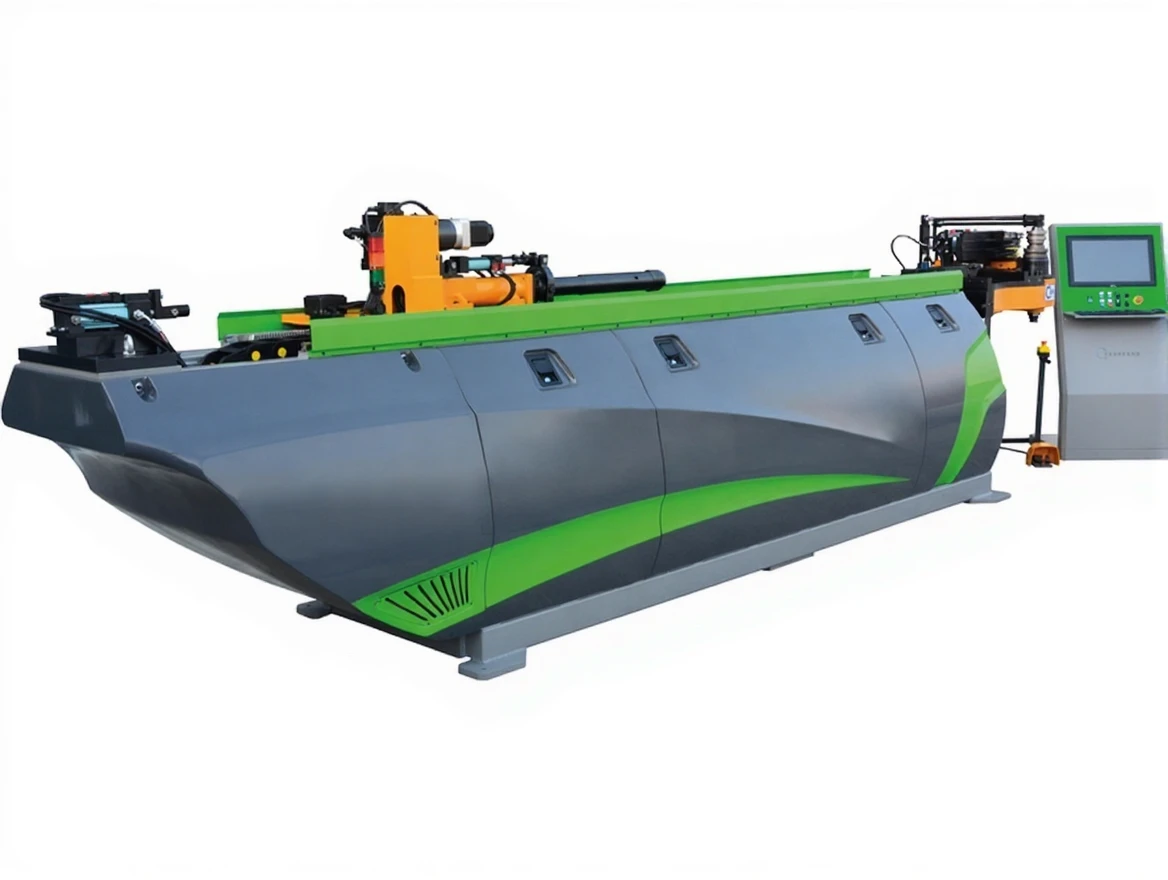

Cesurbend Cesur-38 | 38⌀ 5 Axis CNC Pipe and Profile Bending Machine

with advanced technology5 axis CNC pipe and profile bending machineIt offers high precision and flexible production capability. This machine, which is used for bending pipes up to 38 mm in diameter and 2 mm wall thickness, appeals to a wide range of uses, from automotive to furniture, from industrial production to the construction sector.

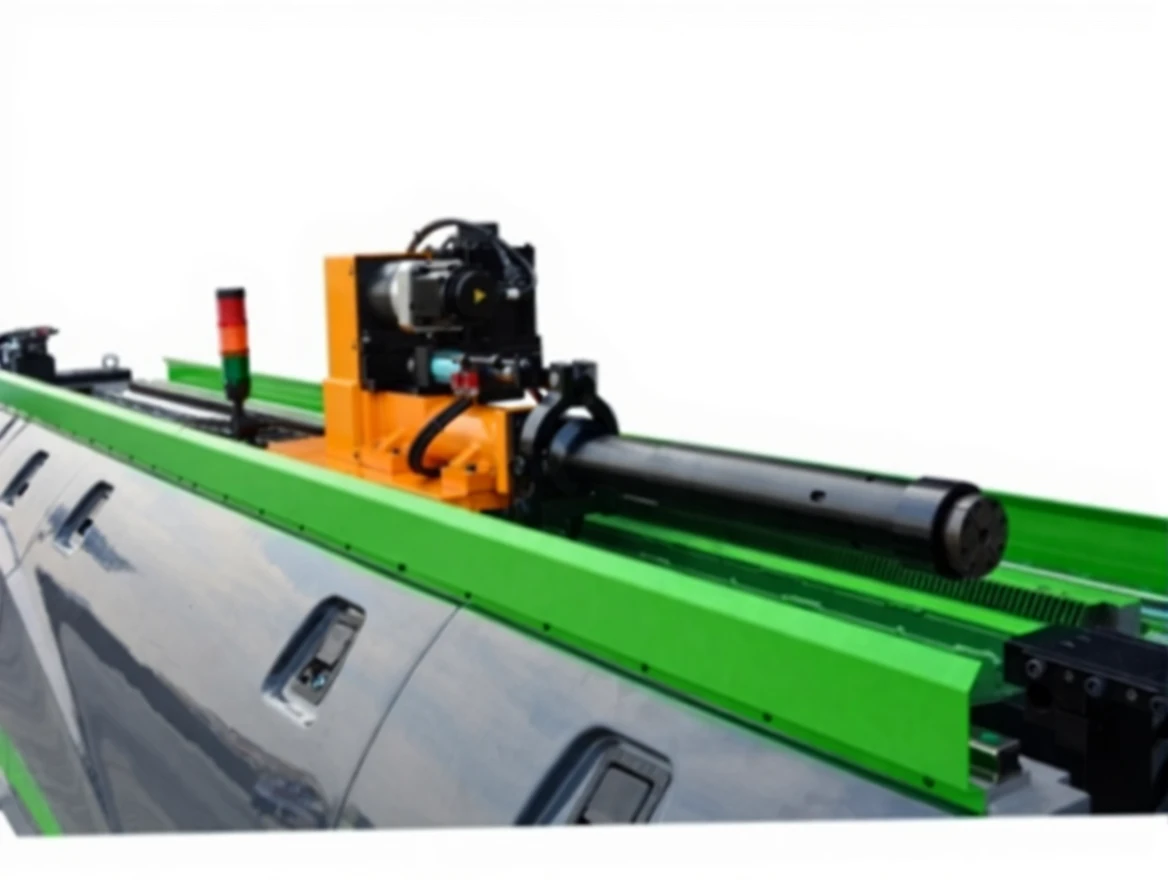

The 21″ touch PC panel provides convenience to operators with its 3D pipe and machine simulation system, automatic pipe length calculation and hole drilling feature. Thanks to the NC control supported 5-axis servo system (Y, B, C, H, V), high-speed, precise and repeatable bending results are achieved. In addition, the ability to resume the program from where it left off in power outages or emergency stops increases production reliability.

Technical Specifications

• Maximum pipe diameter:Ø38mm

• Maximum wall thickness:2mm

• Maximum bending degree:190°

• Bending radius:25 – 180mm

• Max. mandrel pipe length:4000mm

• Pipe length without mandrel:unlimited

• Feeding speed:1500mm/sec

• Rotation speed:180°/sec

• Bending speed:150°/sec

• Sensibility:±0.1mm

• Servo motors: OMRON (5 kW feeding, 0.75 kW rotation, 5 kW bending, 0.75 kW right-left, 1.5 kW up-down)

• Hydraulic system:5.5kW, max. pressure200 bars

• Oil tank capacity:100 liters

• Machine dimensions:1400 x 6200 x 1800mm

• Weight:4250kg

Highlights

• 3D pipe and machine simulation (collision avoidance)

• Spiral and unlimited radius bending possibilities

• Working feature with and without mandrel

• Hydraulic oil cooling system (100 lt)

• Remote assistance and software update support

• Support DXF, STEP and STL formats

• Compliance with CE standards

Areas of Use

Cesurbend Cesur-38 is preferred in productions that require precision and speed:

• automotive industry: Exhaust systems, pipe connections

• furniture production: Metal skeleton and decorative pipes

• Defense and aviation: Special twisting needs

• industrial production: Prototype and mass production lines

• Building: Steel pipe and profile applications
