3800x3800x54 mm Panel Sizing Machine

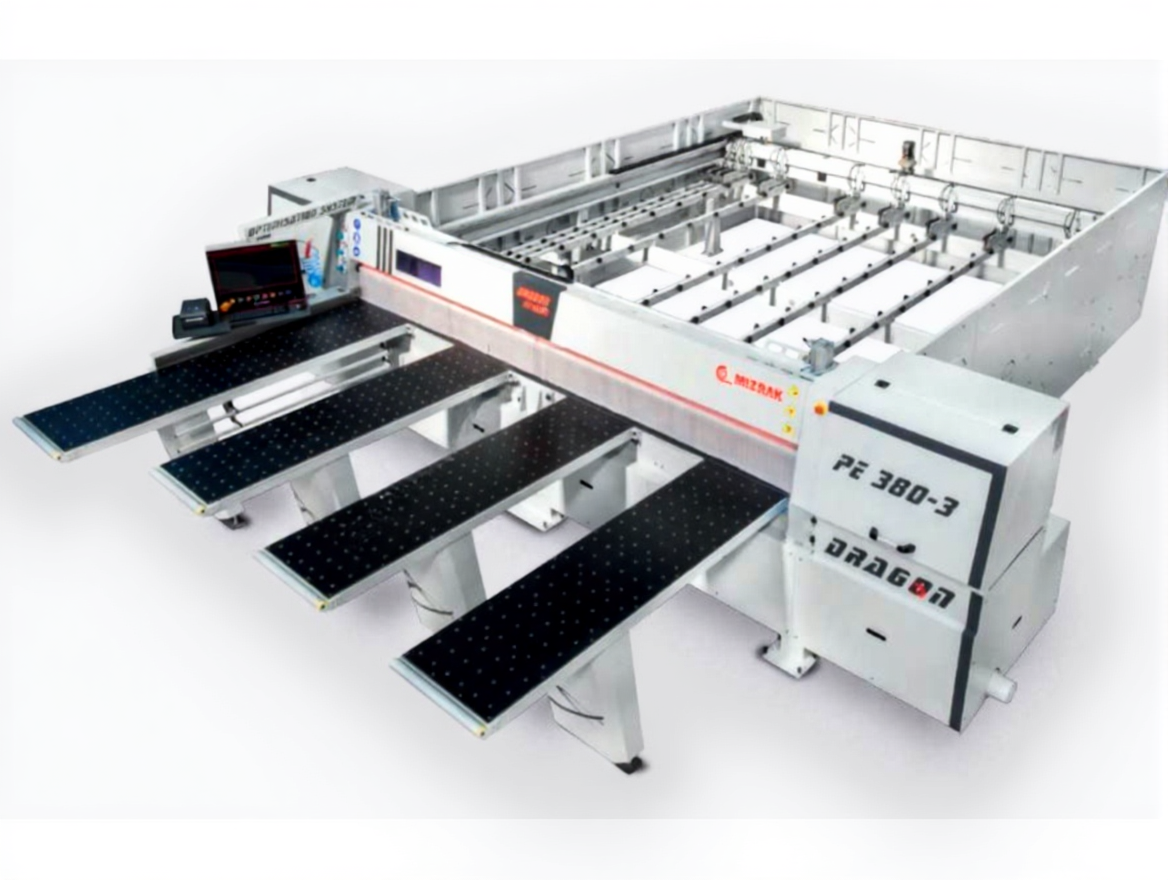

Spear Dragon PE 380-3 – 3800x3800x54 mm Panel Sizing Machine

GENERAL FEATURES
• Nominal Current: 380 – 400 V 50/60 Hz
• Cutting Width: 3800 mm
• Cutting Depth: 3800 mm
• Cutting Height: 54mm
• Cutter Group Empty Speed: Max 80 m/min
• Cutter Group Cutting Speed: Max 50 m/min
• Pusher Group Working Speed: Max 50 m/min
• Cutting Saw Dimensions: Ø 300 x 4.4 mm
• Scoring Saw Dimensions: Ø 200 x 4.4 mm
• Cutter Saw Speed: 4500 Rpm
• Scoring Saw Speed: 5500 Rpm
• Cutting Saw Engine Power: 7.5 kW
• Scratch Saw Engine Power: 1.5 kW
• Pusher Servo Motor Power: 2 kW
• Snail Fan Motor: 4 kW
• Cutter Group Dust Extraction Pipe Diameter (Bottom Outlet): Ø 120mm
• Top Press Dust Extraction Pipe Diameter (Top Outlet x 3): Ø 100 mm
• Machine Working Area: 46 m²
• Mains Voltage: 400 V -50 Hz
• Total Electricity: 25kW
• Machine Dimensions: 6210×7500 x1750mm
