38X3mm 5 Axis Mandrel Pipe Bending Machine Controlled by CNC

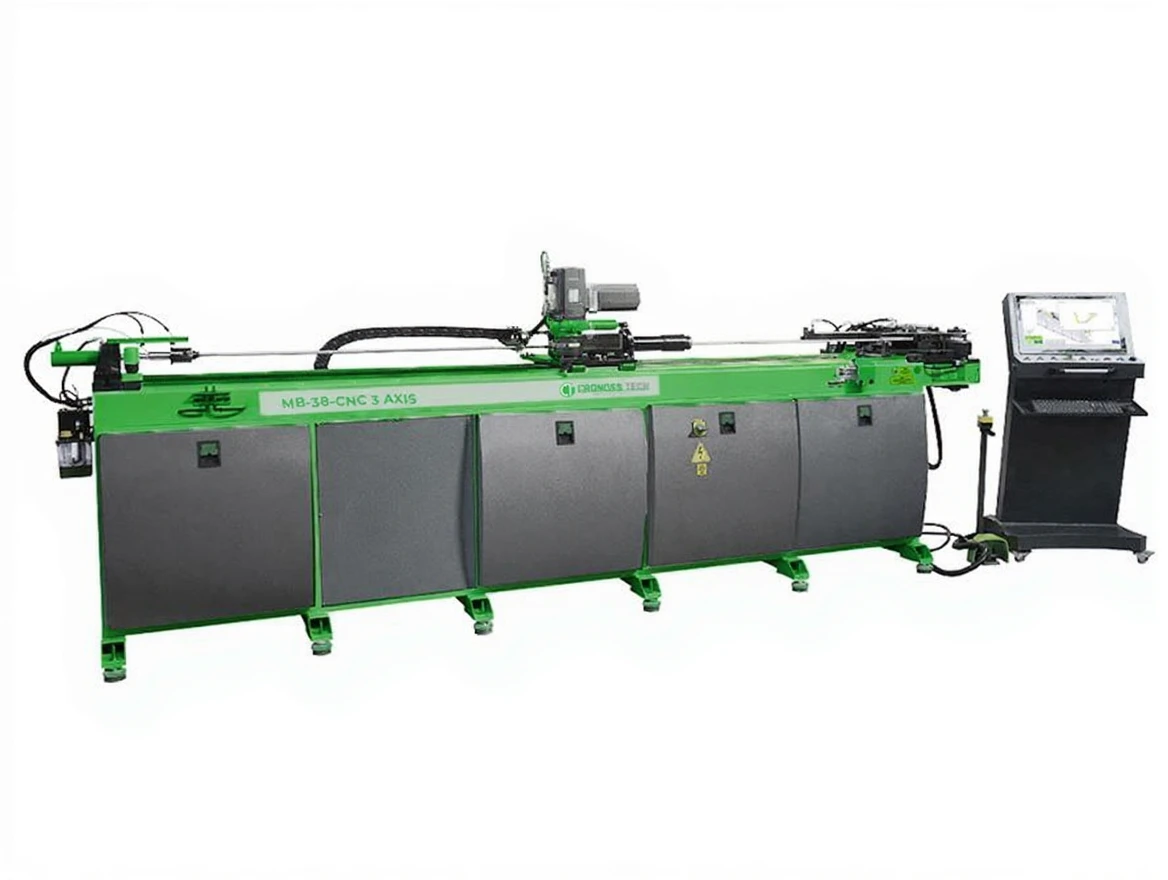

MB 38 CNC / 5 Axis Mandrel Tube Bending Machine

⚙️ Standard Features

• 1 set of bending mold according to customer's request

• 5 axis servo control system (Y – B – C – H – V)

• Servo motorized feed axis

• Servo motorized rotation axis

• Servo motorized bending axis

• Servo motorized H and V axes

• Reducer-driven bending system (38 – 51 – 65)

• Mobile 21" color screen CNC control unit

• Bending with 3D simulation

• Automatic email sending of detailed work reports

• Tracking of daily / weekly / monthly total production amount

• Calculation of total material length to be used

• Estimation of bending time

• Automatic conversion of X-Y-Z data to Y-B-C axes

• Remote assistance and service connection

• Portable foot pedal with emergency stop

• Manual and automatic bending modes

• Possibility of mandrel and mandrel-free bending

• Safety sheet with switch behind the bending head

• Automatic mandrel lubrication system

• Hydraulic clamping system

• Hydraulic mandrel

• Hydraulic support

• Hydraulic linear slider system

• Hydraulic pens

• Hydraulic oil cooler

• Electrical panel with safety lock and key panel lock

• Electrical panel cooler

• Overload protection system

🔩 Optional Features

• Spare bending mold set according to desired dimensions

• Servo bending (38 – 51 – 65)

• Safety mat (750 × 1000 mm)

• Safety mat (1000 × 1500 mm)

• Hydraulic oil heater

• Extra mandrel length (per meter)

• Duckbill attachment and articulated mandrel

• Automatic mandrel lubrication system (38 – 51 – 65)

📊 Technical Specifications

• Max. Pipe Diameter: Ø38 × 3 mm

• Max. Bending Radius: 250 mm

• Max. Bending Angle: 190°

• Number of Axes: 5 (Y – B – C – H – V)

• Feed Axis (Y): Servo

• Rotation Axis (B): Servo

• Bending Axis (C): Servo

• Auxiliary Axes (H – V): Servo

• Hydraulic Operating Pressure: 50 – 200 bar

• Max. Material Length: 3000 mm

• Rotation Precision: ±0.1°

• Control Unit: CNC – 21" color touch screen

• Total Motor Power: 11 kW

• Machine Length: 5500 mm

• Machine Width: 1300 mm

• Machine Height: 1600 mm

• Machine Weight: ~2250 kg
