4 10 Mm Diameter 2600 Mm Wire Mesh Welding Machine
| Brand | Meshmatic |
|---|---|
| Model Type |
HKM26S10 |

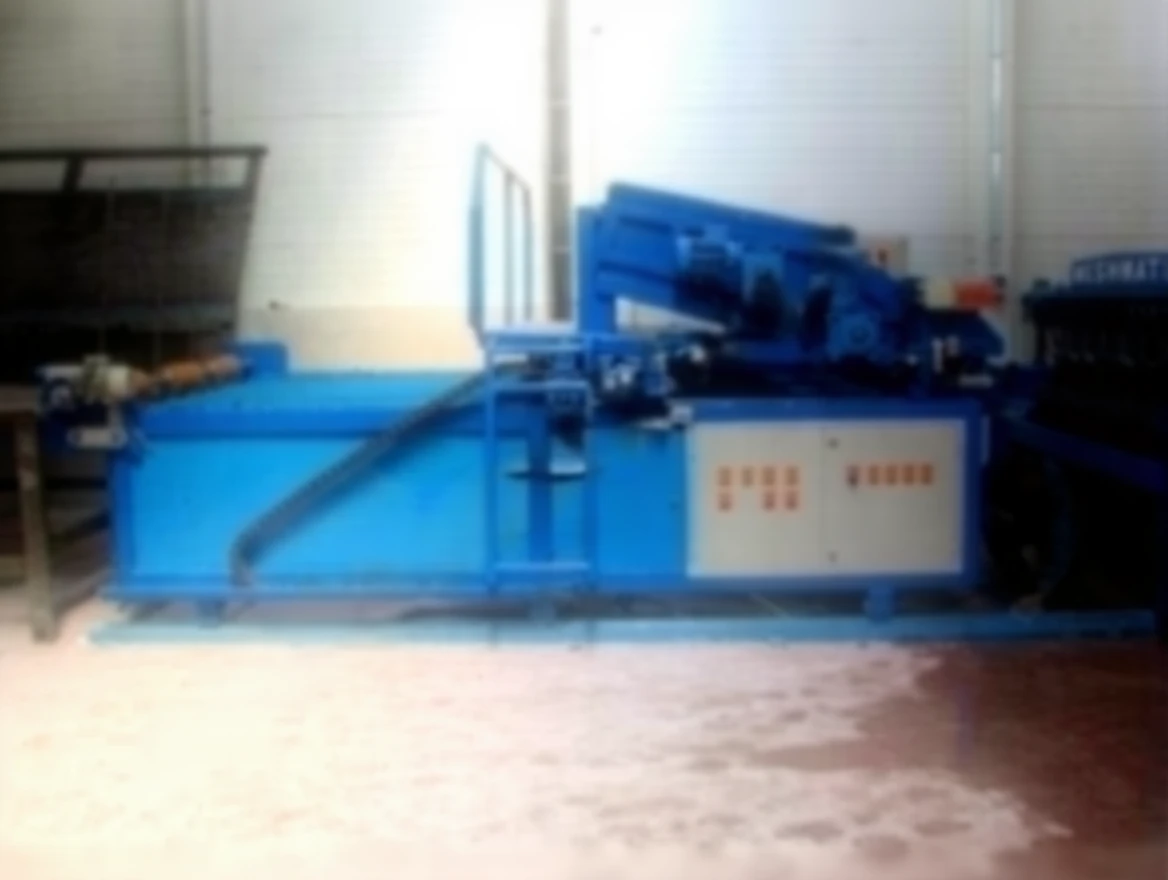

2600 Mm Wire Mesh Welding Machine 4-10 mm diameter
MESHMATIC S SERIES HKM26S10
MESHMATIC S SERIES HKM26S10 Technical Specifications
Capacity:
Machine speed: 70 strokes / minute
Wire Mesh Width: 2600mm
Mesh Length: 6000mm
The bar diameter is 4-10mm
Length bar diameter 4-10mm
Max eye pitch 50-300mm (from operator panel)
Length bar range: 75-1mm with manual adjustment
Machine Components
1) LENGTH BAR SLIDING MECHANISM
2)WELDING UNIT
3) THROW THE TOP STICK
4) MESH DRAWING
5) MATTRESS THROWING
6) AUTOMATION PANEL
1) The length bars placed in the channels are fed into the machine by a trolley.
It is possible to enter 24 height bars.
When welding 8mm, a maximum of 18 rods are entered.
rods nozzles centers
|
Sliding system: |
Manual Nozzle: 24 pieces |
2) It consists of lower electrode, upper electrode and 9 transformers of 120 KVA.
The length rods coming from the sliding unit and the width rods coming from the throwing unit are held together by the magneto and the welding pistons are held together by the rod.
It is compressed and welded with the energy coming from the transformer.
|
Source Transformer: |
9 units of 120KVA |
|
Welding piston: |
24 pieces of 90mm tandem |
|
Valve: |
24 high flow rate |
|
Source title: |
12 pieces 75-100mm 8 pieces 150mm 6 pieces 200-250mm |
|
Source bar: |
24 water-cooled copper flats |
|
Lower electrode holder: |
24 water-cooled |
|
Magneto: |
6 pieces (with sensor cable connection) |
3) The magnetic bar takes some width bar from the width bar warehouse and drops it into the servo motor chamber.
Servo motor takes the rods one by one and gives them to the throwing unit.
Ejection is done with pistons. He throws his rod towards the magneto.
|
Warehouse capacity: |
600kg |
|
Intermediate hatch engine: |
1.1kw asynchronous |
|
Top bar engine: |
0.75kw Servo |
|
The bar buyer: |
4-8mm adjustable |
|
Stick shooter: |
6 pieces |
4) The mesh pulling system is carried out by a trolley walking on a servo motor controlled liner slide.
The pliers grab the wicker at its bar and pull it step by step.
|
Traction engine: |
Servo |
|
Car Movement: |
2700mm |
|
Pliers: |
6 pneumatics |
5) It compresses the mat plate through rubber rollers and removes it from the machine.
|
Launch engine: |
0.75kw asynchronous |
|
Launch roll: |
8 pieces covered with rubber |
6) There are 9 800Amp disc thyristor welding units inside the panel.
PLC and motor control systems are compatible with each other.
|
PLC: |
Panasonic – Mitsubishi |
|
Operator panel: |
Delta-Mitsubishi |
|
Asynchronous Drives: |
Mitsubishi |
|
Servos: |
Mitsubishi |
|
Switchgear: |
Schnider |
|
Source system: |
9 pieces with transistor |
