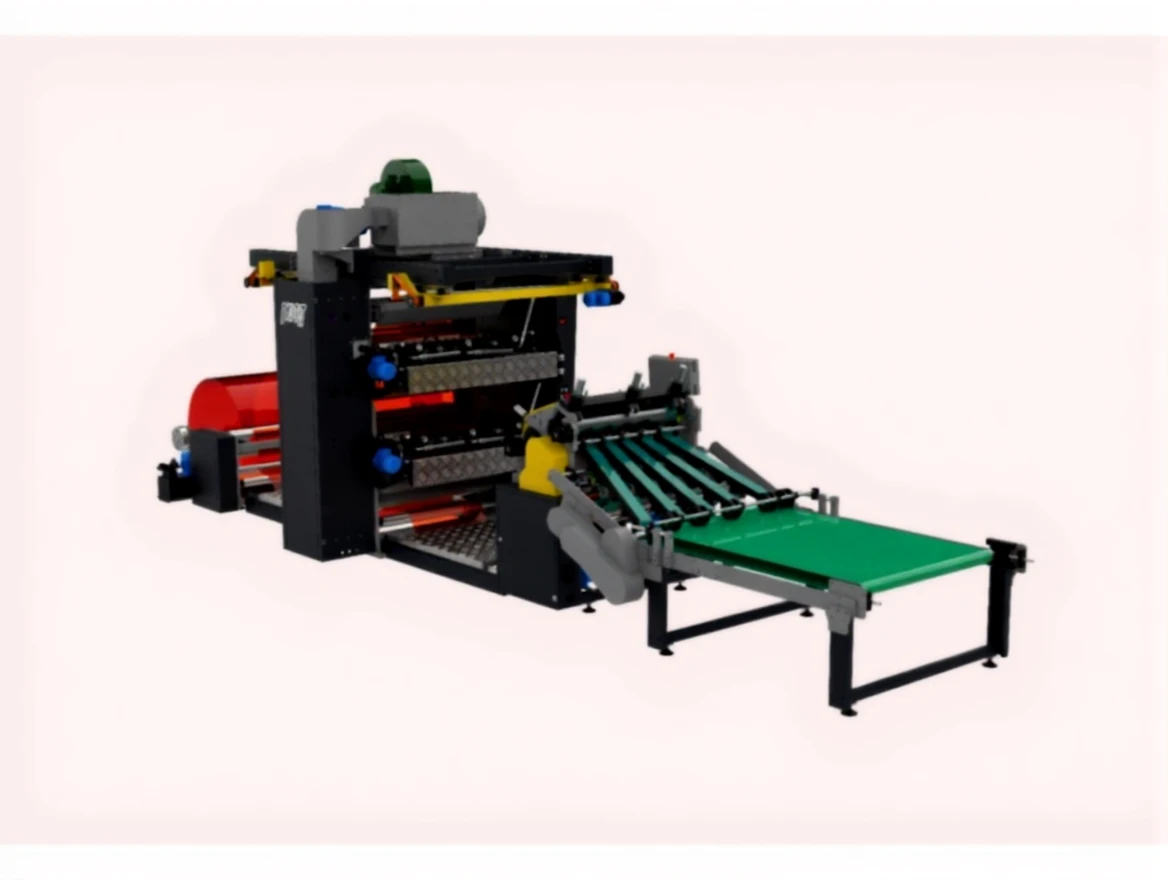

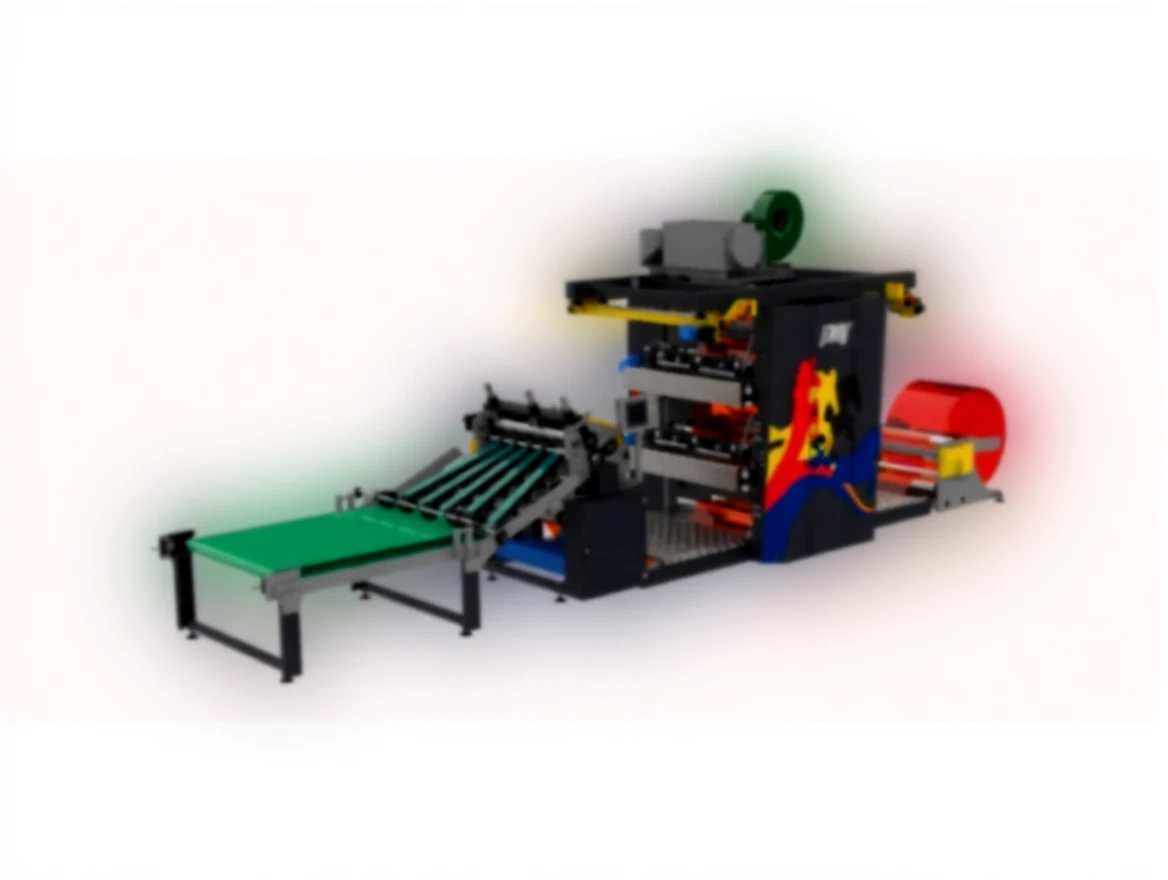

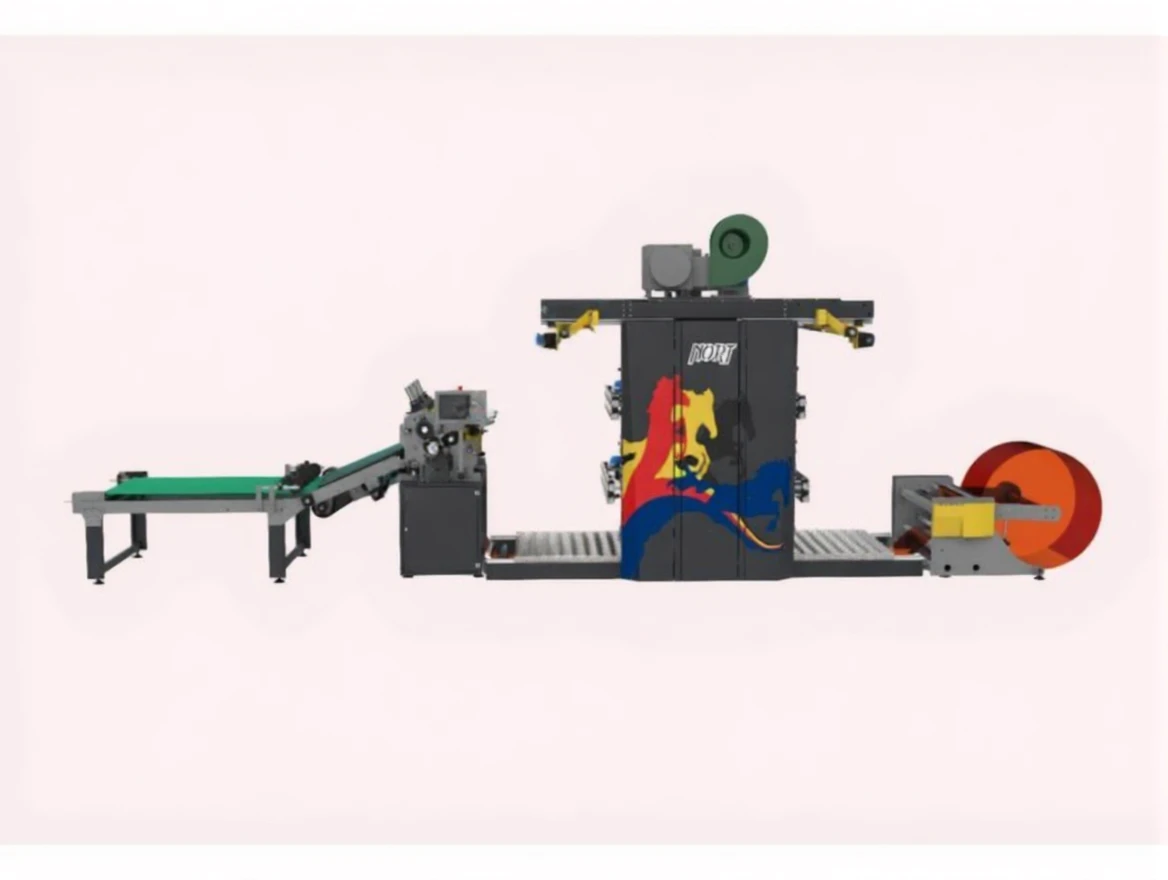

4 Color Rotary Printing Cardboard Paper Cutting Machine

Comet 1104 4 Color Rotary Printing Cardboard Paper Cutting Machine

WORKABLE PRODUCT WIDTH            :          1250 mm

WORKABLE PRINTING WIDTH :          1200 mm

PRINTING UNIT: 4 Colors

SOLVENT TENSION                                 :          Min 25 – Max 400 Nm

PRINTING CAPABILITY             ::          4 0

PRINT REPEAT: 250 – 750 mm

GEAR Pitch: 5 mm

PLATE THICKNESS: 1.14 mm

MACHINE MECHANICAL SPEED                          :          120 m/min

PRINTING SPEED: 120 m/min

1 Solvent Unit (Coupled with Main Body)

Transducer ruler ballerina and proportional controlled air brake

Automatic edge control (ultrasonic control)

Max Solvent Diameter 1200 mm

hydraulic loading and unloading

ROTARY KNIFE

· PRODUCT CUTTING SYSTEM    :          DOUBLE BLADE ROTARY CUT

· PRODUCT PAPER WIDTH: 1050 MM

· PRODUCT PAPER SPEED            :           120 Mt/min

· CUTTING TO LENGTH:          MAGNETIC BLADE ON MAGNETIC TANBURY

· CUTTING LENGTH                       :          518-628 MM (suitable for all glasses)

· LENGTH ADJUSTMENT            :           SERVO CONTROL

· PRODUCT DRAWING SYSTEM :          SERVO MOTOR

· BLADE PRESSURE SYSTEM     :          HYDRAULIC CONTROL
