4 Color Rotary Printing Cardboard Paper Cutting Machine

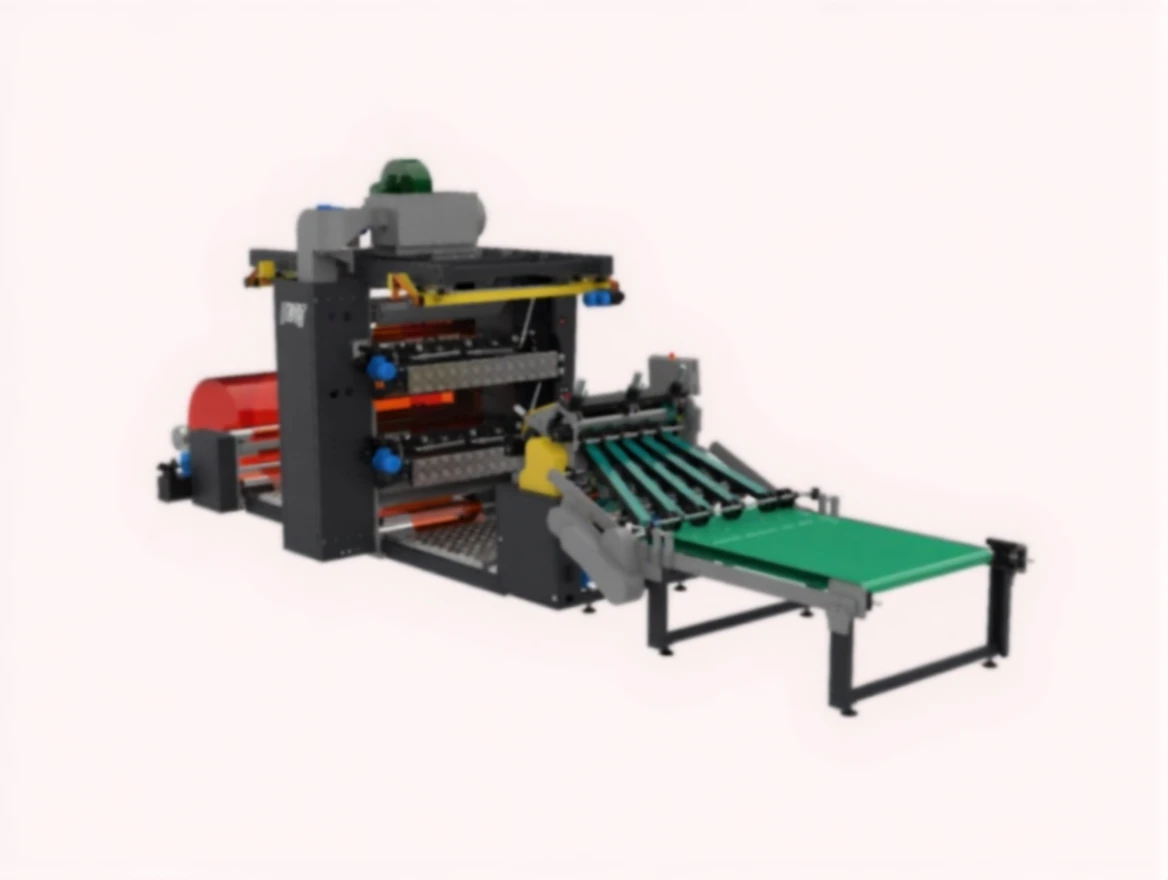

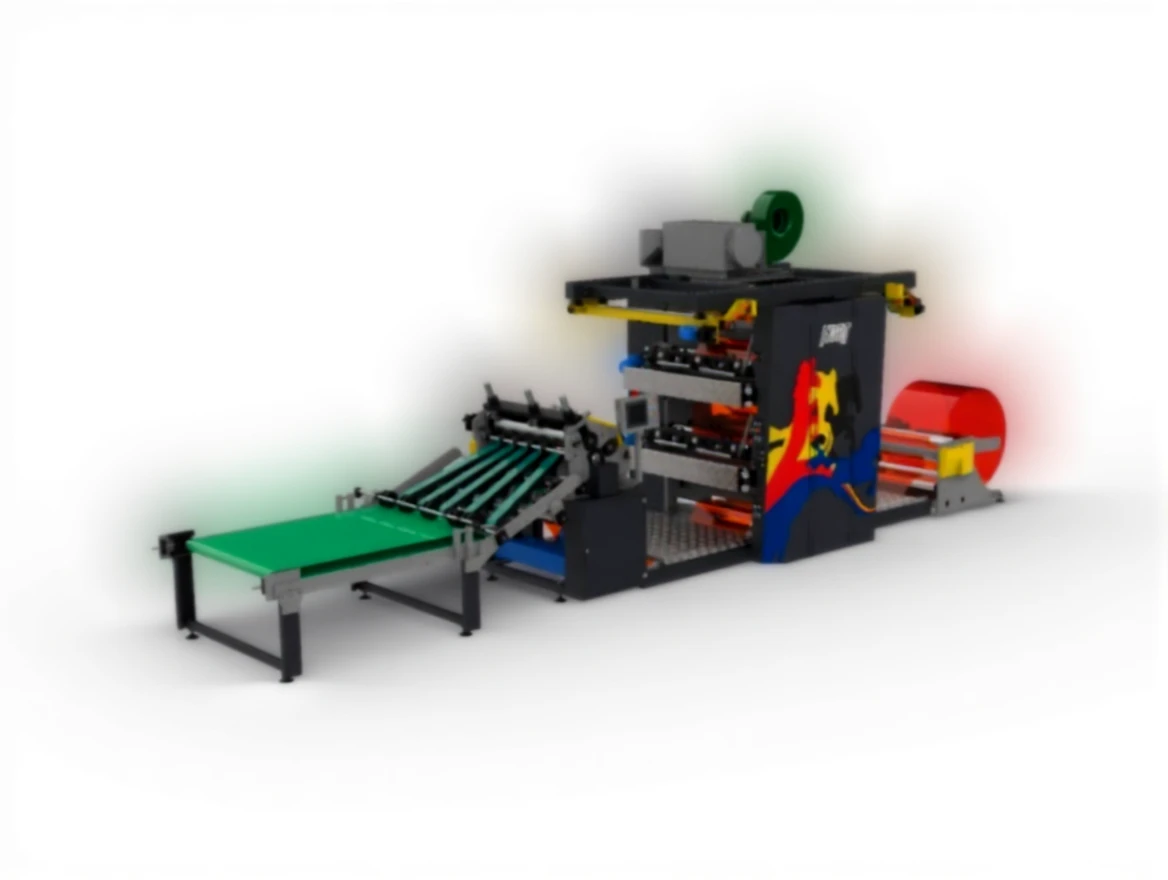

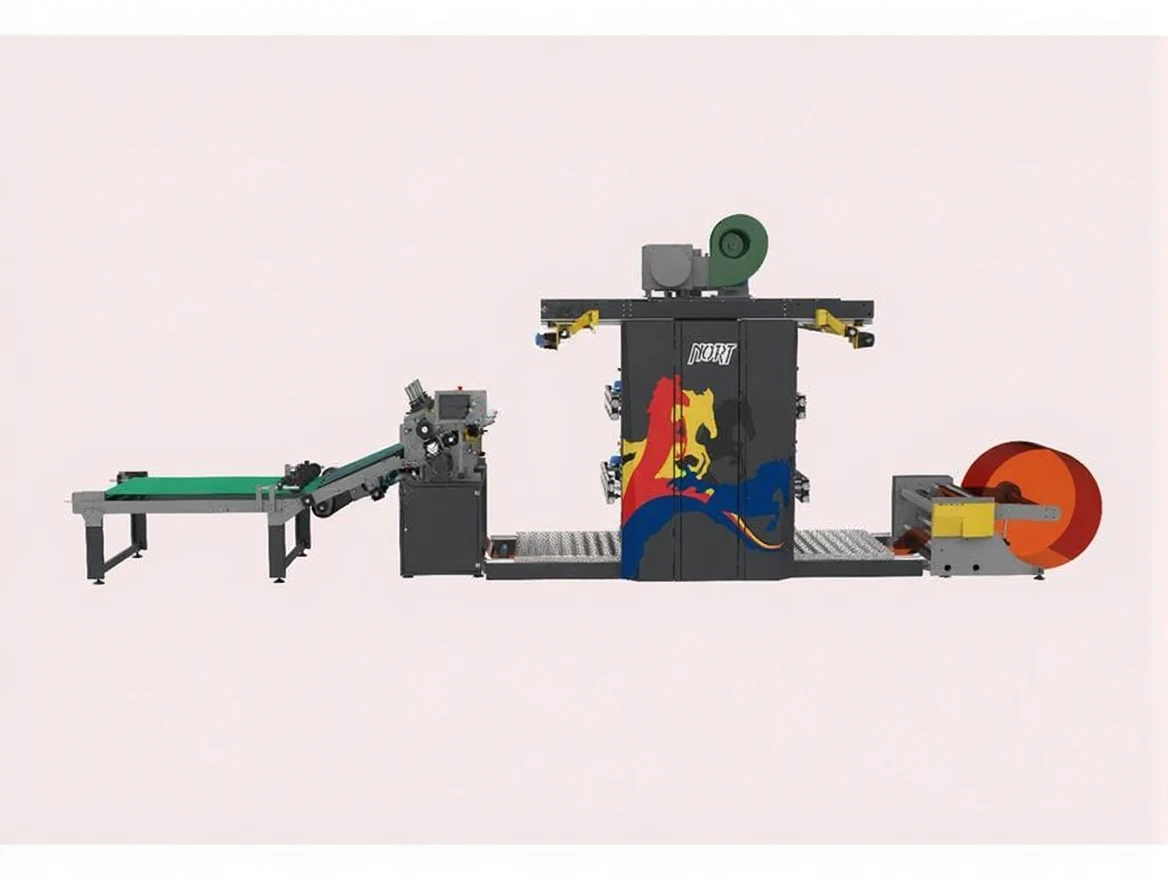

Comet 1104 4 Color Rotary Printing Cardboard Paper Cutting Machine

MAXIMUM PRODUCT WIDTH             :          1250 mm

MAXIMUM PRINT WIDTH             :          1200 mm

PRINTING UNIT                                         :          4 Colors

RESOLUTION TENSION                                 :          Min 25 – Max 400 Nm

PRINTING CAPACITY             :          4+0

PRINT REPEAT                                        :          250 – 750 mm

GEAR PITCH                                              :          5 mm

PLATE THICKNESS                                      :          1.14 mm

MACHINE MECHANICAL SPEED                          :          120 m/min

PRINTING SPEED                                                :          120 m/min

1 Piece Resolution Unit ( Main Body Coupled )

Transducer ruler ballerina   and proportional controlled air brake

Automatic edge control (ultrasonic control)

Max Resolution Diameter 1200 mm

Hydraulic loading unloading

ROTARY BLADE

· PRODUCT CUTTING SYSTEM    :          DOUBLE BLADE ROTARY CUT

· PRODUCT PAPER WIDTH :          1050 MM

· PRODUCT PAPER SPEED            :           120 Mt/min

· LENGTH CUTTING                        :          MAGNETIC DRUM TOP MAGNETIC BLADE

· LENGTH CUTTING                       :          518-628 MM (suitable for all cups)

· LENGTH ADJUSTMENT            :           SERVO CONTROL

· PRODUCT PULLING SYSTEM   :          SERVO MOTOR

· BLADE PRESSURE SYSTEM     :          HYDRAULIC CONTROL
