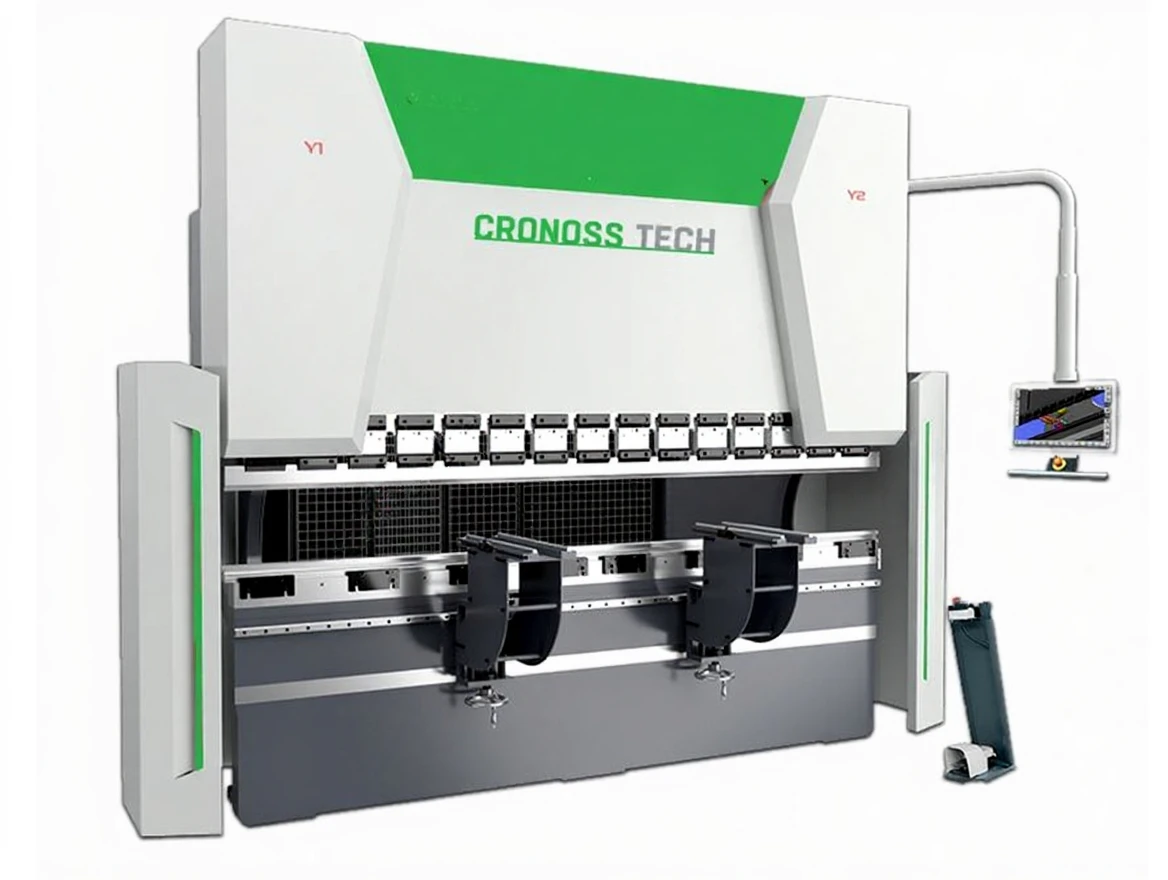

4 Meter X 220 Ton – Hydraulic Press Brake

HPB C [ PHONE HIDDEN ] – CNC HYDRAULIC PRESS BRAKE

STANDARD FEATURES

• CNC controlled hydraulic press brake

• Y1 – Y2 – X – R axes CNC controlled (4 axes)

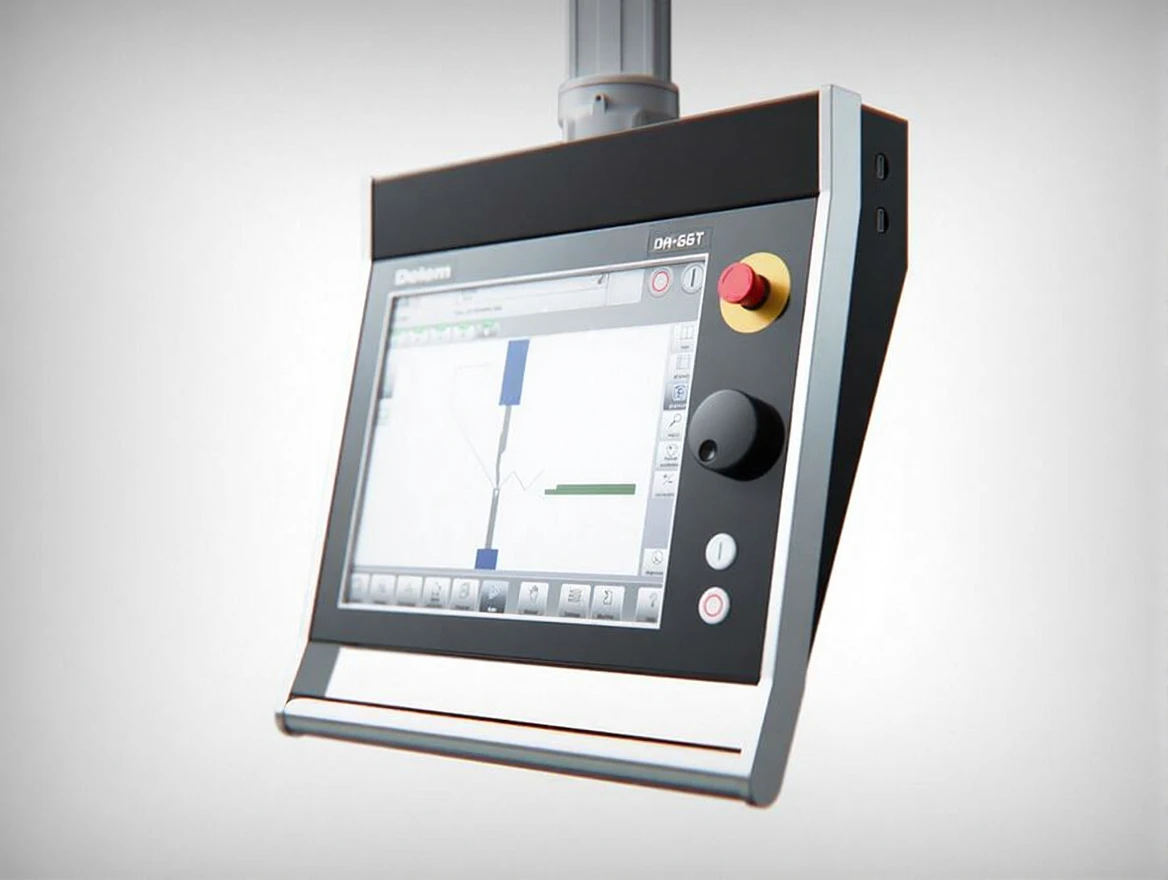

• ESA S640 CNC control unit – 15” touch, 2D graphic screen

• Offline PC programming feature

• Heavy-duty steel body with stress relief treatment

• CNC controlled synchronized cylinder system

• 310 mm stroke

• 410 mm throat depth

• ±0.03 mm precision servo motorized back gauge

• Back gauge movement distances:

  • X axis: 750 mm

  • R axis: 250 mm

• Ball screw shafts and linear guide back gauge system

• Sliding type front support arms

• Manual crowning system (wedge type)

• European type narrow lower table

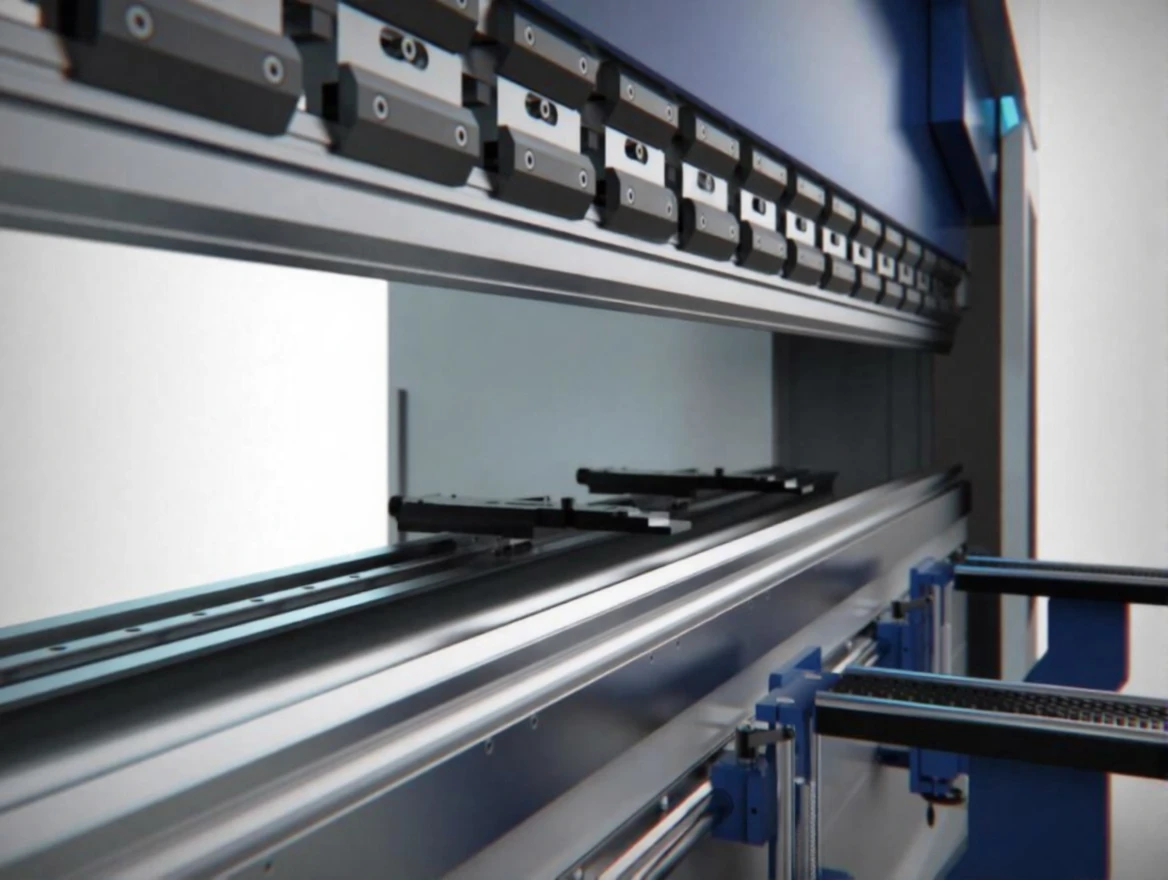

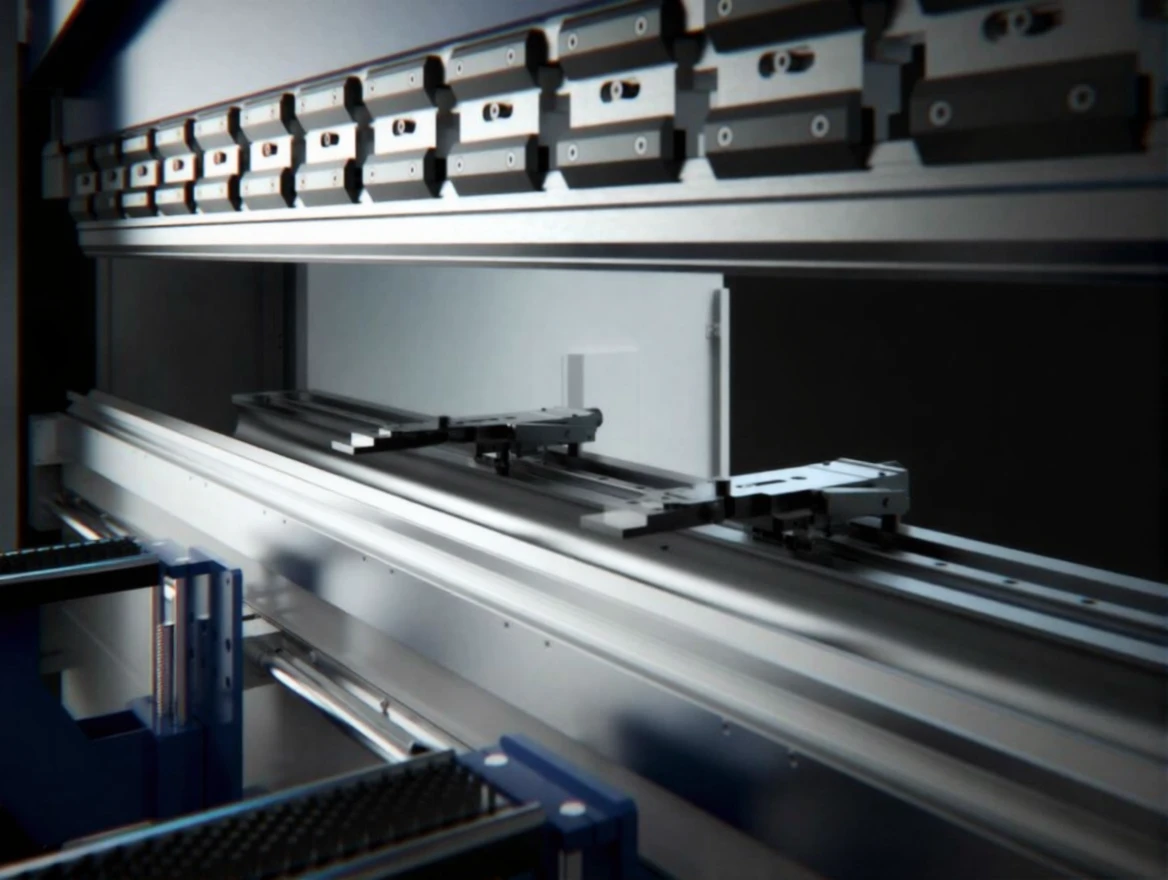

• European type quick upper die clamping system (Promecam type)

• High precision linear scales

• Standard upper die (H: 67 mm – 85° – R: 0.8)

• Standard lower die (60×60 mm – 4 channel V: [ PHONE HIDDEN ] mm)

• Laser beam front safety system

• LED lighting

• Foot pedal

• Emergency stop buttons

• Safety equipment compliant with CE standards

OPTIONAL FEATURES

• Starting from X + R 4 / 6 / 8 axis back gauge systems

• Increasing the back gauge X axis distance to 1000 mm

• Additional back gauge fingers

• Hydraulic upper and lower die clamping systems

• Motorized crowning system

• Wide lower table for multi-channel dies

• Front safety laser system (AKAS or DSP)

• Rear safety light barrier

• CNC controlled sheet front support systems

• Automatic angle measurement system

• Oil cooler or oil heater

• Air-conditioned cooling system for electrical cabinet

• Deep throat option

TECHNICAL SPECIFICATIONS (C [ PHONE HIDDEN ])

• Bending Force: 220 tons

• Bending Length: 4100 mm

• Distance Between Walls: 3600 mm

• Stroke: 310 mm

• Lower – Upper Jaw Range: 515 mm

• Throat Depth: 410 mm

• Table Height: 965 mm

• Back Gauge Axes: X = 750 mm / R = 250 mm

• Approach Speed: 180 mm/s

• Working Speed: 140 mm/s

• Return Speed: 10 mm/s

• Main Motor Power: 18.5 kW

• Oil Tank Capacity: 290 lt

• Machine Weight: ~13,650 kg

• Machine Dimensions (UxGxY): approximately 6180 × 2650 × 3040 mm

🔒 PRODUCTION & SUPPLY NOTE (FIXED USE)
This machine is produced in Turkey. Configuration, sales, and after-sales processes are conducted by CRONOSS TECH.
