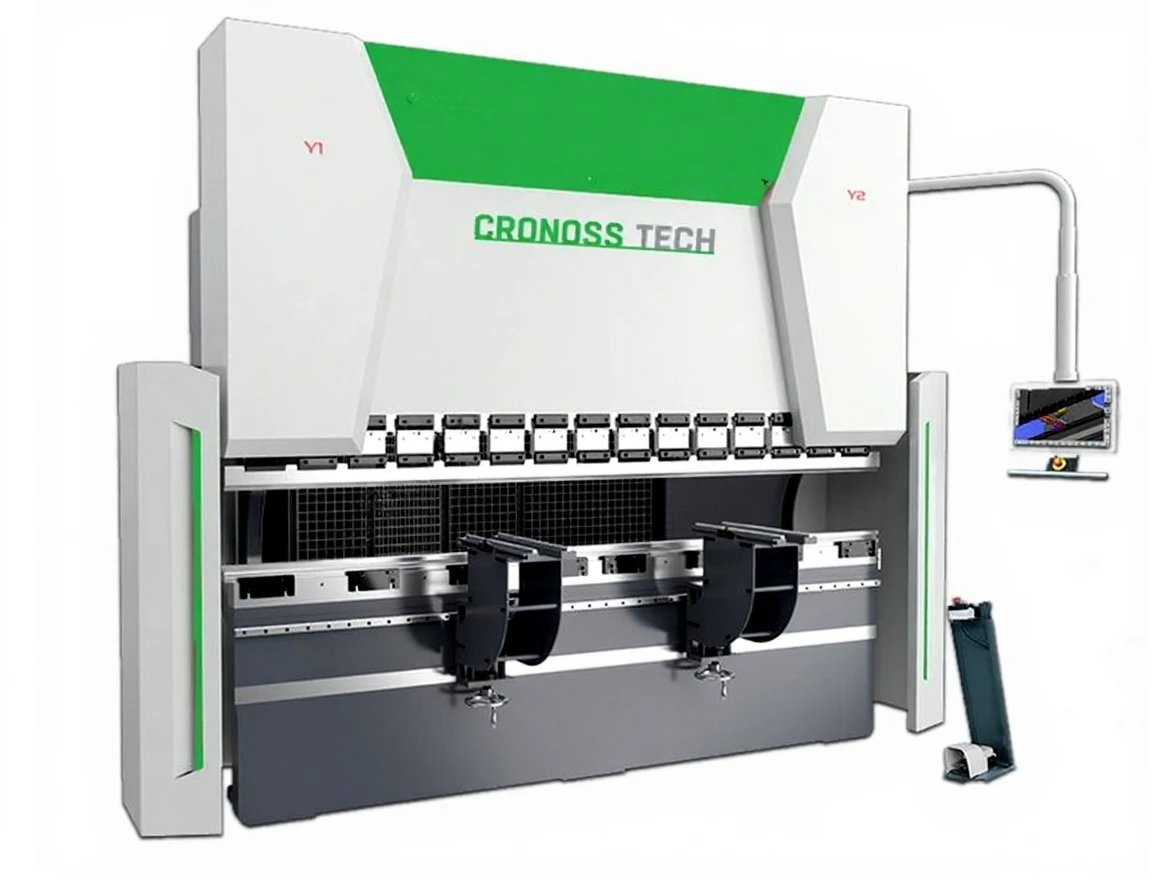

4 Metre X 220 Ton – Hidrolik Abkant Pres

HPB C [ PHONE HIDDEN ] – CNC HYDRAULIC PRESS BRAKE

STANDARD FEATURES

• CNC controlled hydraulic press brake

• Y1 – Y2 – X – R axes CNC controlled (4 axes)

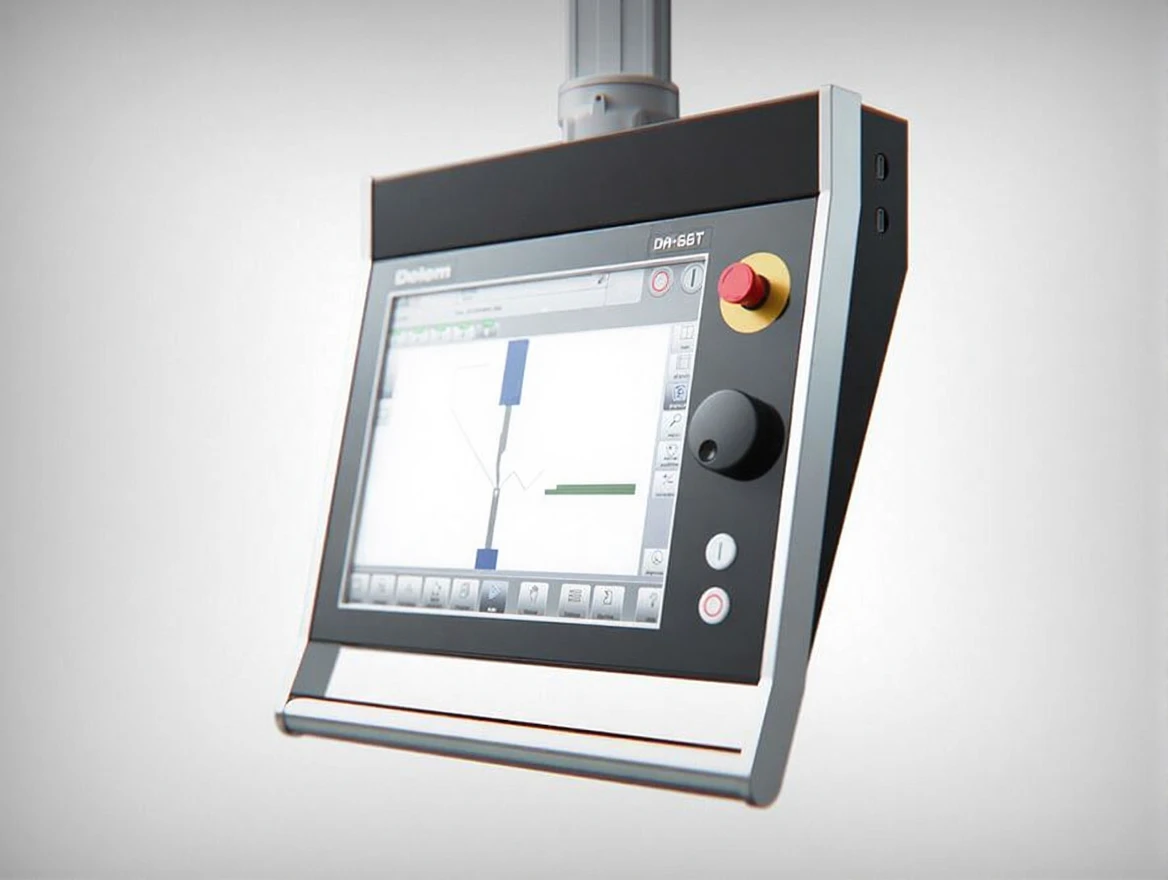

• ESA S640 CNC control unit – 15″ touchscreen, 2D graphic display

• Offline PC programming feature

• Heavy duty steel body with stress relief treatment

• CNC controlled synchronized cylinder system

• 310 mm stroke

• 410 mm throat depth

• ±0.03 mm precision servo motorized backgauge

• Backgauge movement distances:

  • X axis: 750 mm

  • R axis: 250 mm

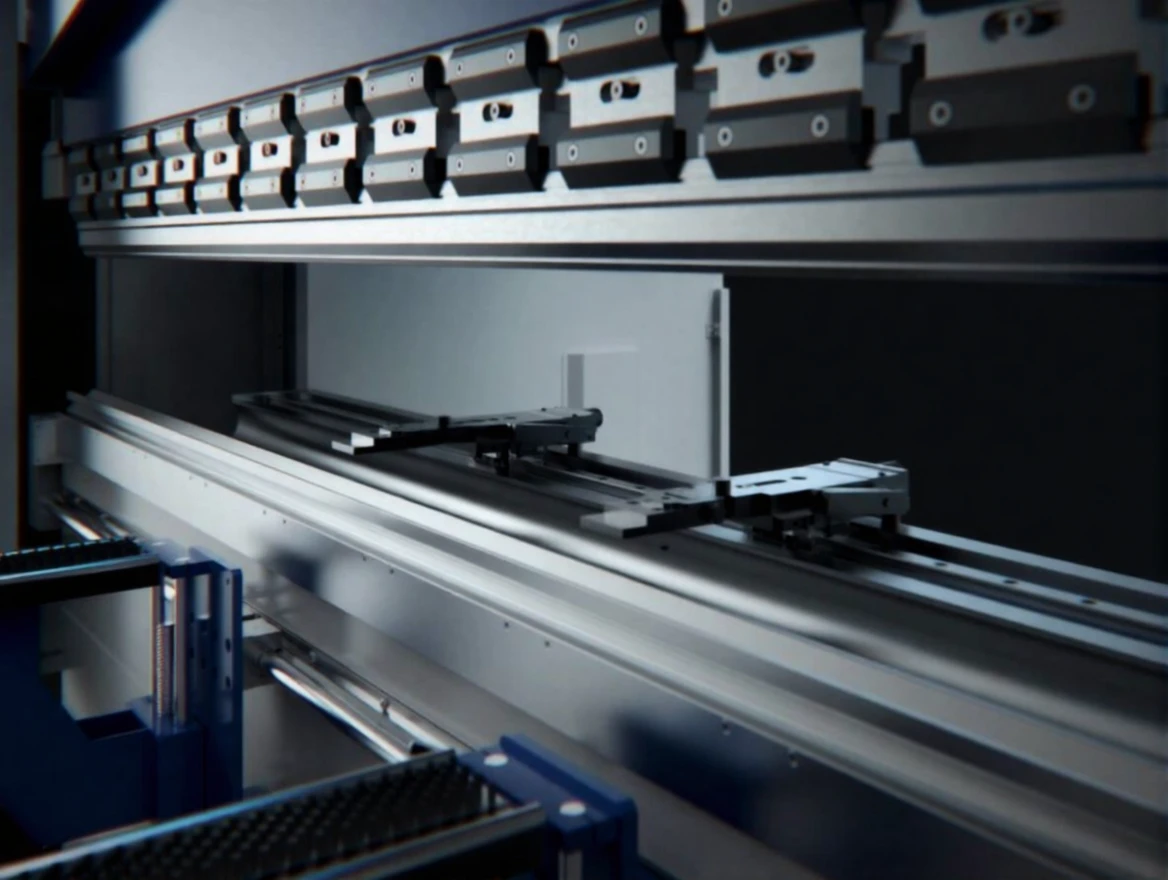

• Ball screw and linear guide backgauge system

• Sliding type front support arms

• Manual crowning system (wedge type)

• European type narrow lower table

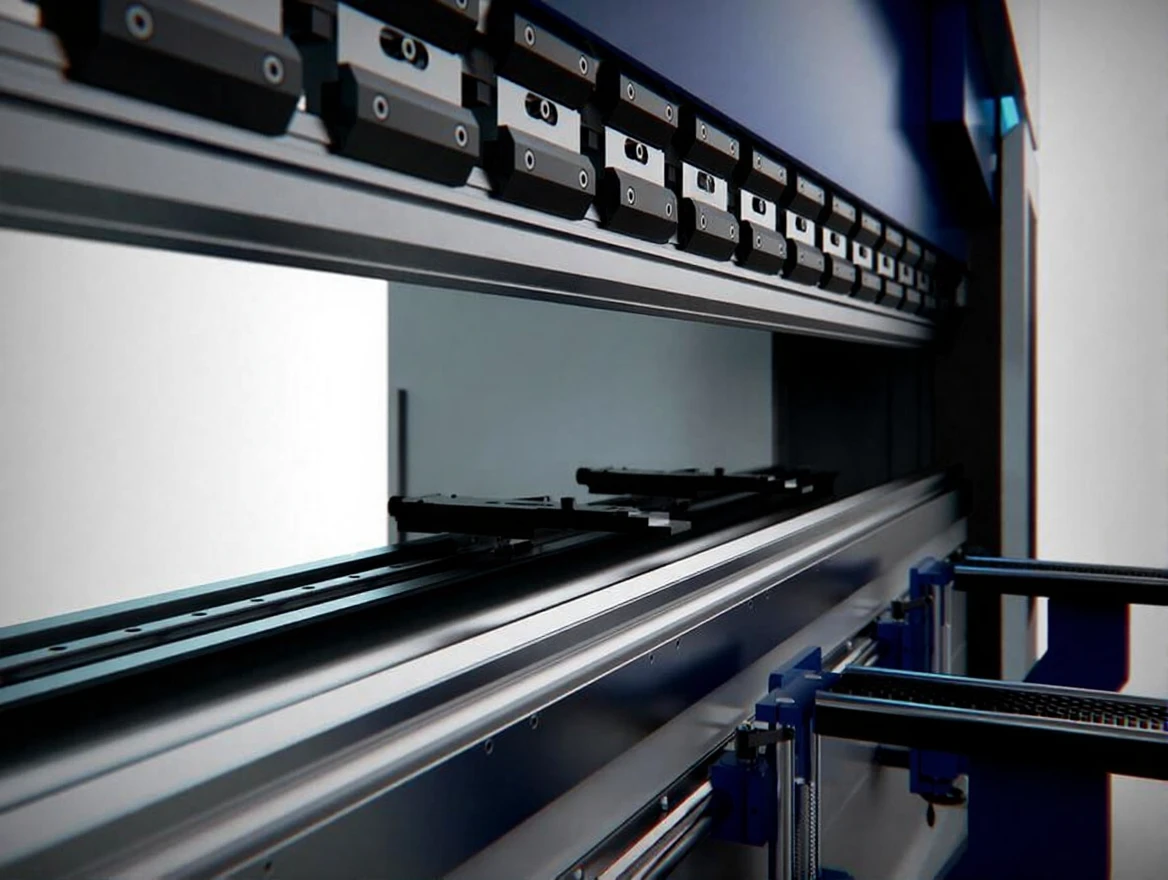

• European type quick upper tool clamping system (Promecam type)

• High precision linear scales

• Standard upper tool (H: 67 mm – 85° – R: 0.8)

• Standard lower tool (60×60 mm – 4 channel V: [ PHONE HIDDEN ] mm)

• Laser beam front safety system

• LED lighting

• Foot pedal

• Emergency stop buttons

• Safety equipment compliant with CE standards

OPTIONAL FEATURES

• Backgauge systems starting from X + R’ 4 / 6 / 8 axis

• Extension of backgauge X axis distance to 1000 mm

• Additional backgauge fingers

• Hydraulic upper and lower tool clamping systems

• Motorized crowning system

• Wide lower table for multi-channel tools

• Front safety laser system (AKAS or DSP)

• Rear safety light curtain

• CNC controlled sheet support systems

• Automatic angle measurement system

• Oil cooler or oil heater

• Electric cabinet with air conditioning system

• Deep throat option

TECHNICAL SPECIFICATIONS (C [ PHONE HIDDEN ])

• Bending Force: 220 tons

• Bending Length: 4100 mm

• Distance Between Walls: 3600 mm

• Stroke: 310 mm

• Bottom – Top Die Clearance: 515 mm

• Throat Depth: 410 mm

• Table Height: 965 mm

• Backgauge Axes: X = 750 mm / R = 250 mm

• Approach Speed: 180 mm/s

• Working Speed: 140 mm/s

• Return Speed: 10 mm/s

• Main Motor Power: 18.5 kW

• Oil Tank Capacity: 290 lt

• Machine Weight: ~13,650 kg

• Machine Dimensions (WxDxH): approximately 6180 x 2650 x 3040 mm

🔒 PRODUCTION & SUPPLY NOTE (REGULAR USE)
This machine is manufactured in Turkey. Configuration, sales, and after-sales processes are managed by CRONOSS TECH.
