4 Optical Zoom Optical Scanning and Measurement System

To evaluate the quality of the bend, you need to create a cross-section of the conductive bend. With a measurement microscope and appropriate analysis software, the micro section can be measured, graded, and documented according to relevant standards or specified customer requirements.

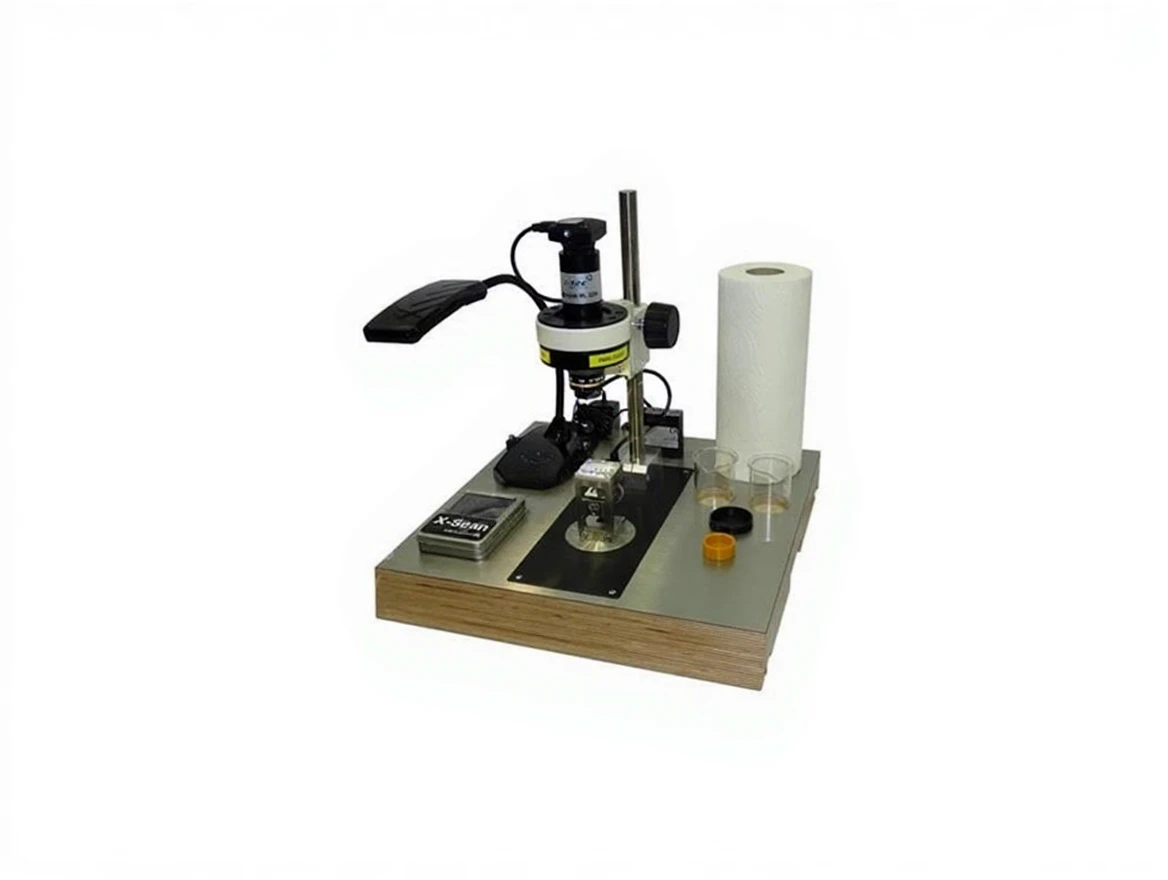

The proven Optical Station ML3204 has four optical zoom levels and an excellent color digital camera with a resolution of 1920 x 1200 pixels. Its good price-performance ratio makes this measurement microscope interesting for occasional use as well.

All our optical stations are mounted on stainless steel laminated MDF boards and include the innovative and comfortable analysis software X-Scan.

Laptop or PC is not included in the standard delivery and must be requested separately.

Performance Features

– High-quality zoom optics VZM 0.75-3x

– Adapts to object sizes from 1.9 x 2.5mm to 7.6 x 9.6 mm

– Minimum magnification factor 0.75x: object size vertical 5 mm, horizontal 6 mm

– Maximum magnification factor 3x: object size vertical 1.1mm, horizontal 1.5mm

– Mechanical click lock

– 2-button microscope mount for focus adjustment (coarse drive)

– LED ring light with Fresnel lens AA 100 mm to illuminate the field of view

– Color digital camera with 1920×1200 pixel resolution USB 3.1.
