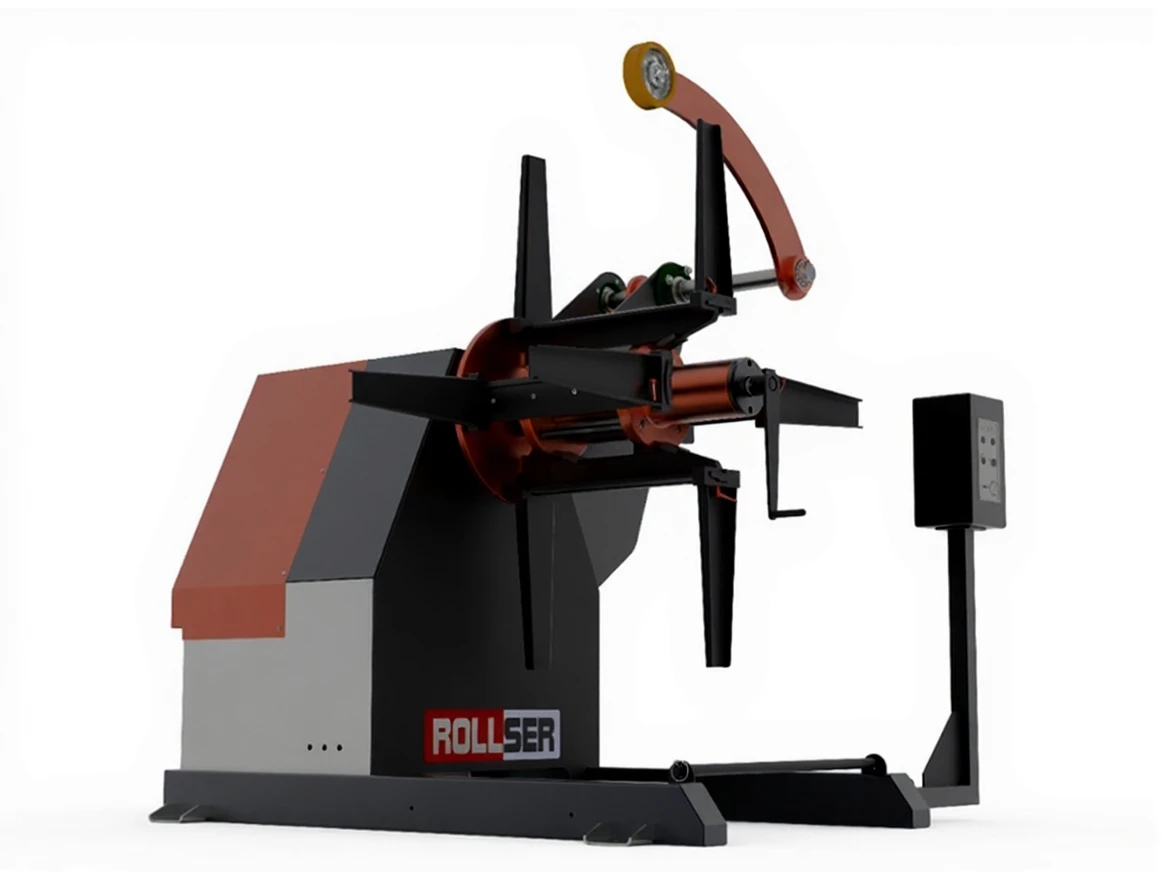

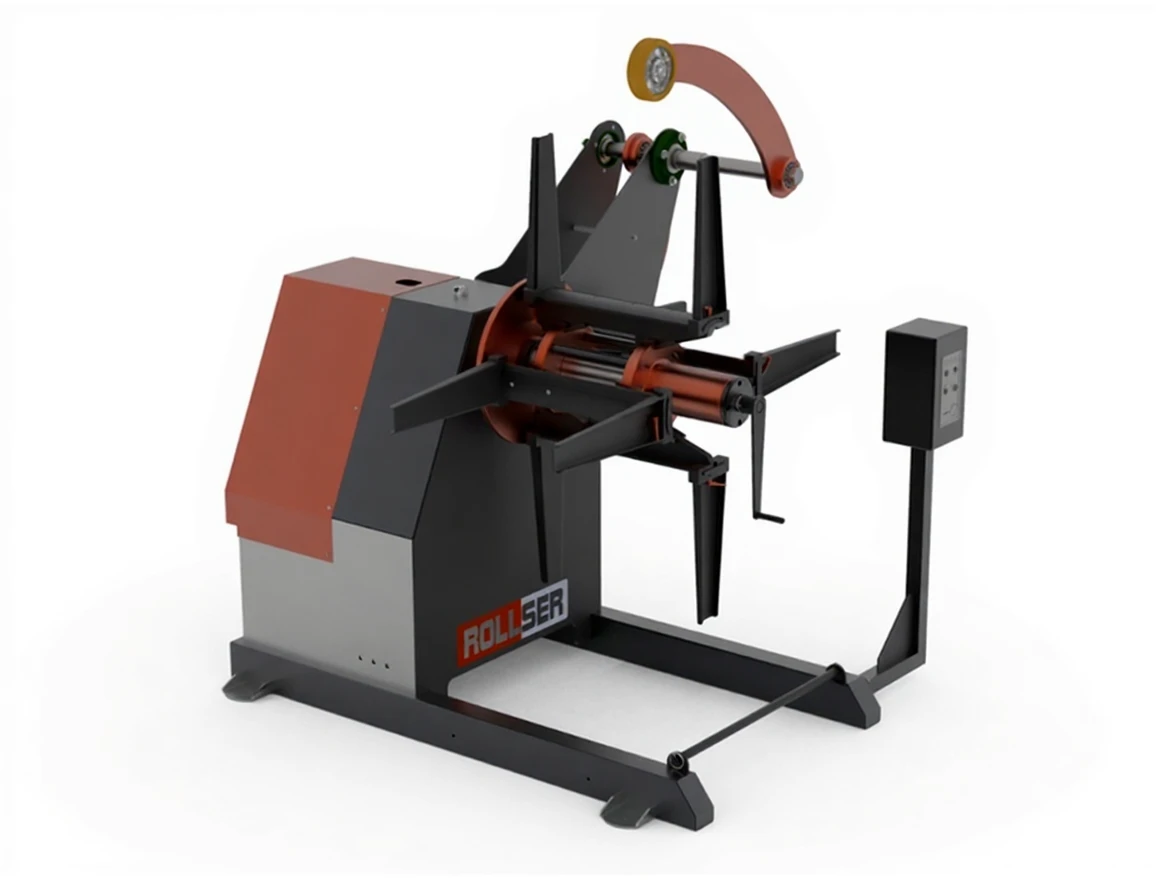

4 Ton Mechanical Sheet Metal Uncoiler
| Brand | Rollser |
|---|---|
| Model Type |
R-RS001 |
Roller 4 Ton Mechanical Sheet Metal Decoiler
Technical Specifications
Our sheet metal decoiler products are produced in different sizes with a roll width between 300mm – 1000mm, a sheet thickness of 3mm, and a carrying capacity of 750kg to 4000kg for roll weight.
Our mechanical sheet metal decoiling machines have motorized sensor-controlled speed control.
Roll Sheet Carrying Capacity: 4000 kg depending on the selected model.
Roll Sheet Width: [ PHONE HIDDEN ] mm depending on the selected model.
External Diameter Working Capacity of the Roll: 1400 mm
Roll Sheet Drum Width Capacity: 20-600 mm
Internal Diameter Clamping Feature of the Roll: Mandrel Slide
Machine Operating Movement: Right – Left
Motor Inverter: Speed Control
Drum Rotation Speed: 14 revolutions per minute.
The roll sheet center clamping system is opened and closed by the operator turning a lever, and the drum rotation speed and stop-start time can be adjusted.
The drum stop-start movement is sensor-controlled with adjustable distance.
