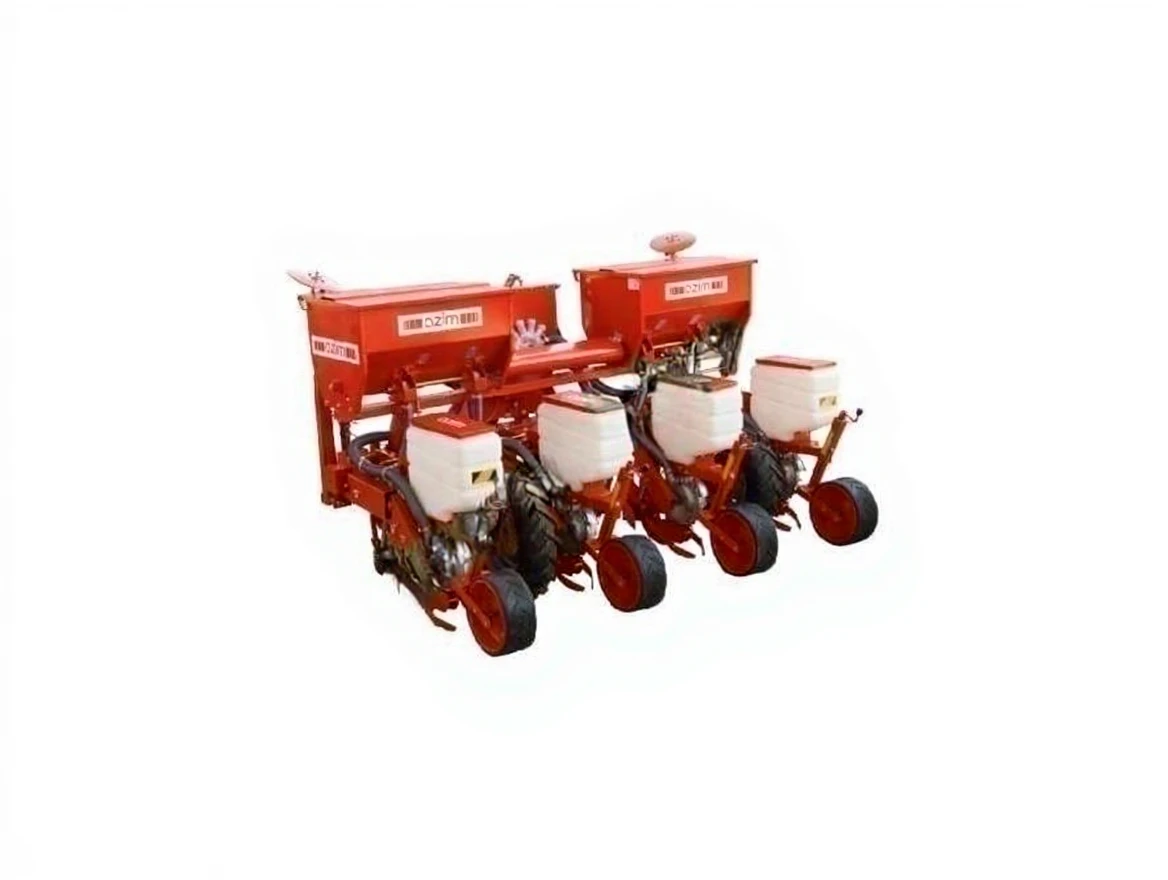

The “Pehlivan” series air seeder is the culmination of over forty years of “sowing machine” experience of Azim Ziraat Aletleri, Türkiye’s leading company in the field of “seeder”. Ax type seed drill, which offers the opportunity to work at a fixed sowing depth as the sowing depth is adjusted from the cover wheels on the back of the units, and takes its name from its solid and strong construction;
- 50 – 75 cm. Adjustable Row Distance
- Strong and robust chassis construction that can withstand all kinds of harsh conditions
- “New Fan Design” with increased suction power
- “Easily Changeable Planting Table” specific to Azim Seeders
- “Ease of Use” specific to Azim Seeders
- “Unloading System” that prevents the units from planting if desired
- Improved and easily adjustable “Gear Box System” to regulate the sowing interval
- “Planter Units” with increased volume and reduced speed for more precise planting
- “Seed Misfire System” with increased sensitivity
- Alloy reinforced “Breaking Axe”
- “Seed Pressure Wheel” that ensures the seed is buried more tightly in the soil
- Optional “Hydraulic Controlled Marker Control System”
- Optional “Seed Counter and Planting Control Electronic Monitor”
With its features, it offers our farmers a perfect planting and high crop yield.
|
PMP Series “PEHLİVAN” Air Seeder Technical Specifications
|
|
CODE
|
Number of Planting Units
|
Distance Between Rows
|
Weight
|
Transport Width
|
Required Power
|
Fertilizer Tank Capacity
|
|
PMP ? 4
|
4
|
50 – 75 cm.
|
570 kg.
|
240cm.
|
60 HP
|
–
|
|
PMP ? 5
|
5
|
50 ? 75cm.
|
660 kg.
|
320cm.
|
75 HP
|
–
|
|
PMP ? 6
|
6
|
50 – 75 cm.
|
750 kg.
|
400cm.
|
85 HP
|
–
|
|
PMPG ? 4
|
4
|
50 – 75 cm.
|
630 kg.
|
240cm.
|
70HP
|
100 kg.
|
|
PMPG ? 5
|
5
|
50 ? 75cm.
|
685 kg.
|
320cm.
|
85 HP
|
120 kg.
|
|
PMPG ? 6
|
6
|
50 – 75 cm.
|
840 kg.
|
400cm.
|
95HP
|
150 kg.
|
|
