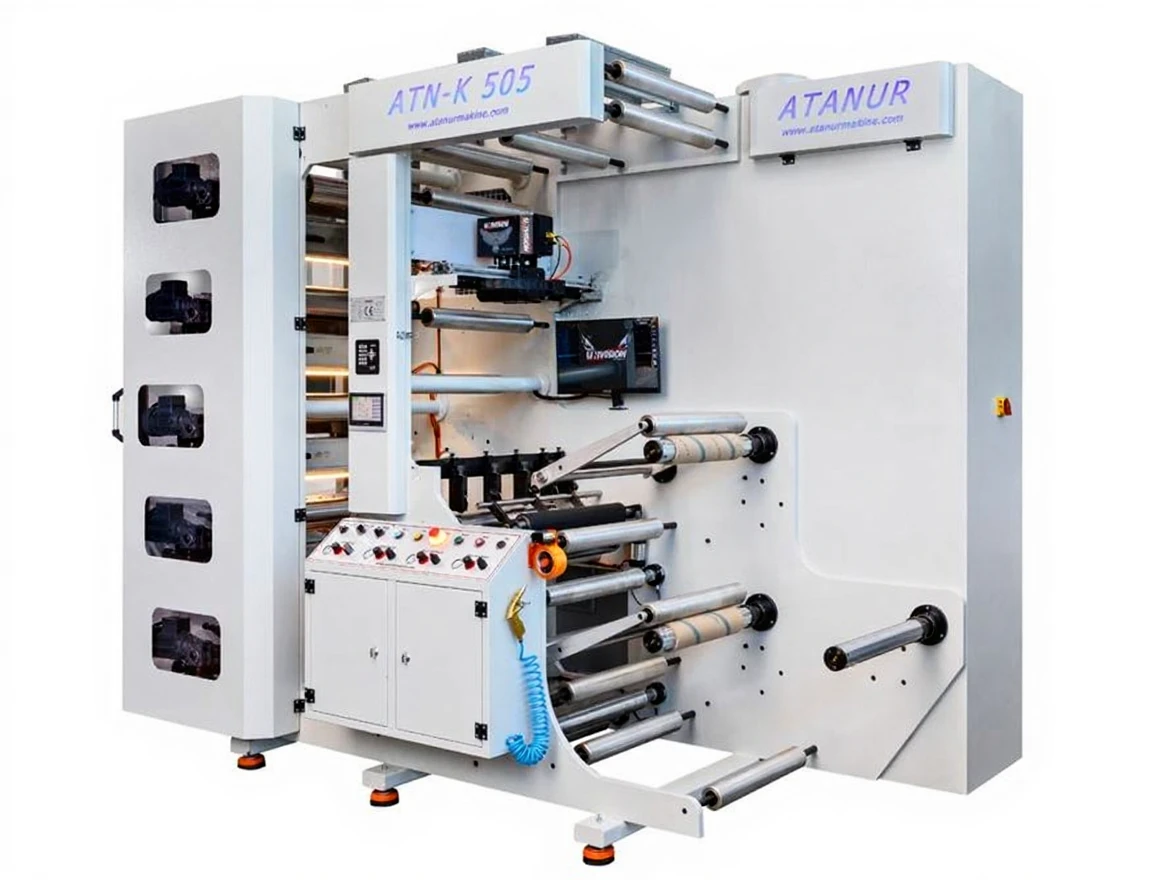

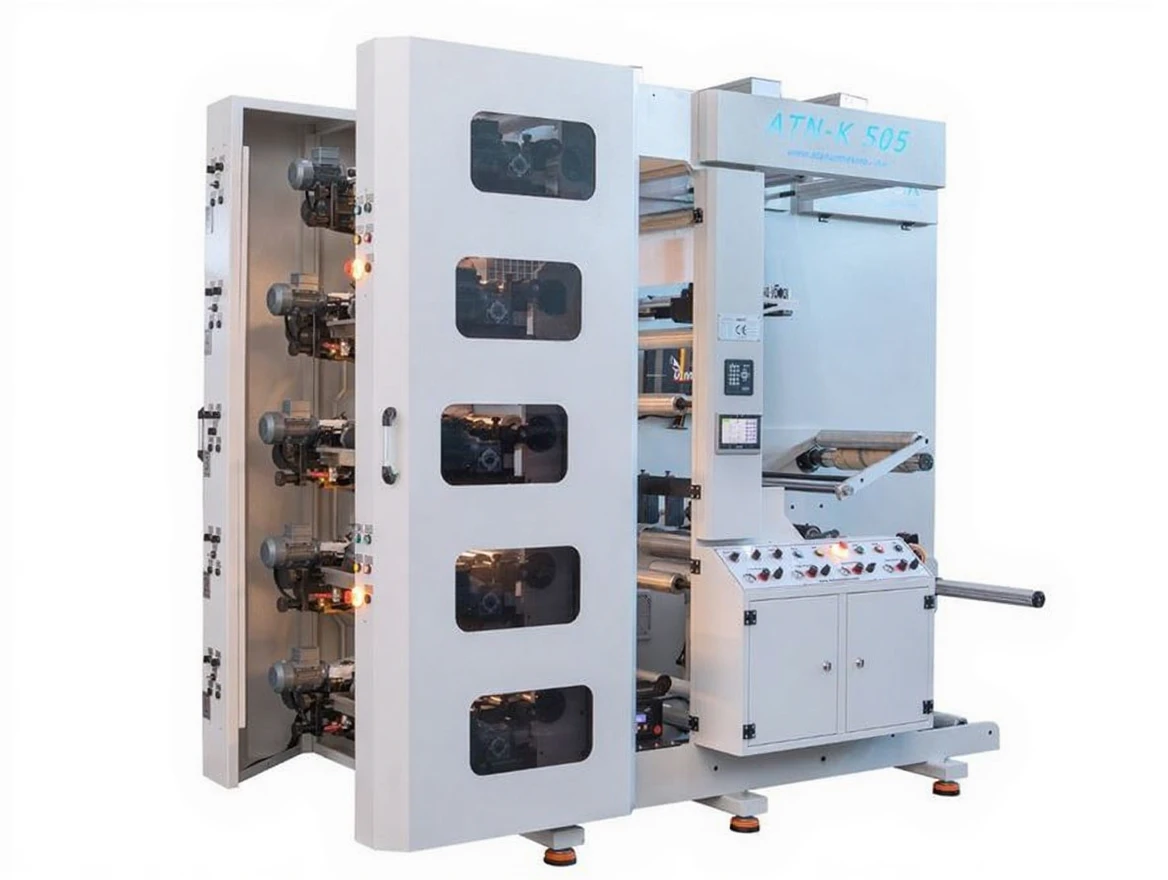

4-Unit Tower Type Flexo Printing Machine

General Features

Number of printing units 4 units
Maximum printing width [ PHONE HIDDEN ]
Maximum material width [ PHONE HIDDEN ]
Printing capabilities 4+0

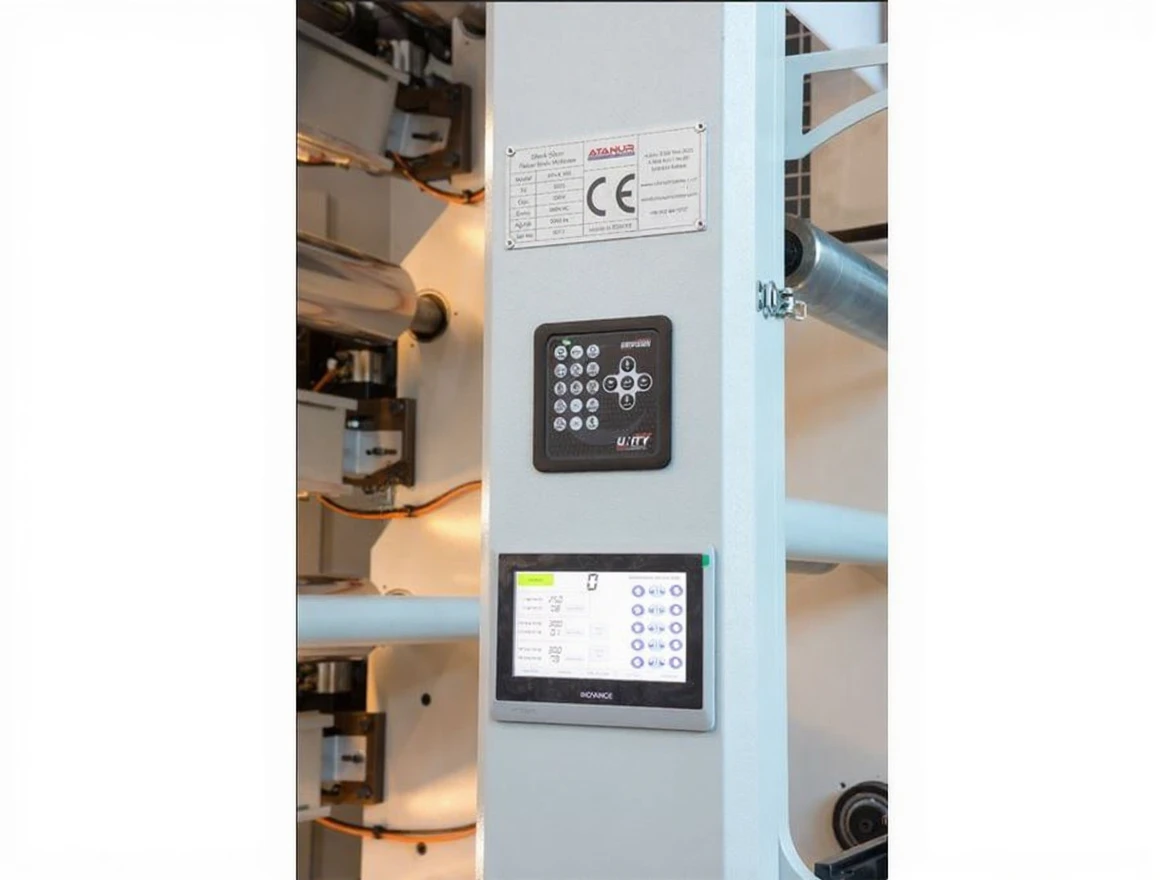

Control panel PLC touch screen

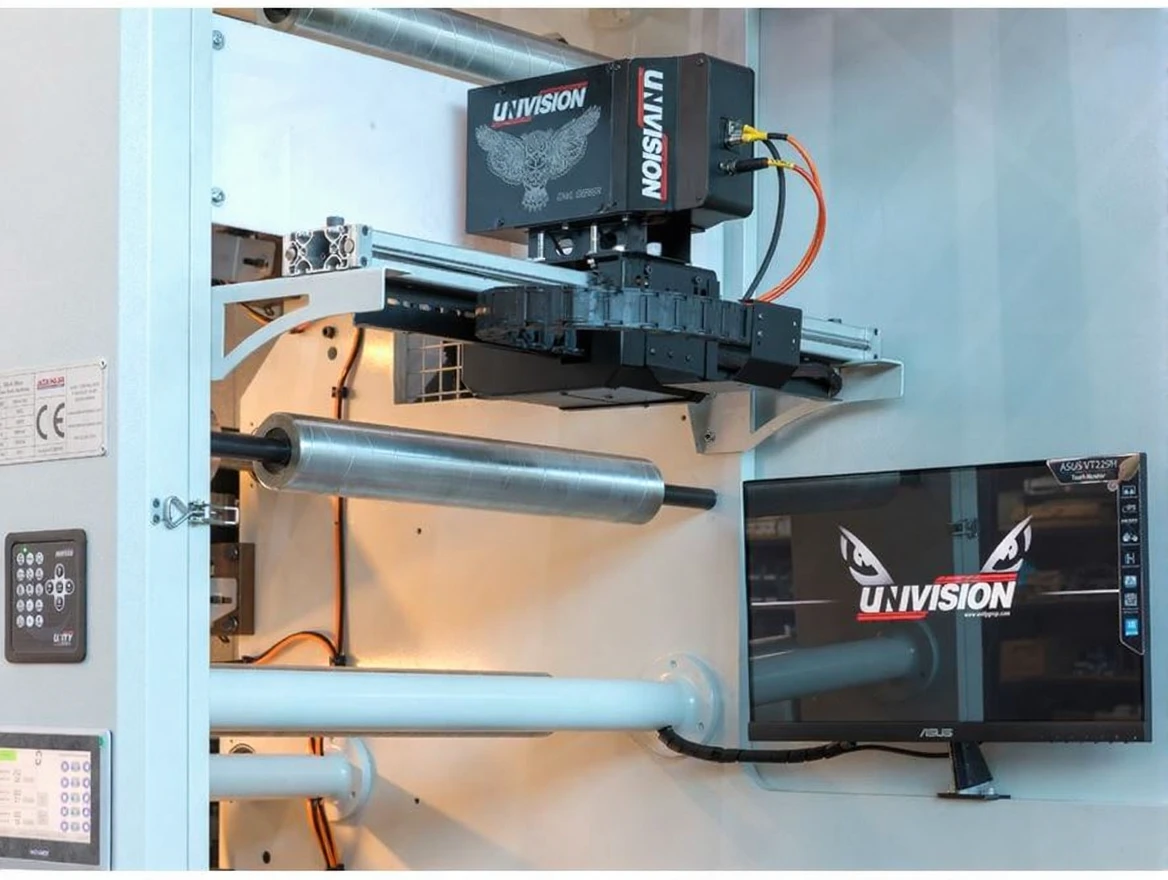

Camera control system optional
Usable printing materials paper, OPP, BOPP, HDPL, LDPE, gelatin, nonwoven
Loadcell tension system standard
Maximum printing speed 150 meters / min
Printing length min. 28 cm – max. 60 cm

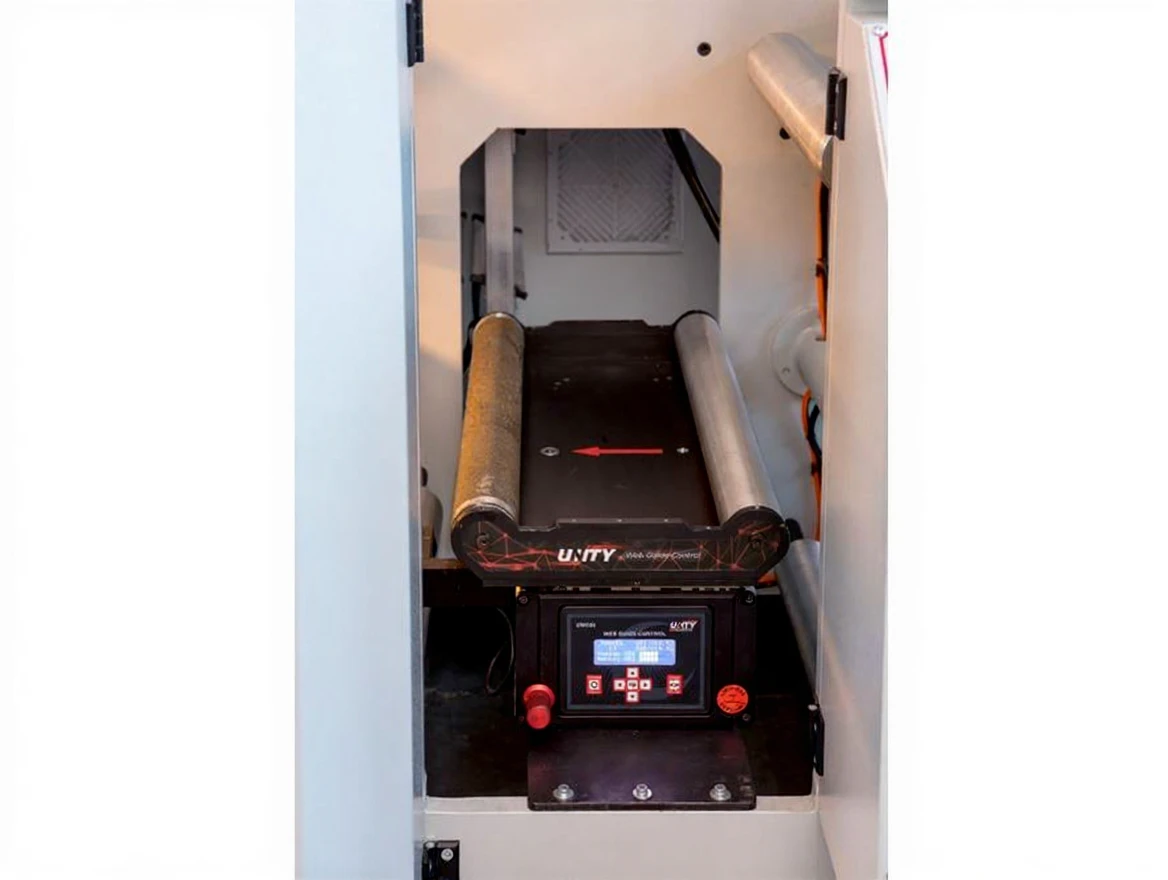

Edge control system automatic
Edge trimming system standard

Solvent Unit

Number of solvent units 1 unit (AC motor)
Solvent reel shaft 76 mm air shaft
Solvent reel diameter max. 80 cm

Winding Unit

Number of winding units 2 units (AC motor)
Winding reel shaft 76 mm air shaft
Winder reel diameter max. 60 cm
Weight roller pneumatic system

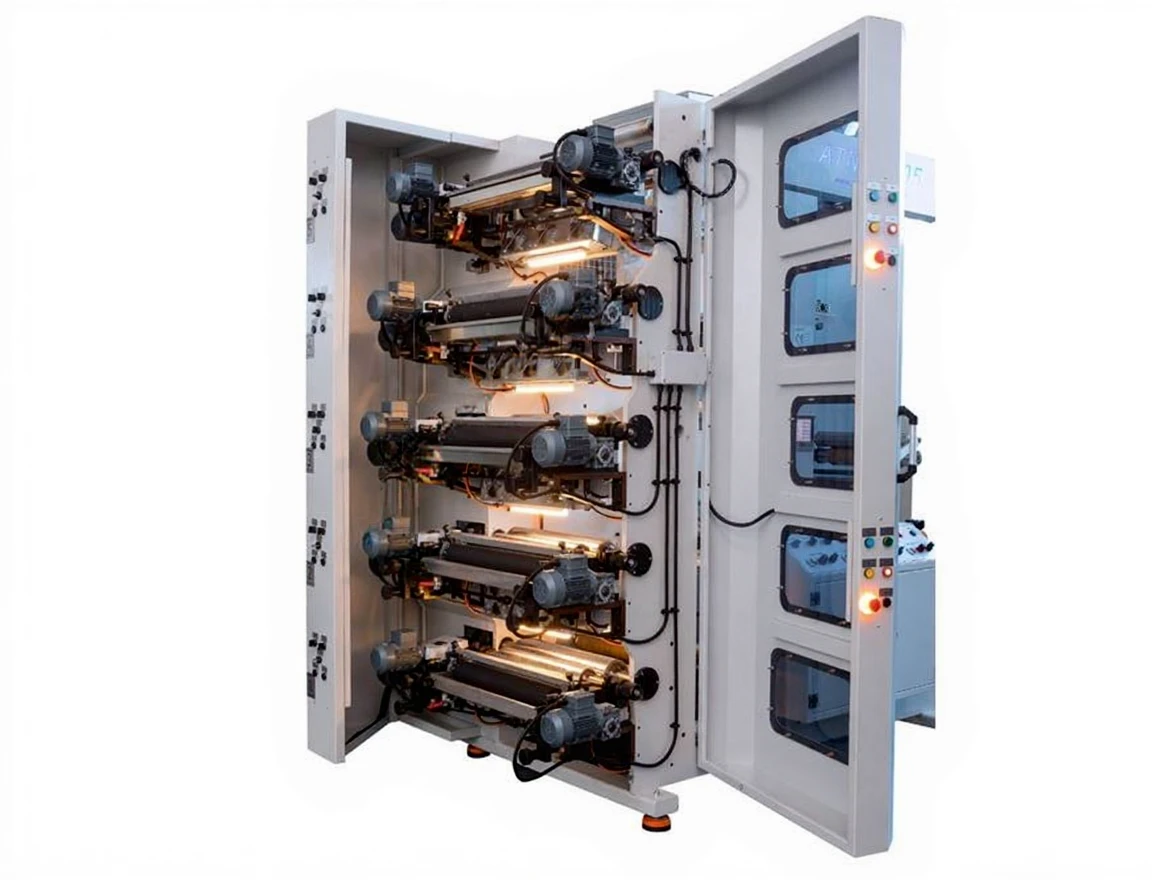

Printing Group

Doctor blade system rubber roller and Dr. Blade
Drying unit infrared drying system
Mixer motor system 4 units
Output system automatic, 4 units

Roller Group

Pulling rollers 2 units (AC motor)
Plate roller 4 units
Ink roller anilox

Installation Requirements

Air pressure 8 bar
Voltage 380 V, 50 Hz
