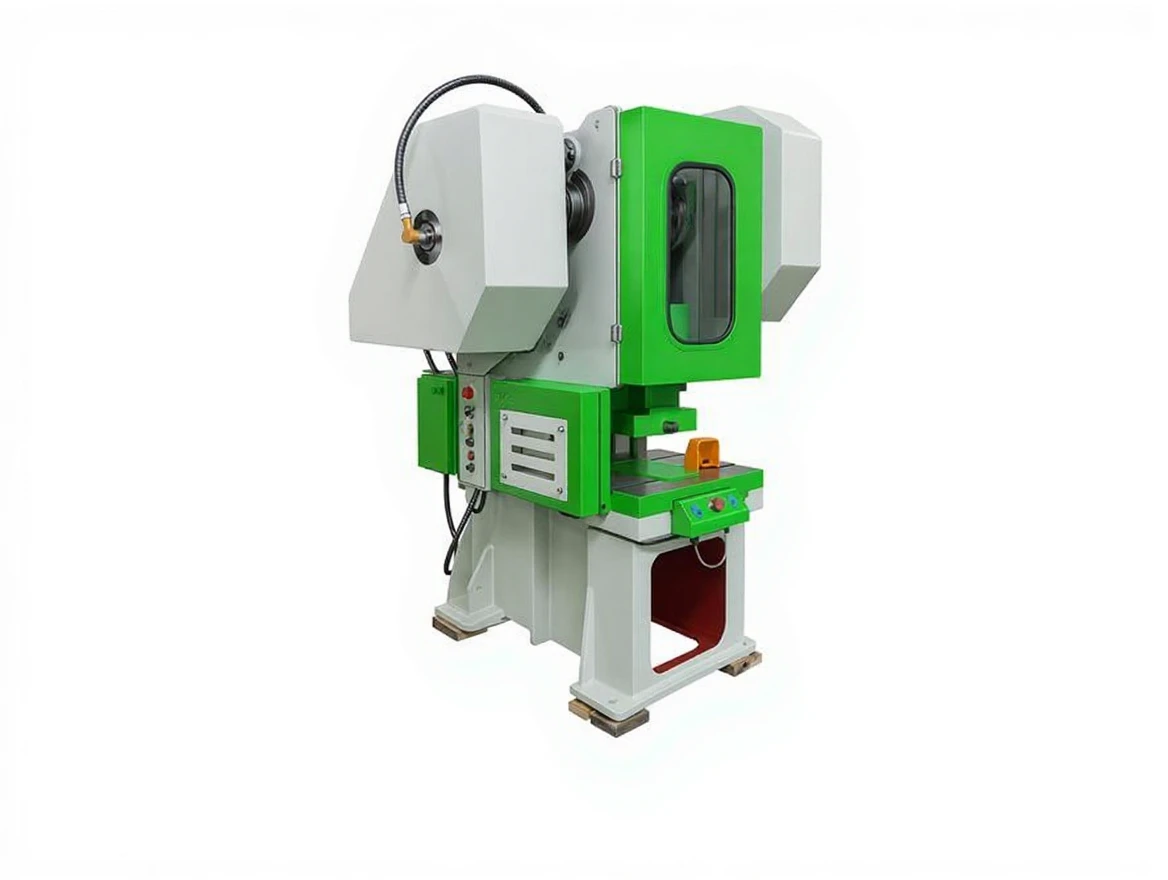

40 Ton C Type Eccentric Press

C Type Eccentric Press – CECP 40 Ton

Standard Features

• Steel construction body

• Bed recording from 4 surfaces

• Sphere cast connecting rod and gear bearings

• Crankshaft and transmission shafts are made of 4140 tempered steel

• Centralized automatic grease lubrication system

• Pneumatic clutch and brake combination

• Complies with CE safety directives

• Double coil safety valve

• Manually adjustable stroke

• Beam barrier finger – hand protection safety system

• PLC control system

• Double foot pedal control system

• Mechanical safety system

• Emergency reverse motor movement

• Complies with work safety regulations

• Complies with CE standards

Optional Features

• Vibration damping pad

• Backup table

• Press feed systems

• 1 set of molds with desired features

• 8-bearing slideway

Technical Features

• Capacity: 40 Ton

• Throat Depth: 220 mm

• Table – Ram Distance: 340 mm

• Slide – Table Distance: 340 mm

• Distance Between Walls: 330 mm

• Adjustment of Ram: 60 mm

• Approximate Width of Press: 1050 mm

• Approximate Depth of Press: 1280 mm

• Approximate Height of Press: 2100 mm

• Front Anchorage Size: 575 mm

• Side Anchorage Size: 740 mm

• Table Hole Diameter: 150 mm

• Table Dimensions: 440 × 630 mm

• Mold Binding Socket Diameter: 40 mm

• Ram Dimensions: 290 × 180 mm

• Ground to Table Size: 720 mm

• Stroke Adjustment: 10 – 70 mm

• Number of Strokes / Minute: 55 strokes/min

• Motor Power: 4 kW

• Motor Speed: 1450 RPM

• Approximate Weight: 2100 kg

Production Information

This machine is manufactured by CronossTech in Turkey.
