40 Ton Conventional Rotating System

40 Ton Conventional Rotating System

YKS BSRROT 030-040

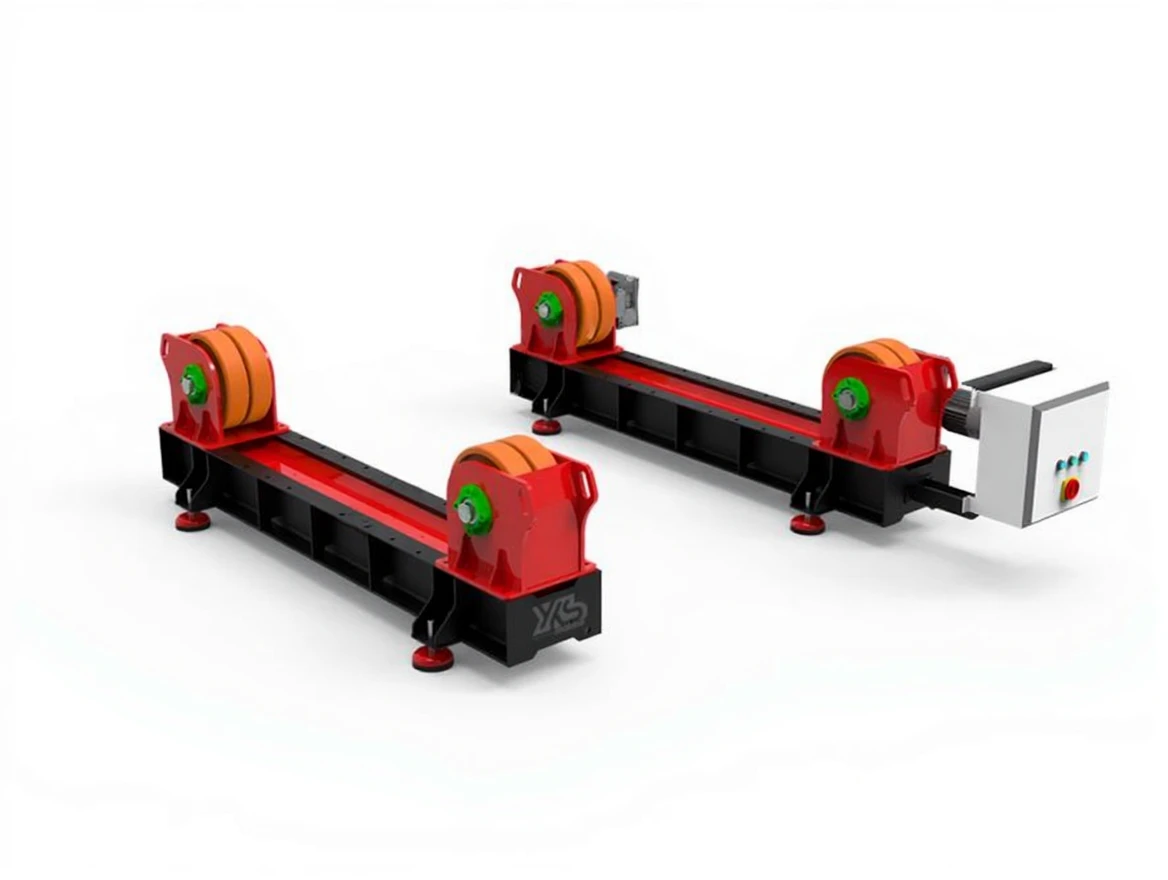

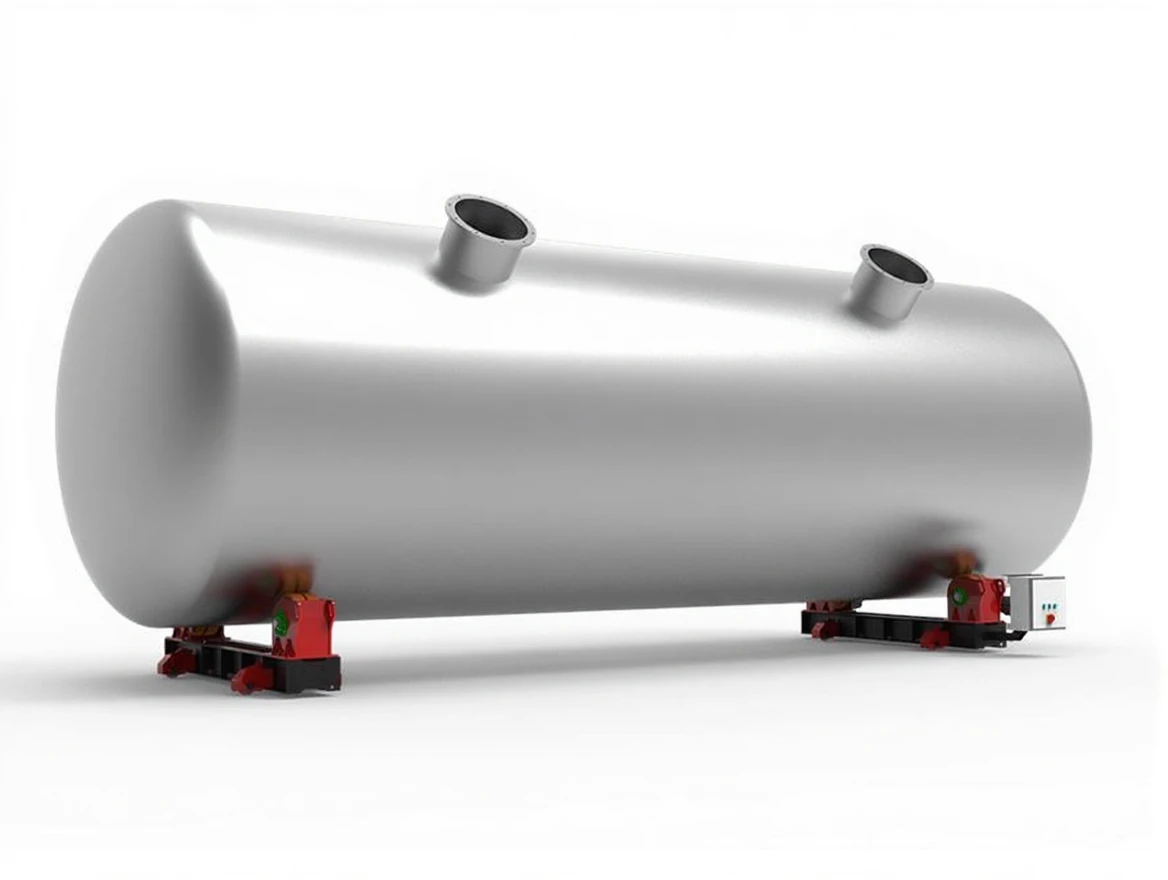

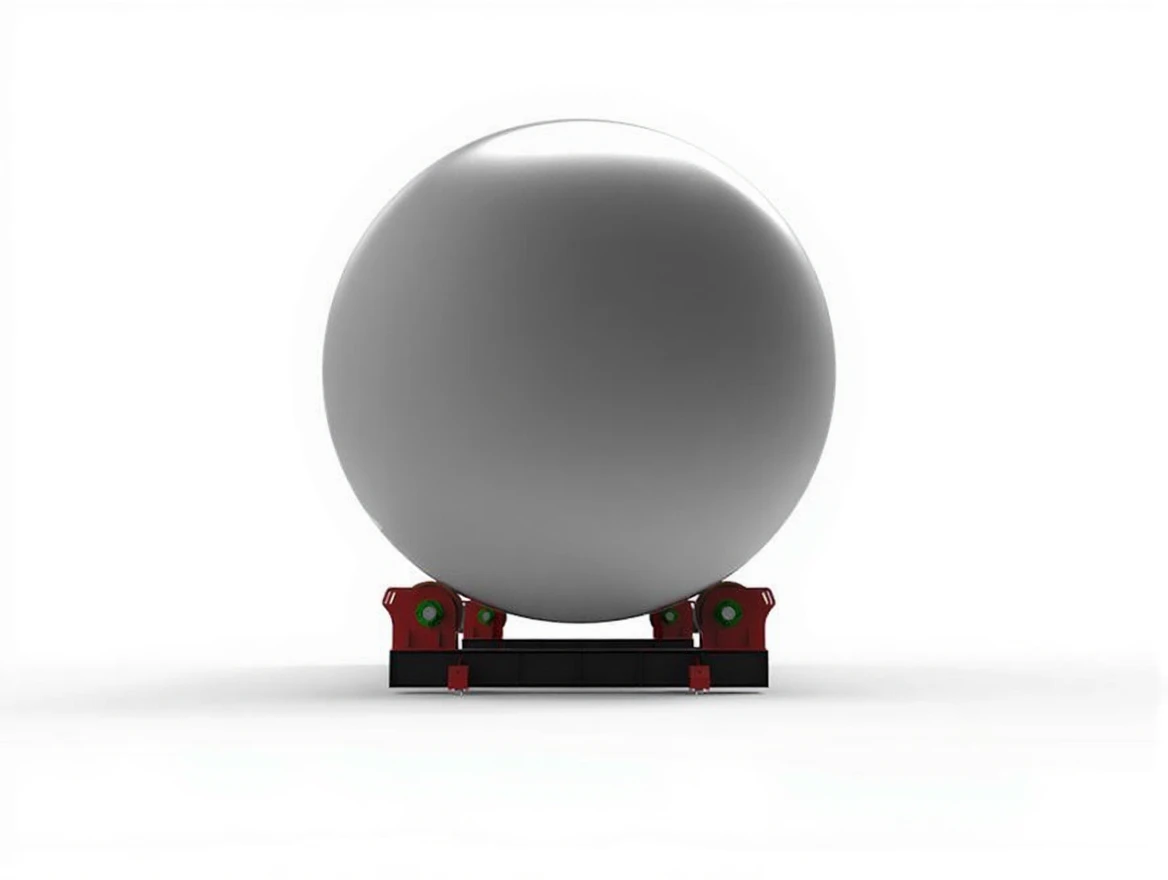

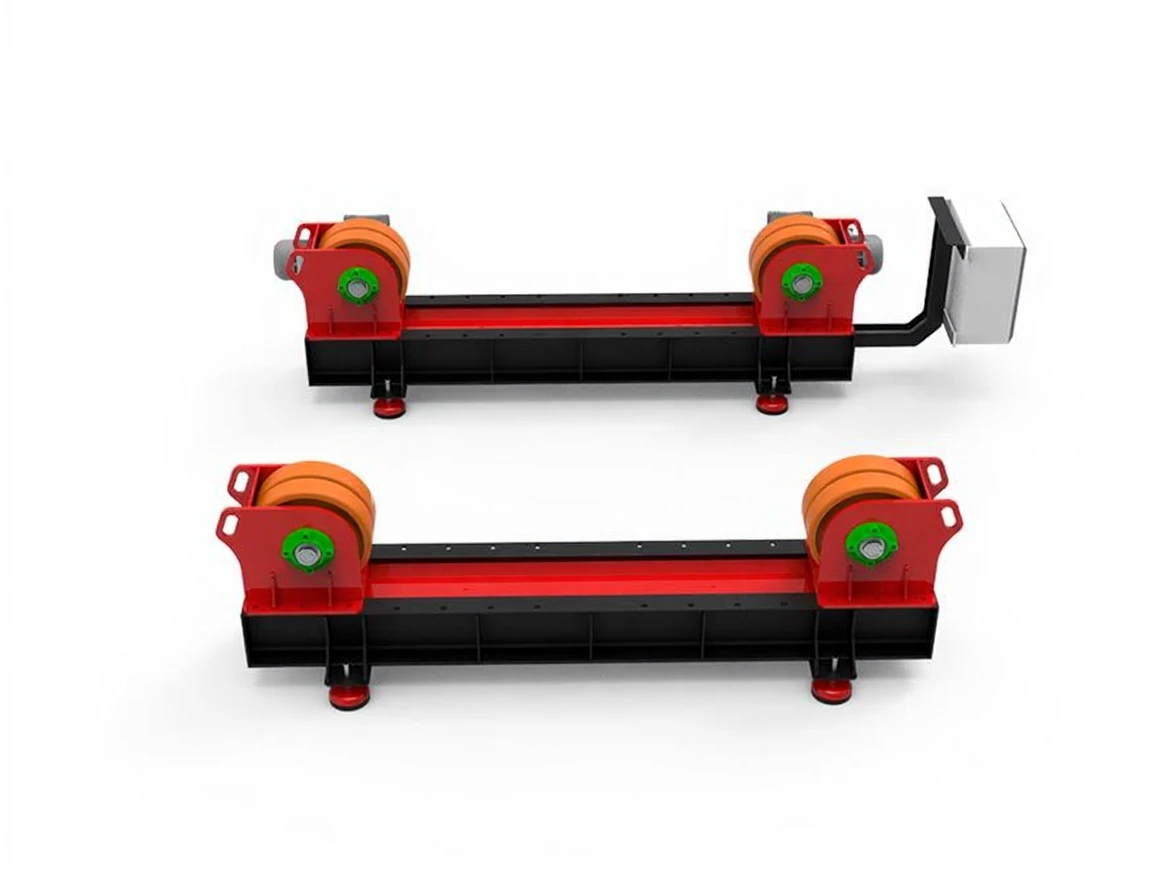

Rotators are used to facilitate production in all industries worldwide and are used for easy assembly of tanks, barrels, pressurized and cylindrical containers of all types and sizes. Rotators are developed to increase the speed and efficiency in both automatic and manual welding, increase productivity, and minimize extra processing methods and the use of cranes. Rotators allow operators to control all functions, providing clockwise and counterclockwise rotation and extremely smooth, precise speeds. Currently, they respond to rotators with capacities ranging from 5 to 150 tons. It has the capacity to manufacture up to 250 tons upon request.

Standard Features

• PU Coating

• Bolted diameter adjustment

• Adjustable rotation speed

• 5-meter wired remote control

• Digital speed indicator for turning tracking on the control panel

• AC motor

• Support group preventing axial movement of the part

Optional Features

•Wheel designs for areas requiring high heat

• Motorized wheel axis distance (diameter) adjustment

• Manual wheel axis distance (diameter) adjustment

• Motorized walking system (Driver-motorized, Idler-manual)

• Chassis – Brush Group

• Synchronous operation feature with column boom systems

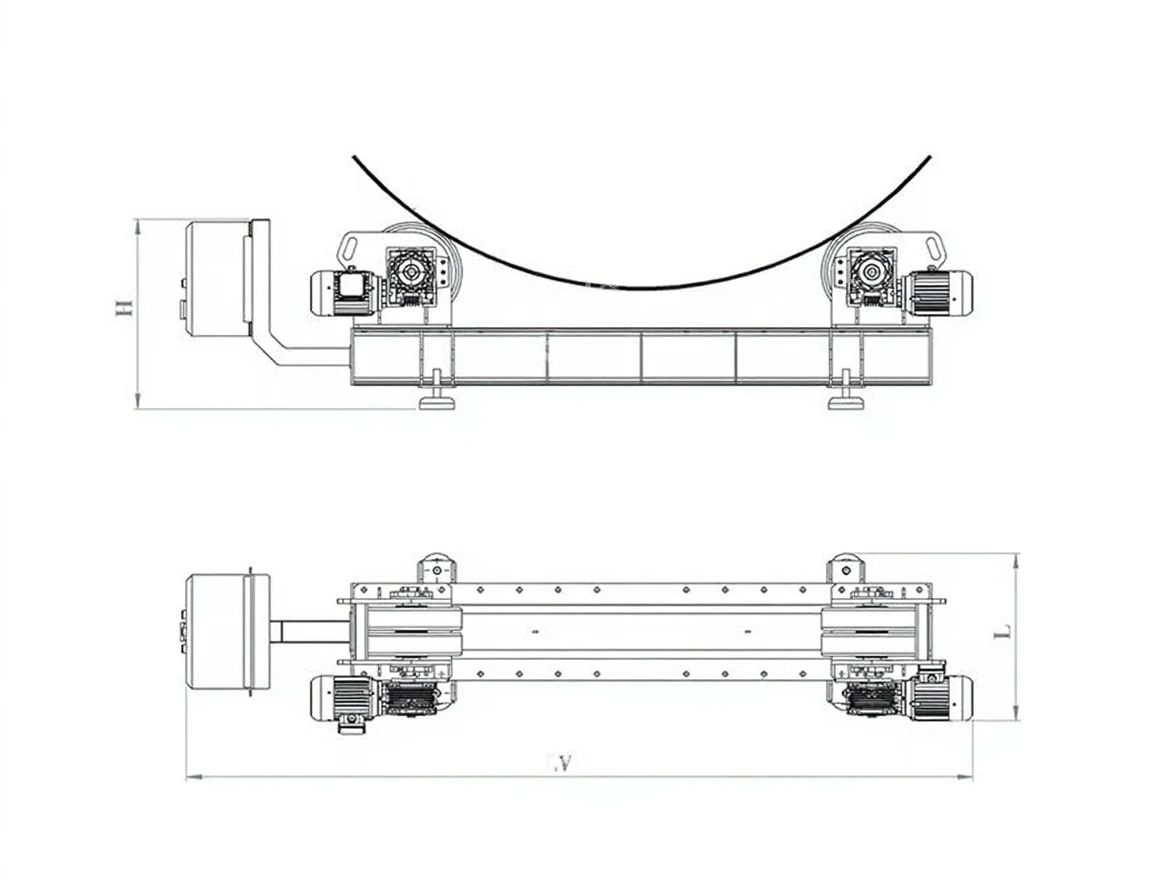

Technical Specifications of YKS BSRROT 030-040
