40 Ton Hydraulic Horizontal Pipe Profile Bending Press

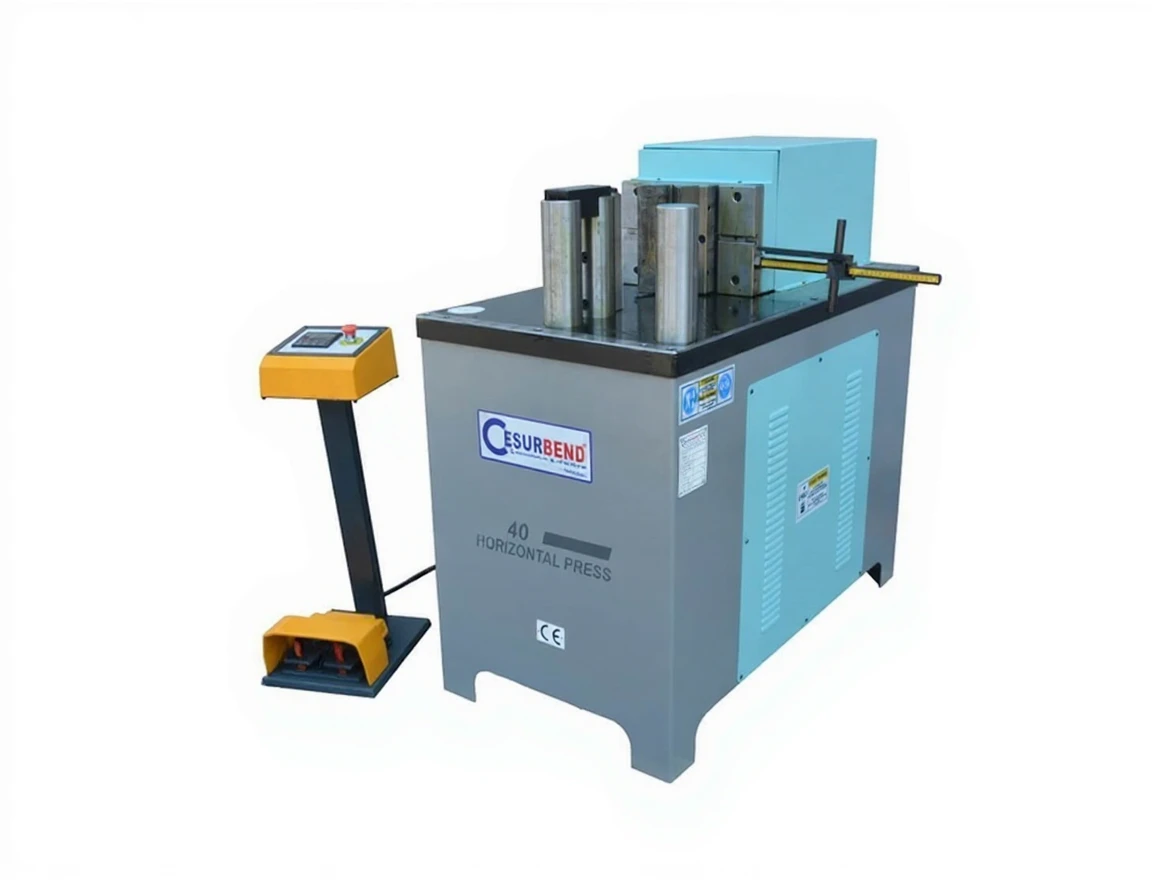

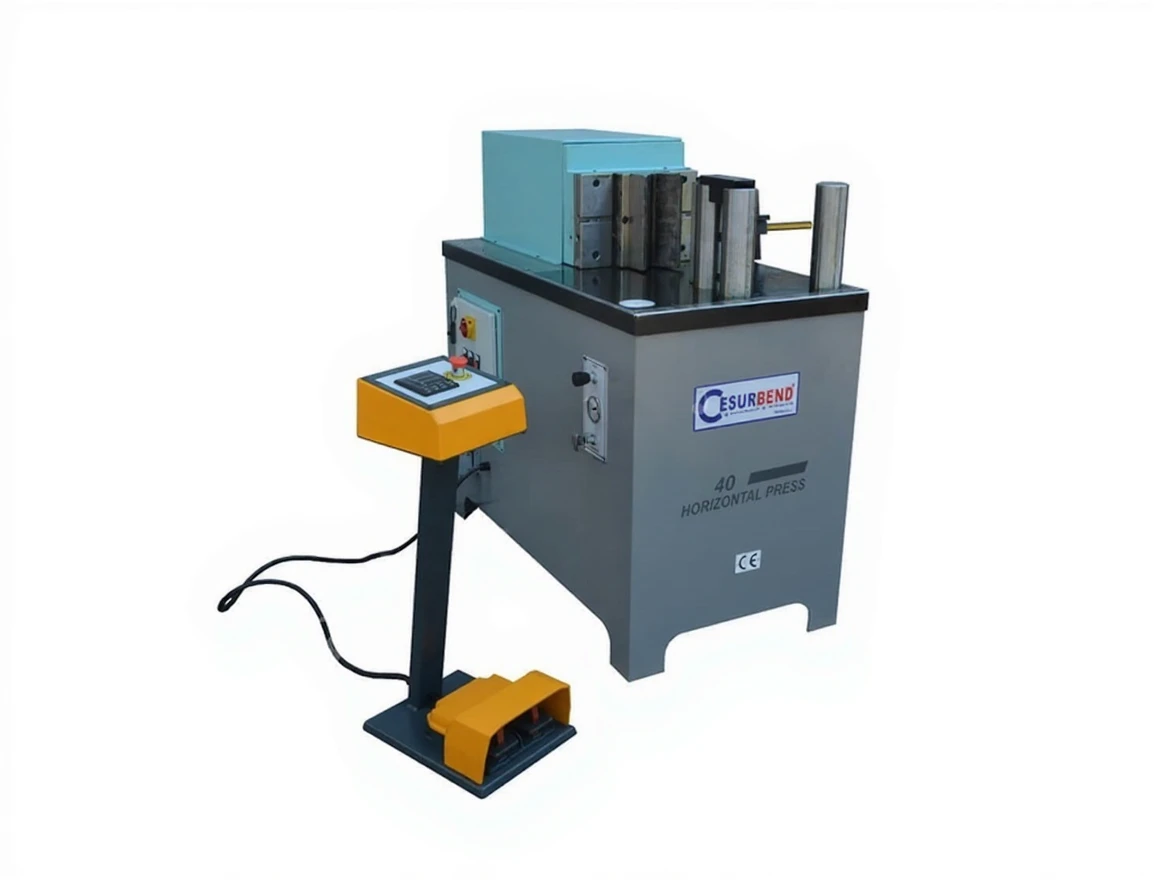

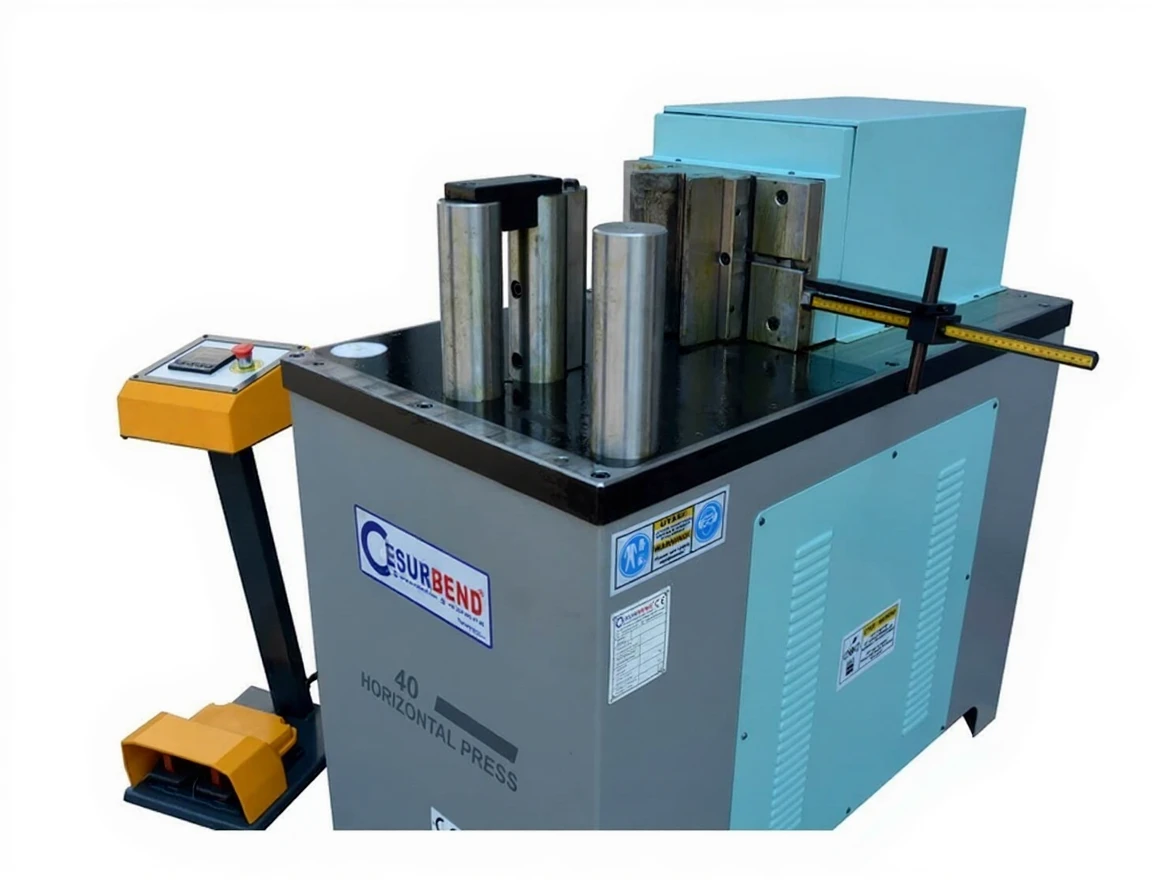

Cesurbend BP-40 | 40 Ton Hydraulic Horizontal Pipe Profile Bending Press

It is a powerful machine designed for precise bending of pipes and profiles with a high pressure capacity of 40 tons.hydraulic horizontal bending press. It offers long-lasting use thanks to its tool carrier slides made of forged steel, hardened and ground. Its dust-protected structure ensures reliable performance even in busy production environments.

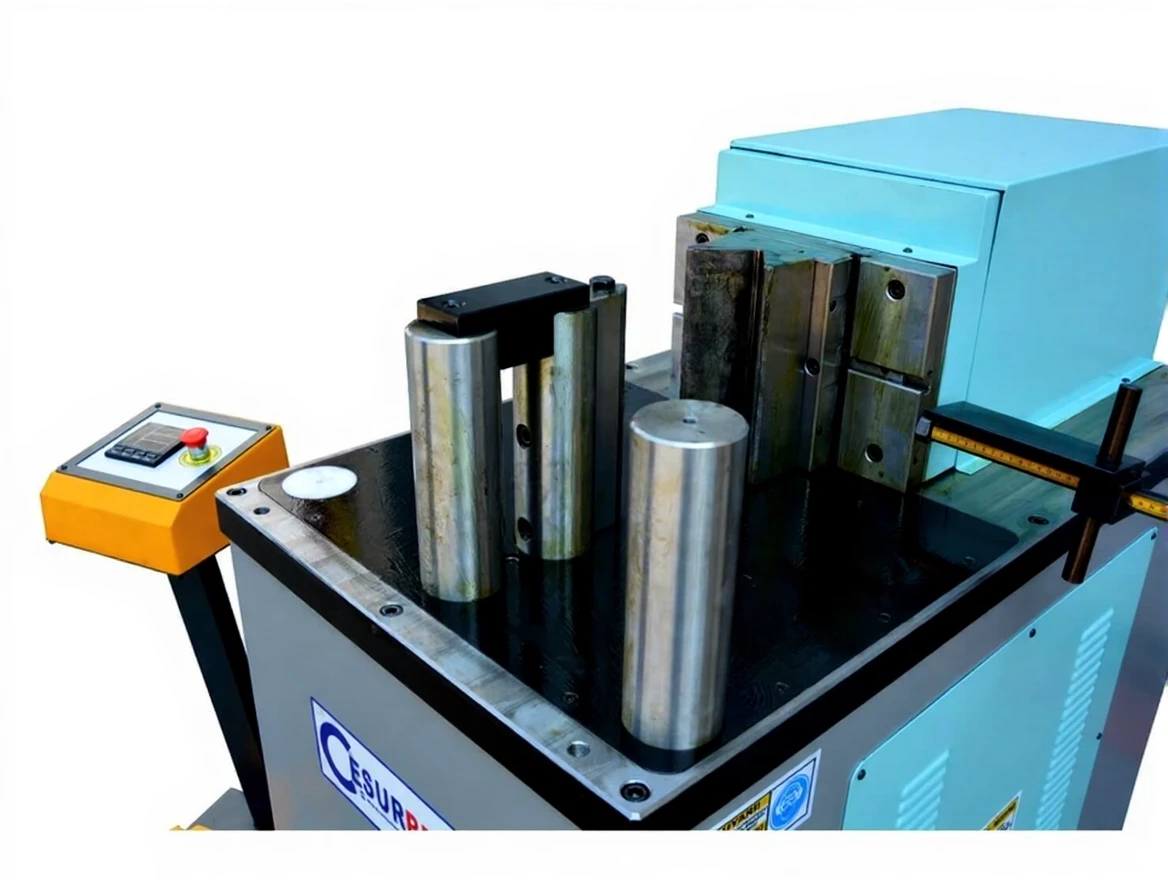

The movable jaw is rigidly slided on the table, and the micrometric carrier can be easily adjusted from the front with the hydraulic valve. Thanks to the continuously adjustable stroke system under high pressure, the desired bending process can be carried out safely without practice or sample testing. The hydraulic block, produced as a single block, allows the pressure to be easily controlled, while the flow control valve allows the approach speed to be adjusted.

Technical Specifications

• Table size:620x1050mm

• Working pressure:40 tons

• Maximum pressure:250 bars

• Moving head course:250mm

• Moving head speed:470 m/min

• Forward/reverse rotation speeds:[ PHONE HIDDEN ] m/min

• Distance between miles:120 – 370mm

• Miller sizes:120mm

• Miller diameters:55/63mm

• Height of the table from the ground:930mm

• Engine power:4 kW

• Oil tank capacity:70 liters

• Volume:70dB

• Machine dimensions:1150 x 700 x 950mm

• Weight:920kg

Areas of Use

BP-40 on industrial scalein pipe and profile bending operationsis used. Especially:

• Metalworking workshops

• Furniture and frame production

• Construction and building industry

• Special pipe bending projects for industry

It is a suitable solution for

It stands out with its powerful hydraulic structure, micrometric carrier system offering high precision and safe usage advantages. While it does not take up much space in the production area thanks to its compact dimensions, it offers a reliable solution to businesses even in the most challenging pipe and profile bending operations with its 40 tons of pressure power.
