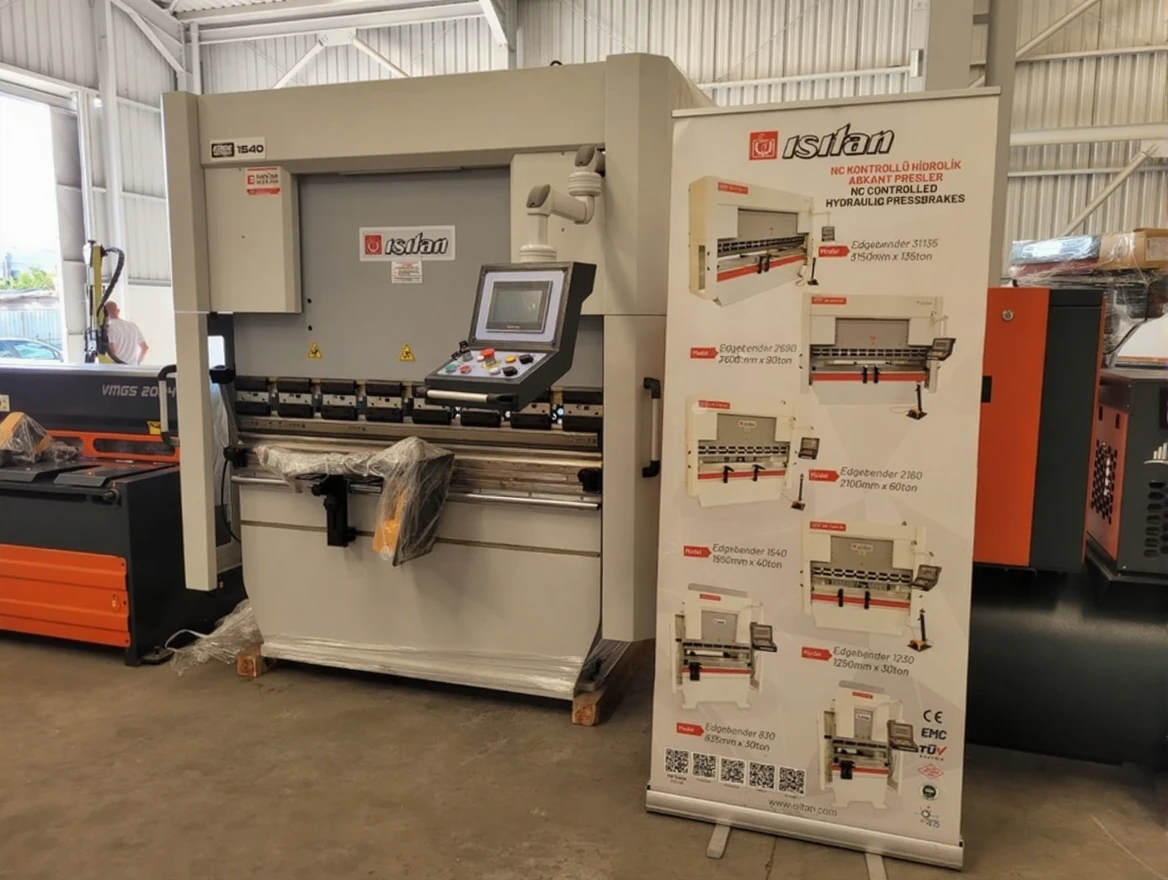

40 Ton NC Bending Press

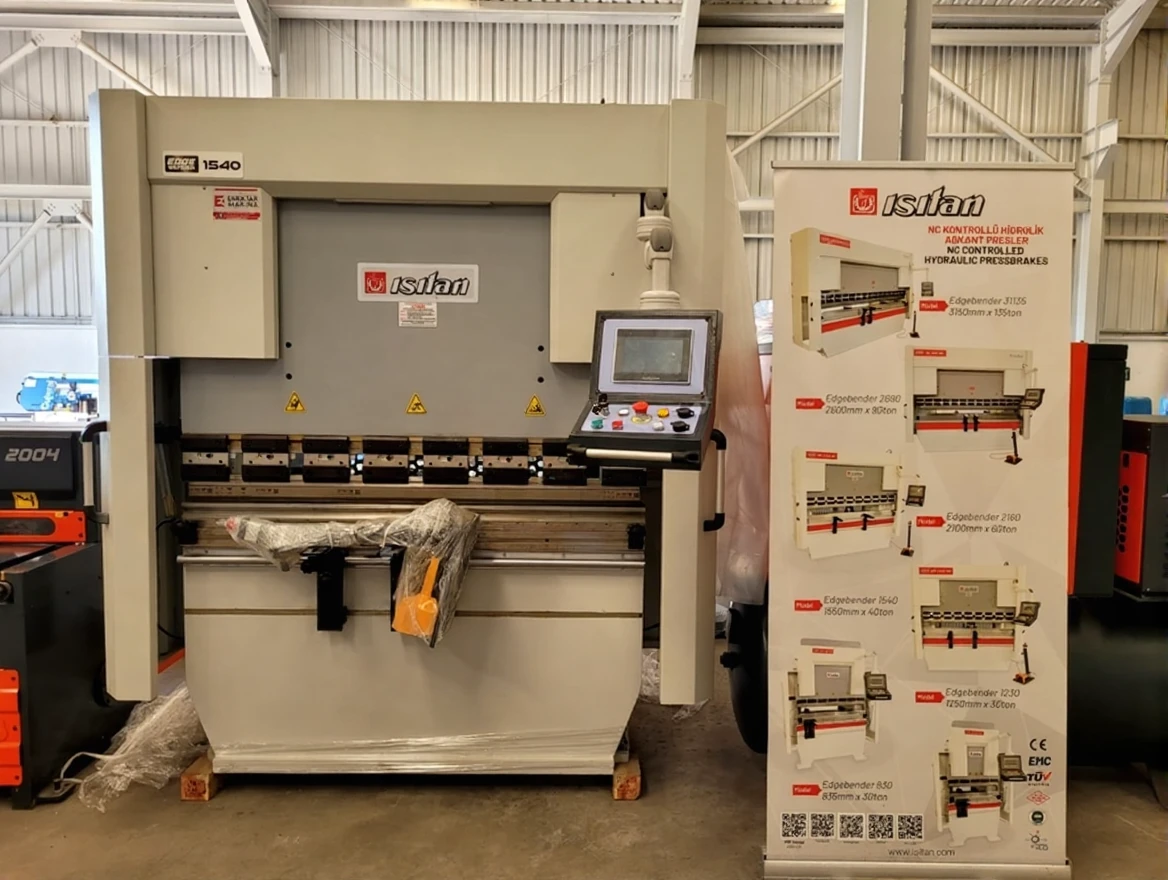

ISITAN EB 1540 NC BENDING

Isıtan EB 1540 NC Bending Capacity

Bending force is 40 tons, full-length bending capacity is 4mm, bending length is 1550mm. The distance between the legs is 1260mm, throat depth is 320mm.

Isıtan EB 1540 NC Bending General Features

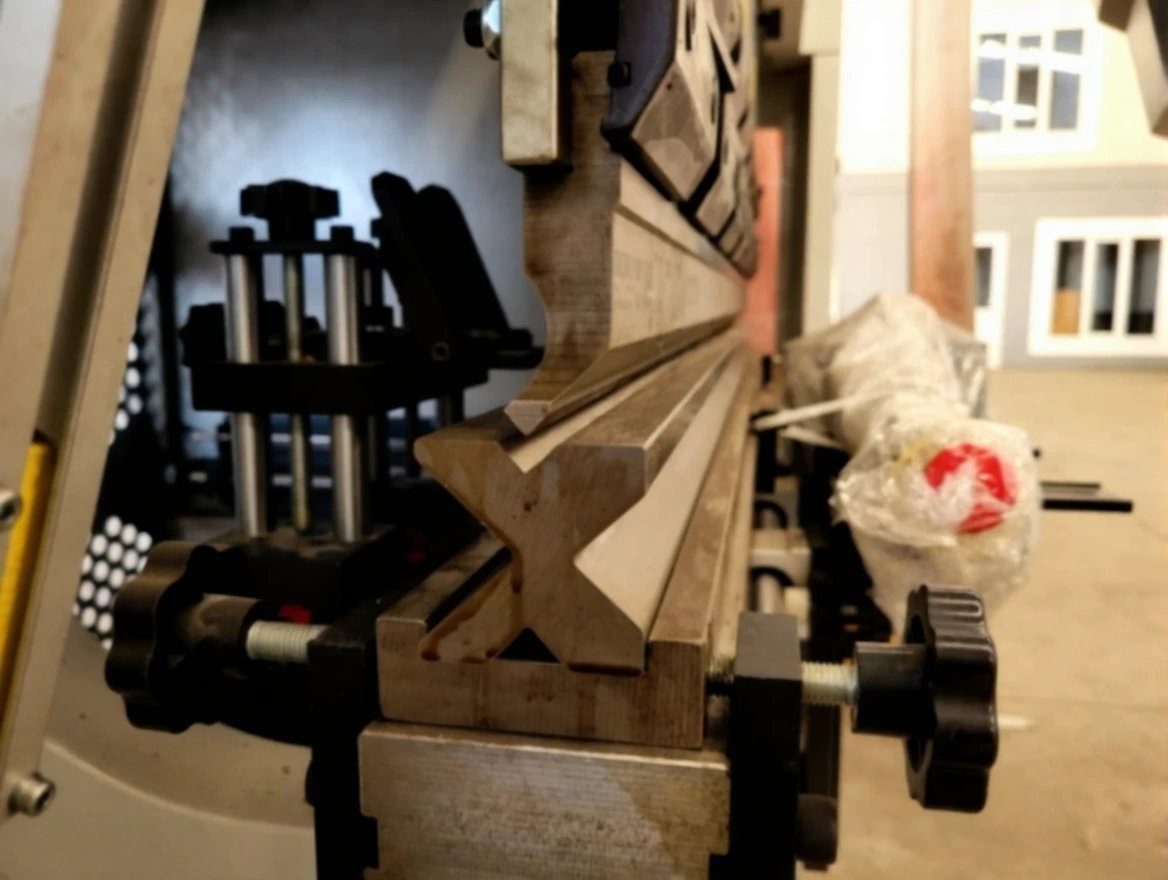

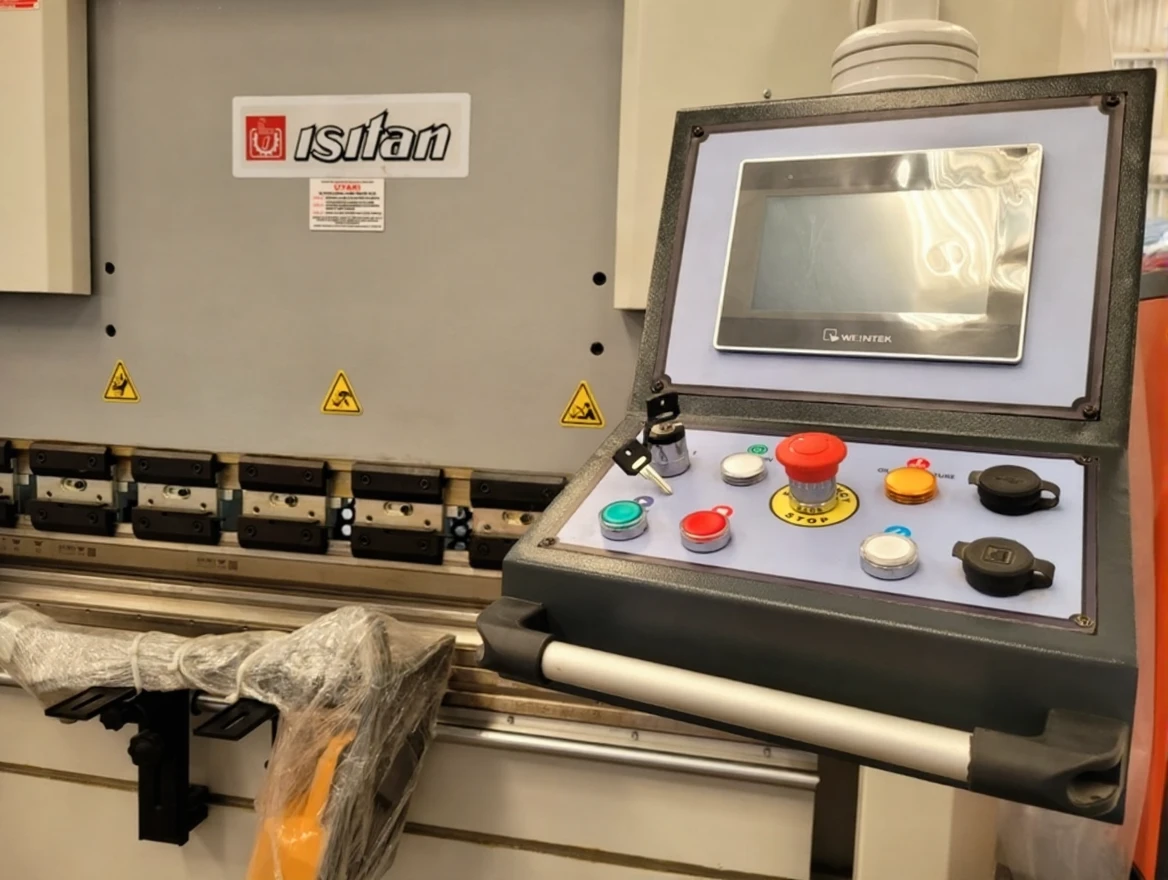

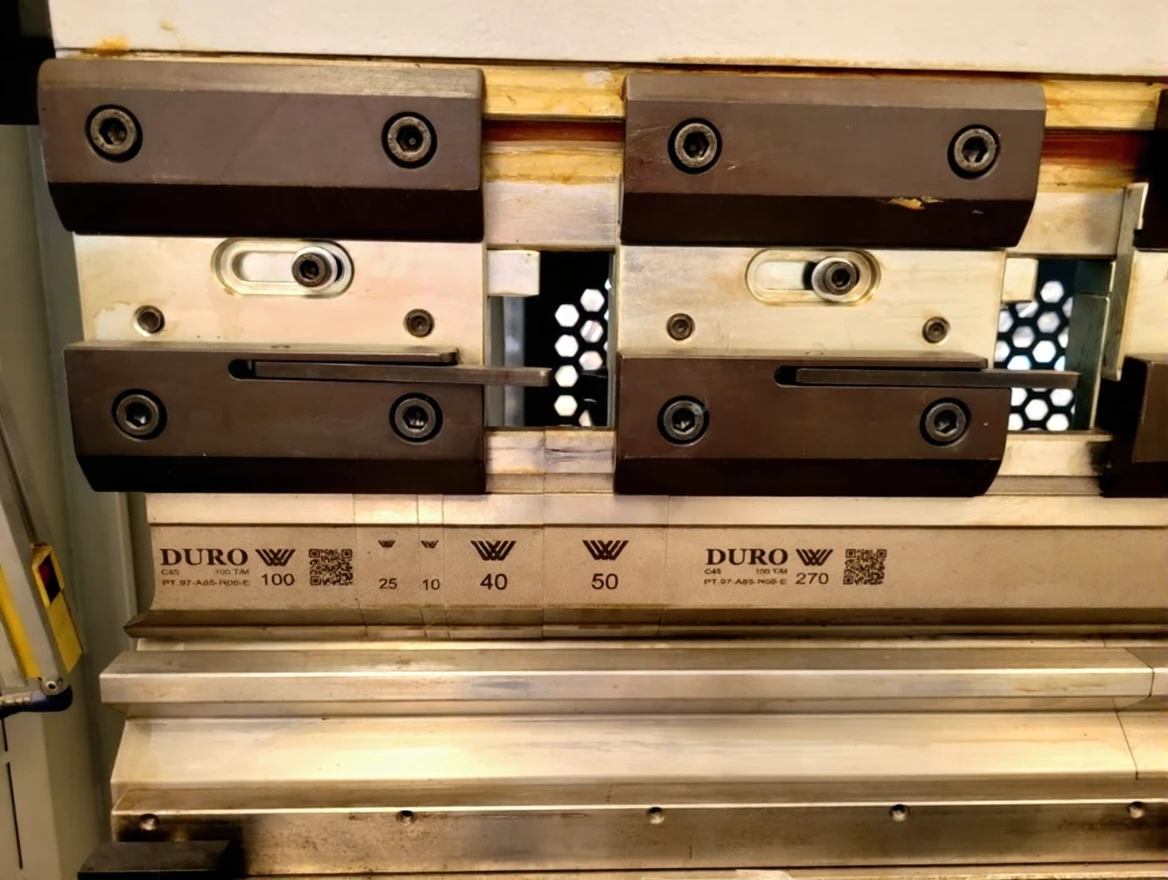

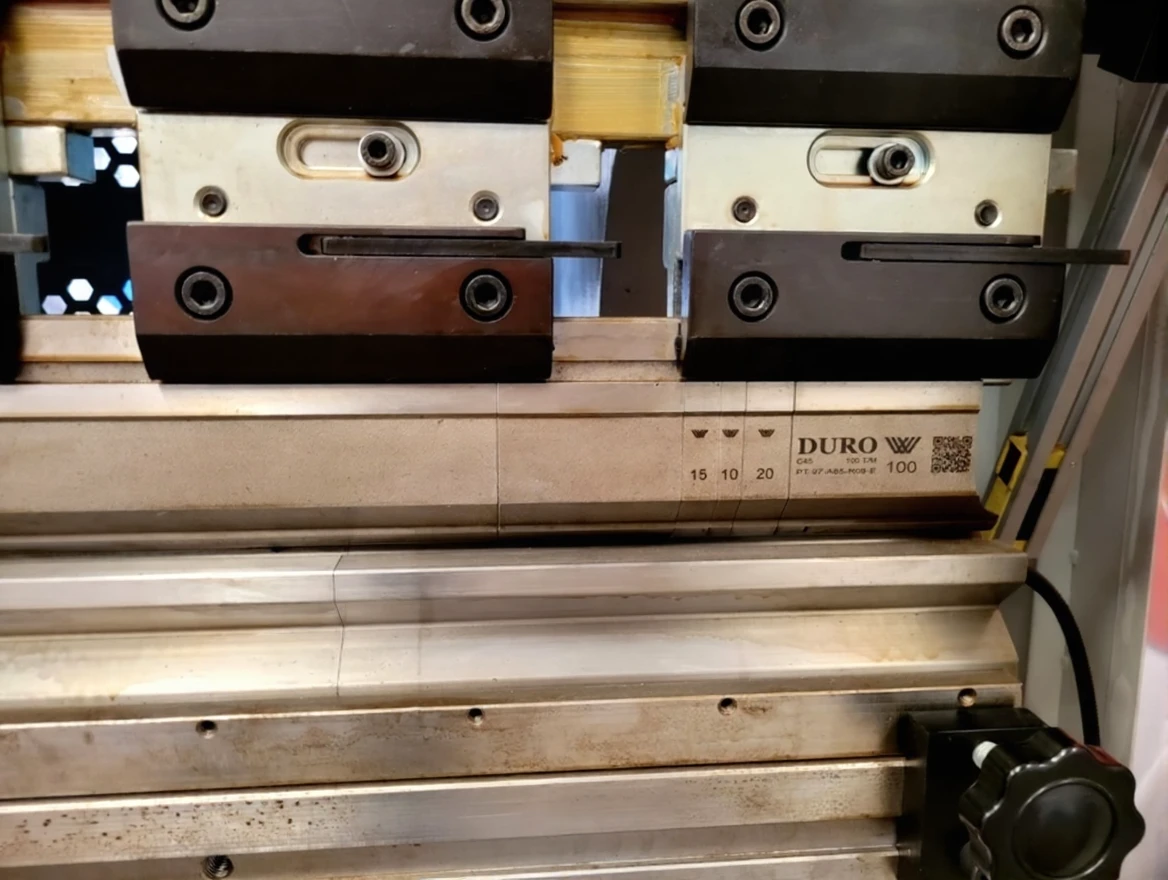

Y-axis angle adjustment with motor and NC control, manual bulging capability using PROMECAM for quick die removal and installation, front support arms that can be easily moved with linear slide and bearing system, clamping and fixing bolts to center the lower die.

Isıtan EB 1540 NC Bending Used Materials

The compact, low-maintenance HAWE or REXROTH hydraulic system unit located on the upper side of the machine, remote connection service solution thanks to European-origin SIEMENS and PIZZATO, BALLUF electrical equipment, LEUZE brand safety system, and learning mode for bending in different forms.

Isıtan EB 1540 NC Bending Used Materials

TECHNICAL SPECIFICATIONS   UNIT   Isıtan EB 1540 NC Bending

Bending force ton        40

Bending capacity          mm       4

Bending length     mm       1550

Distance between legs    mm       1260

Stroke     mm       160

Bending speed        mm/s   10

Idle descent speed               mm/s   90

Throat depth mm       320

Daylight              mm       380

Table Width (f)          mm       100

Table Height ©        mm       845

Motor power pump        kw         5.5

Motor power X axis      kw         0.75

Motor power Angle Adjustment     kw         0.37

Motor power R axis      kw         0.2

X axis distance             mm       600

Length (A)               mm       2000

Width (B)       mm       1600

Height (H)   mm       2235

Weight  kg          3450
