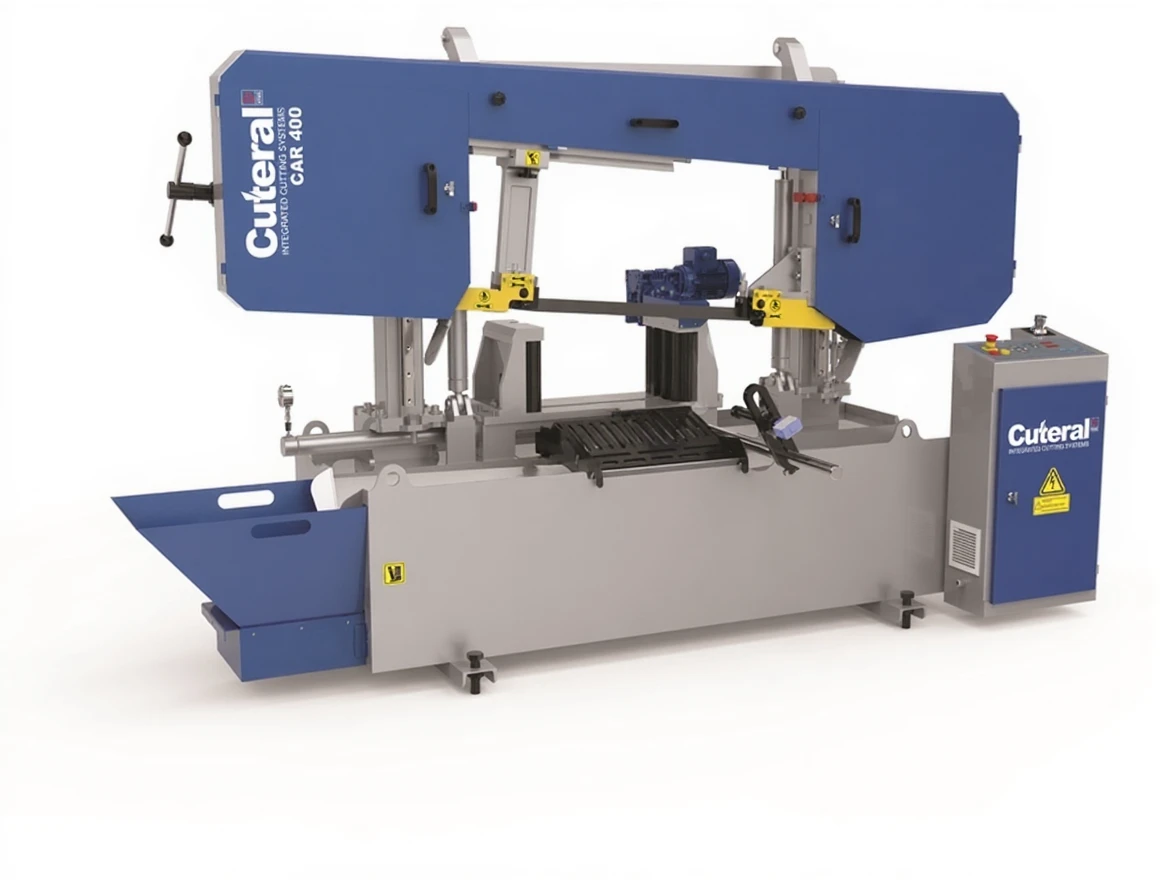

400 mm Fully Automatic Hydraulic Column Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
CAR 400 |
Description
Cuteral CAR 400
400 mm Fully Automatic Hydraulic Column Band Saw Machine
Cuteral CAR 400 Technical Specifications
| A | 1740 mm | |||
| B | 2870 mm | |||
| C | 1376 mm | |||
| D | 670 mm | |||
| E | 425 mm | |||
| F | 2640 mm | |||
| hmax | 1965 mm | |||
| Automatic | ||||
| Blade Size | 41 x 1.3 x 5715 mm | |||
| Blade Motor | 4 kW – 1000 rpm | |||
| Drive Motor | 0.37 kW – 925 rpm | |||
| Hydraulic Motor | 0.75 kW – 1500 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 5.24 kW | |||
| Cutting Speed | 15 m/min – 49 m/min | |||
| Weight | 1250 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 400 mm | |||
| Cutting Capacity 90° Width | 450 mm | |||
| Cut Material Angle | 0° | 400 mm | 400 x 400 mm | 400 x 450 mm |
