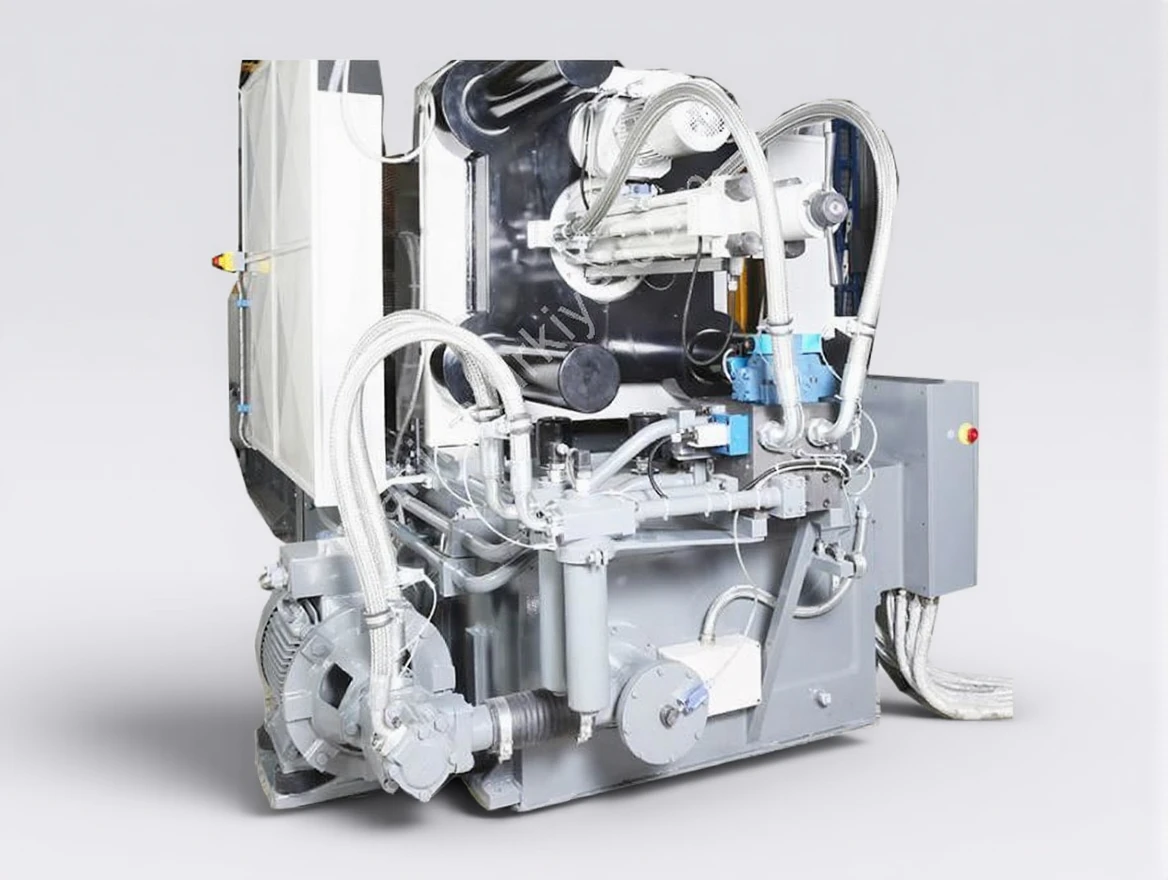

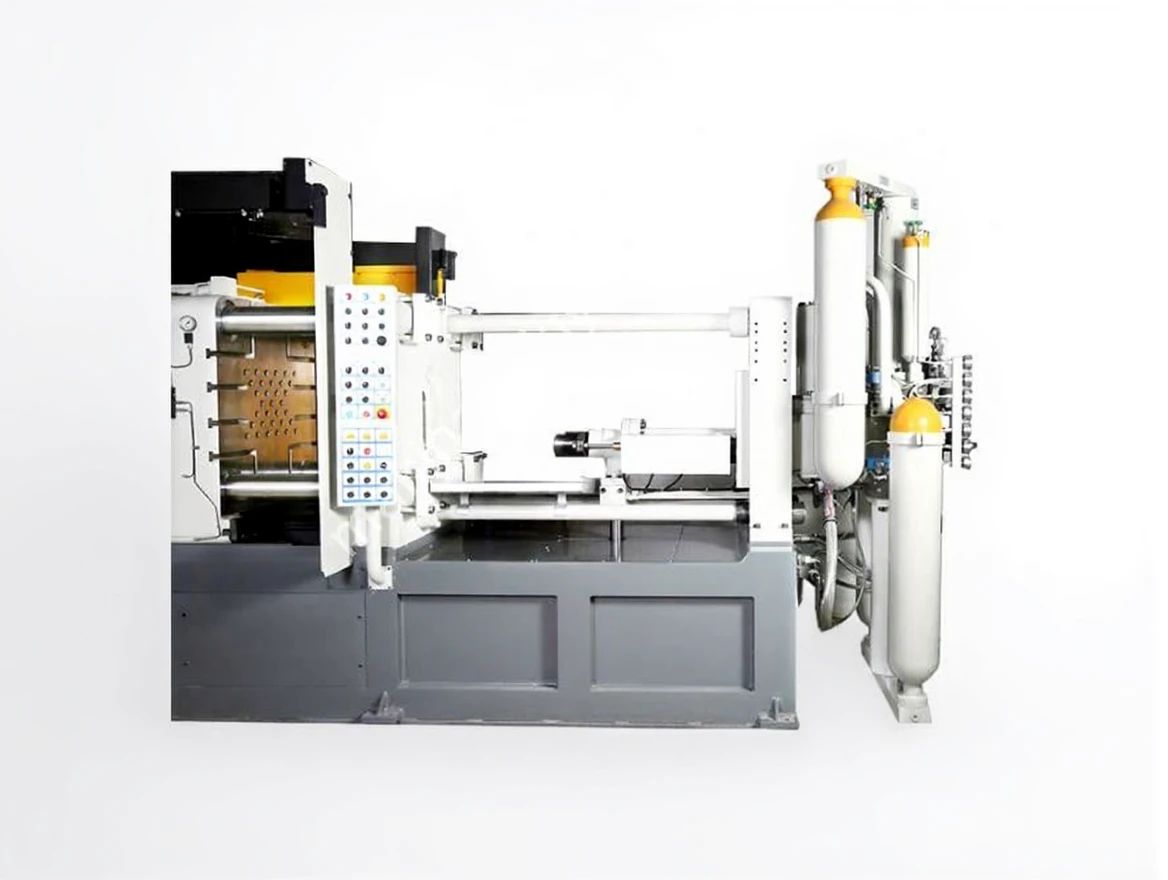

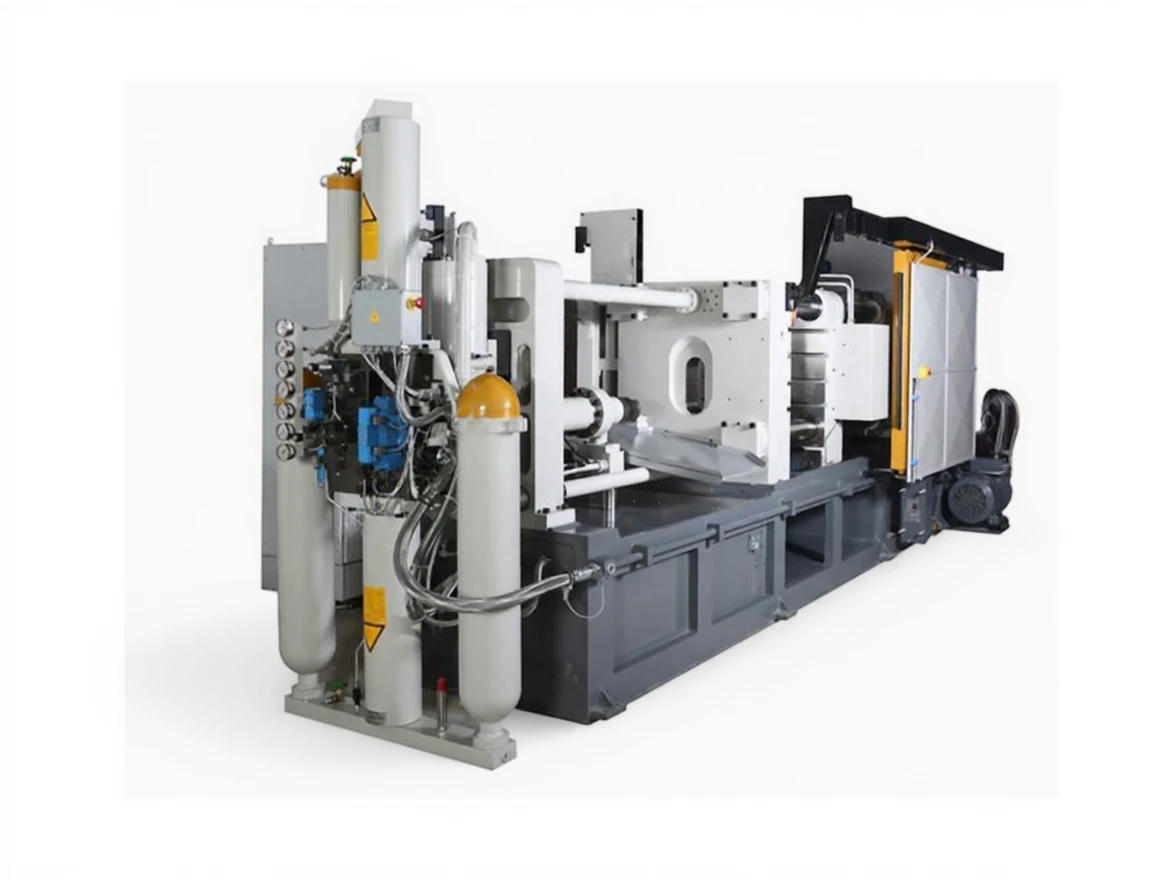

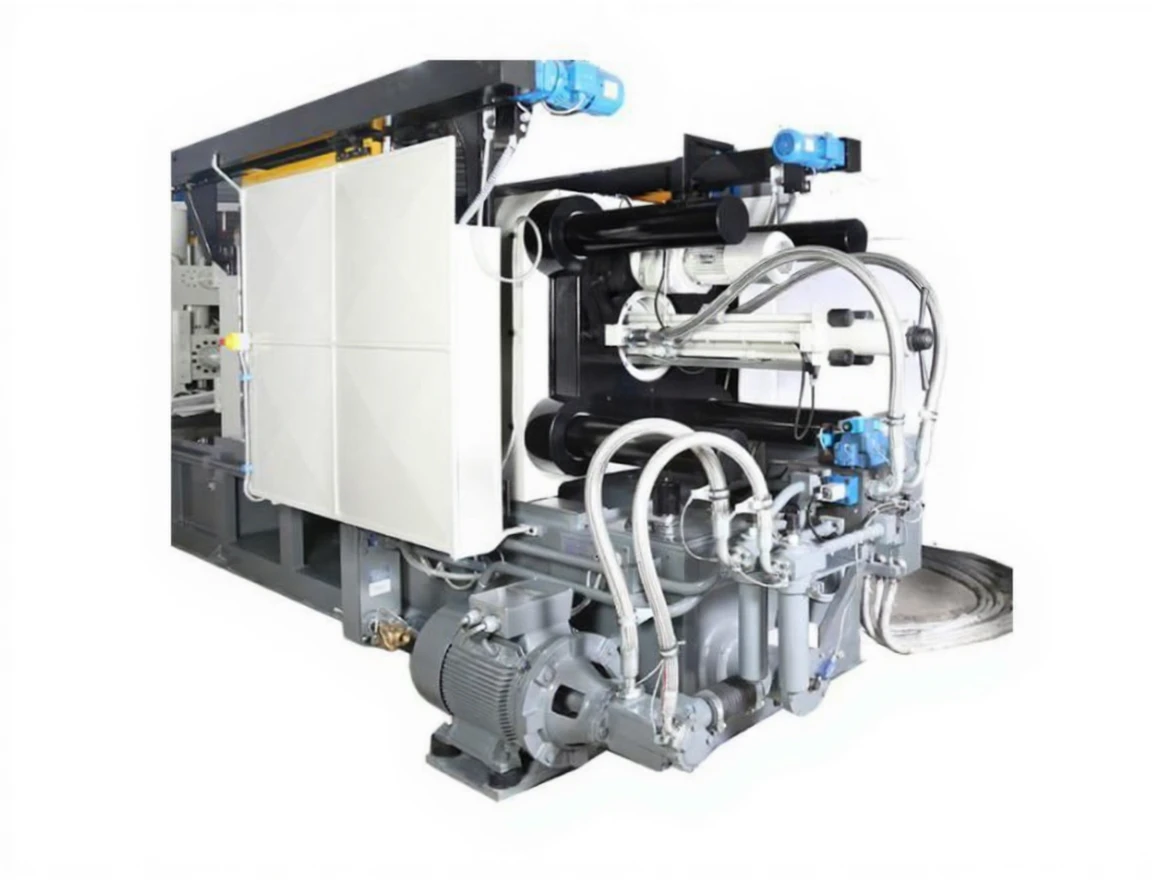

400 Ton Capacity Metal Injection Molding Machine

This metal injection molding machine, with a closing force of 400 tons, is developed for the precise and high-speed casting of aluminum and zinc alloys. Its powerful hydraulic structure, large plate dimensions, and stable injection system provide maximum efficiency in mass production. It offers safe and stable operation with automatic control units, mold protection system, and precise pressure management. It is an ideal solution for high-volume productions in the automotive, white goods, and metal processing industries.

Metal Press MP-400 Technical Specifications

• Closing Force: 4200 kN

• Moving Plate Stroke (Max.): 600 mm

• Mold Height (Min./Max.): 250 – 850 mm

• Plate Dimensions: 1000 × 1000 mm

• Distance Between Columns: 635 × 635 mm

• Column Shaft Diameter: 130 mm

• Pusher Force: 200 kN

• Pusher Stroke: 150 mm

• Injection Force: 500 kN

• Injection Stroke: 475 mm

• Hopper Diameters (Min./Max.): 50 mm – 95 mm

• Max. Part Weight (Aluminum): 5000 g

• Max. Casting Area: 1000 cm²

• Motor: 22 kW

• Machine Weight: 16,000 kg

• Machine Dimensions (Length × Width × Height): 7000 × 1850 × 2700 mm

Highlighted Features

• PLC or microprocessor-based electronic control system

• Graphical control with speed, pressure, and distance variables (shot control – injection curve)

• Possibility to maintain maximum production quality by controlling 11 different parameters

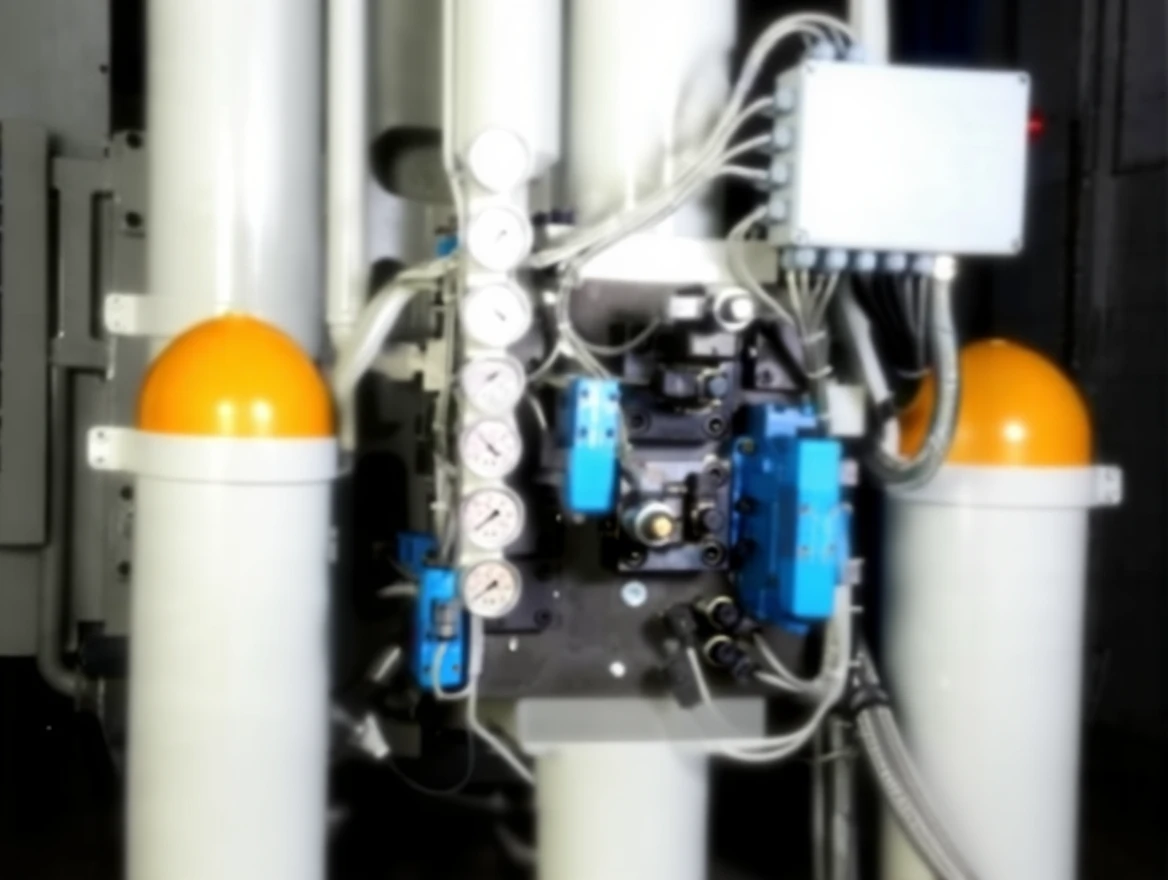

• Proportional controlled hydraulic system (Vickers – Parker)

• Ability to record reference curves for 500 different molds

• Error reporting system

• Precise cover pressure lock protection system

• Plate type oil cooling system (Alfa–Laval)

• Proportional control point scissors lubrication system

• Steel cast plates and scissors group

• Controllable mold clamping force

• Automatic injection stroke and weight adjustment

• Scissors group closing cycle opening system

• Scissors group on-off-safety systems with proportional units

• Audible and visual warning system

• Digital oil level indicator

• Digital oil temperature control

• Electronic hydraulic thermostat meter

• CE compliance and certification

• Electronic communication (I/O) preparation

• Piston lubrication

• Linear/rotary bucket robot

• Mold lubrication robot

• Part receiver (material acquisition) robot
