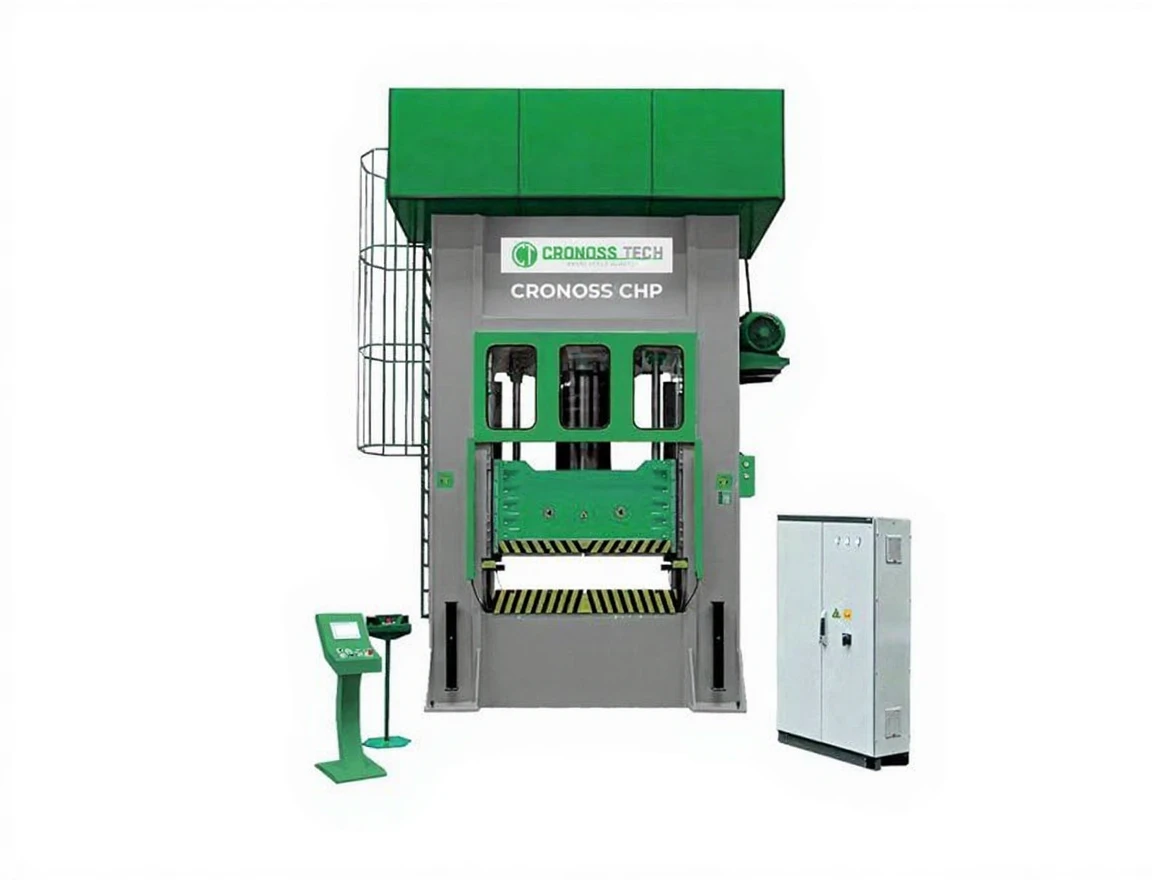

400 Ton H Frame Single Acting Hydraulic Press

CHP – H Type Single Effect Hydraulic Press | 400 Tons

STANDARD FEATURES

• Steel construction body and parts relieved of stress / welding stress by vibration method

• 8-surface slide / bearing for high precision and long-lasting use

• PLC control system and touch operator panel

• Argon welding application for fastening elements and steel tension pipes

• Accredited by TÜRK-AK for WPQR and WPS approval
  EN ISO 15614-1:2017 welding application certificate
  (Welding applications are supervised by welding coordination engineers certified according to EN ISO 14731)

• Parallelism and perpendicularity tolerances compliant with ISO and DIN standards
  (≤ 120 microns / meter)

• PARKER / REXROTH hydraulic unit

• SIEMENS / SCHNEIDER electrical consumables

• Automatic centralized lubrication system

• Dual hand control system

OPTIONAL FEATURES

• CE application

• Safety PLC (SIEMENS Failsafe / PILZ PNOZ Multi)

• Beam barriers (LEUZE, PILZ or SICK – 2 pieces)

• Traceable feedback valves (REXROTH or PARKER – 3 pieces)

• Hydraulic coach locking system (1 piece)

• Proportional speed and pressure application
  (Different speeds, stops, and pressure values can be entered at different points of the pressing process,
  minimizing the effect of material and mold deformations on the work done.)

TECHNICAL SPECIFICATIONS

• Press Type: Steel construction, 8-slide H type press body

• Body Material: St52 – ERDEMİR

• Slide Bearing: Bronze Zr14

• Press Capacity (Coach): 400 Tons

• Moveable Table Size: 1200 x 1500 mm

• Fixed Table Size: 1200 x 1500 mm

• Parallelism Tolerance: 120 microns / mt.

• Perpendicularity Tolerance: 60 microns / mt.

• Coach Stroke Distance: 800 mm

• Minimum Clearance: 100 mm

• Maximum Clearance: 900 mm

• Maximum Working Pressure: 250 bar

• Total Motor Power: 37 kW – IE3

• Main Pump: 45 cm³ – REXROTH or PARKER

• Moveable Table Rapid Descent Speed: 150 mm/sec

• Moveable Table Bending Speed: 12 mm/sec

• Moveable Table Return Speed: 170 mm/sec

• Main Cylinder Inner Diameter: Ø 450 mm – Ck45

• Auxiliary Acceleration Cylinders: 2 pieces

• Press Approximate Height: 5600 mm

• Press Approximate Width: 3250 mm

• Press Approximate Depth: 2200 mm

• Lower Table Height from Ground: 1400 mm

• Front Fill Valve: NG 150

• Cooling System: EMMEGI – CIESSE – PARKER

• Off-line Filtration: REXROTH or PARKER

• Air Filter: 10 micron permeability

• Return Filter: 25 micron permeability

• Filter Contamination Warning: Electronically controlled

• Lubrication Method: Automatic (adjustable from screen)

• Coach Stroke Adjustment: Adjustable from screen

• Coach Tonnage (Pressure) Adjustment: Adjustable from screen

• System Error / Press Status Information: Monitorable on screen

• Mold Memory: Available

• Hydraulic Oil Temperature Information: Monitorable on screen

• Linear Distance Scale: NOVATECHNIK or TURCK

• PLC: DELTA

• Touch Panel: DELTA 7″

• Approximate Weight: 19.5 tons
