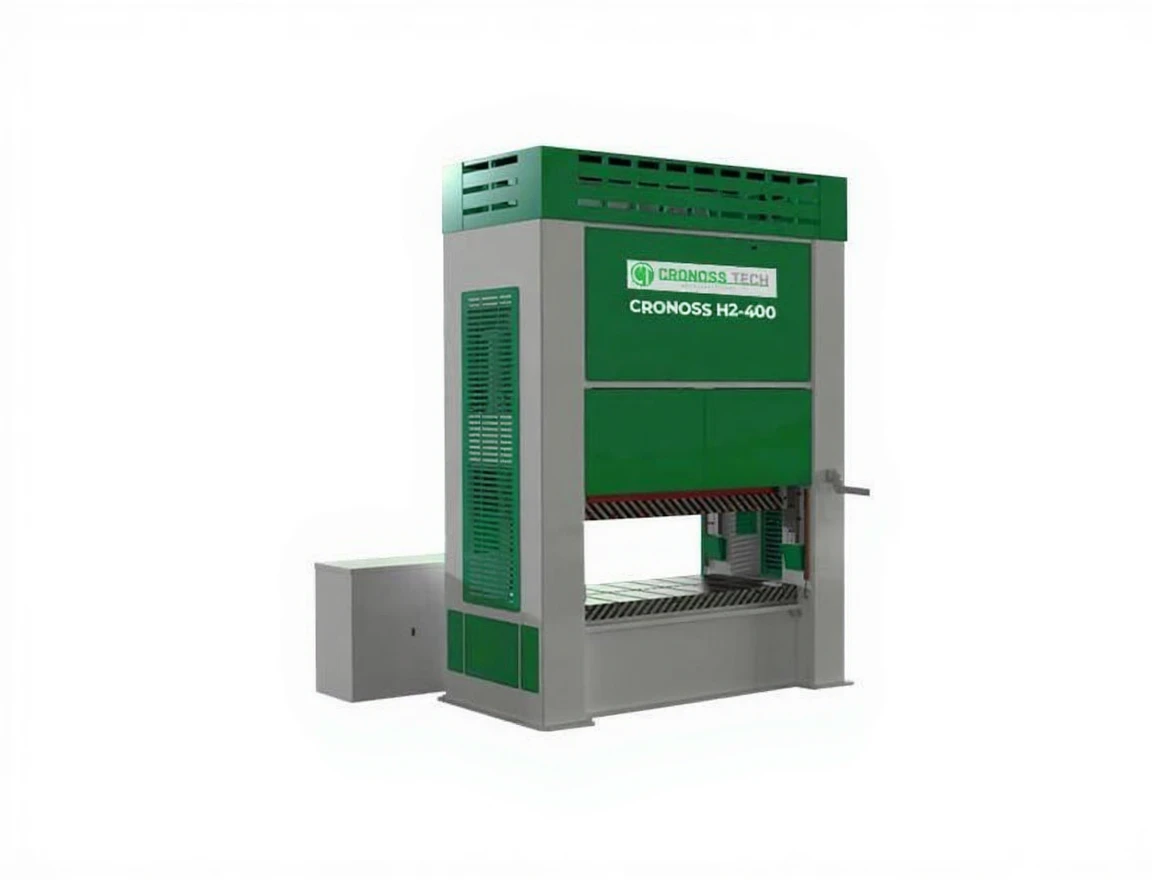

400 Ton H Type Double Tie Rod Eccentric Press

H Type Eccentric Press – CEHP 400 Tons

Standard Features

• Steel construction body

• Pneumatic clutch – brake system

• T channel additional extension plate

• 8 bedded ram

• Adjustable stroke in single crank arm

• Counterbalance piston on ram

• Full automatic fine lubrication system

• PLC control system

• Grand piano type control panel

• Touchscreen LCD display

• Motor reverse movement

• Overload hydraulic safety valve

• Motorized ram adjustment mechanism

• Photoelectric protection curtain

• Gearing in closed oil tank

• Dual coil safety valve

• Compliance with CE standards

Optional Features

• Press feeding systems

• Waste material unloading systems

• Sliding safety cover in front of the table

• Mold with desired features

Technical Features

• Steel construction 8 slided monoblock body

• Vibration stress relief on body and welded parts

• Available area for moving table: 2000 × 1200 mm

• Available area for fixed table: 2000 × 1200 mm

• Parallelism and perpendicularity tolerances compliant with ISO and DIN standards

• Stroke distance: 200 mm (fixed)

• Table – Ram distance (max.): 500 mm

• Ram adjustment (reglage): 120 mm

• Eccentric shafts: CK41

• Gears: Steel cast

• Motorized table–ram distance adjustment

• Approximate press height: 4700 mm

• Approximate press width: 3050 mm

• Approximate press depth: 3200 mm

• Press lower table height from the ground: 900 mm

• Distance between walls: 2130 mm

• Press side window size can be adjusted upon request

• Flywheel bearing structure

• Slide bearings: Bronze (Zr14)

• Connecting rods, intermediate and main bearings: Bronze (Zr14)

• Central automatic grease lubrication

• Dual crank structure

• Pneumatic clutched and combined brake system (OMPI)

• 4 pieces of ram cushioning cylinders

• Approximate press weight: 51,000 kg

Automation and Electrical Information

• Main motor: 55 kW – IE3

• Touch panel and PLC: Delta

• PLC program for adapting mold to the press

• Speed control device: Delta

• Operating speed: 25 – 45 strokes/min

• Mold recipe capacity: 100 pieces

• Switchgear materials: Siemens & Schneider

• Grand piano type or wall type electrical panel

• Table–ram distance measurement can be monitored from the screen

Manufacturing Information

This machine is manufactured by CronossTech in Turkey.
