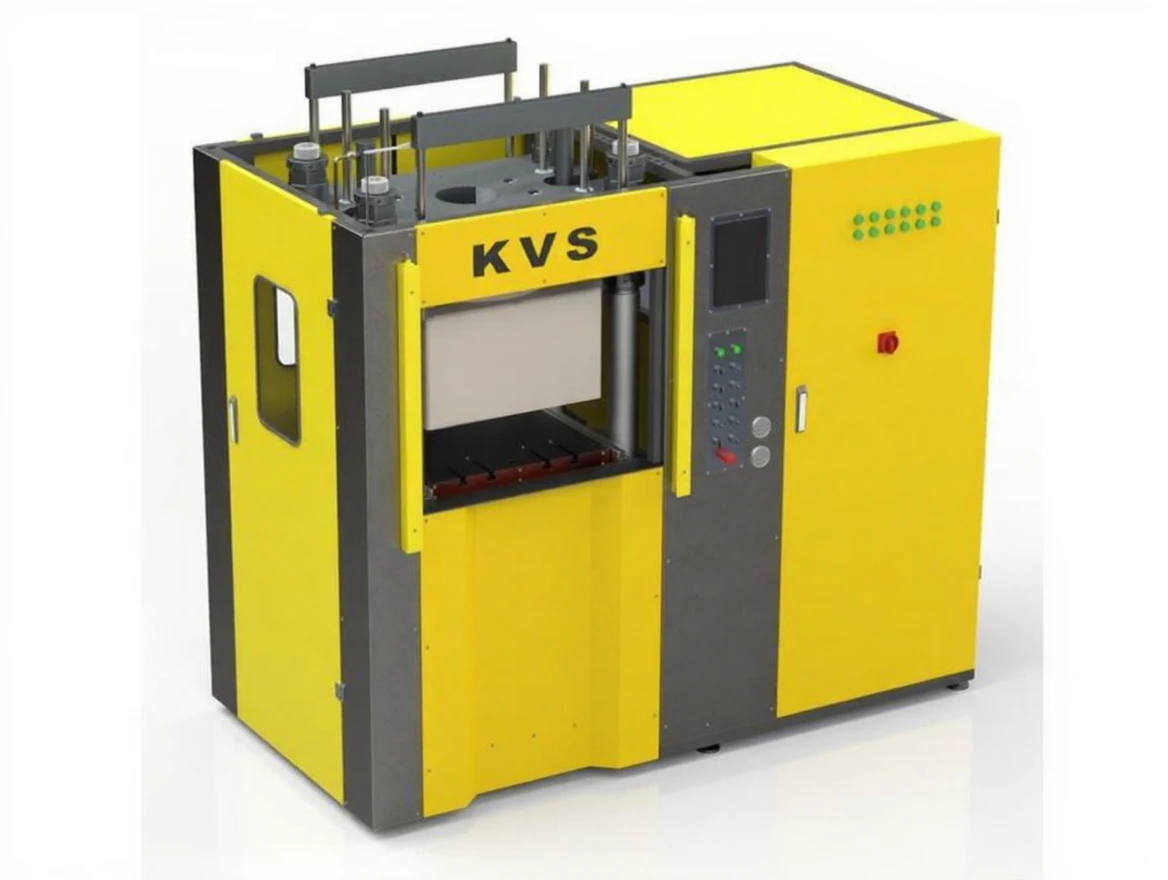

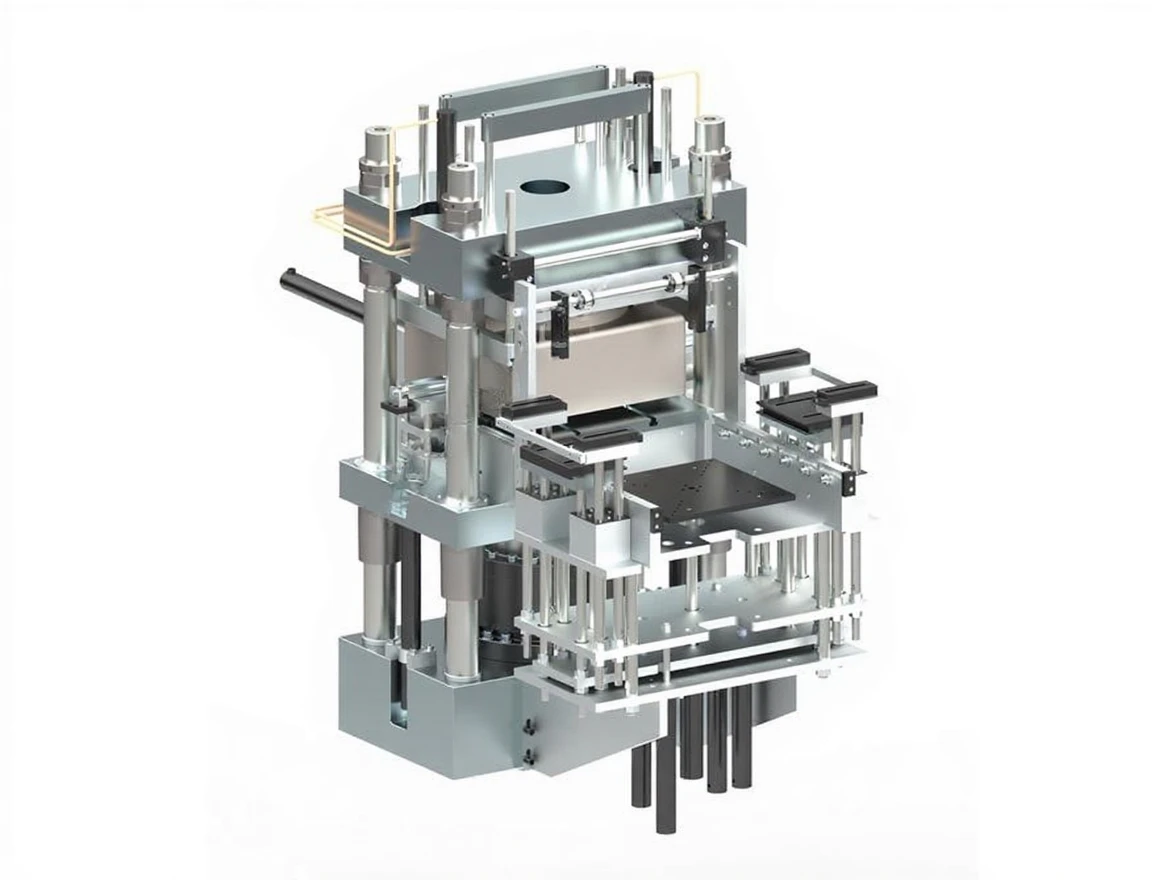

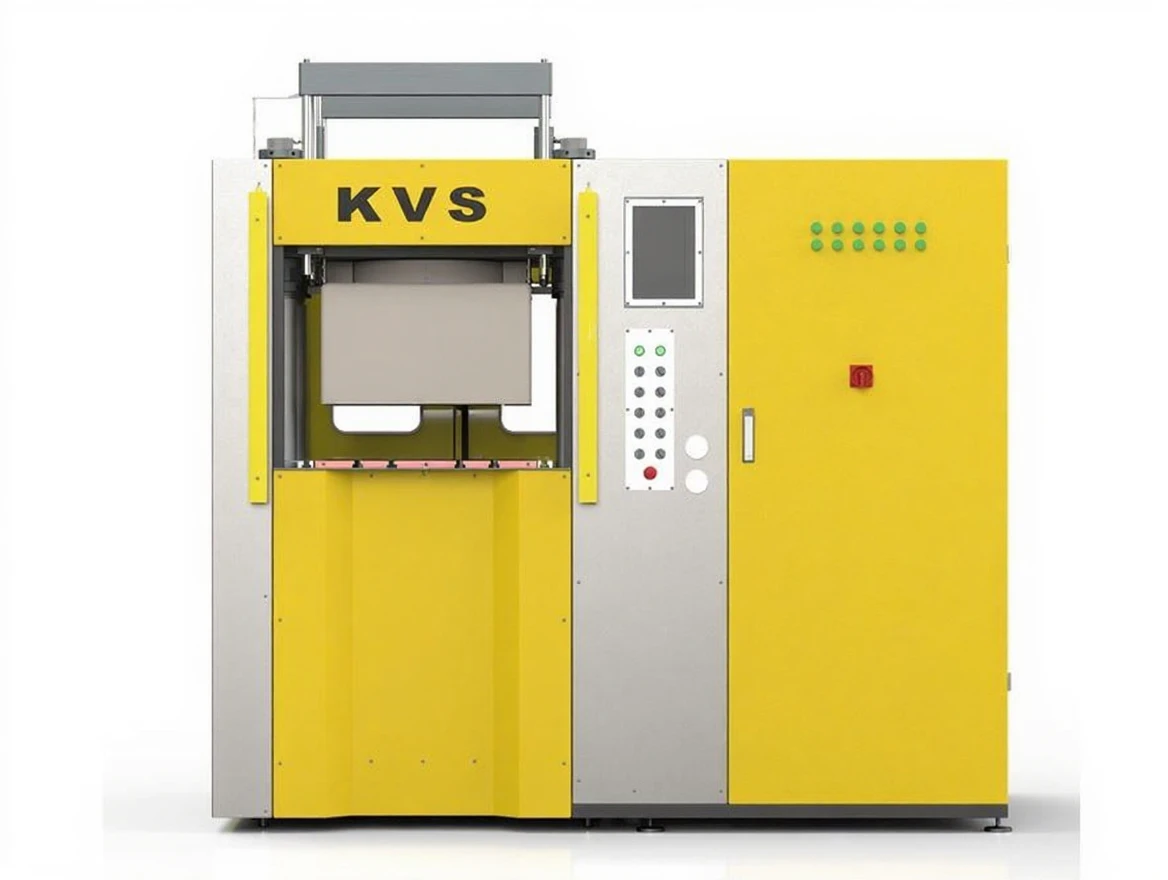

400 Ton Vacuum Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
VKM / V-400 |
Description
400 Ton Vacuum Rubber Vulcanization Machine
| MODEL | TYPE | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ | VKM/ |
| V-50 | V-80 | V-100 | V-150 | V-200 | V-250 | V-300 | V-400 | V-500 | ||
| Clamping Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 250*250 | 350*350 | 400*400 | 450*450 | 550*550 | 600*600 | 650*650 | 700*700 | 950*950 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 5 | 10 | 12 | 12 | 13 | 15 | 20 | 30 | 35 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 200 | 200 | 200 | 250 | 250 | 400 | 400 | 500 |
| Pump Type | Pallet | |||||||||
| Dimensions Width/Length | Mt | 1,2*2,0 | 1,2*2,0 | 1,5X2,0 | 1,5X2,0 | 1,5X2,0 | 1,5X2,0 | 1,8X2,2 | 2,0X2,5 | 2,0X2,5 |
| Weight | Kg | 5000 | 5500 | 5500 | 5500 | 6500 | 7000 | 7500 | 9500 | 13000 |
| Height | Mt | 2,3 | 2,3 | 2,4 | 2,5 | 2,4 | 2,6 | 2,6 | 2,6 | 2,6 |

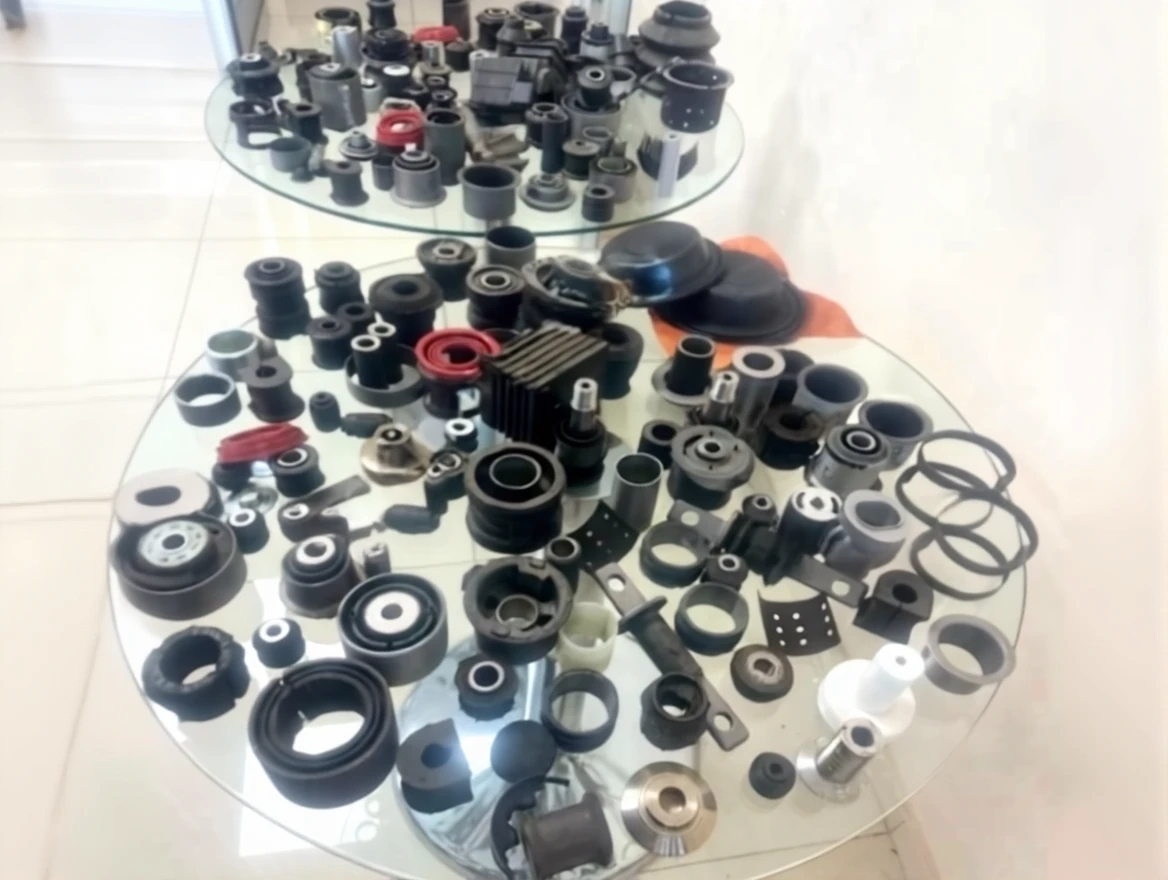

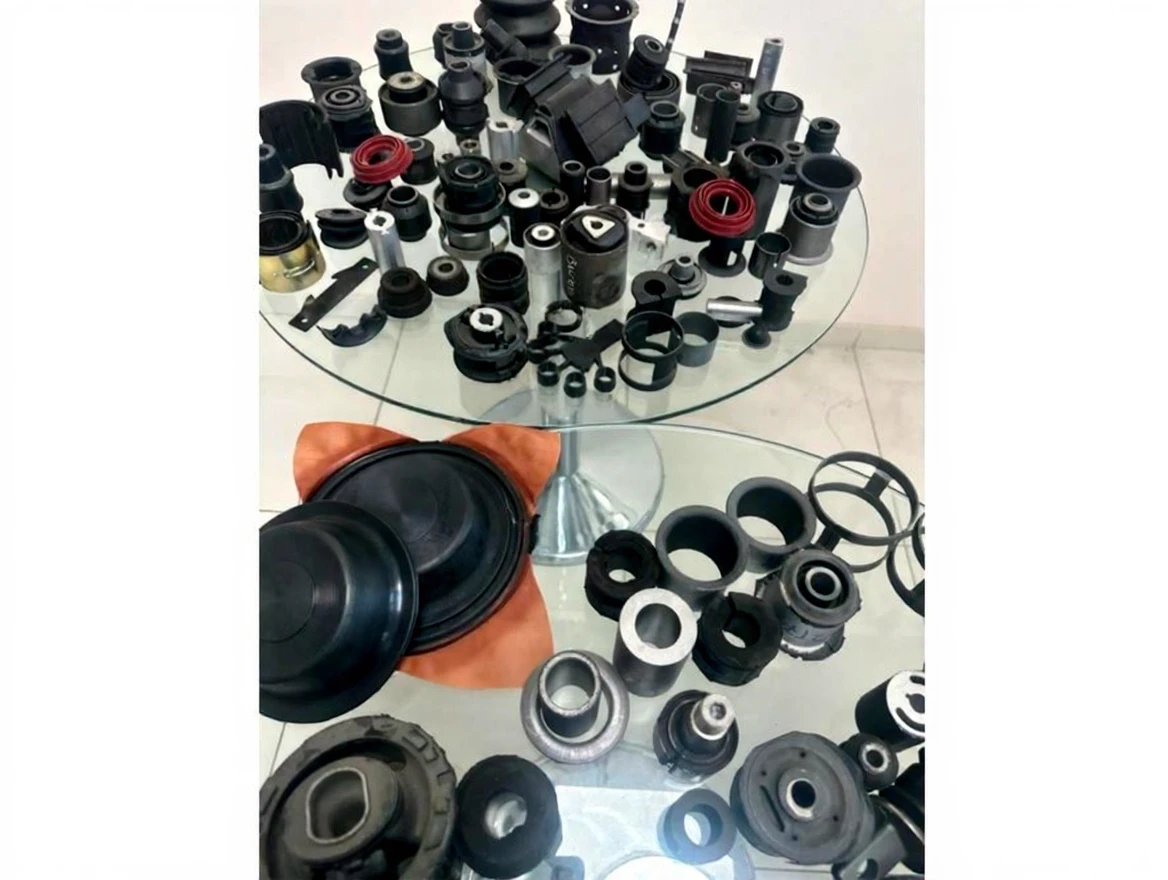

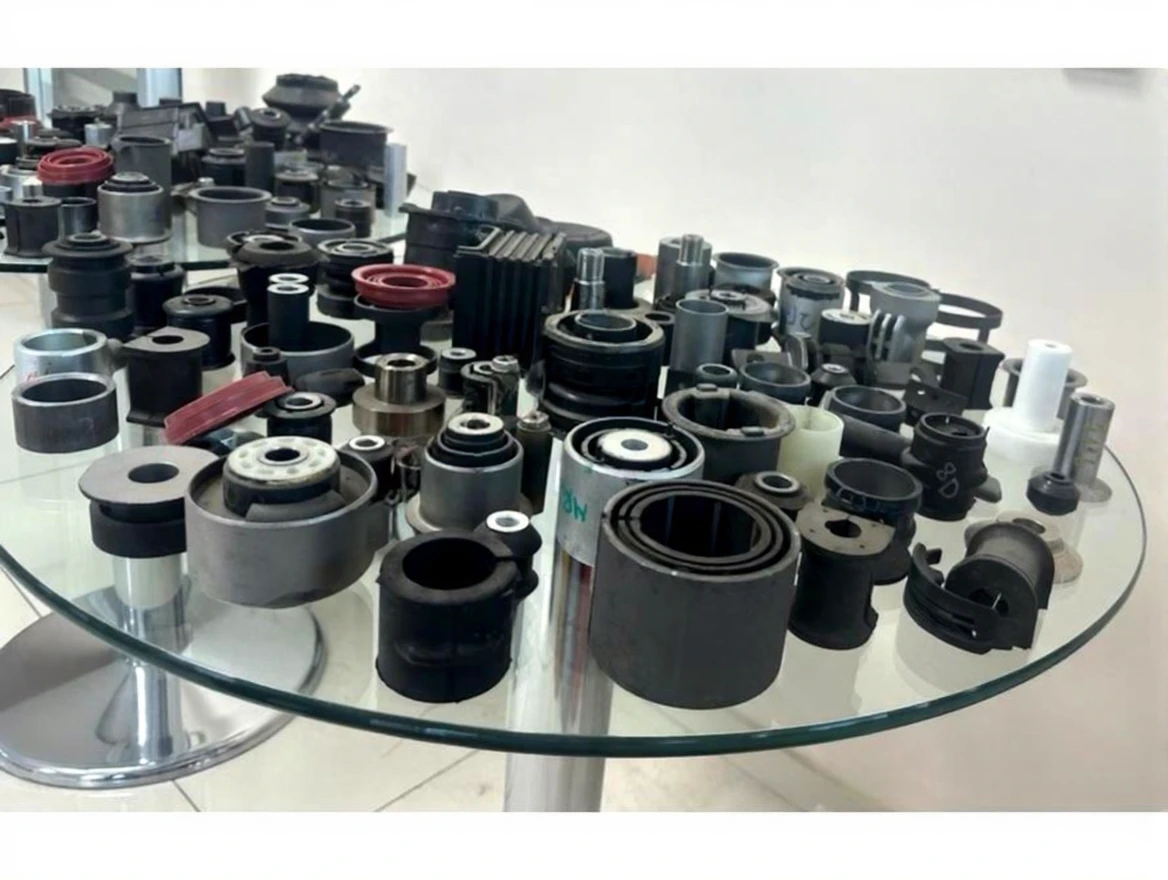

They are machines that provide the easiest way to produce rubber products.
At Kavis Makine, we manufacture machines from 50 tons to 5,000 tons.
The 2RT, 3RT, 4RT mold release systems used in other machines can also be easily used in this machine, offering a highly efficient production process with high safety.
CE safety procedure compliant with fully enclosed cabin.
Options
- Upper Plate Lifter
- Bottom Plate Lifter
- Product extractor ejector
- 2RT / 3RT / 4RT
- External upper and lower ejectors
- Mold Plate rotation 180 degrees
