4000×2000 mm Fiber Laser Sheet Cutting Machine

FB 4020 – Fiber Laser Sheet Cutting Machine (OEM | Made in Turkey)

Working Area: 4000 × 2000 mm (4020 Model)

Short Product Description

FB 4020 Fiber Laser Sheet Cutting Machine; is an OEM production solution designed to offer high speed, precision, and stability for medium and large scale sheet sizes. Its rigid steel construction, advanced CNC infrastructure, and wide laser power options make it suitable for mass production and heavy industry applications.

Key Advantages

• OEM production – Made in Turkey

• Wide sheet processing capacity with 4000 × 2000 mm working area

• High speed, acceleration, and repeatable precision

• Optimized cutting modes for thin and thick sheets

• Maximum operator safety with fully enclosed cabin

• Structure suitable for automation and line integration

Standard Features

• CNC controlled fiber laser sheet cutting machine

• Analyzed, rigid and heavy-duty steel body and bridge structure

• Rack-pinion drive system

• Automatic motorized focusing laser cutting head

• Automatic height control sensor

• Automatic focal distance adjustment during cutting

• High precision linear guide and servo motor system

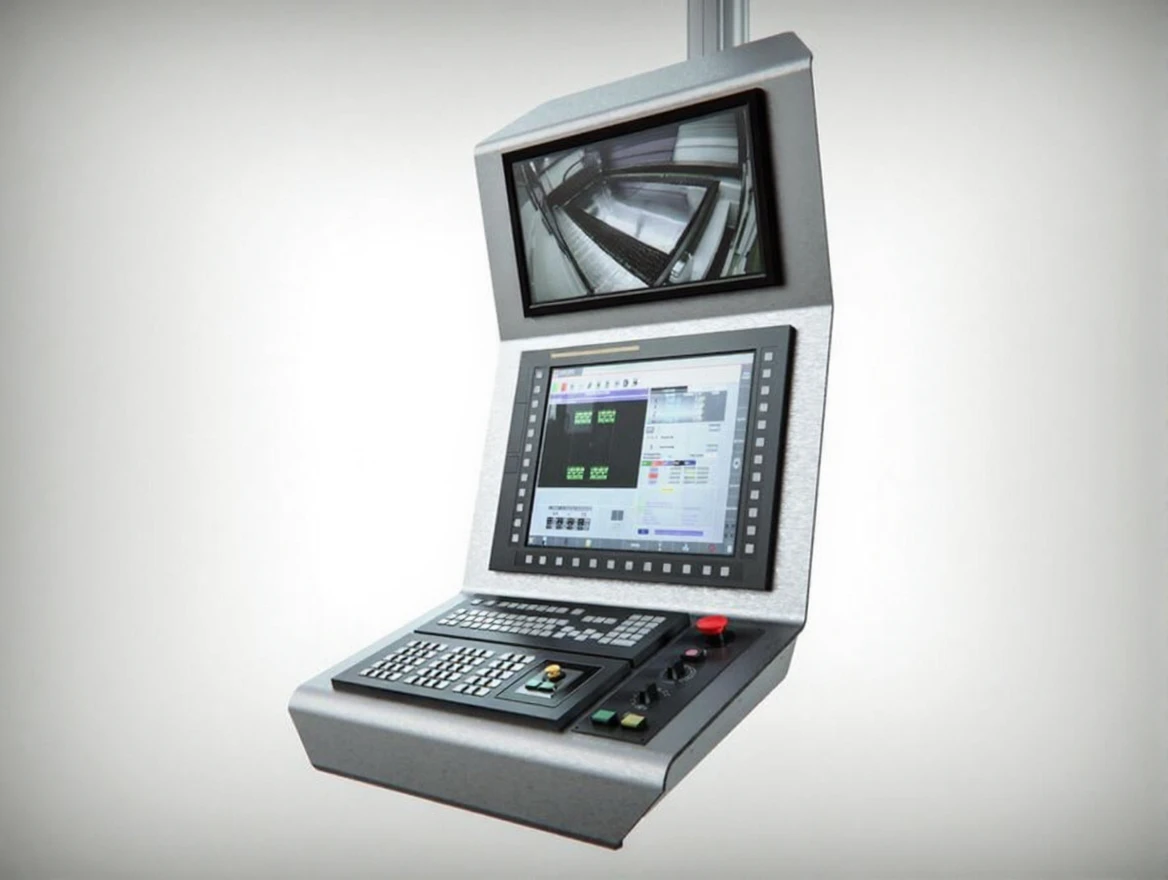

• Windows-based, touch CNC control unit

• User-friendly CNC interface with multi-language support

• EtherCAT communication infrastructure

• Temperature, pressure, protective glass, and back reflection monitoring on the cutting head

• Camera-supported imaging system inside and outside the machine

• LED status indicators

• Transmission of the fiber laser beam via fiber cable
  (no optical consumables)

• Sheet recognition and automatic alignment technologies

• Fly-Cut (continuous cutting without changing cutting direction) feature

• No Piercing (non-blasting cutting) mode for thin sheets

• Blasting cutting mode for thick sheets

• Fully enclosed cabin compliant with CE standards

• Special safety glasses that do not allow laser light to pass through

• CNC controlled filtered ventilation system

• Automatic nozzle cleaning and head calibration

• Conveyor-based slag and part discharge system

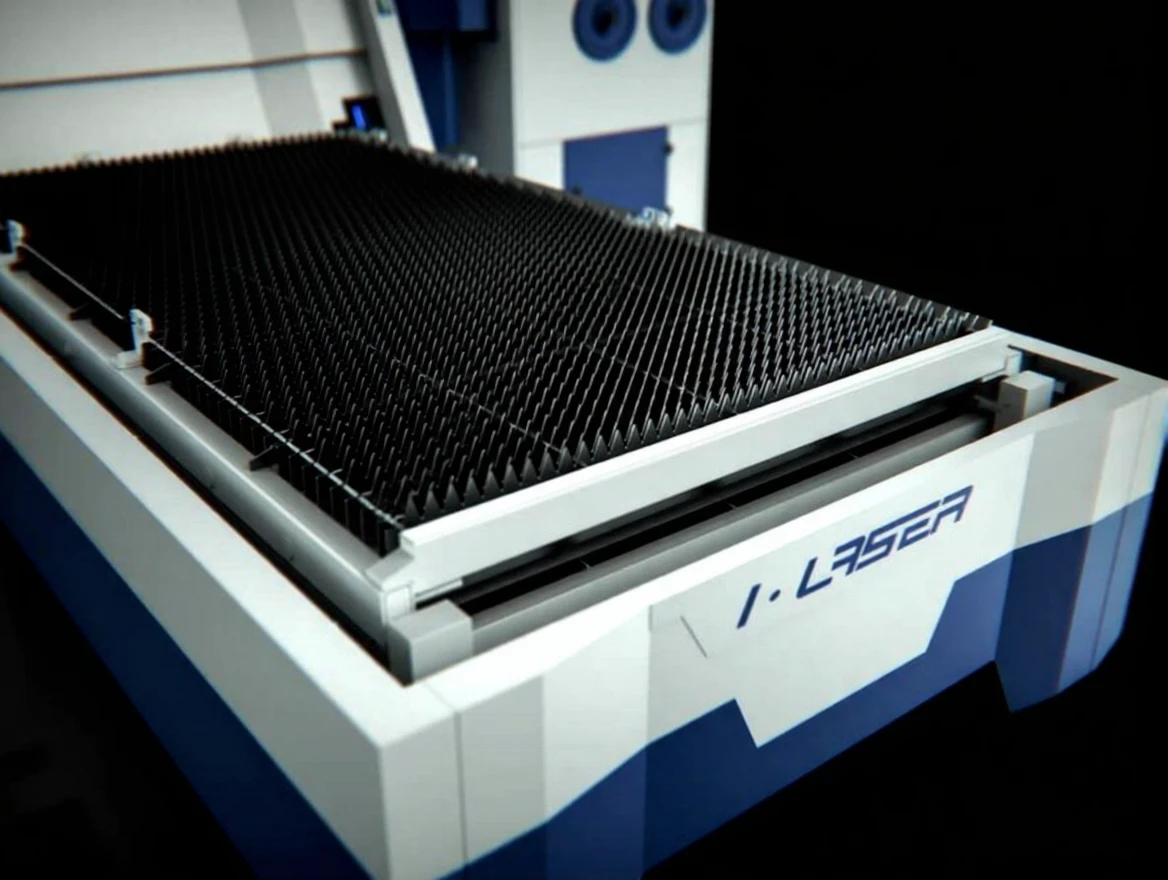

• Moving table system

• Emergency stop buttons and safety locks

Optional Features

• Double pallet automatic table change system

• Fiber laser resonator in different power options

• Automatic sheet loading system

• Automatic part unloading system

• Advanced CNC controlled filter unit

• Camera-based sheet recognition and nesting system

• Additional camera and remote monitoring package

• Oil cooler / climate control system

• Additional LED lighting inside the cabin

• Special cutting head alternatives

• Additional gas control and pressure regulation systems

Technical Specifications – 4020 Model

Axes

• X Axis: 4030 mm

• Y Axis: 2030 mm

• Z Axis: 120 mm

Movement Performance

• Acceleration: 2.5 G

• Max. axis speed: 150 m/min

• Synchronized speed: 210 m/min

• Positioning accuracy: ±0.05 mm

• Repeatability accuracy: ±0.03 mm

Table & Loading

• Max. table loading capacity: 2500 kg

• Table change time (optional): ~30 sec

Laser Power Options

• 2 kW / 3 kW / 4 kW / 6 kW / 8 kW / 10 kW

Cutting Capacities (Max.)

• Black sheet: 16 – 30 mm (depends on laser power)

• Stainless steel: 6 – 22 mm

• Aluminum: 6 – 20 mm

Gas Pressures

• Oxygen: 13 bar

• Nitrogen: 25 bar

• Air: 13 or 25 bar

General

• Machine weight: ~22,200 kg

• Average electricity consumption: 20 – 70 kW/hour
  (depends on laser power)

OEM & Production Note

This machine is manufactured under OEM production in Turkey.
Marking, laser power, automation level, and technical configuration can be determined on a project basis.
