41.40 M (8500 Kg) Spider Articulated Platform

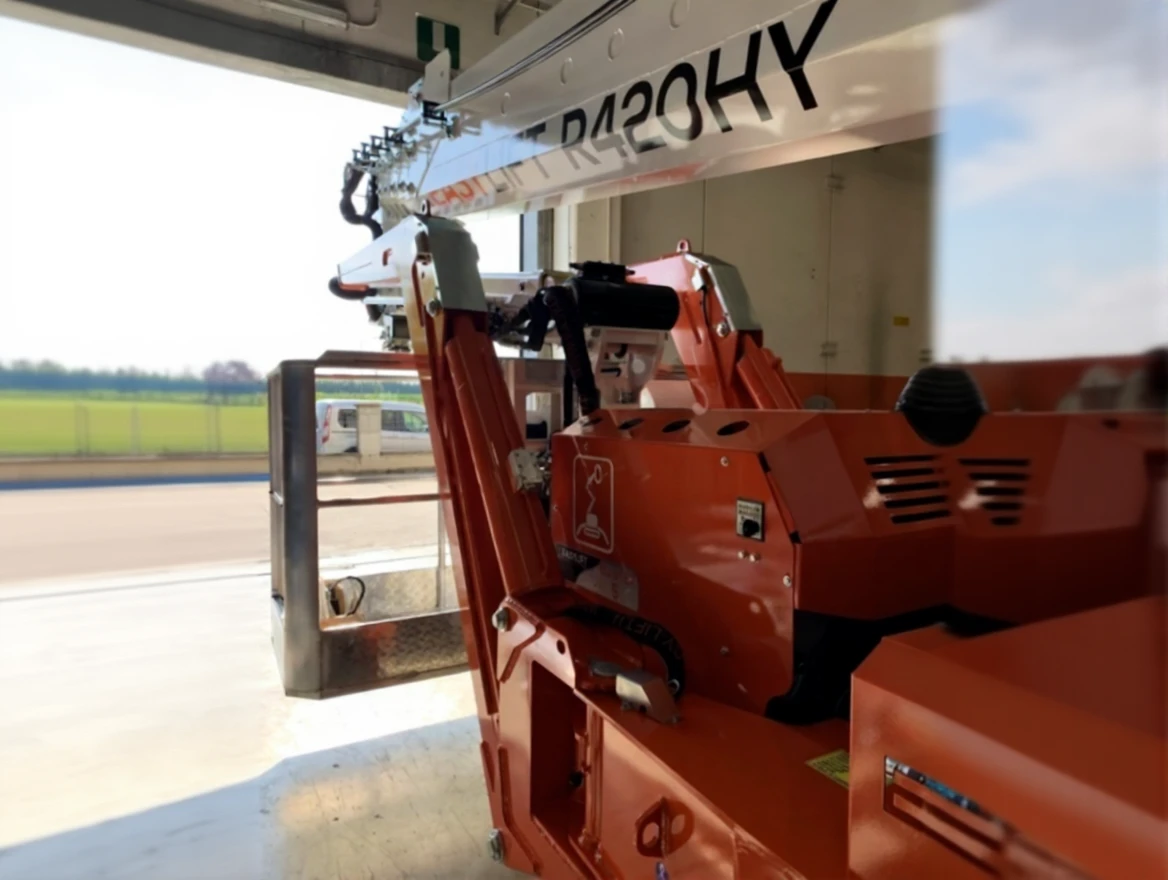

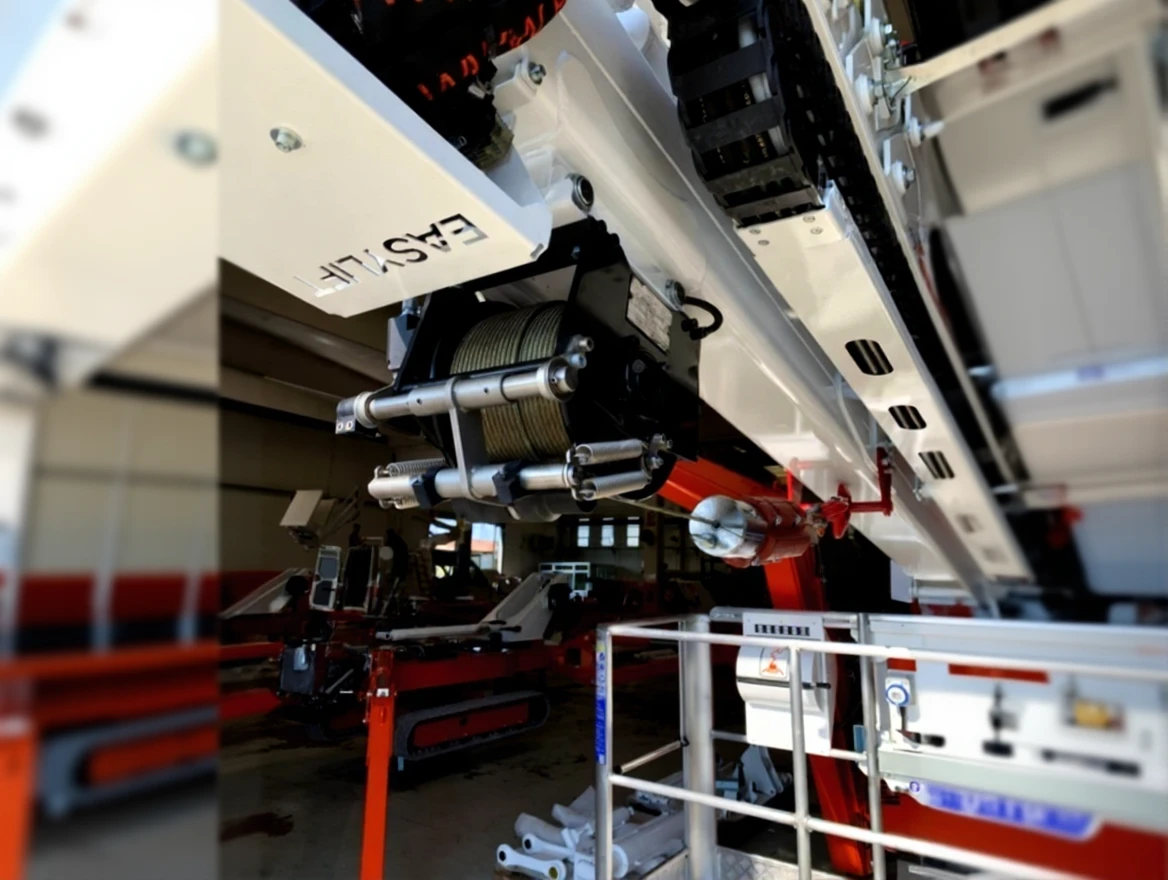

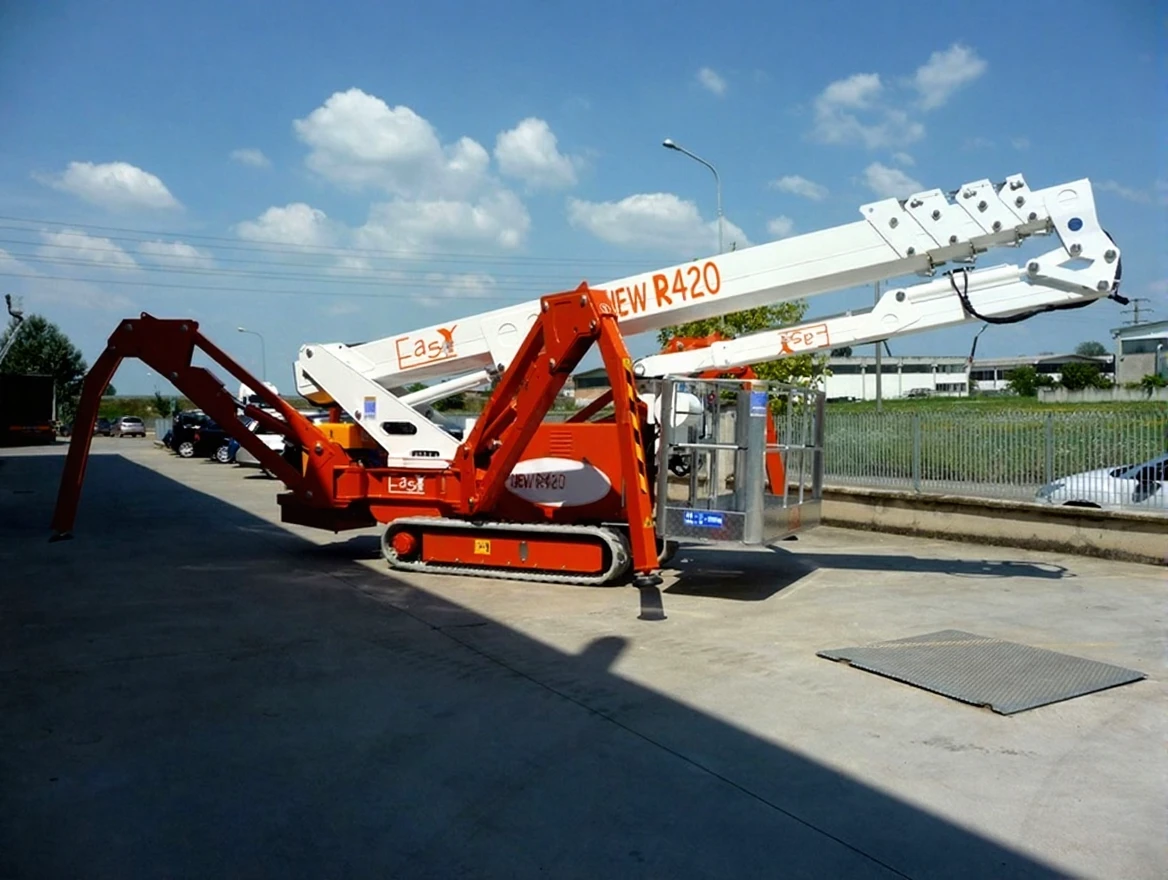

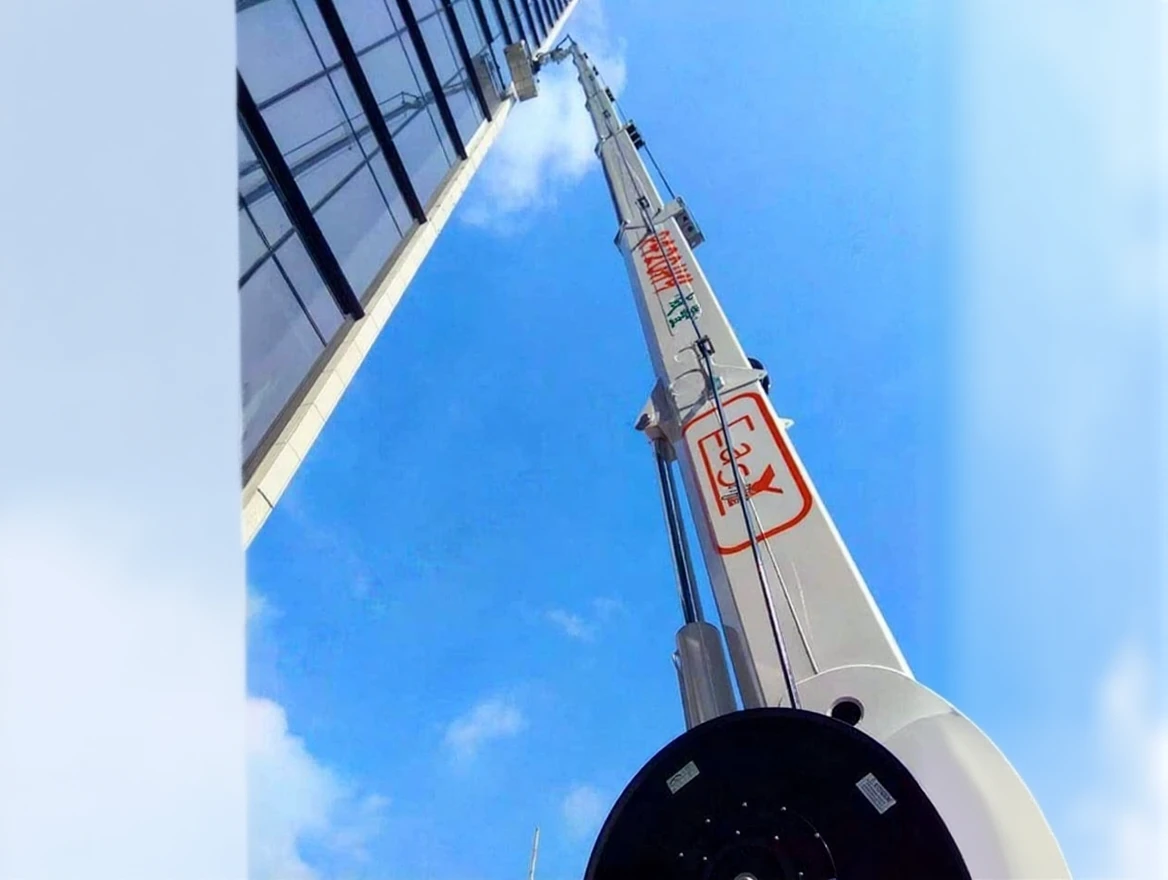

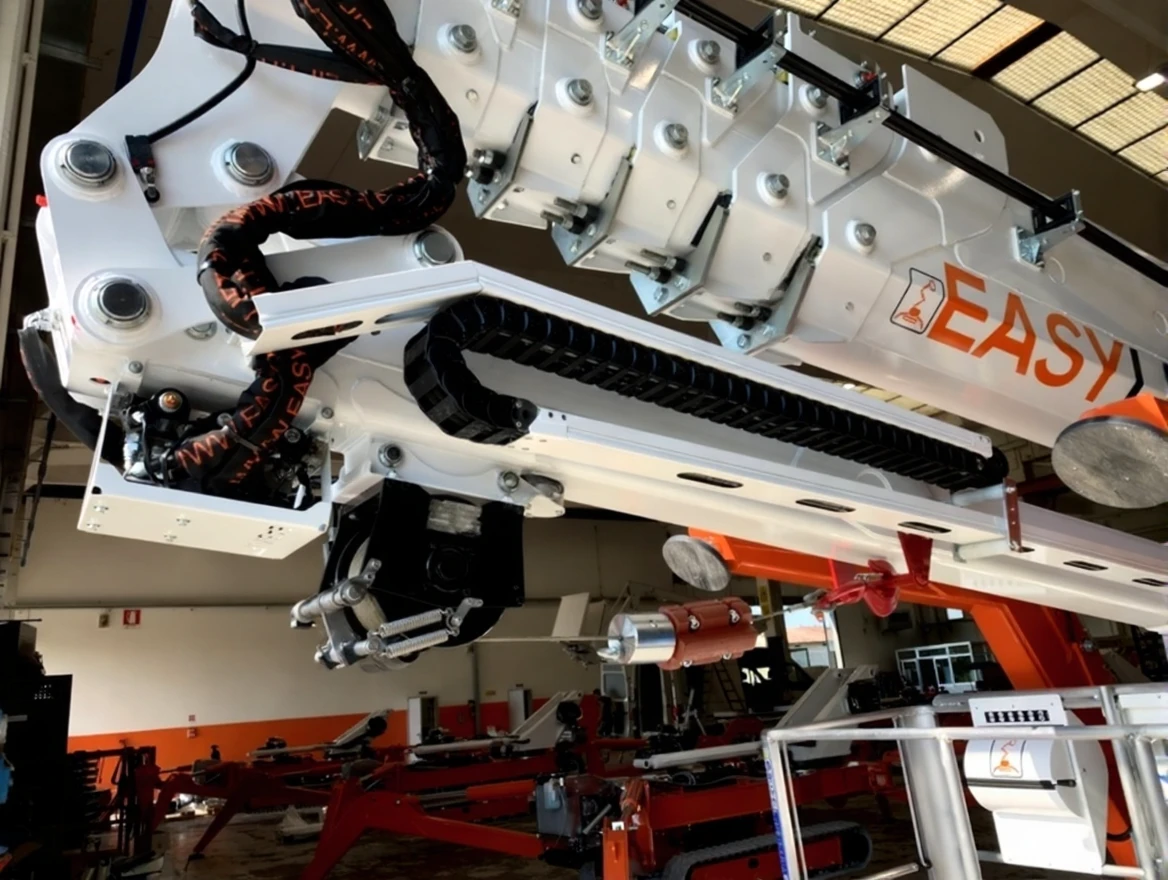

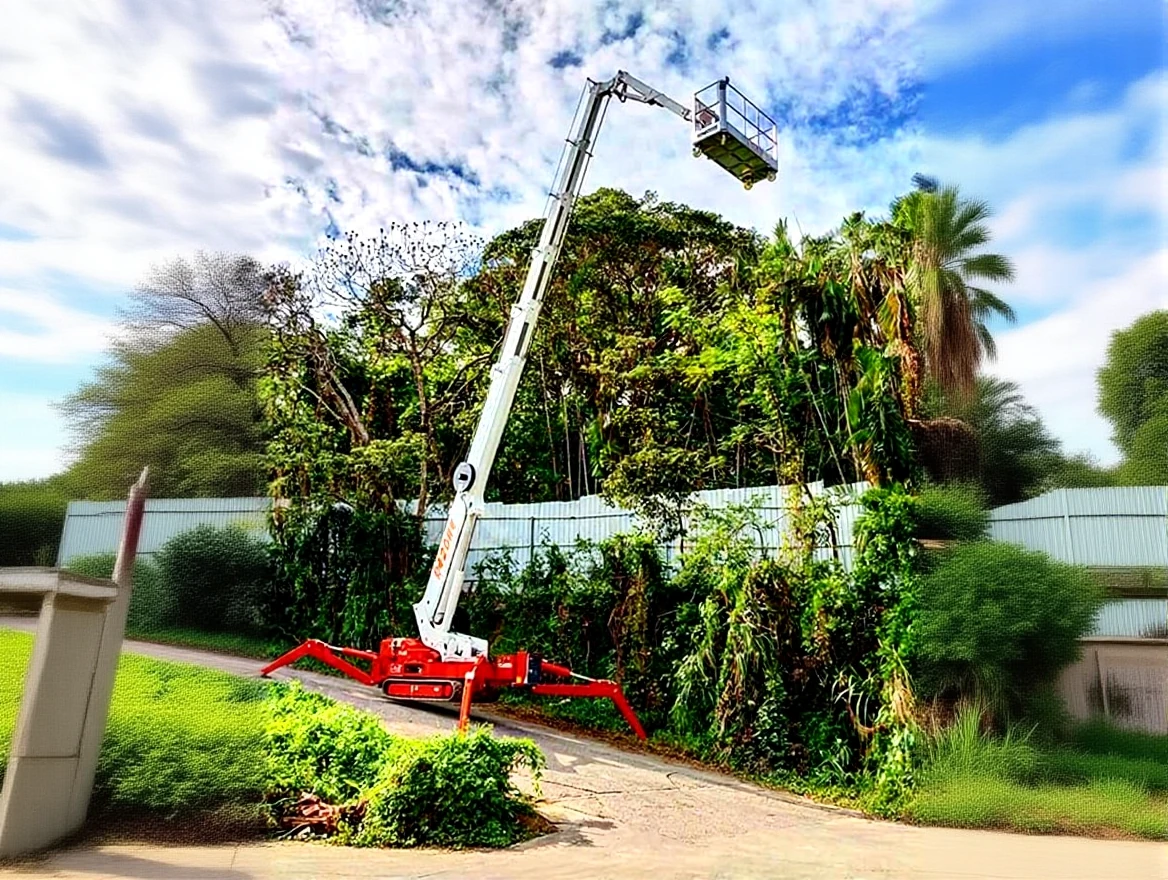

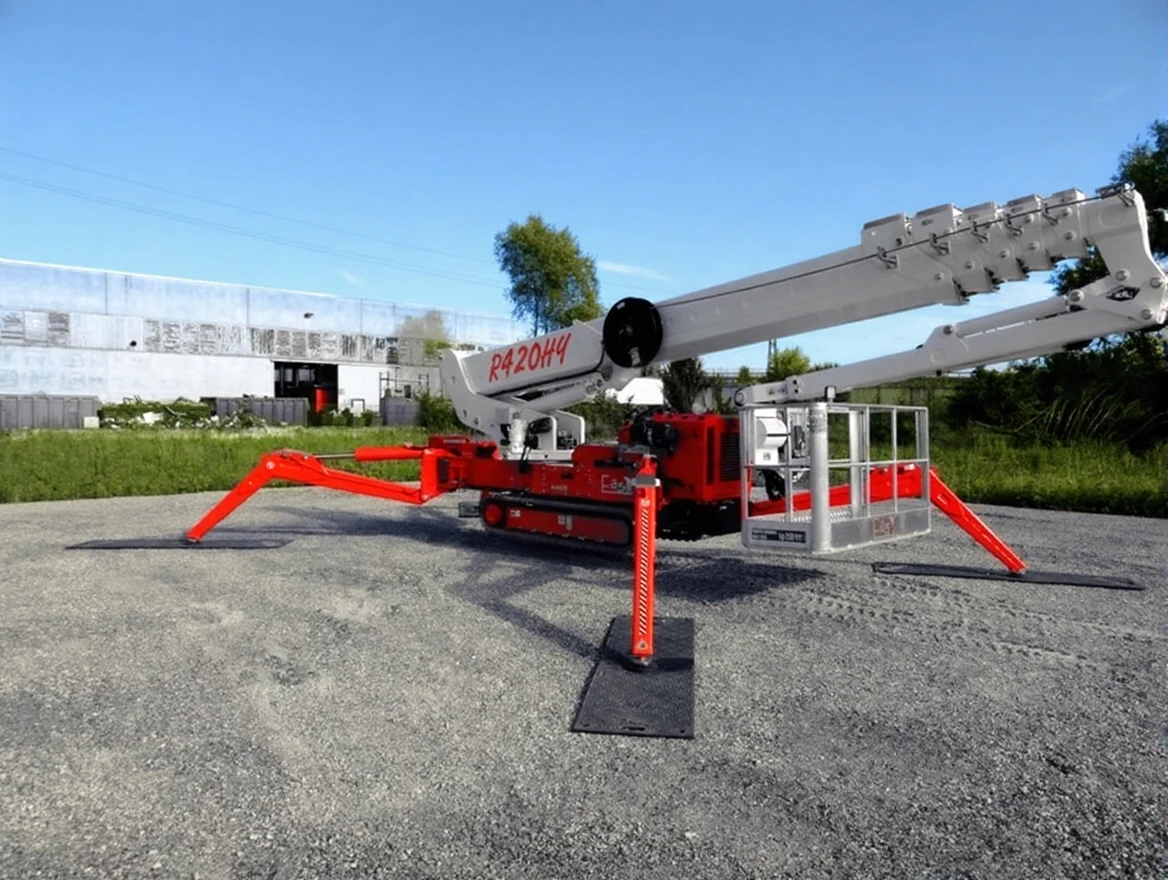

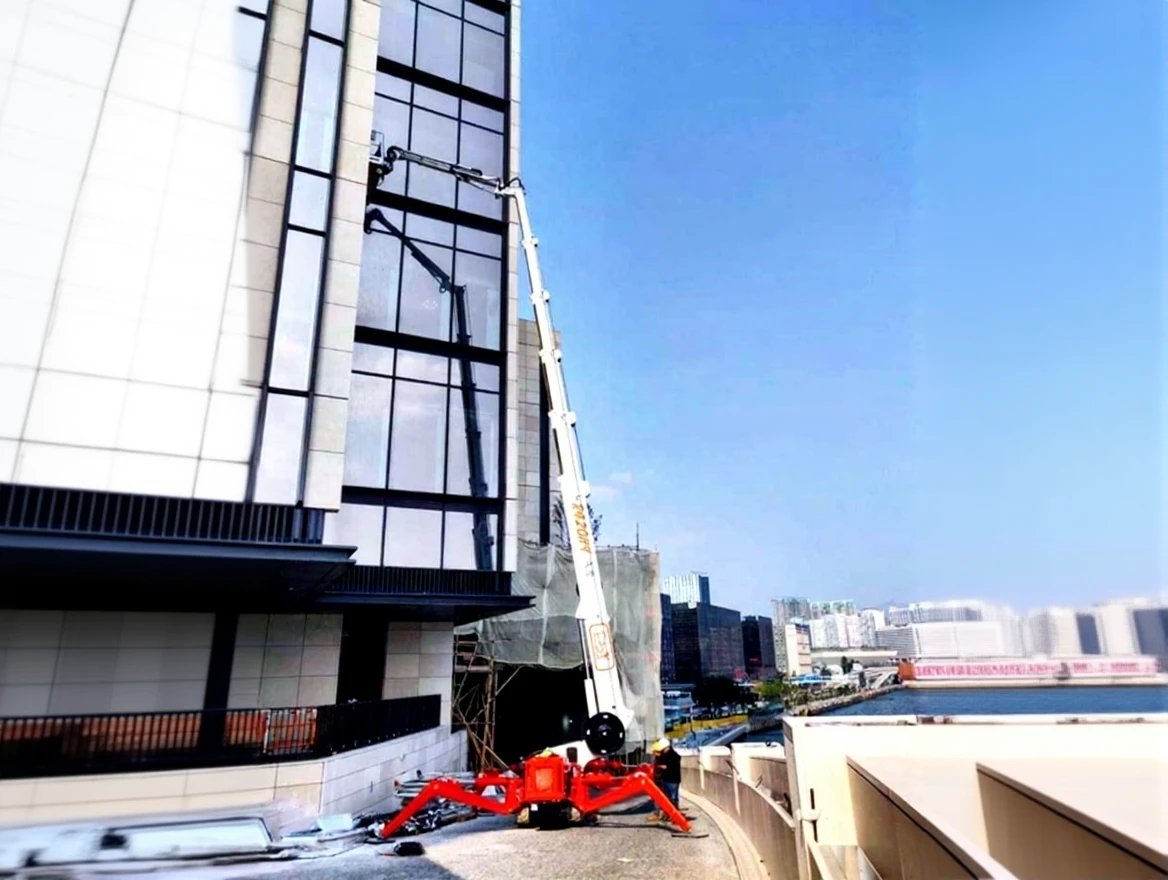

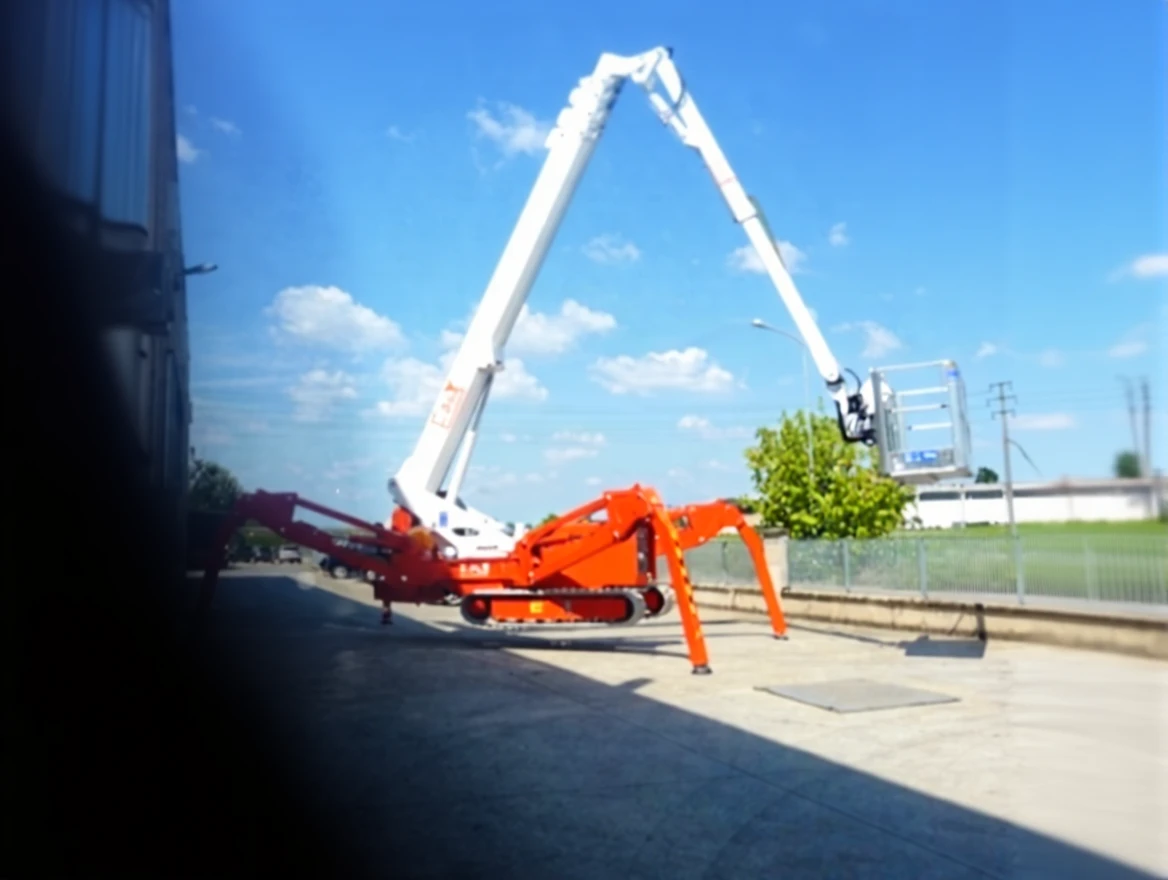

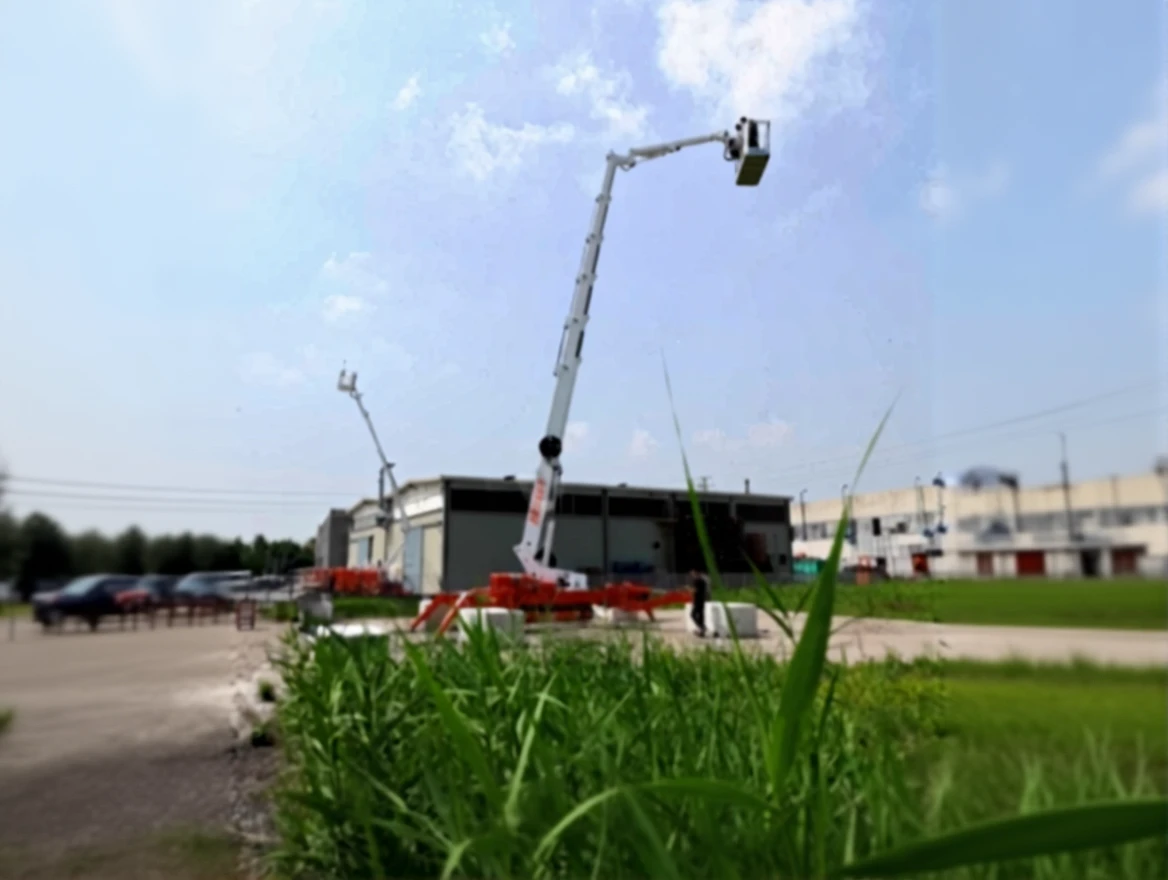

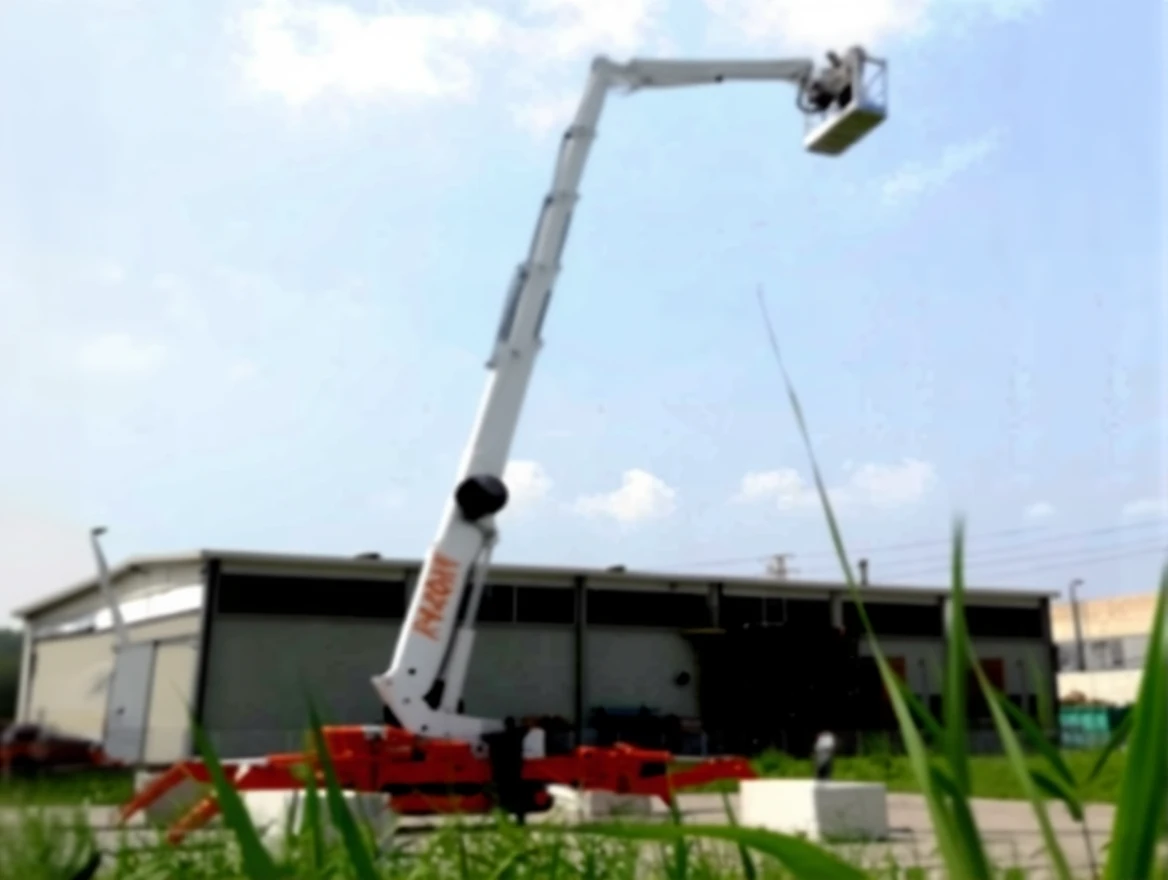

Easy Lift R420 is a spider articulated platform that can reach heights of up to 41.40 meters. This platform provides a wide working area with a horizontal reach of 16.50 meters and a 360° rotation angle. With a maximum lifting capacity of 230 kg, the R420 can safely carry various equipment.

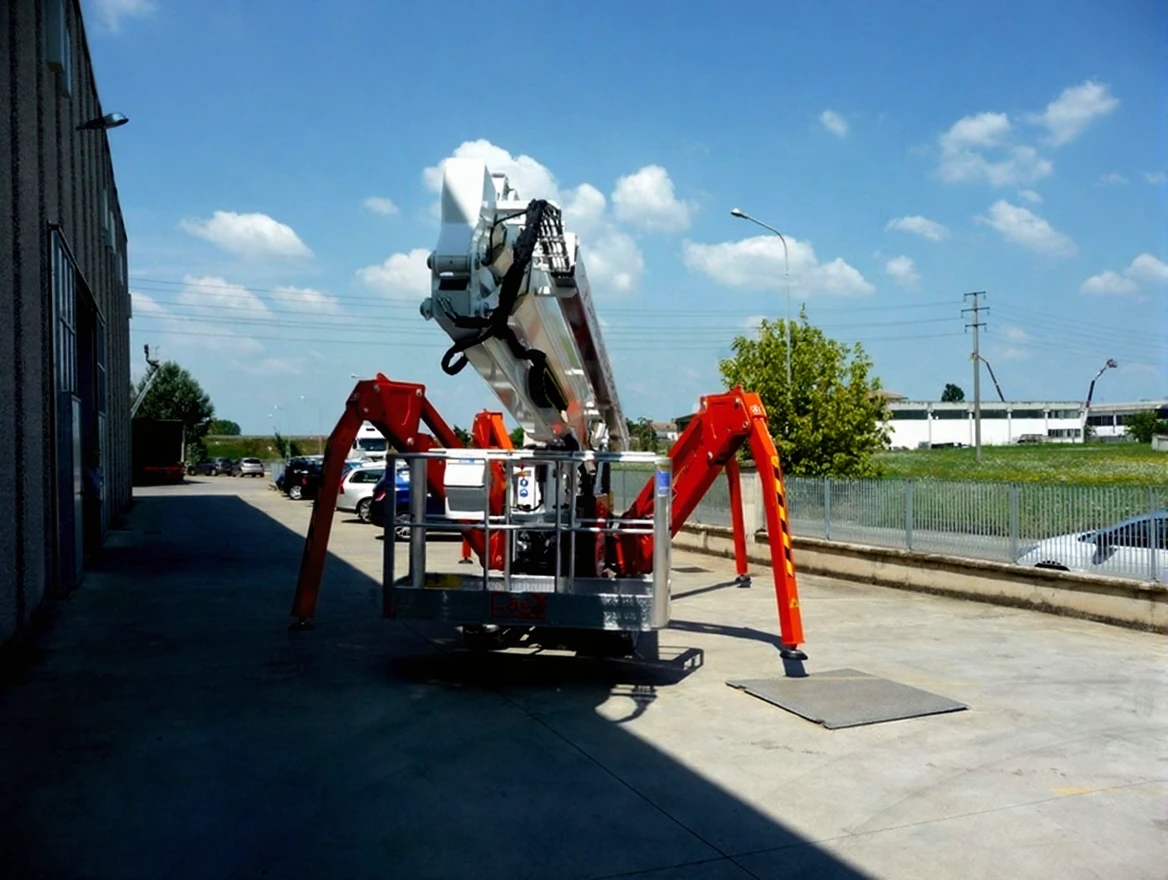

Since the basket dimensions of the platform are 2.0 x 0.8 meters, users can have a wide working area and easily place the necessary equipment. Additionally, the weight of the platform is 8500 kg, which provides stability and safety.

Easy Lift R420 is equipped with a powerful Hatz diesel engine (42.0 kW) and a high-capacity lithium battery. There is also an option for a 5.5 kW 380V electric motor for environmentally friendly operation.

With these features, Ertek Easy Lift R420 offers a reliable and efficient solution for construction, maintenance, cleaning, and similar industrial applications. It facilitates users’ access to high places while enhancing safety and work efficiency.

Max Height: 41.40 m

Horizontal Reach Distance: 16.50 m

Rotation Angle: 360°

Max Lifting Capacity: 230 kg

Weight: 8500 Kg

Basket Dimensions: 2.0 x 0.8 m

Diesel Engine: Hatz 42.0 kW

Battery: Lithium 200Ah/h

Electric Motor: 5.5kW 380V
