4100X25mm – 4 Bulk Hydraulic Cylinder Bending Machine

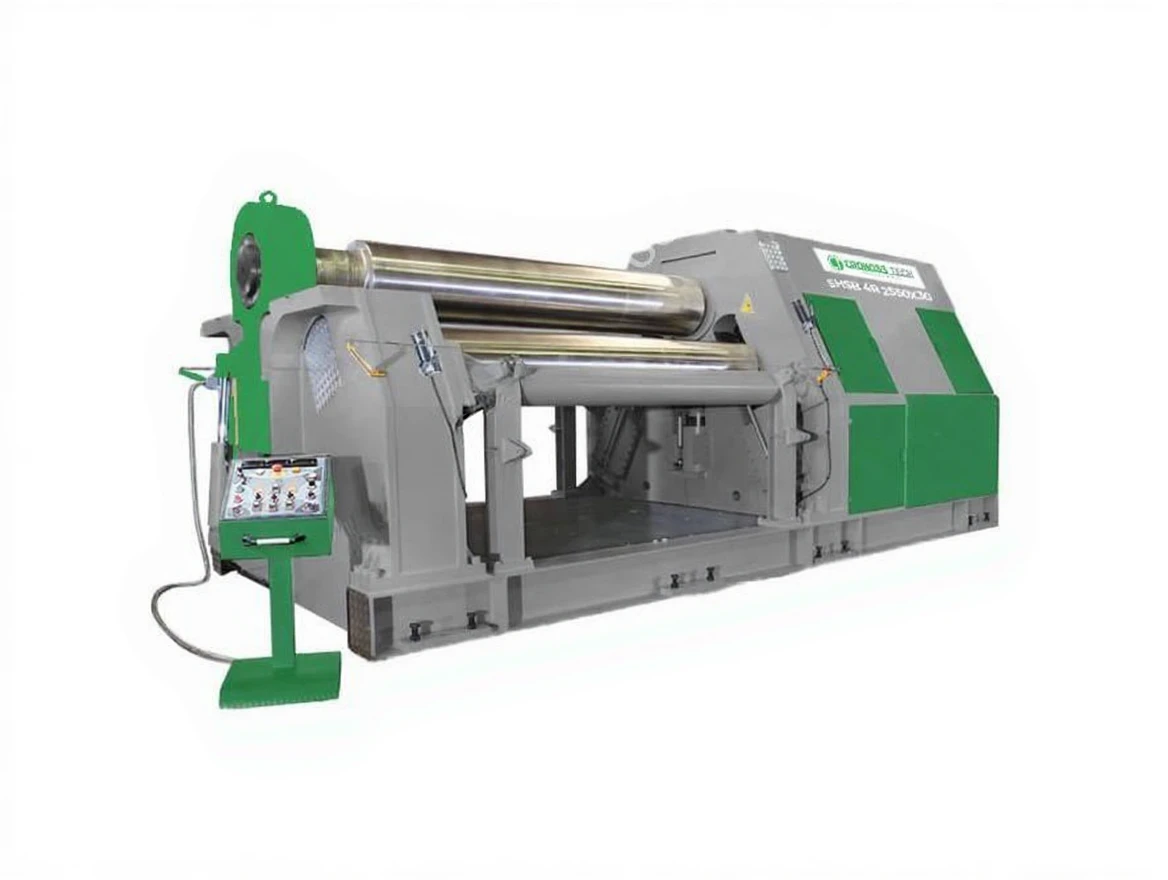

SHSB 4R 4100 × 460 Hydraulic 4-Roll Plate Bending Machine

⚙️ Standard Equipment

• Bottom and side rolls move up and down linearly with hydraulic pistons

• Protected against overload

• Top and side rolls are driven by hydromotor and planetary gearbox
  (3 top rolls are motor-driven)

• Positions of the rolls can be easily read with three digital indicators

• Hydraulic opening head and automatic upper lift shaft make it easy to remove the bent part

• Easy operation with movable control panel

• Welded steel construction body

• SAE 1050 (CK50) induction hardened, forged or rolled steel rolls

• Conical bending system

• Centralized lubrication system

• Hydraulic balancing system for parallel movement of the rolls
  (Ø280 – 320 – 350 – 380 – 400 – 460)

• Electronic balancing system for parallel movement of the rolls
  (Ø500 – 550 – 580 – 620 – 680)

• Dual speed operation system

🔩 Optional Equipment

• Automation with NC and CNC control

• Top crane (elevator) for support in large diameter bending

• Hydraulic side supports for support in large diameter bending

• Hydraulic sheet removal system

• Ground and polished rolls for special jobs

• Stepless speed adjustment system

• Electronic balancing system for parallel movement of the rolls
  (Ø280 – 320 – 350 – 380 – 400 – 460)

📊 Technical Specifications

• Bending Length: 4100 mm

• Pre-bending: 16 / 20 mm

• Bending: 20 / 25 mm

• Top & Bottom Roll Diameter: Ø460 mm

• Side Roll Diameter: Ø380 mm

• Motor Power: 38.5 kW

• Bending Speed: 1.5 – 5 m/min

• Machine Length: 6950 mm

• Machine Width: 2300 mm

• Machine Height: 2350 mm

• Machine Weight: 29,500 kg

🏭 OEM Production Note

This machine is manufactured under OEM production in Turkey.
Procurement, configuration, and commercial management are carried out by CRONOSSTECH.
