Ø 42- 250mm Portatif Hat Delme Makinası
| Brand | Elsa |
|---|---|
| Model Type |
Easy Compact |

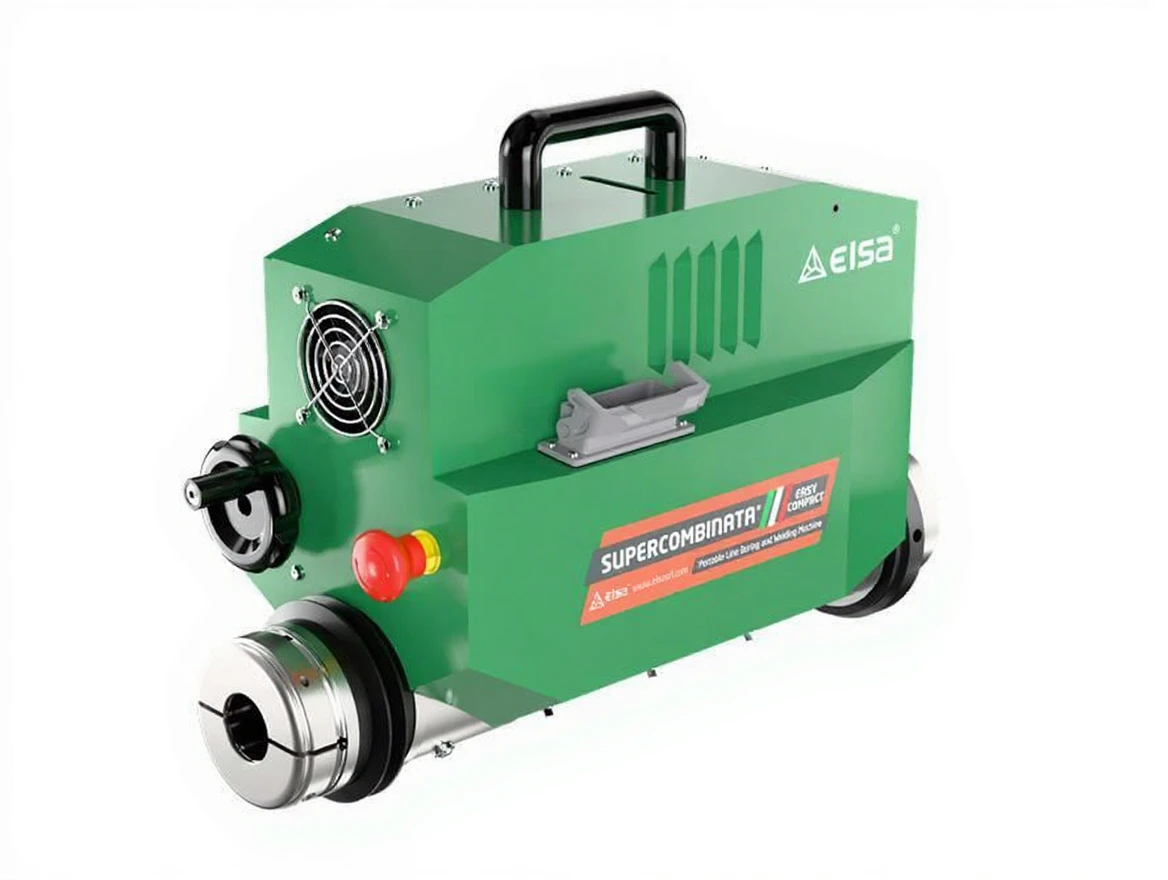

Ø 42- 250mm Portable Boring Machine
The Supercombinata EASY is used to make internal boring and internal welding of Ø 42 mm to Ø 250 mm in a very small space range with its standard equipment.
With its extra kits, it is suitable for external turning, covering of perpendicular flat surfaces, and creation of washer grooves. With additional accessories, Supercombinata can meet many different needs of our customers.
|
Technical Specifications |
|
|---|---|
|
Drill Bar Diameter |
: Ø 40×2200 MM |
|
Boring |
: Ø 42- 250 MM |
|
External Turning |
: Extra Kit |
|
Internal Welding |
: Ø 42- 250 MM |
|
Processing of Perpendicular Surface |
: Extra Kit |
|
Rotation Motor Longitudinal Stroke |
|
|---|---|
|
Unlimited |
: With 250 MM Interval |
|
Electronic Control Panel |
|
|---|---|
|
Voltage |
: 230 V (50Hz) |
|
Main Switch |
: Available |
|
Emergency Stop Button |
: Available |
|
Inverter Feed |
: RH/LH |
|
Inverter Rotation |
: CW/CCW |
|
Speed Regulator |
: Rotation/Feed |
|
Power Consumption |
: 2000 W |
|
Control Panel 110/120 V |
: On Demand |
|
AC Motor |
: Single Phase |
|
Power at Nominal Speed |
: 1800 W |
|
Bar Output Torque |
: 120 RPM With 290 NM |
|
1st Speed |
: Maximum 100 RPM (170 NM) |
|
2nd Speed |
: Maximum 340 RPM (50 NM) |
|
Length |
: 545 MM |
|
Width |
: 220 MM |
|
Height |
: 380 MM |
|
Weight of Central Unit |
: 34 KG |
|
Dimensions of Feeding Motor |
|
|---|---|
|
Gear Motor |
: DC |
|
Power at Nominal Speed |
: 90 W |
|
Max. Speed |
: 11 RPM |
|
Feeding System |
: Electromechanical |
|
Feeding |
: Manual / Automatic |
|
Spiral |
: Follows Changing Steps |
|
Welding Machine |
: Compatible with EURO Connector MIG/MAG Cable |
