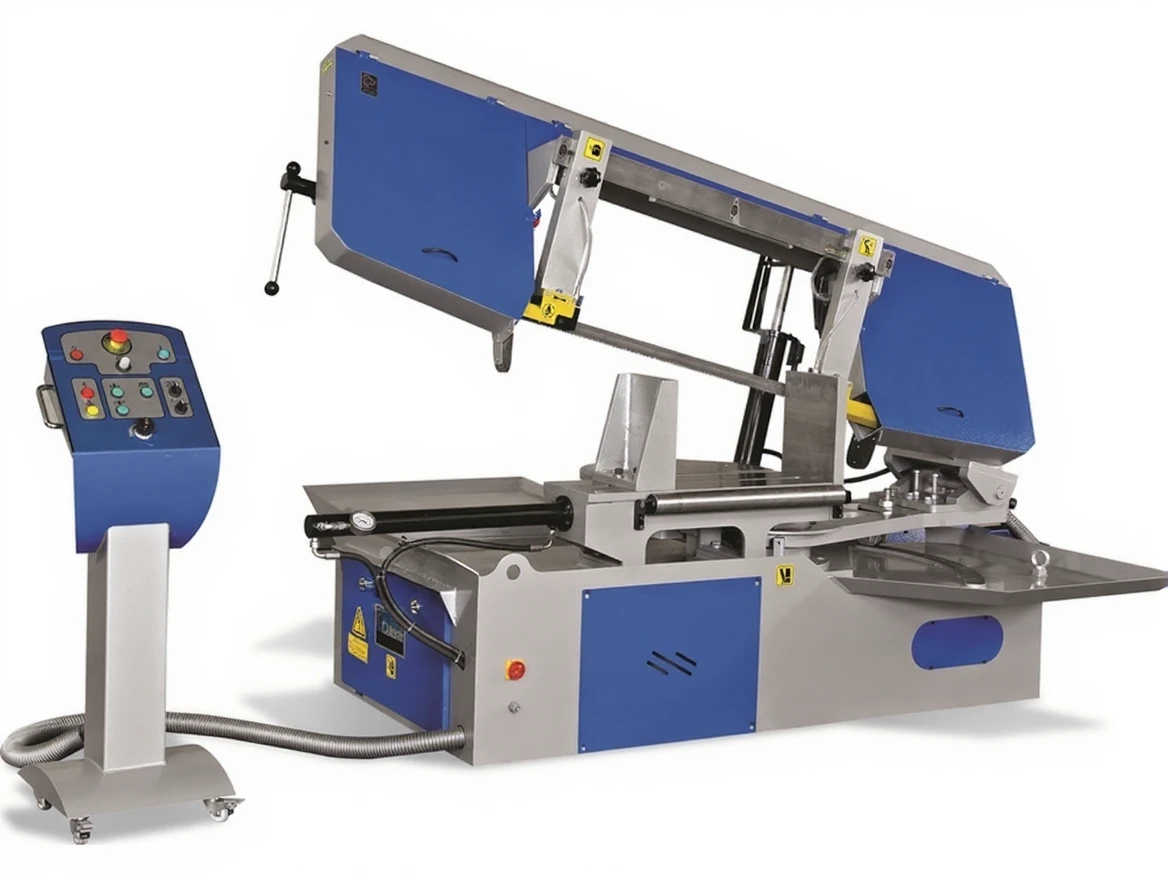

420 mm Semi-Automatic Angle Plc Controlled Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
PSM 420/600 M |
Description
Cuteral PSM 420-600 M
420 mm Semi-Automatic Angle Plc Controlled Band Saw Machine
Cuteral PSM 420-600 M Technical Specifications
| A | 1610 mm | |||
| B | 2920 mm | |||
| C | 1615 mm | |||
| D | 750 mm | |||
| E | 2000 mm | |||
| hmax | 2380 mm | |||
| Semi-Automatic | ||||
| Blade Size | 41 x 1.3 x 5280 mm | |||
| Blade Motor | 4 kW – 1500 rpm | |||
| Drive Motor | Manual | |||
| Hydraulic Motor | 0.75 kW – 1400 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 4.87 kW | |||
| Cutting Speed | 15 m/min – 49 m/min | |||
| Weight | 1500 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 420 mm | |||
| Cutting Capacity 90° Width | 600 mm | |||
| Angle of Cut Material | -60° | 330 mm | 270 x 270 mm | 190 x 310 mm |
| -45° | 420 mm | 420 x 420 mm | 250 x 500 mm | |
| -30° | 420 mm | 420 x 420 mm | 420 x 600 mm | |
| 0° | 420 mm | 420 x 420 mm | 420 x 600 mm | |
