420 mm Universal Lathe

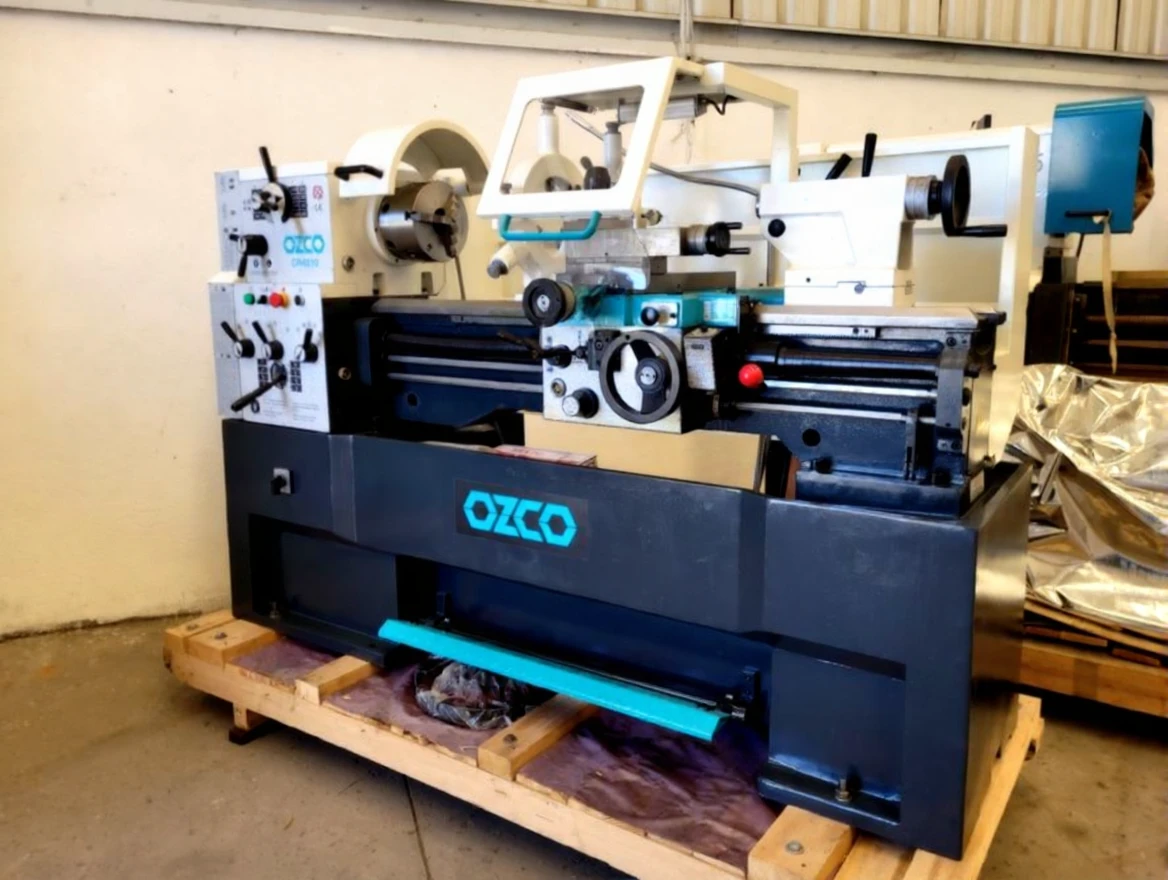

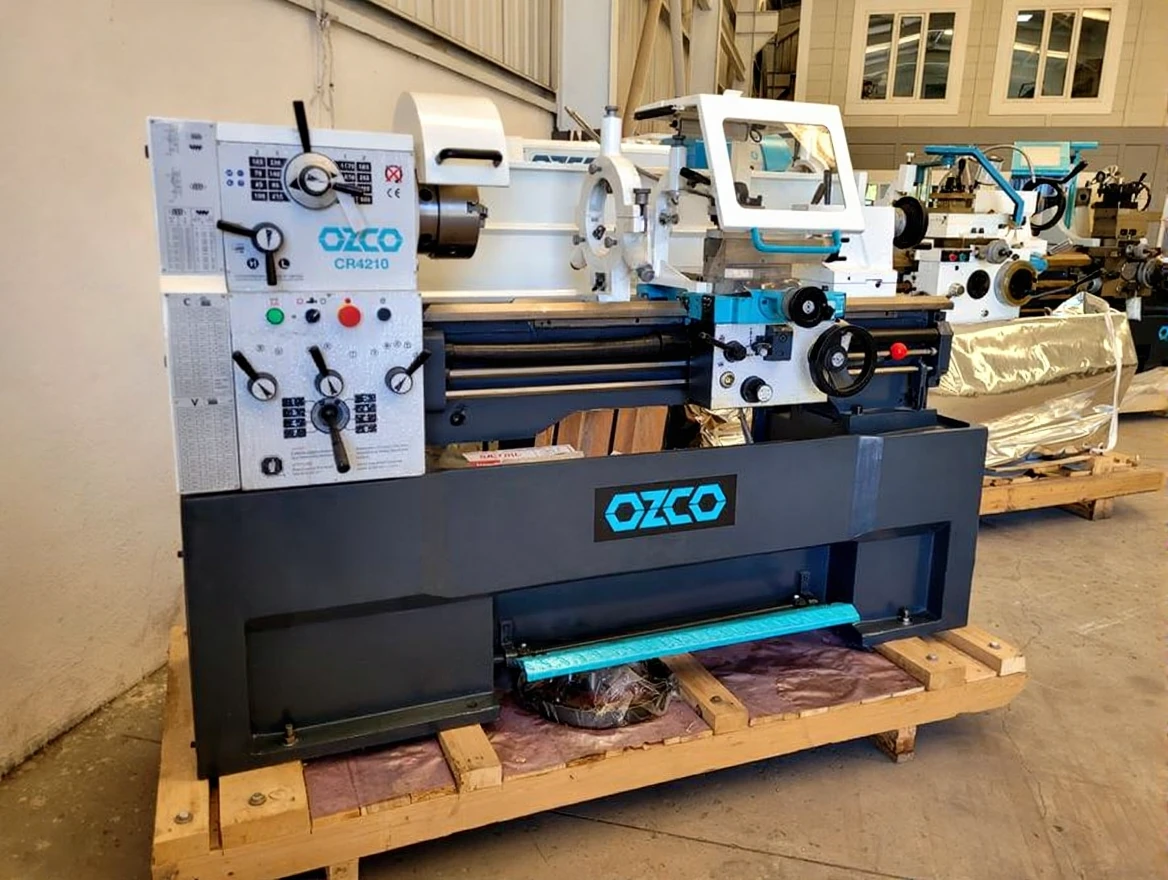

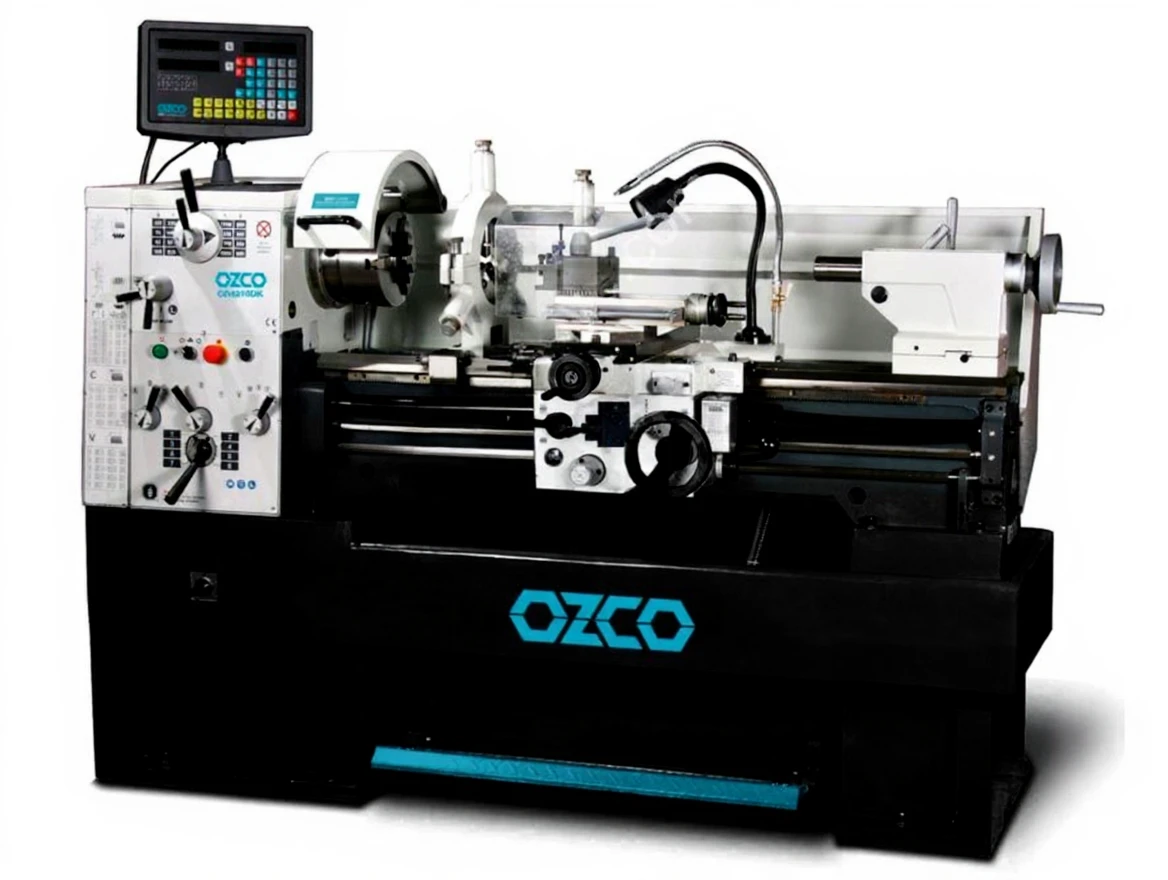

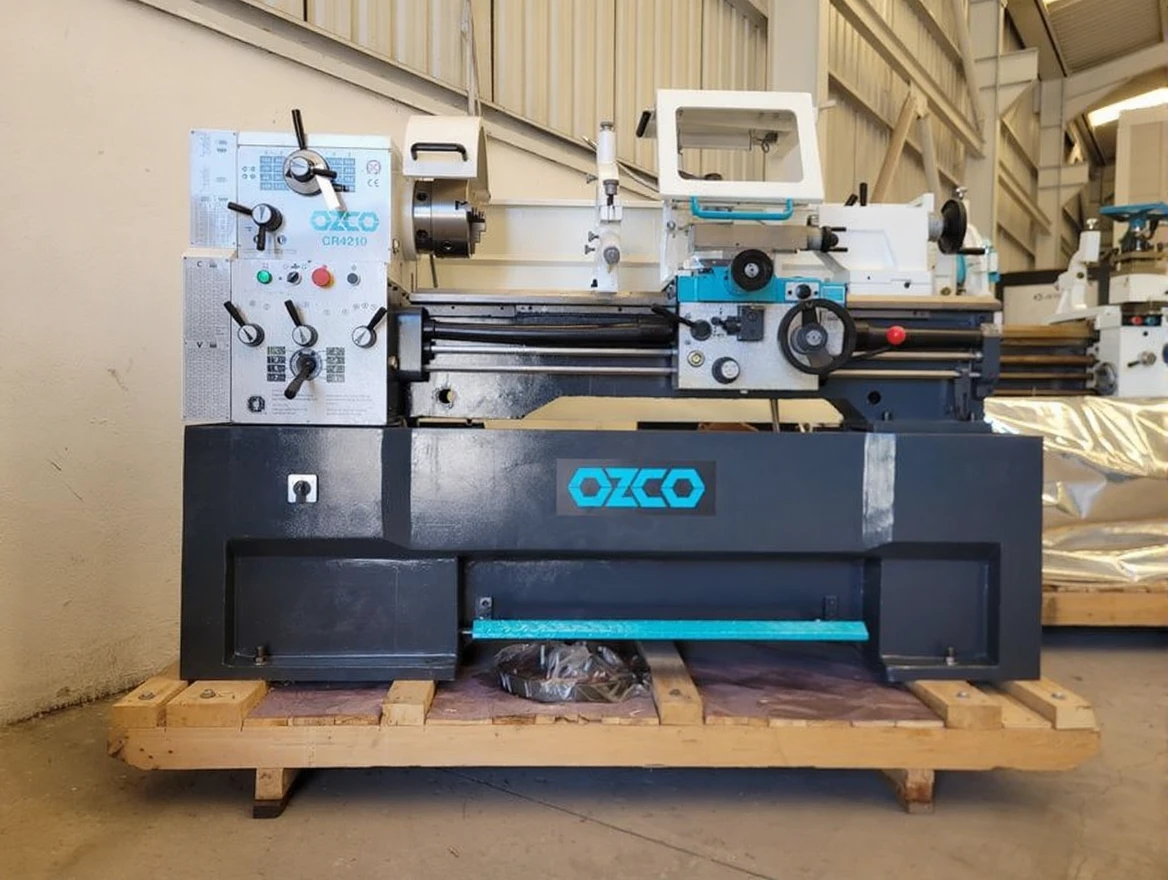

OZCO CR4210DK Universal Lathe

OZCO CR4210DK Universal Lathe Capacity

It has a processing capacity of 420mm over the bed, 250mm over the carriage, and 590mm in the gap. The spindle bore is 52mm, and the distance between centers is 1000mm.

OZCO CR4210DK Universal Lathe Shipment Scope

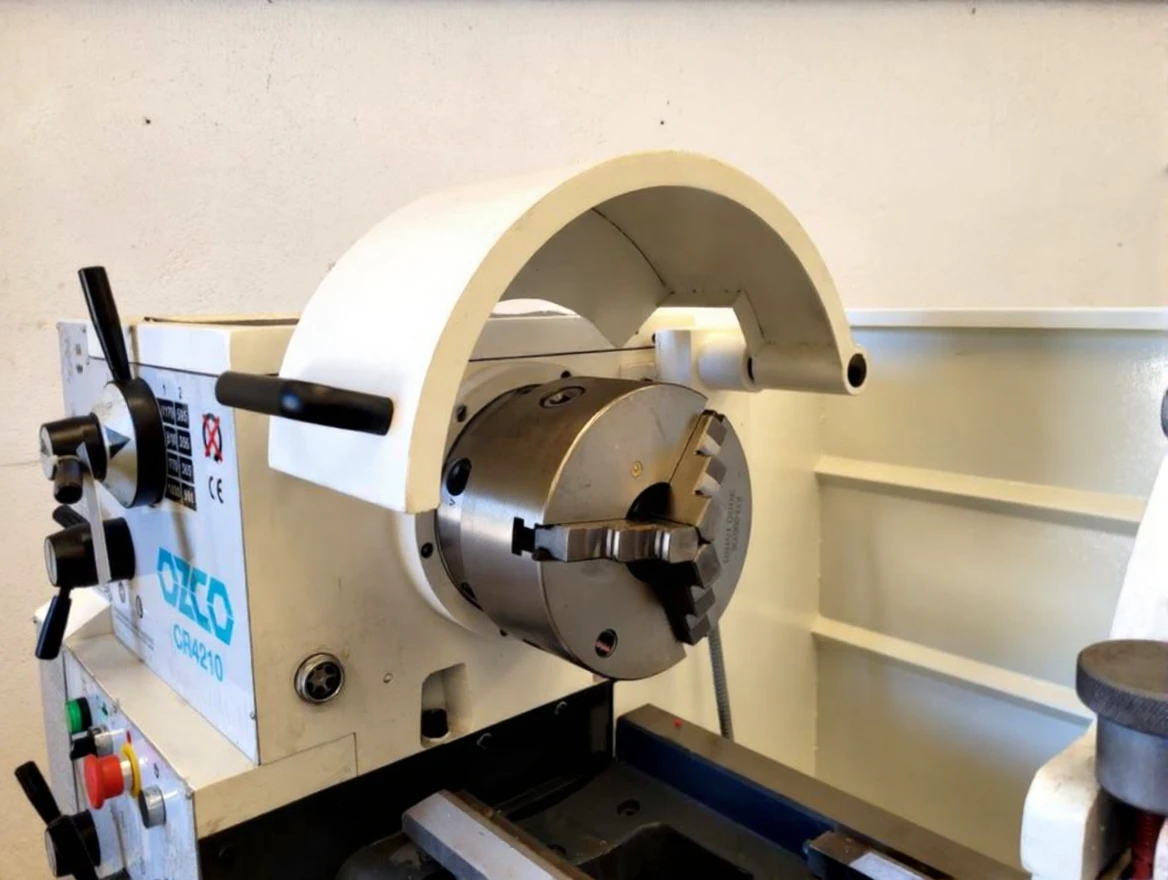

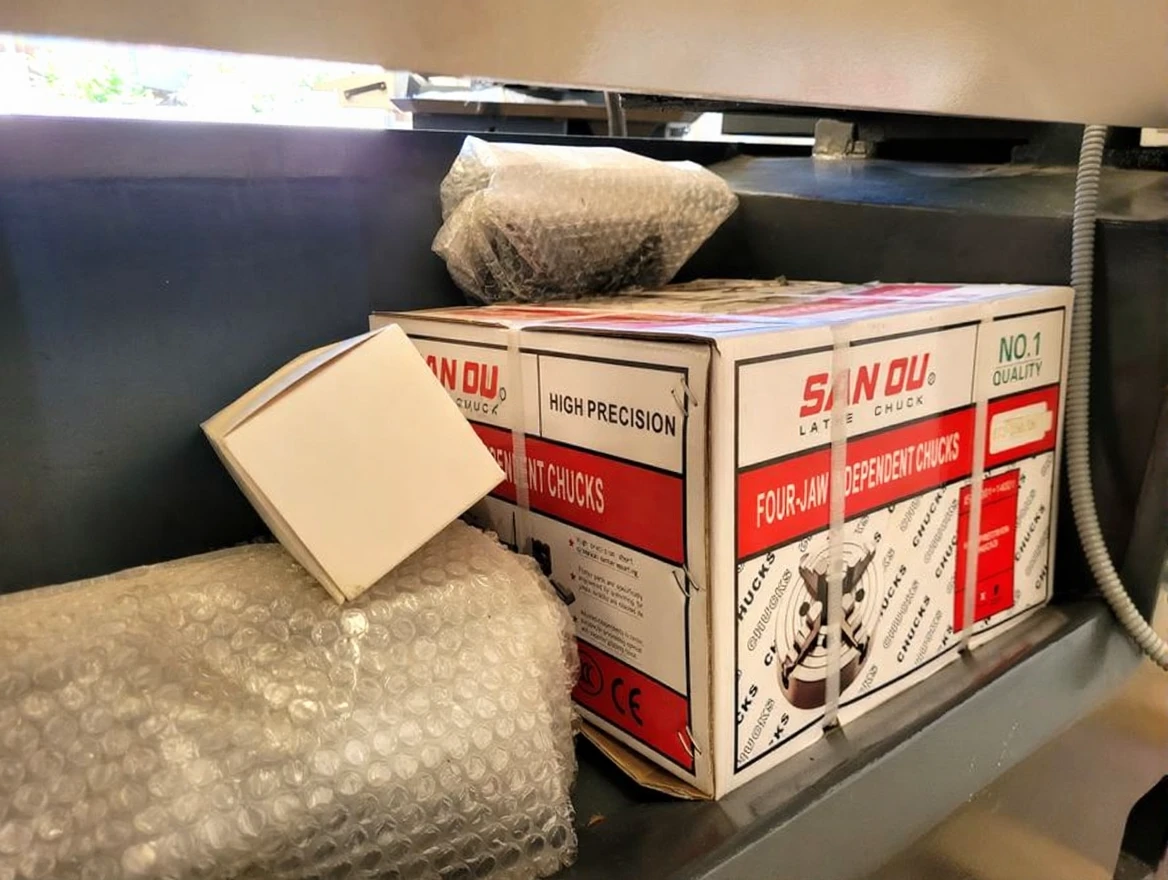

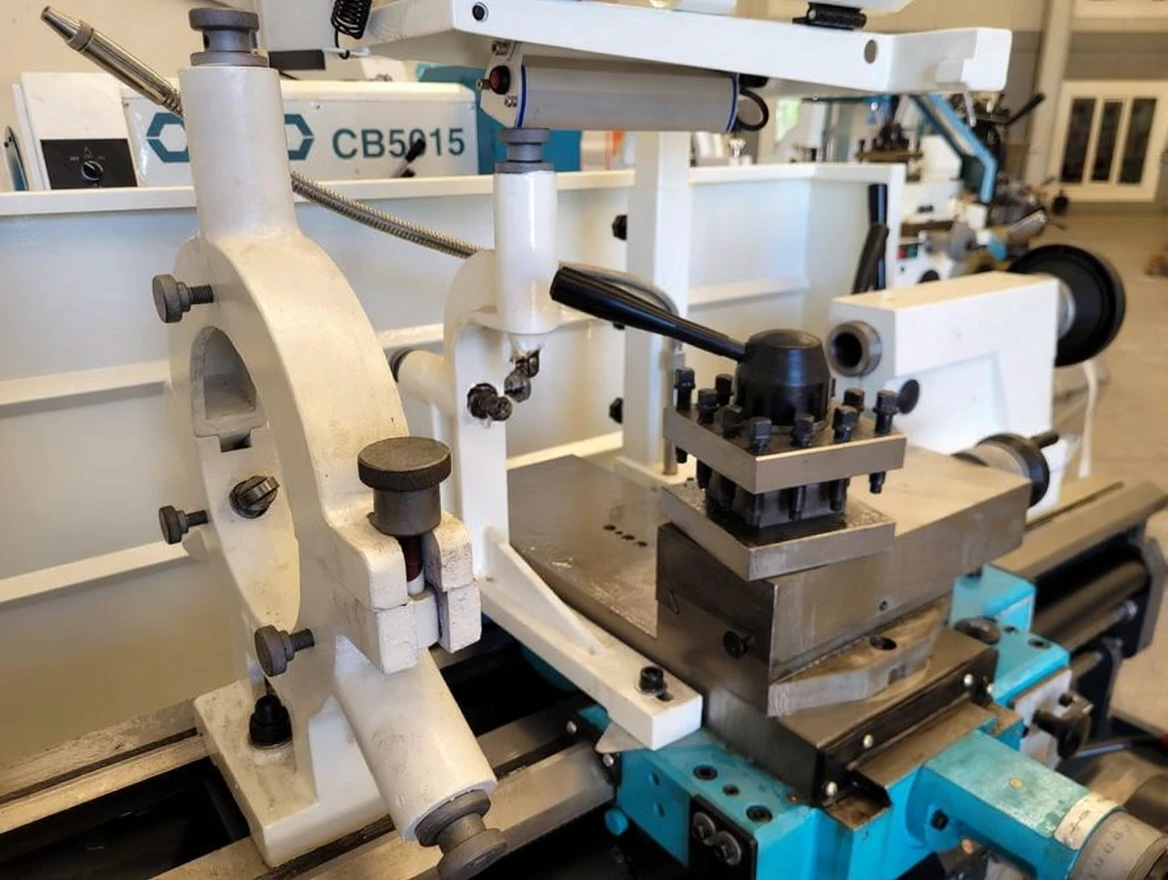

Includes a 3-jaw chuck Ø 200 mm, 4-jaw chuck Ø 250 mm, flat chuck 350 mm, fixed bed, traveling bed, MK3 live center, MK3 dead center, reduction sleeve MK5/MK3, thread gauge, 4-way tool post, halogen lamp, change gears, foot brake, cooling system, and accessories.

OZCO CR4210DK Universal Lathe General Features

Complies with CE standards, emergency stop button, hardened and ground beds, guide pull feature, Siemens electrical system, cooling system, and foot brake, chuck and tool post cover, Siemens electrical system.

Technical Specifications CR4210 Universal Lathe

Motor Power     4.5 KW

Voltage   400V (Three-phase)

Bed Width         420 mm

Gap Width         590 mm

Carriage Width        250 mm

Bed Width         250 mm

Distance Between Centers        1000 mm

Speed        45 – 1800 rpm

Gears          18

Spindle Taper MK 6

Tailstock Spindle Taper         D2-6

Tailstock Spindle Diameter       52 mm

Cross Slide Movement       140 mm

Longitudinal Slide Movement     230 mm

Traveling Center Taper   MK4

Traveling Center Movement       120 mm

Linear Feed      0.05-1.7 mm/rev

Longitudinal Feed       [ PHONE HIDDEN ] mm/rev

Metric Thread Pitch   0.4-7 mm

Inch Thread Pitch       2-72 mm

Tool Post Size       20×20 mm

Machine Dimensions (LxWxH)   2025x915x1375 mm

Net Weight       1550 Kg
