4200 mm Concrete Blocks Curbstone And Paver Machine

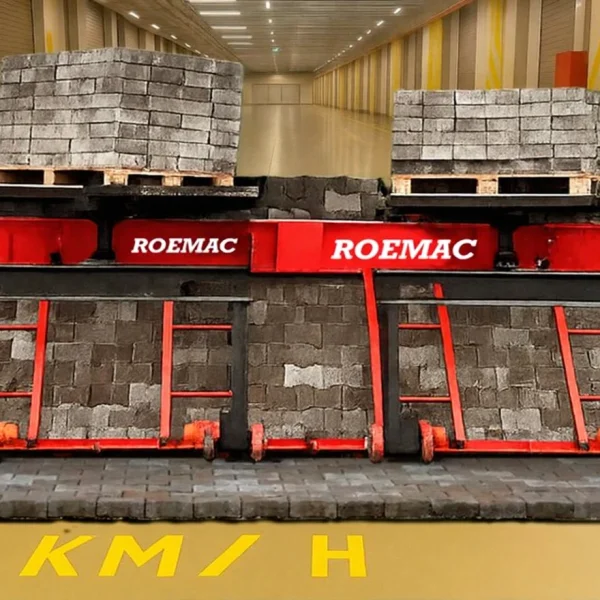

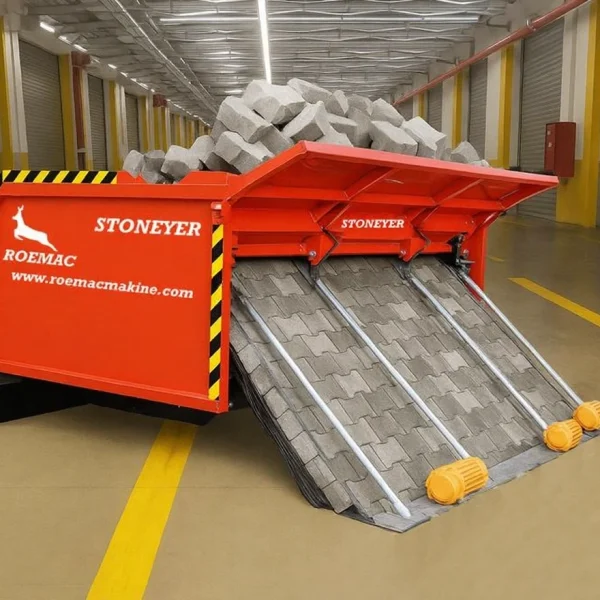

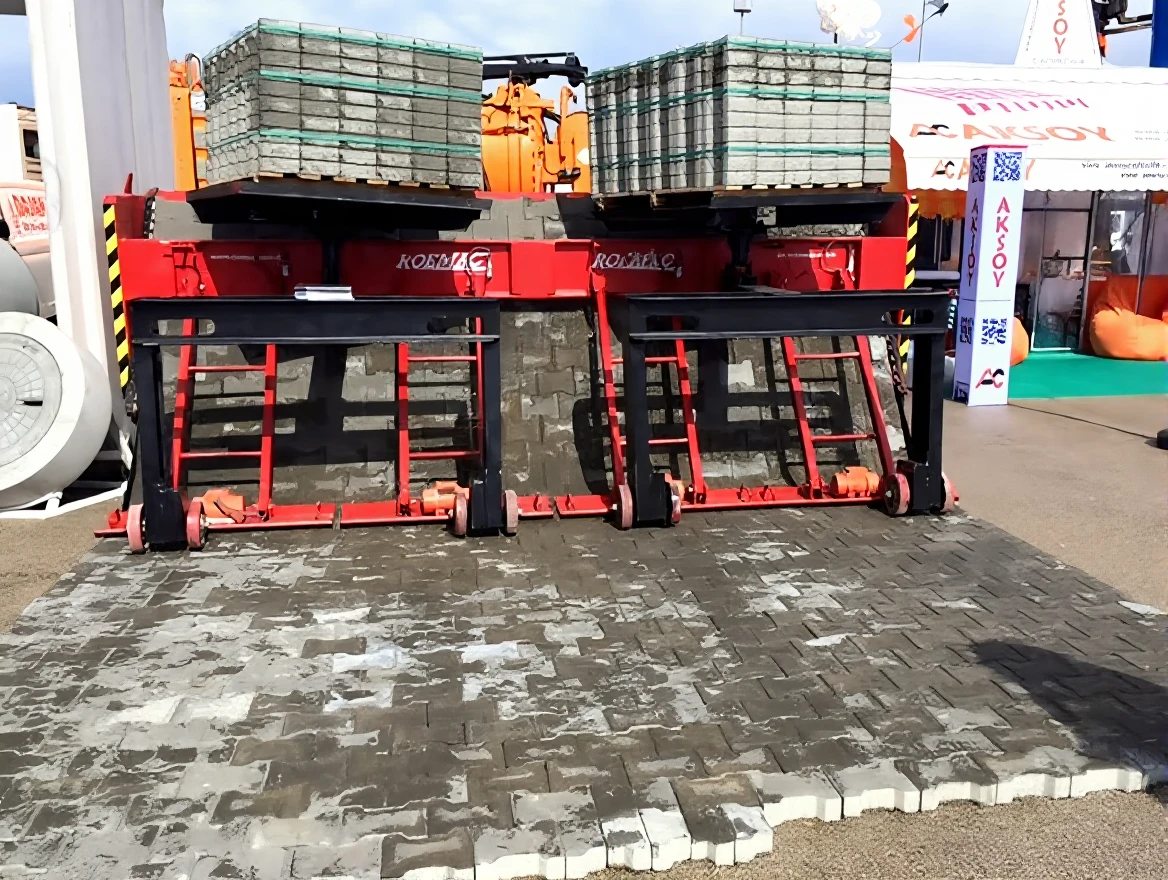

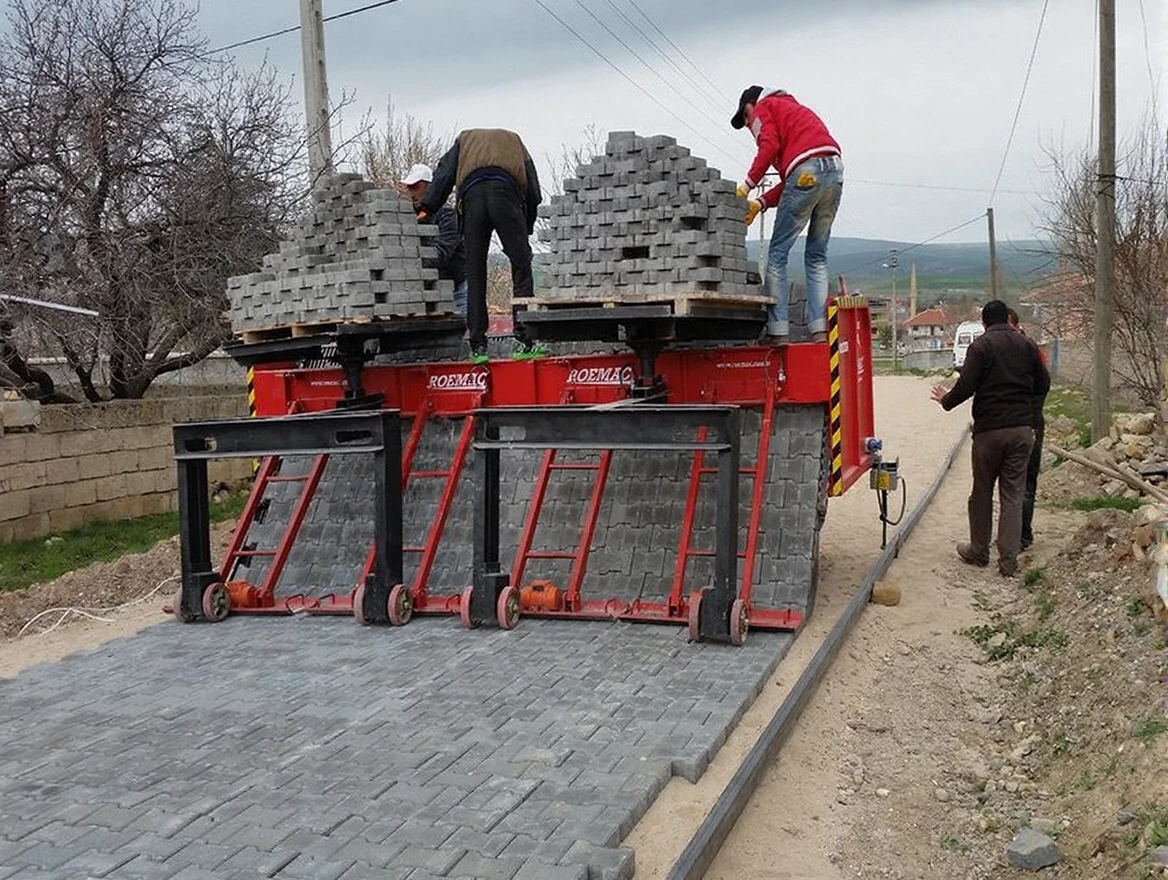

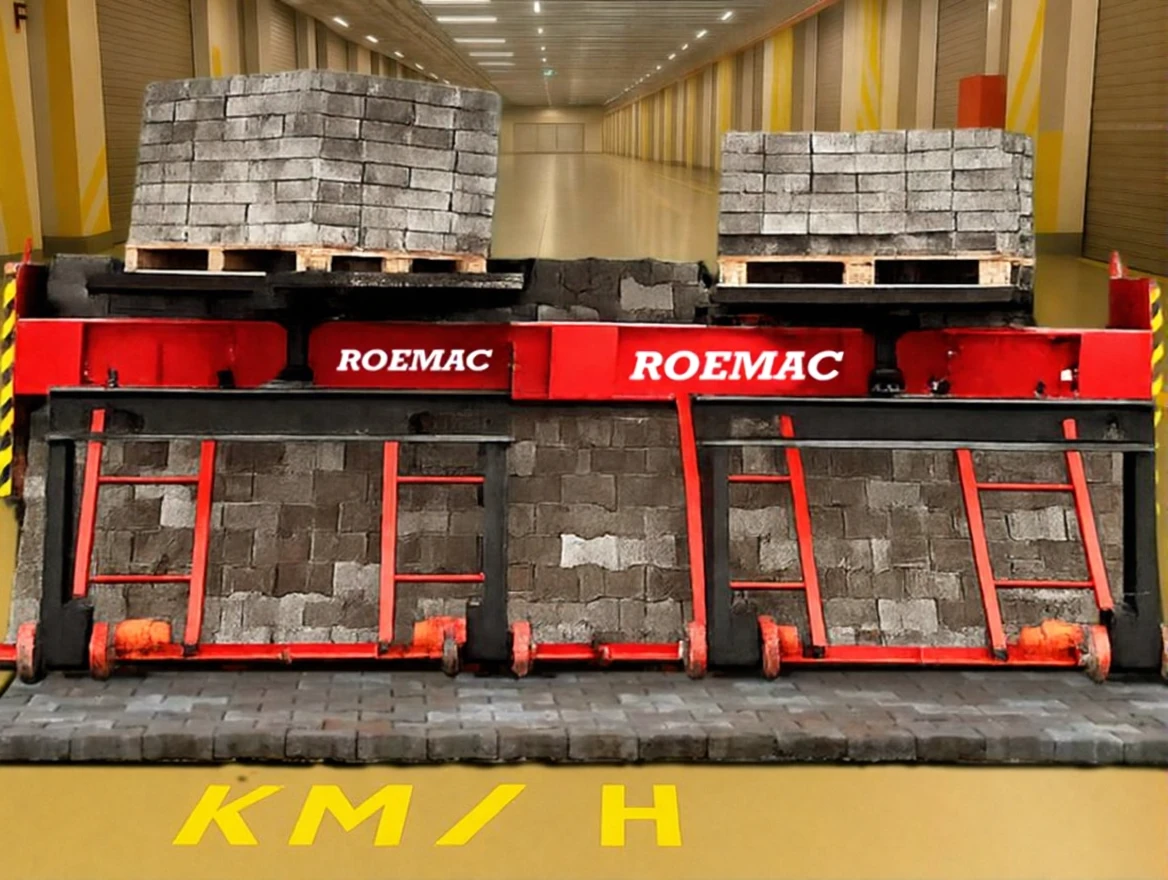

Stoneyer keystone laying machine
is designed to reduce time and labor in the application of paving stones, it advances 1 m per minute and can lay paving stones up to 240 m2 per hour.

It prepares a solid and void-free ground with its border monitoring and vibration adjustment.

It can be used on wider or narrower roads with 3 different size options. It works with single phase 220 Volt. There are 2 pieces of stone storage area with turntable.

• WEIGHT: 1700 kg

• WIDTH: 1500 mm

• LENGTH : 4200 mm

• HEIGHT: 1200 mm

Roemac Ro-Stoneyer 4200 Specifications

– Moves 1 meter per minute

– Movement mechanism with pallet system

– Automatic and manual movement option

– Curb monitoring system

– Three levels of speed setting

– Thin leveling feature

– Vibration speed setting

– 2 pivot plates

– 220 Volts 50×60 Hz

– Option of running with a 9 kW generator

– Remote control option

– Boiler system (if requested)
