4260×5180 mm Dijital Kesim Makinası
| Brand | Aristo |
|---|---|
| Model Type |
GL 4252-8 |
4260×5180 mm Digital Cutting Machine

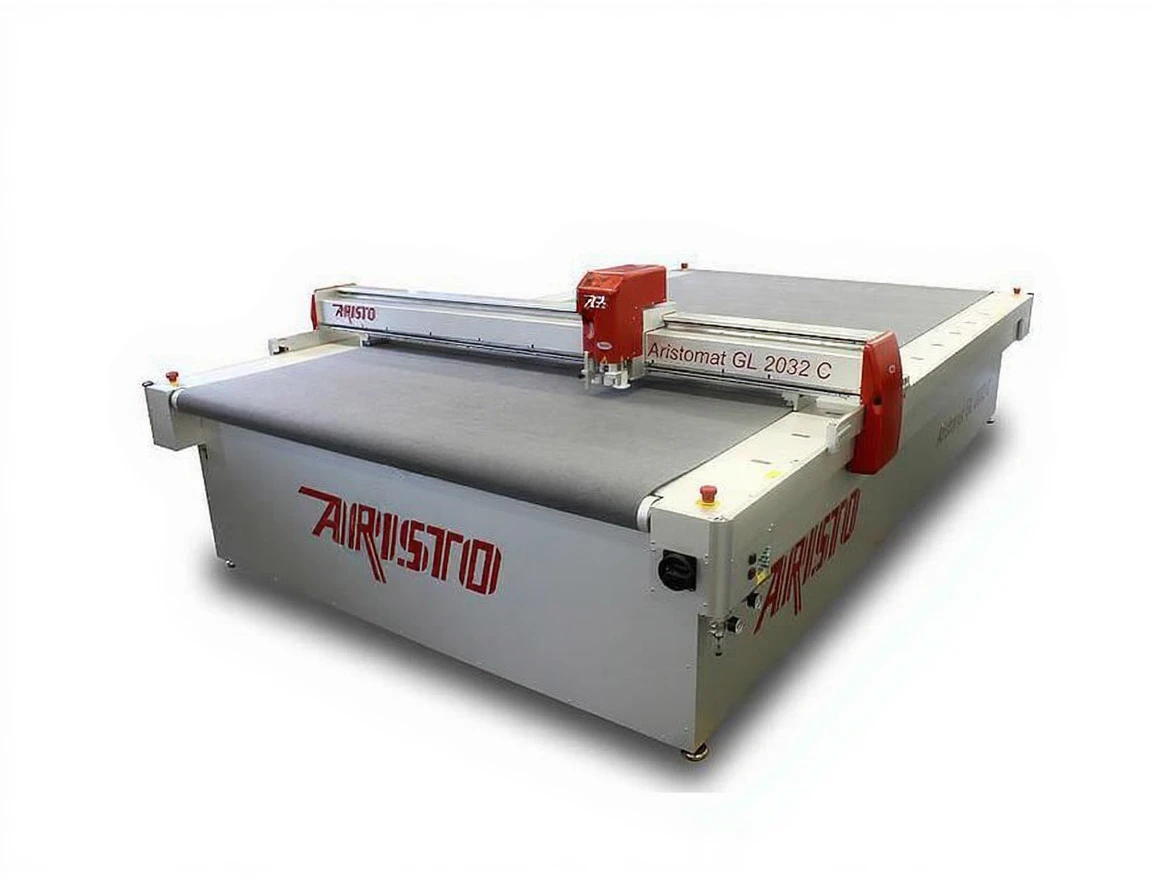

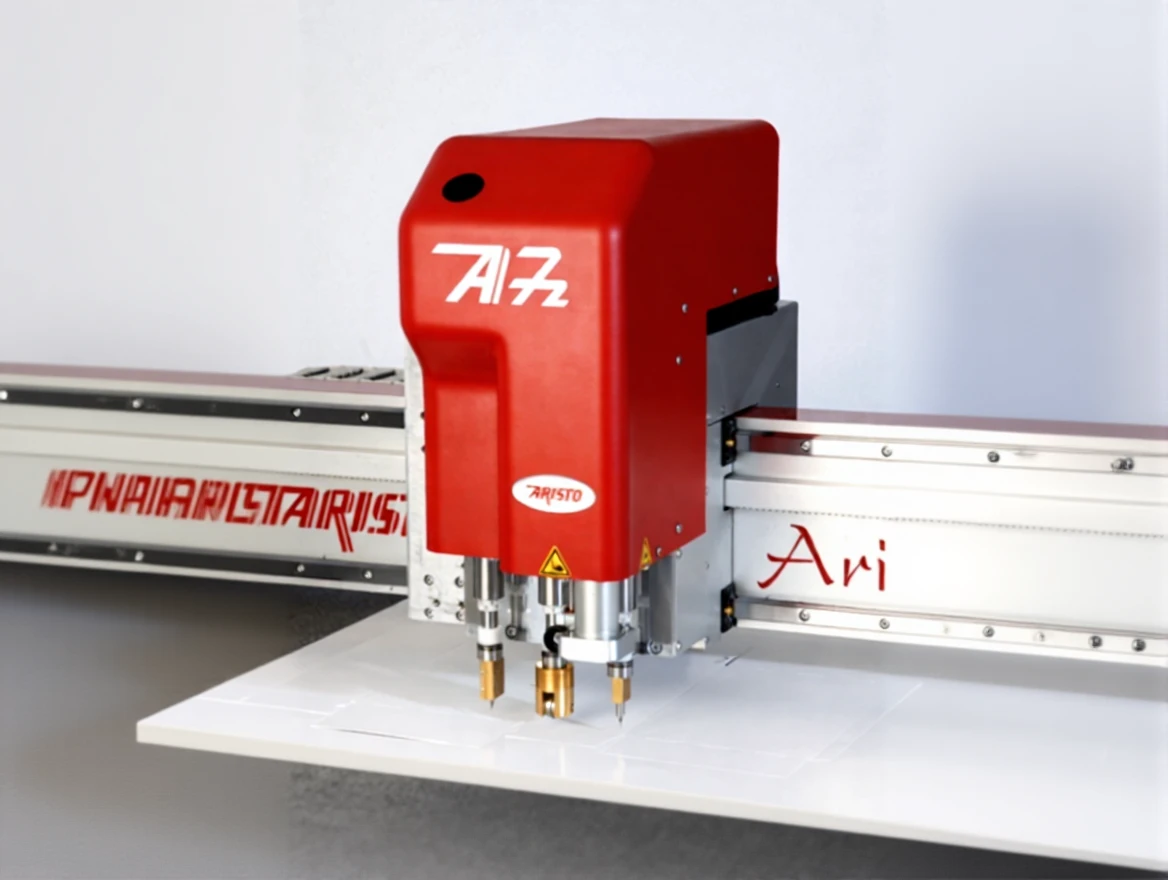

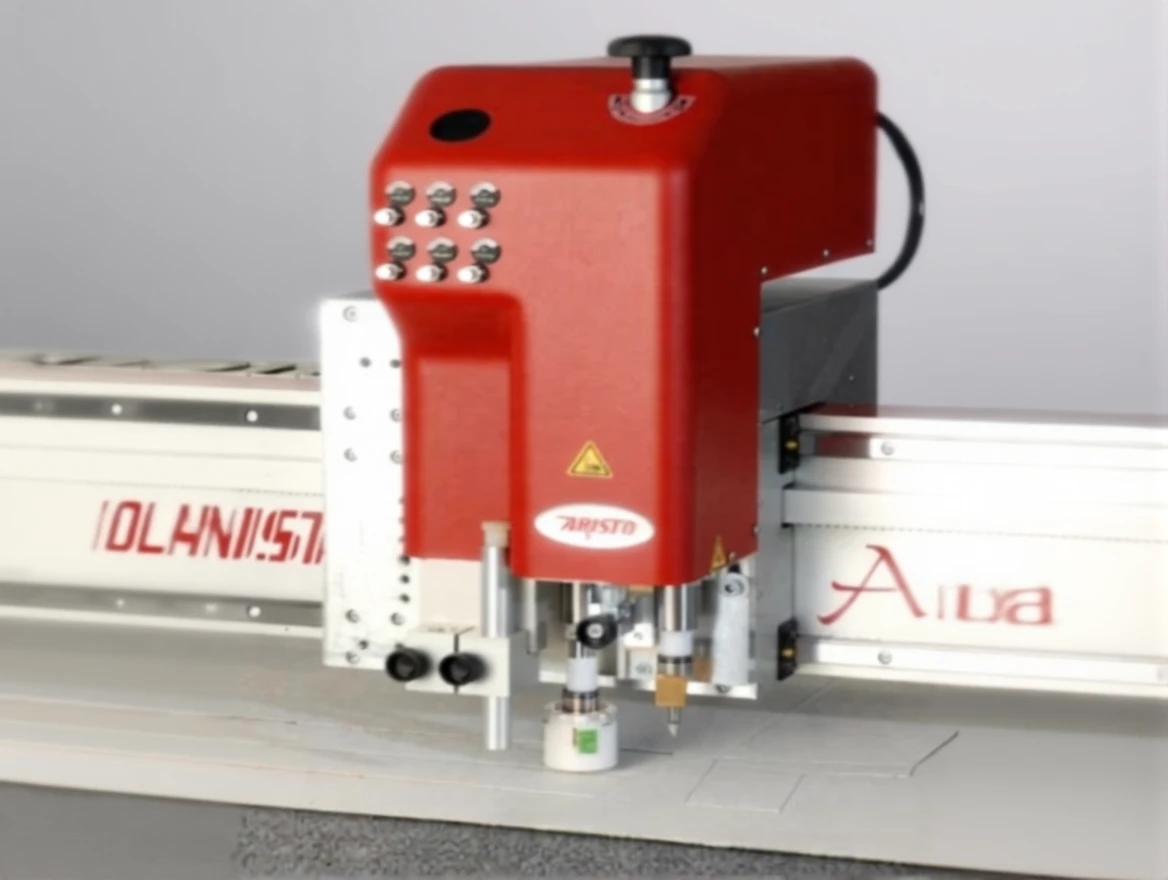

Aristo Aristomat GL 4252-8 GrandLine Cutter Digital Cutting Systems
GERMAN TECHNOLOGY, FAST, PRECISE CUTTING, PRODUCTION AUTOMATION, INNOVATIVE & HIGH QUALITY
Table Option from 100 cm to 800 cm.

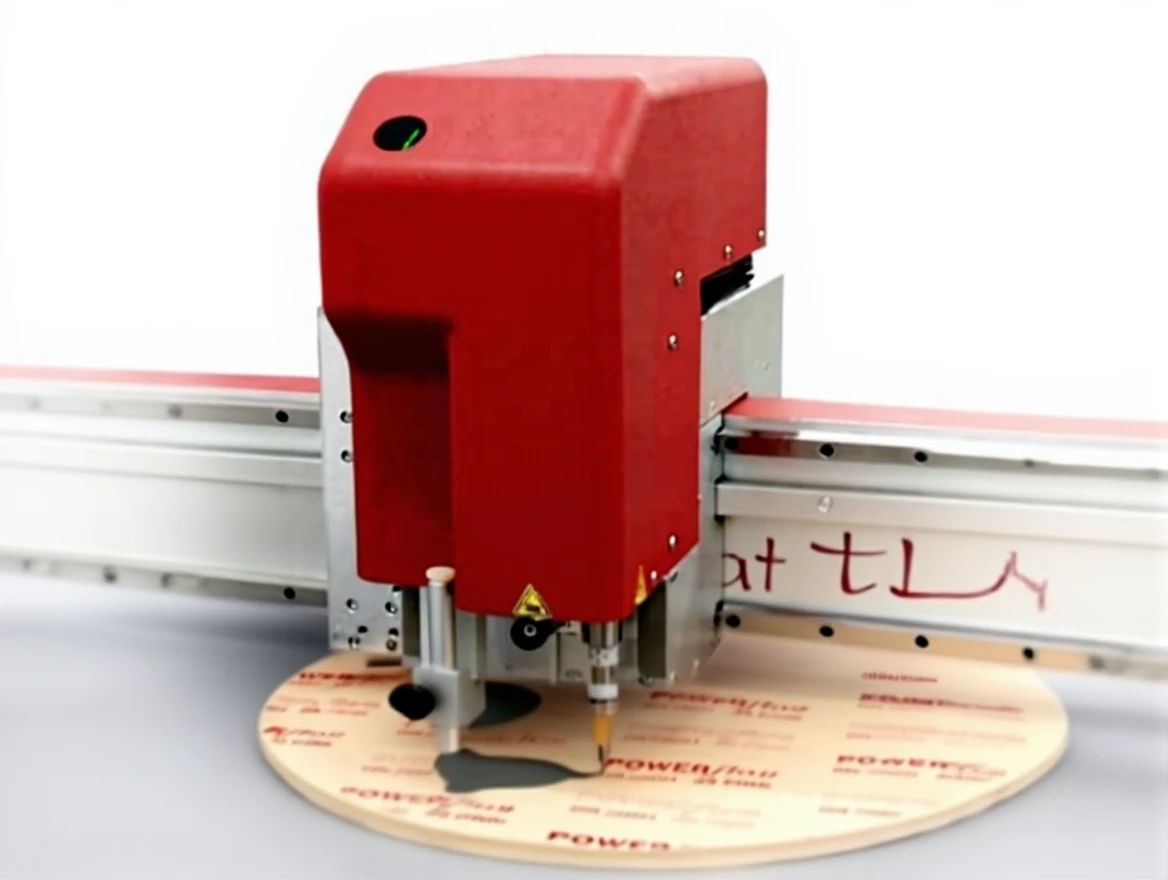

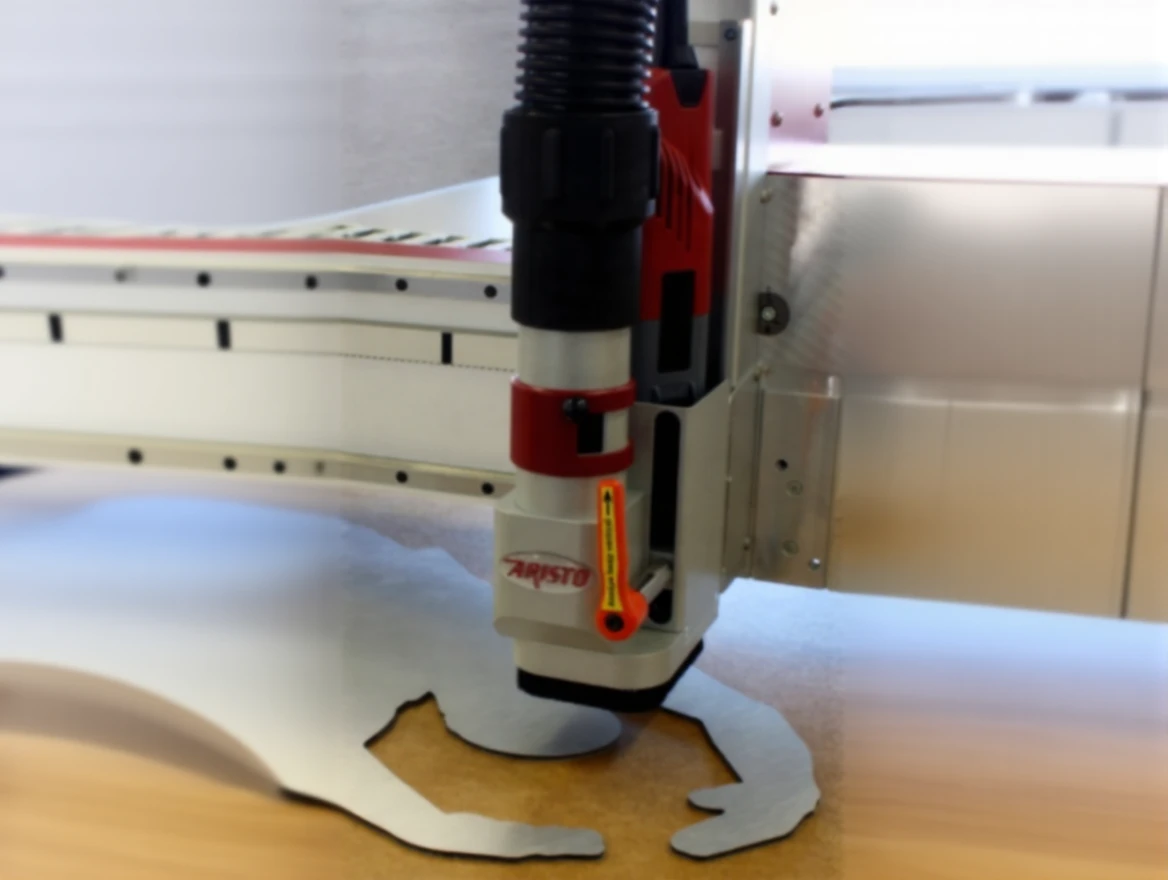

Hundreds of Cutting, Milling, Scoring, Engraving, Marking, Punching, Drawing Pen and Blades
Cardboard / Corrugated Cardboard Cuttings, Advertising, Signage, Packaging, Textile, Footwear, Gasket, Waterproofing Products, Models, Stands, Decoration, Reflective Foil (Traffic), Display Product Cuttings, Label (Full, Half Cut), Industrial Sampling, Production Automation and Solution Systems

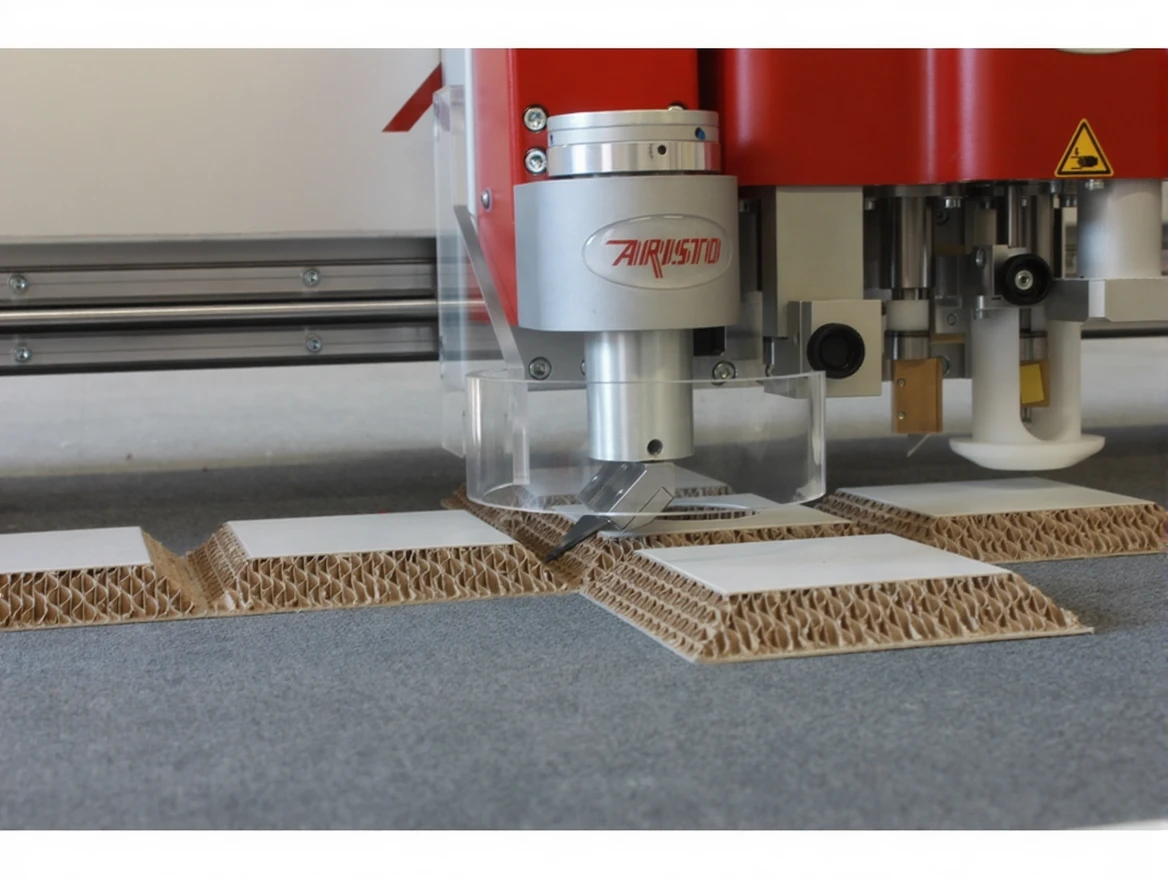

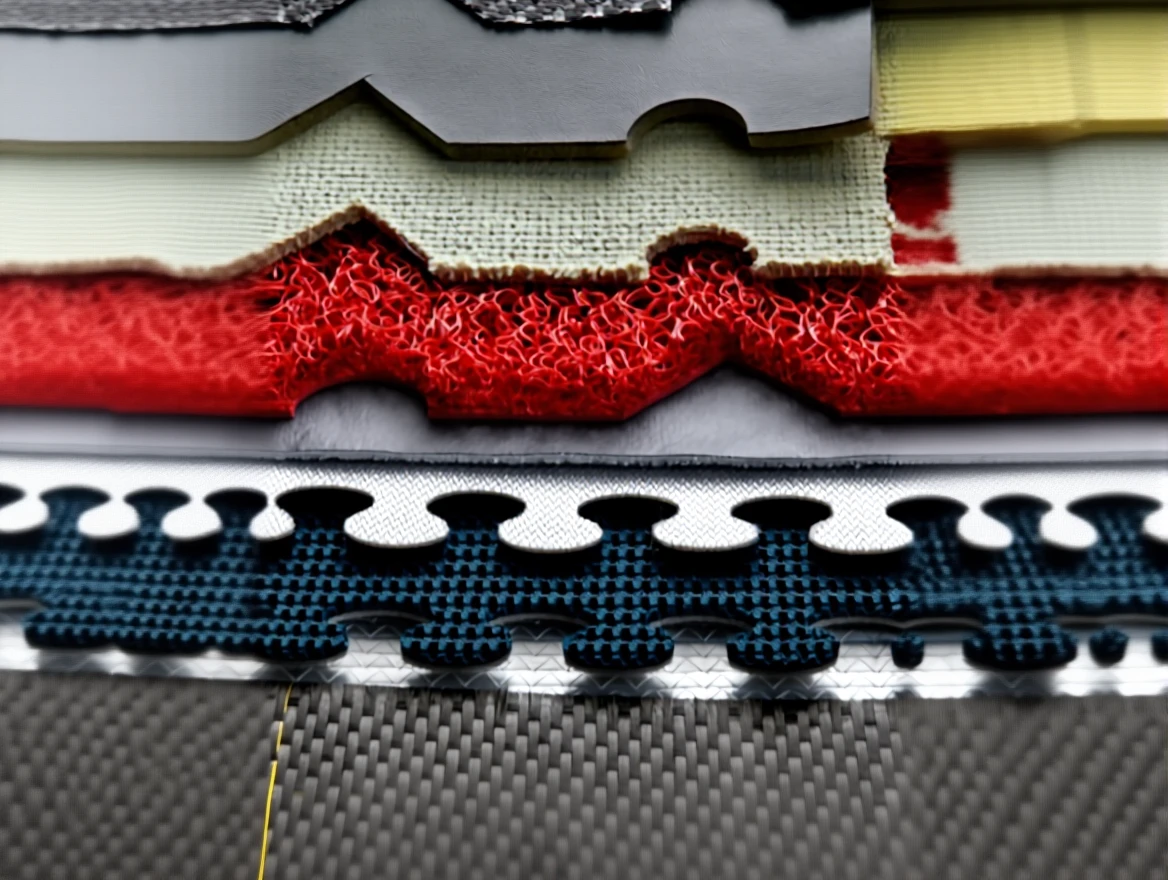

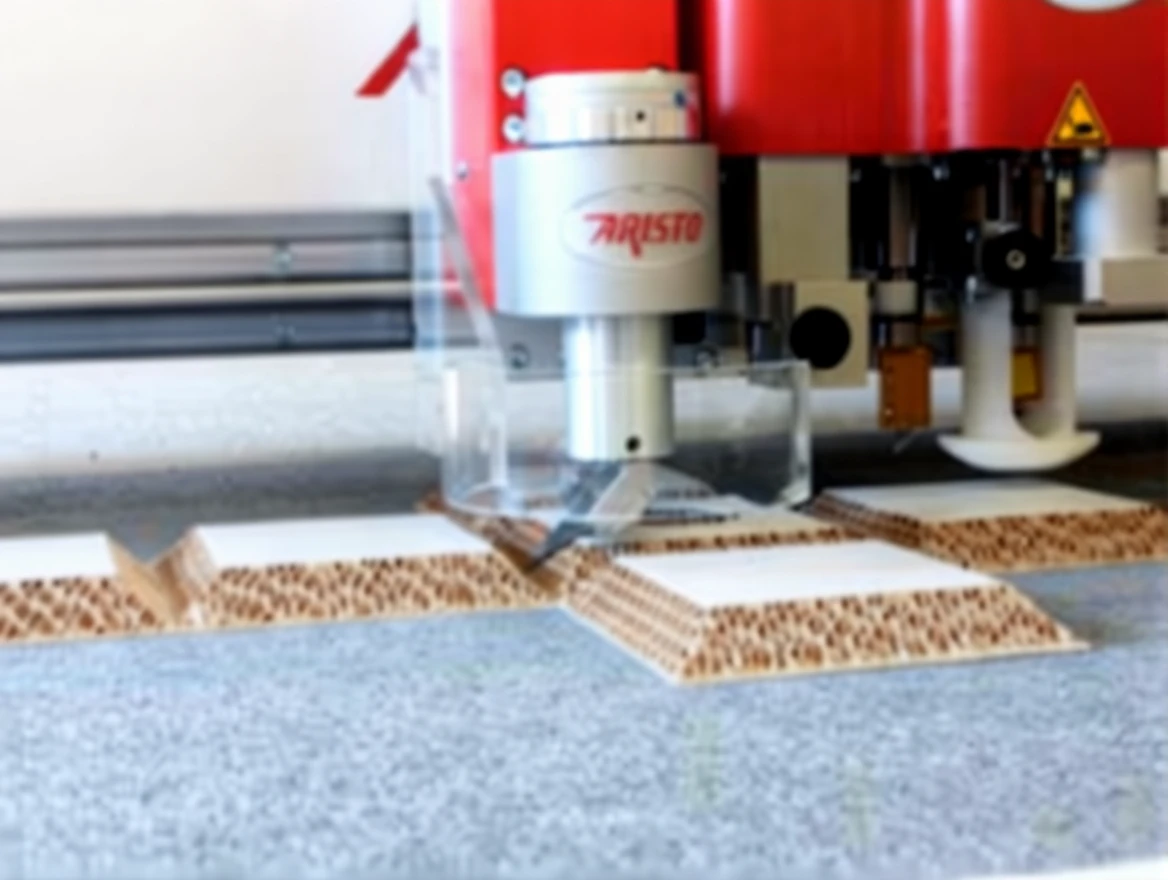

V Cutting, Textile, Technical Textile, Composite Materials, Leather, PVC Sheets and More

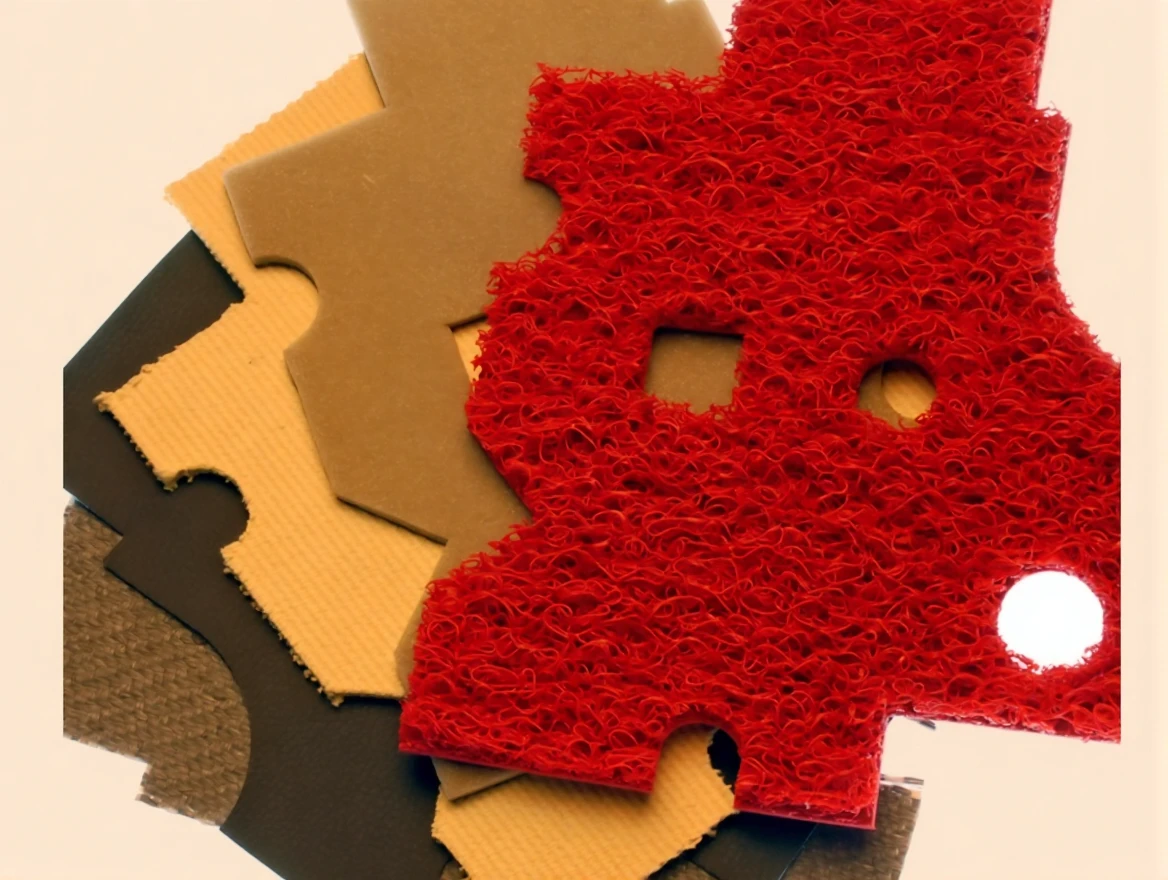

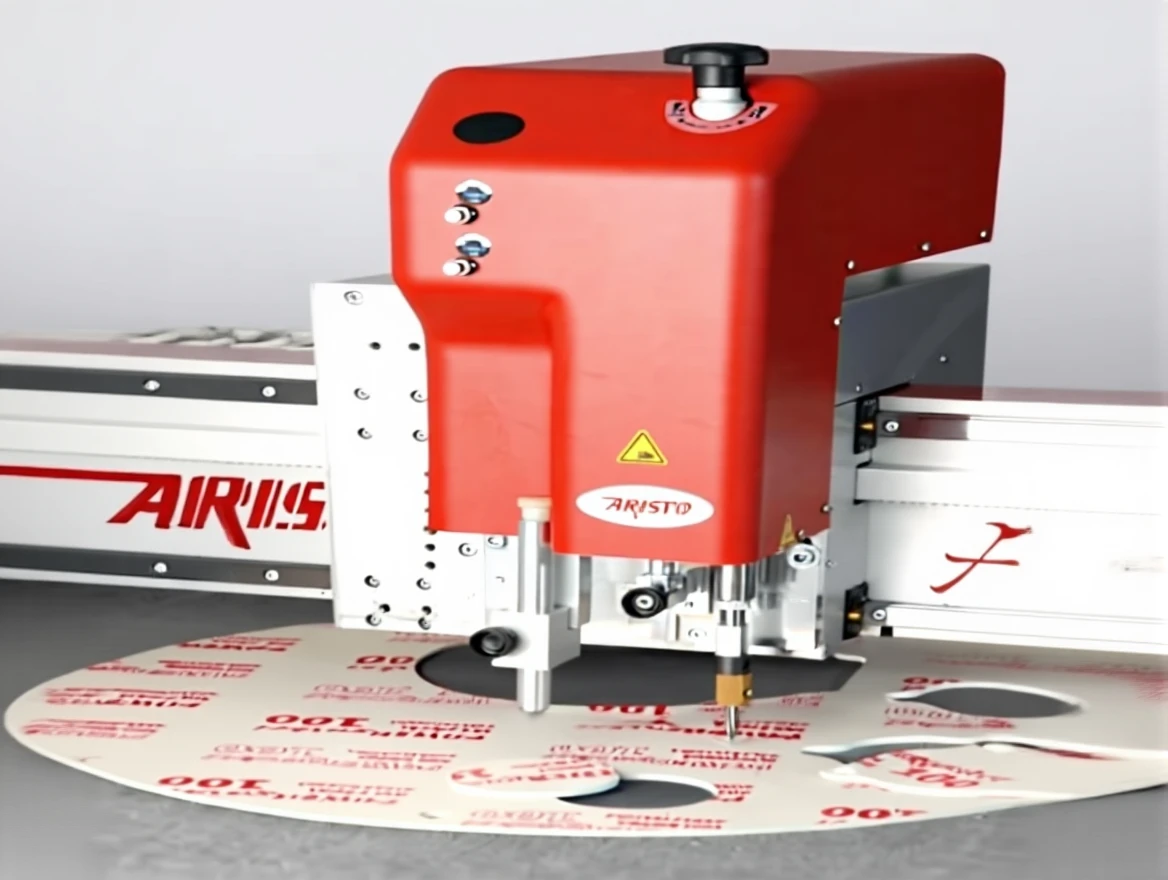

Gasket Cutting, Model Making, Cardboard Stand, Model Toy, Box Manufacturing
ARISTOMAT GL Technical Specifications Table
Models and Dimensions
| Model | Working Area (WxL / mm – inch) | External Dimensions (WxLxH / mm – inch) |
|---|---|---|
| GL 2032-8 | 2040 x 3200 (80 x 126) | 2660 x 4220 x 1090 (102 x 166 x 43) |
| GL 2072-8 | 2040 x 7160 (80 x 282) | 2660 x 8180 x 1090 (102 x 322 x 43) |
| GL 2432-8 | 2400 x 3200 (95 x 126) | 3020 x 4220 x 1090 (117 x 166 x 43) |
| GL 3232-8 | 3180 x 3200 (125 x 126) | 3800 x 4220 x 1090 (150 x 166 x 43) |
| GL 3252-8 | 3180 x 5180 (125 x 204) | 3800 x 6200 x 1090 (150 x 244 x 43) |
| GL 4232-8 | 4260 x 3200 (168 x 126) | 4890 x 4220 x 1090 (193 x 166 x 43) |
| GL 4252-8 | 4260 x 5180 (168 x 204) | 4890 x 6200 x 1090 (193 x 244 x 43) |
Performance
| Feature | Value |
|---|---|
| Speed (GL 2032-8 and GL 2432-8) | max. 2.3 m/s (max. 91 in/sec) |
| Speed (Others) | max. 1.7 m/s (max. 67 in/sec) |
| Acceleration Point (GL 2032-8 and GL 2432-8) | max. 2 G |
| Acceleration Point (Others) | max. 1.5 G |
| Material Thickness | up to 55 mm |
| Static Accuracy | ± 0.08 mm/m (0.0032 in/40 in) @20°C |
Controls and Systems
| Feature | Description |
|---|---|
| Control System | PC |
| Electrical Control Mechanism | Digital AC servo motor |
| Data Format | HPGL |
| Vacuum | Adjustable Matrix Vacuum Areas |
| Power Feed | 3 Phase Connection, 400V, 50Hz |
| Operating System | ARISTO Operating System, Cutting Control Panel (Windows XP, Vista(32bit), 7(32bit)), Multilingual, Mobile Control Panel |
Environmental Conditions
| Condition | Value |
|---|---|
| Operating Temperature | +10°C ~ +30°C (50°F ~ 86°F) |
| Ambient Temperature | -15°C ~ +45°C (5°F ~ 113°F) |
| Humidity | 40% – 80% |
Certifications
-
CE Label
-
Emergency Stop
-
Light Curtain
-
Automatic Shutdown
Notes
-
The maximum working area is given for a single head on the machine. The working area may vary on other processing heads that can be added.
-
Dimensions are given for standard production machines.
-
Optional Conveyor System
-
Cutting Dimension may vary according to Blades and Definitions.
Optional Systems
| System Options |
|---|
| Conveyor system and feeding table for integrated material feeding and collection (PLC) |
| Motorized feeding and collection system for roll materials |
| Material holding systems |
| Automation system for sheet feeder |
| Motorized unloading system compatible with label system |
| Application tools compatible with each other |
| Parameter adjustable feature for various materials |
| Data CutRecall storage, retrieval, addition, and correction operating system |
| Smart camera system for processing printed materials (AutomaticEye) |
| Automatic data processing system (Mobile BarcodeReader) |
| Projection system |
| InfraCrease™ system (for plastic materials) |
