44 kN Bending Force Measurement Sensor

Piezo quartz sensors are used to measure bending forces during the production process of bending connections. These sensors are available in different versions and can be mounted on a pressing machine or attached to the press frame.

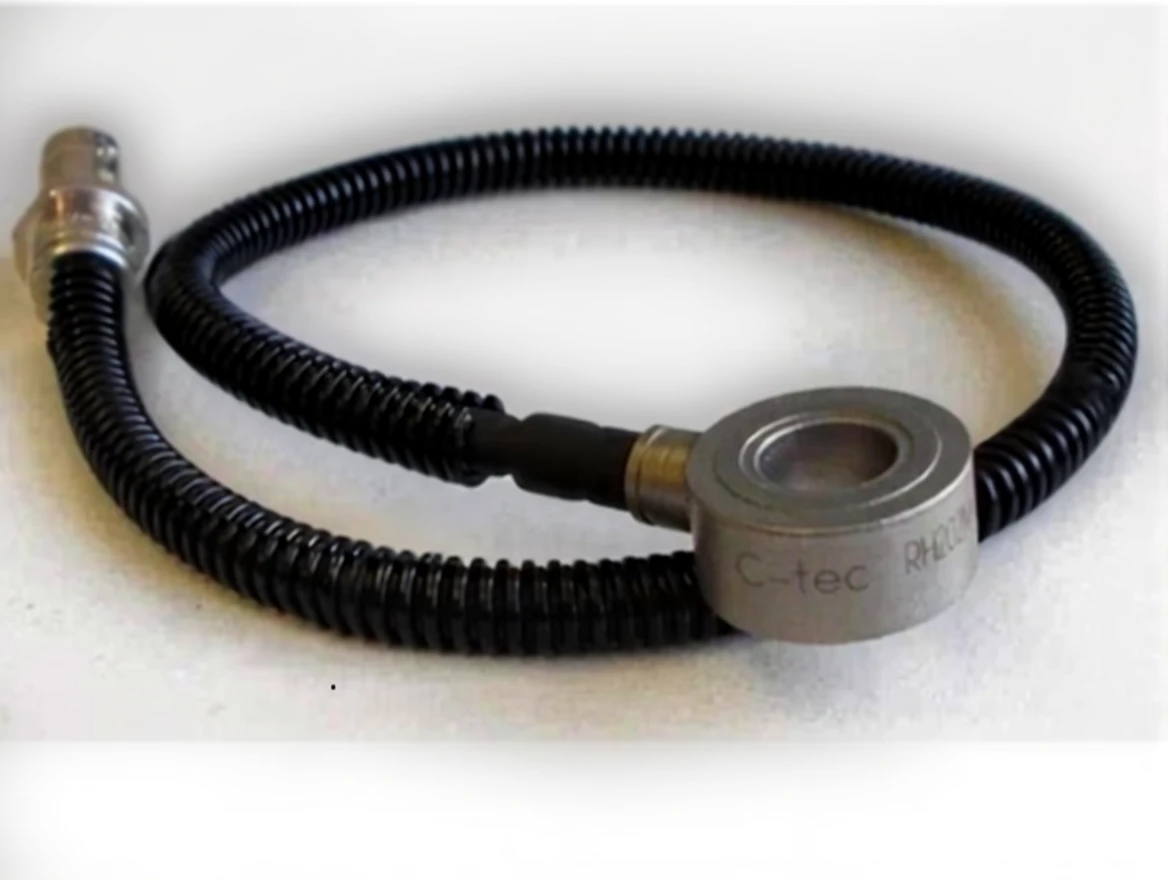

The piezo force ring sensor RH202M45 can be mounted on a pressing machine and is suitable for forces up to 44 kN.

Performance Specifications of RH202M45
-Measurement range: up to 44 kN
-Sensitivity 112.4 mV/kN
-Wide linear dynamic measurement range
-Robust and sturdy construction
-Exceptional stability and repeatability
-Sensor with screw cable
-BNC connector
-Includes SC-40 connection cable.
