44,720 – 78,260 kcal/h Electric Hot Air Generator

44,720 – 78,260 kcal/h Electric Hot Air Generator

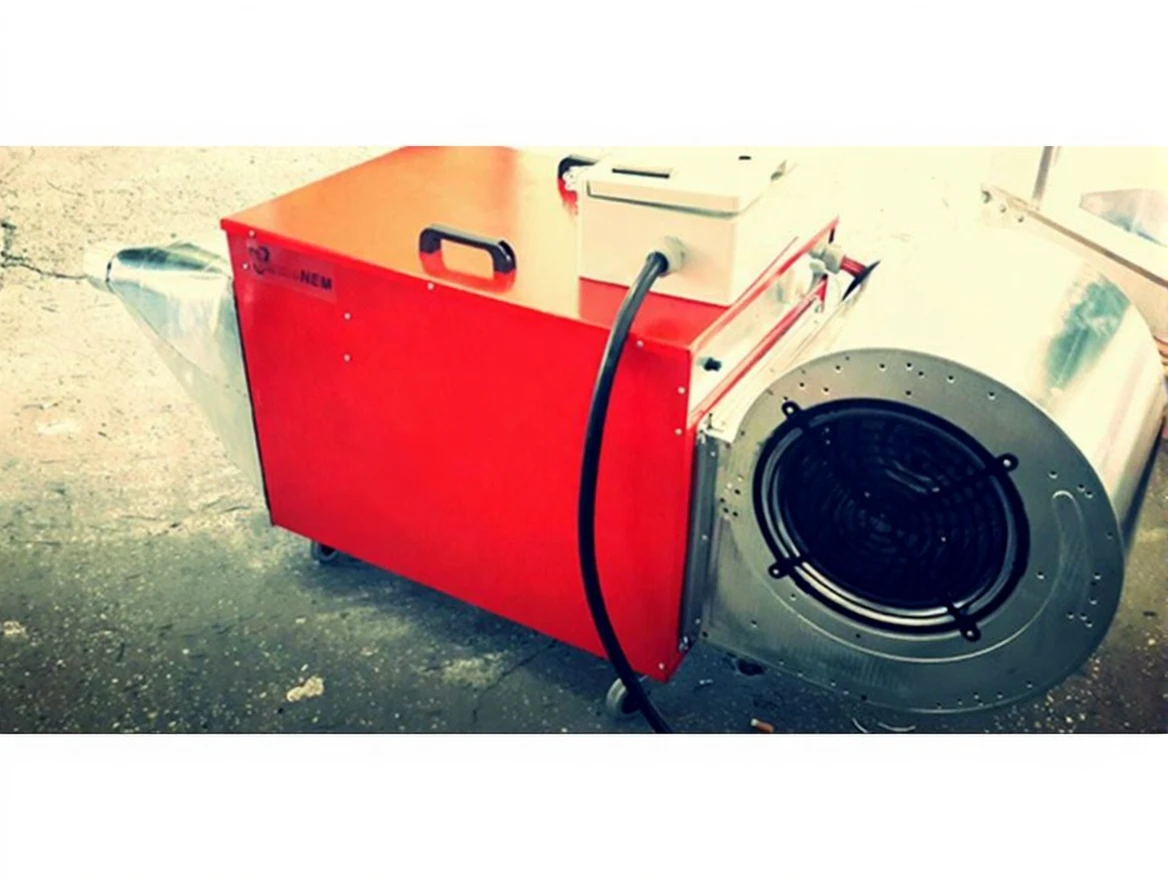

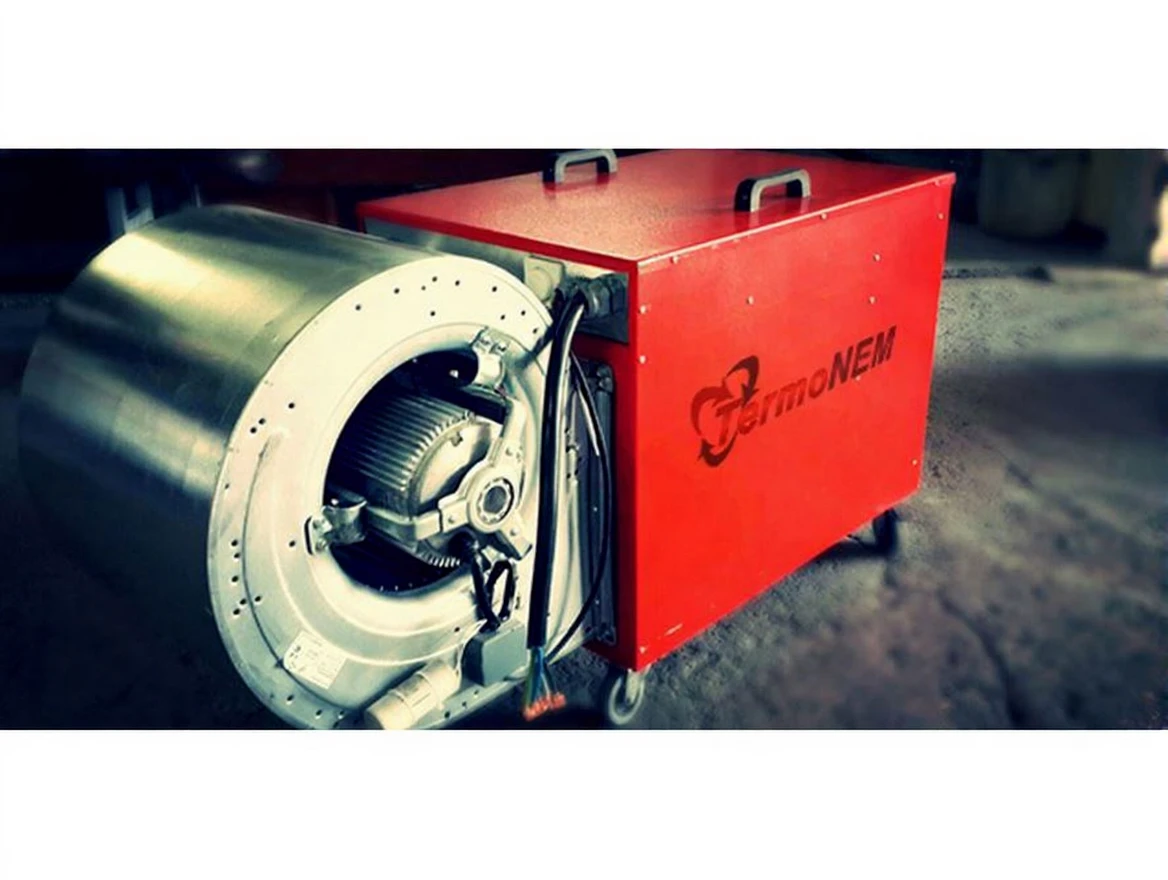

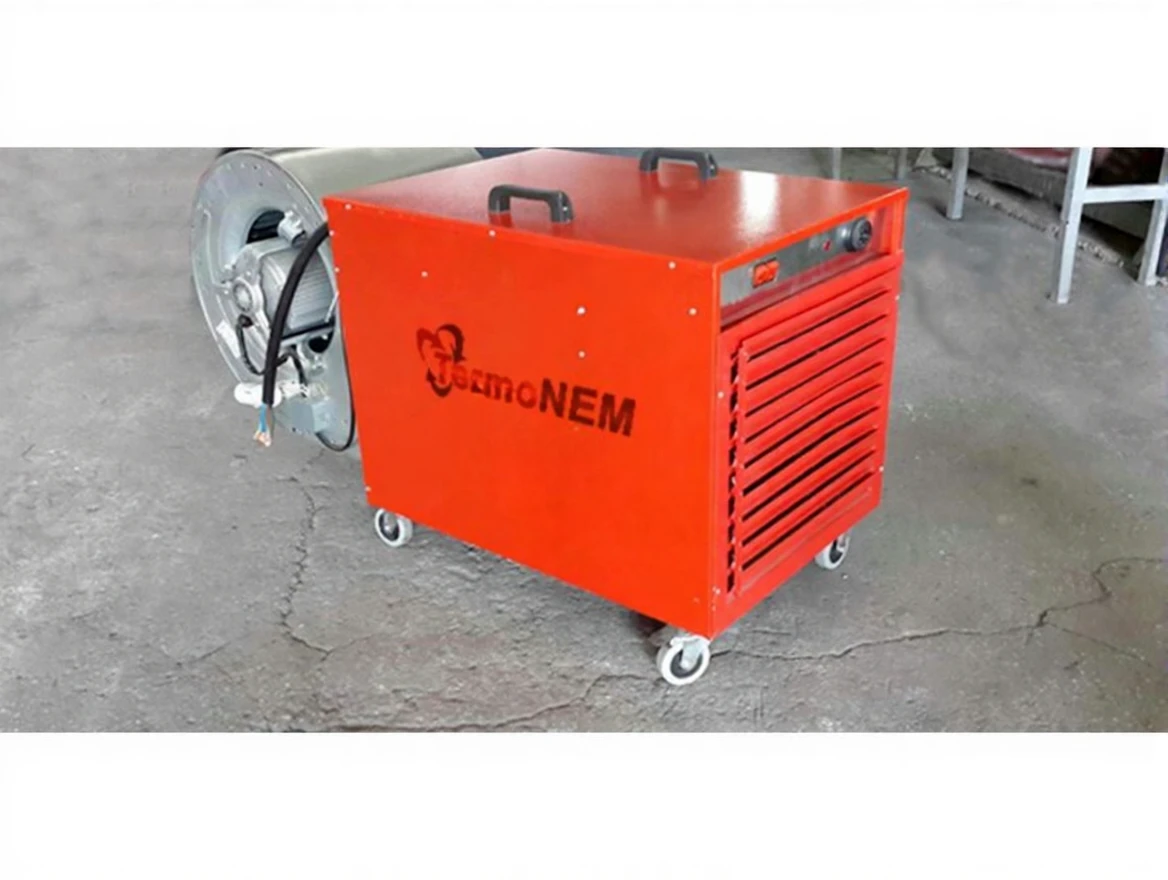

Termonem Termo 70 RDL Spiro – Technical Specifications

• Heating Capacity: 44,720 – 78,260 kcal/h

• Heating Capacity: 52.00 – 91.00 kW

• Thermal Efficiency: 130%

• Delta T: 155°C

• Fan Motor: 750 Watt RADIAL FAN 330 Pa / 33 mmss

• Air Flow Rate: 5550 m³/h

• Air Direction Adapter: Integrated

• Air Flow Control – Fan Speed Switch: Integrated

• Automatic Resistance Cooling: Integrated

• Heat Insulation: Double Wall

• Mobile Type: 360° rotatable lockable wheels

• Carrying Handle: Dual top handle

• Digital Temperature Control Panel
  +5 m Thermocouple

• Temperature Control Range: -40°C to +200°C

• Circuit Breaker for Falls or Similar Situations: Standard

• Air Outlet Diameter: 490 mm x 350 mm

• Power Consumption: 40,000 – 70,000 Watt

• Dimensions (W x L x H): 520 mm x 1450 mm x 710 mm

• Weight: 102 kg
