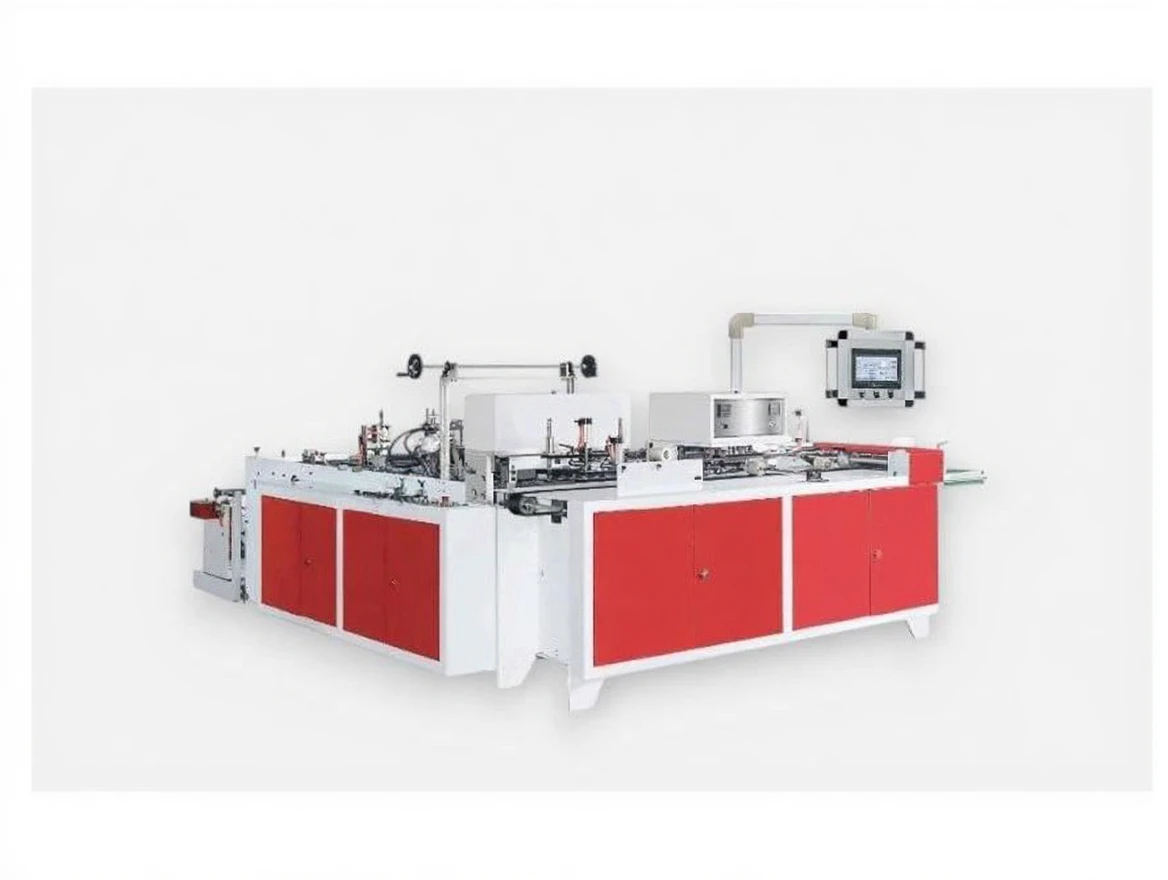

45-60 Pieces/Min Automatic Plastic Bag Making Machine

The machine uses raw materials suitable for plastic materials and provides stable production. The heat-sealed sections of the produced bags are durable, aesthetic, high-quality, and stylish. These bags can be reused multiple times. The machine is particularly used for the production of plastic bags, beverage bags, shoe box bags, clothing bags, and various qualities of other plastic bags.

1. The machine integrates the motor cylinder into a single body and operates via a Taiwan Wellon touch screen. It is equipped with features such as photoelectric fixed length, photoelectric tracking, automatic positioning, and automatic edge correction.
It can also accurately and consistently configure industrial control devices such as automatic counting, counting alarm, automatic ironing arm, and automatic bag folding. These features make the machine the most advanced plastic bag production equipment on the market. The operation control buttons on the front and back of the machine are easy to use.

2. The raw material tension can be automatically adjusted while the machine is operating.
(An automatic tension control system is used for feeding.)

3. The machine uses air pressure controlled pneumatic loading.

4. The feeding speed is controlled by a proximity switch.

5. The closing mechanism of the bag making machine uses a three-phase asynchronous motor with frequency conversion speed regulation.

6. Servo stretch is not used, which provides a smooth and aesthetically pleasing heat sealing process.

7. The servo flying knife system allows for easy blade changes.

8. Thanks to the automatic counting feature, the number of bags or irons can be automatically calculated during operation.

9. The speed of the transfer belts can be adjusted using frequency conversion speed regulation.

The unloading process is carried out in a more orderly and smooth manner.

Main technical parameters:

• Model SM-HPB-60 Series

• Bag width: 250 mm-550 mm

• Bag length: 350 mm-580 mm

• Maximum sealing width: 600 mm

• Maximum cutting length: 600 mm

• Winding diameter: 800 mm

• Bag thickness: 0.05-0.2 mm

• Bag making speed: 45-60 pieces/min

• Power supply: AC380V, 50 Hz

• Machine size (mm)

• Overall dimensions: 4500*3600*1700

• Bag making part: 2800*1250*1520

• Horizontal Transmission part: 2670*920*1210

• Transmission part: 2180*750*850

• Iron handle part: 970*850* 1700

• Correct the handle part: 1100 * 970 * 660

• Machine weight 2600 kg

• Handle length 330-370 mm, generally 350 mm

• Handle width 25-50 mm, generally 30 mm
