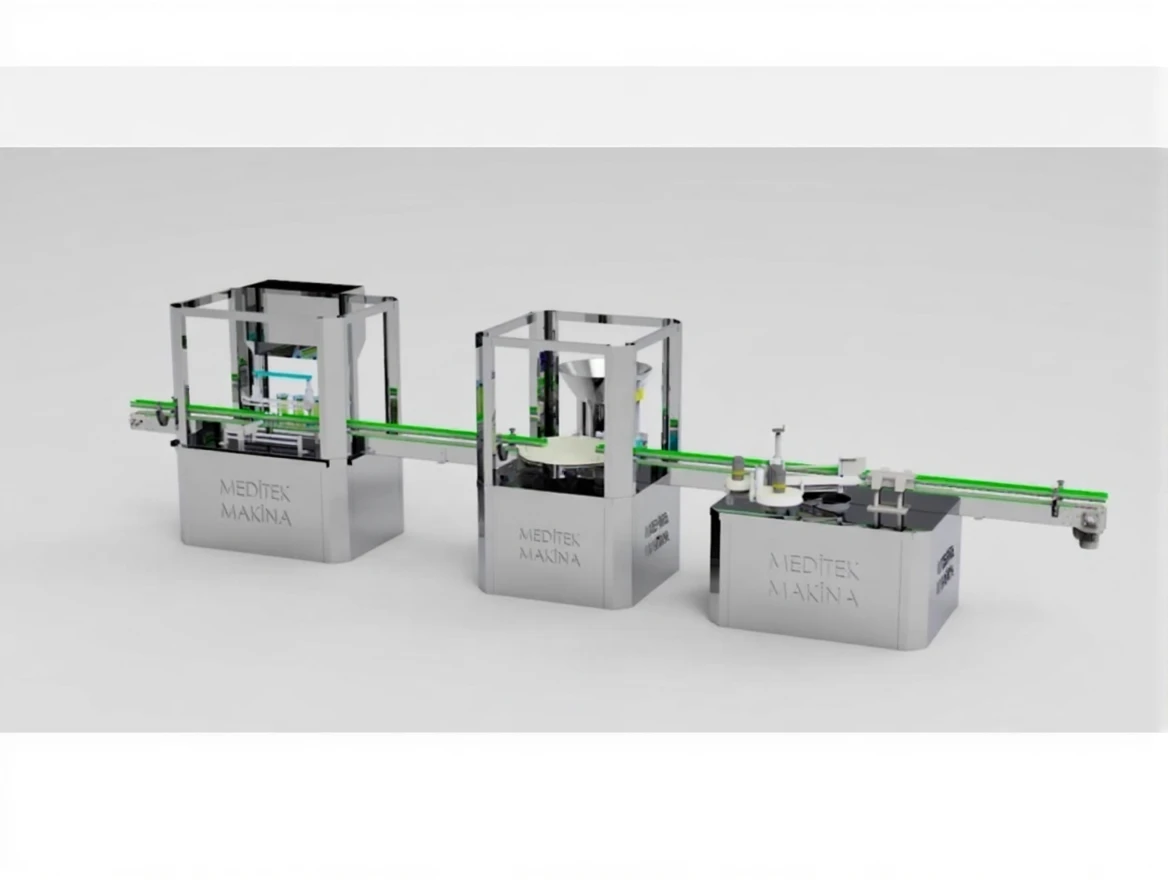

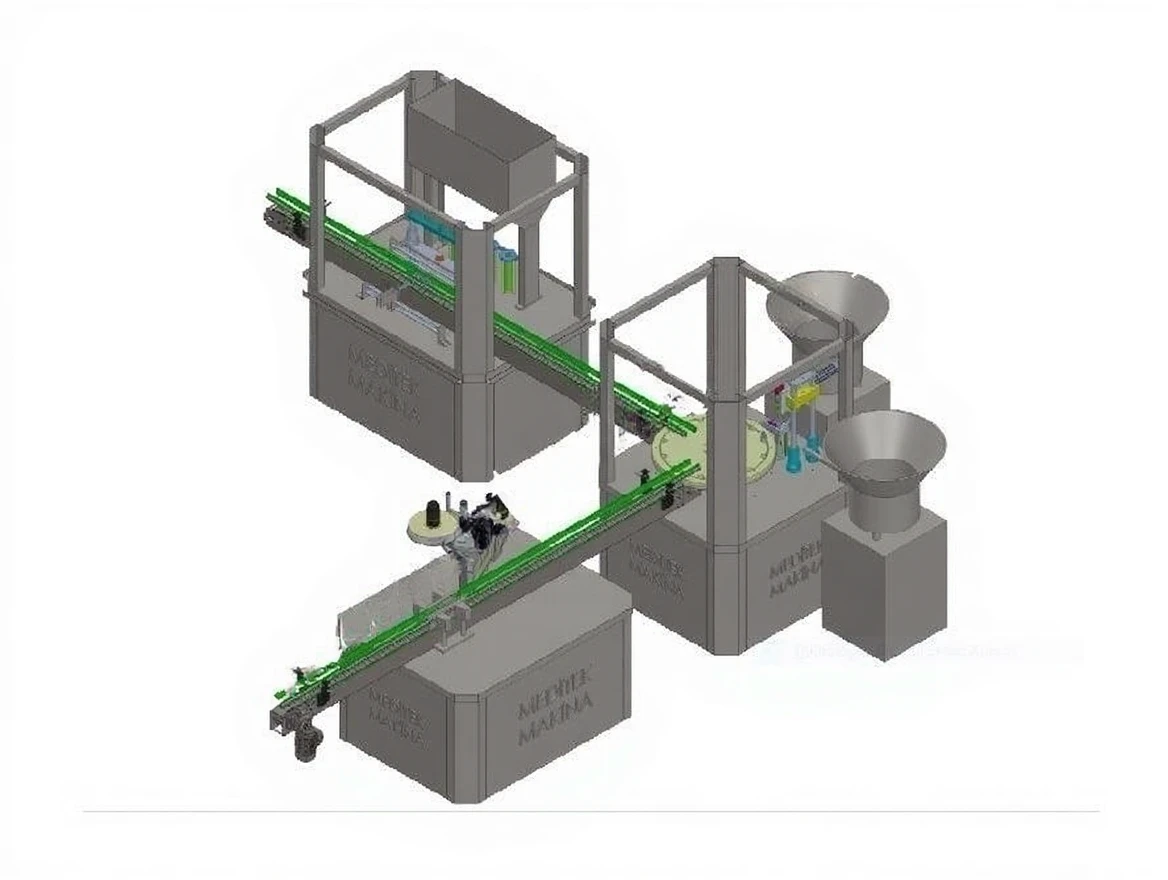

45 Pieces/Minute Automatic Liquid Filling Machine
| Brand | Meditek Makina |
|---|---|
| Model Type |
M-SD001 |
Meditech
45 Pieces/Minute Automatic Liquid Filling Machine
-
It is designed for high weight fillings.
-
It consists of a multi-block chassis and cabin system or linear (line system).
-
The filling process allows the filling process to be in the sterile area and the closing process to be in the sterile area.
-
Transfer from machine to machine is provided by the intermediate conveyor conveyor belt system.
-
Electronic weight control can be done on prescriptions via the touch screen.
-
It has a wide filling range.
-
It is produced in accordance with GMP and GEP standards and the documents required by the Ministry of Health (IQ, OQ, PQ, DQ).
|
Meditek Liquid Filling Machine Line Technical Specifications |
||
|
1 |
Capacity |
45 Pieces/Min (Maximum Capacity) |
|
2 |
Filling Accuracy |
± 2% |
|
3 |
Speed |
Adjustable (Digital Display Controlled) |
|
4 |
Sizing |
(combination of multi-block chassis and cabin) |
Hardware And Parts
|
EQUIPMENT IDENTIFICATION |
||
|
1 |
Machine Model |
Automatic Medicine Filling Line |
|
2 |
Machine Type |
Liquid Filling Machine |
|
3 |
Line Layout |
Linear Line |
|
4 |
Filling Type |
Electronic Weight Control |
|
5 |
Closing System |
Automatic Cover Feeding and Capping |
|
6 |
Stopper System |
Automatic Feeding and Plugging as Options Depending on the Product |
|
7 |
Input and Output Unit |
Conveyor Entry and Exit |
|
FEATURES |
||
|
1 |
Electrical Supply |
380V |
|
2 |
Power Consumption |
1.5 Kw |
|
3 |
Pneumatic Connection |
6-8 Bars |
|
4 |
Air Consumption |
750 L/min |
