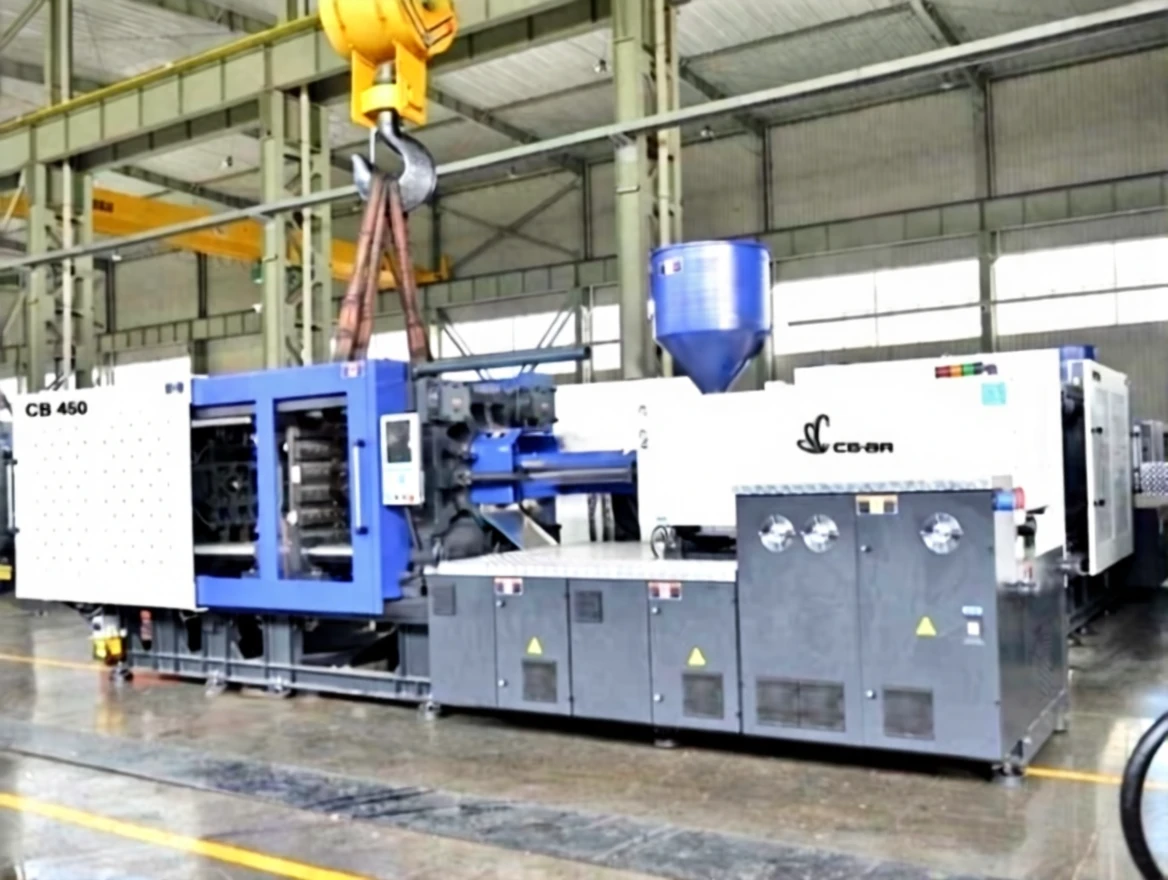

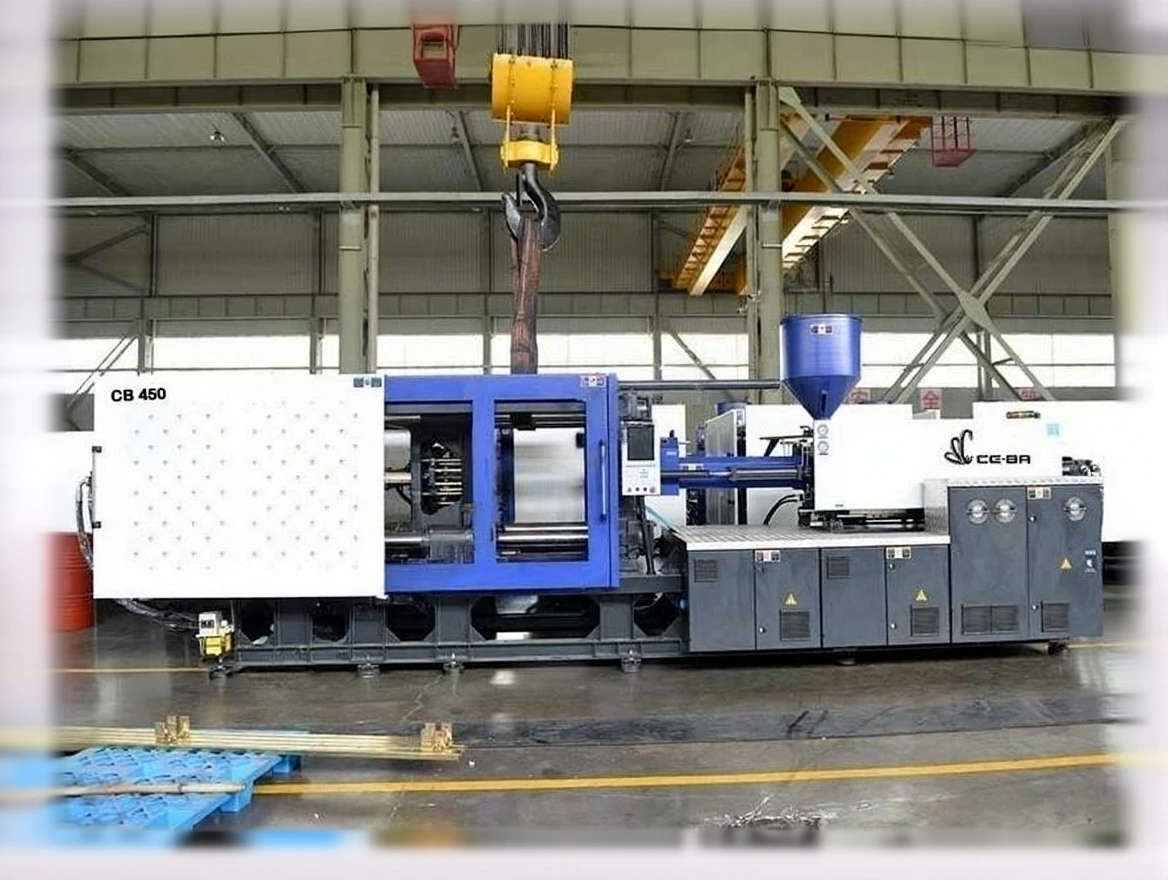

450 Ton Servo Plastic Injection Molding Machine
| Brand | Ce-Ba/Haitai |
|---|---|
| Model Type |
CB 450 |
450 Ton Servo Plastic Injection Molding Machine
Ce-Ba/Haitai CB Series CB 450
General Information
Servo Plastic Injection Molding Machines
The energy-saving injection molding machine is equipped with a high-performance servo motor control system. In this study, the design of injection machines with servo motors is aimed. With this study, a comparison of the new generation plastic injection machine designed using servo motors in terms of technological gains, features, speed, precision, energy efficiency and quality compared to classical A/C motor machines was observed.
The energy-saving injection molding machine is equipped with high-performance servo motor control system.
In this study, the design of injection machines with servo motors is aimed.
With this study, a comparison of the new generation plastic injection machine designed using servo motors in terms of technological gains, features, speed, precision, energy efficiency and quality compared to classical A/C motor machines was observed.
Ce-Ba/Haitai CB 450 Technical Specifications
|
MODEL CODE |
CB 450 |
||||
|
INJECTION UNIT |
INJECTION UNIT |
UNIT |
|
||
|
Screw Type |
Screw Type |
|
A. |
B. |
C. |
|
Screw Diameter |
Screw diameter |
mm |
70 |
75 |
80 |
|
Screw L/D Ratio |
Screw L/D ratio |
L/D |
24 |
22 |
21 |
|
Injection Volume |
Shot volume(thertical) |
cm3 |
1500 |
1723 |
1960 |
|
Injection Garage |
Injection weight(ps) |
g |
1365 |
1567 |
1784 |
|
Injection Rate |
injection rate |
g/s |
336 |
386 |
439 |
|
Injection Pressure |
injection pressure |
MPa |
206 |
180 |
158 |
|
Screw Revolution Speed |
Screw speed |
rpm |
190 |
||
|
VISE UNIT |
CLAMPING UNIT |
|
|
||
|
Locking Force |
clamping force |
KN |
4500 |
||
|
Opening Distance |
Open stroke |
mm |
770 |
||
|
Distance Between Columns |
Space between tie bars(W×H) |
mm |
770×770 |
||
|
Max. Mold Thickness |
Max.Mould height |
mm |
780 |
||
|
Min.Mold Thickness |
Min.Mould height |
mm |
250 |
||
|
Pusher Stroke |
Ejector stroke |
mm |
200 |
||
|
Driving Force |
ejector force |
KN |
110 |
||
|
OTHER PARAMETERS |
OTHERS |
|
|
||
|
Max. System Pressure |
[ URL HIDDEN ] pressure |
MPa |
17.5 |
||
|
Servo Motor Power |
Pump engine power |
K.W. |
50.2 |
||
|
Heater Power |
heating power |
K.W. |
35 |
||
|
Machine Dimensions |
Machine dimension(L×W×H) |
m |
8.08×2.0×2.62 |
||
|
Oil Tank Capacity |
oil tank cubage |
L. |
815 |
||
|
Machine Weight |
machine weight |
t |
16.3 |
||
Main Parts Used
.jpg)
Function List
.jpg)
