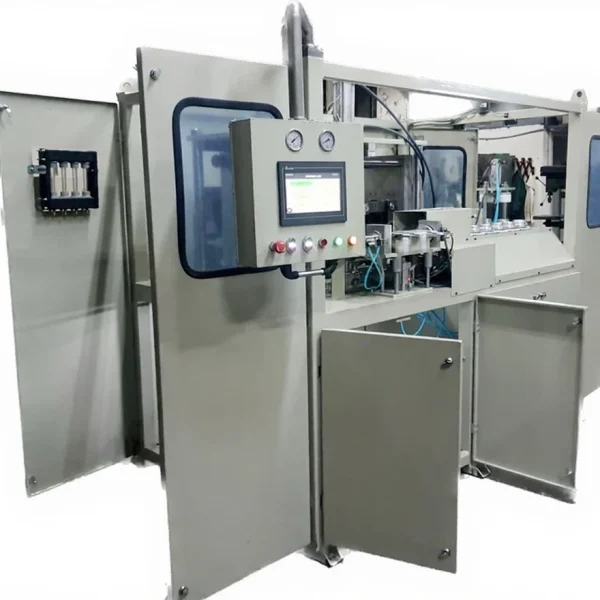

45mm ISBM Pet Blowing Machine
| Brand | Kaplan Enjeksiyon |
|---|---|
| Model Type |
BPET-70V4 |
Description
45mm Pet Blowing Machine
- Preform injection station
- Heating, cutting, blowing
- Stretch blowing station
- Product output station
Kaplan Injection BPET-70V4 Technical Specifications
|
Feature |
Unit |
BPET-70V4 |
BPET-125V4 |
BPET-94V3 |
|---|---|---|---|---|
|
Screw Diameter |
mm |
45 |
60 |
60 |
|
L/D |
– |
24 |
24 |
24 |
|
Theoretical Injection Capacity |
cm³ |
380 |
480 |
480 |
|
Injection Clamping Force |
kN |
285 |
685 |
785 |
|
Blow Clamping Force |
kN |
115 |
286 |
298 |
|
Chilled Water |
L/min |
80 |
80 |
80 |
|
Cooling Tower Water |
L/min |
80 |
80 |
80 |
|
Driving Power-rated |
kW |
44KW-380V |
65KW-380V |
65KW-380V |
|
Heater Power-rated |
kW |
8.9KW-220V |
12.5KW-220V |
12.5KW-220V |
|
Oil Tank Capacity |
L |
460 |
620 |
620 |
|
Machine Dimensions |
LWH (mm) |
440013502900 |
500020503000 |
480020503000 |
|
Machine Weight |
T |
5.1 |
11.6 |
10.5 |
|
Max. Blow Air Pressure |
Mpa |
3.5 |
3.5 |
3.5 |
|
Machine Running Air Pressure |
Mpa |
1 |
1 |
1 |
Related products
2-Cavity 10 Liter Fully Automatic Water PET Bottle Blowing Machine
In stock
| Brand | Mucitler Makina |
|---|---|
| Model Type |
ESFA2-MCV-MS10lt |
2-Cavity 1000 Bottle / Hour PET Bottle Blowing Machine
In stock
| Brand | Mucitler Makina |
|---|---|
| Model Type |
ESHF2-SML |
2-Cavity 4000 Bottle / Hour PET Bottle Blowing Machine
In stock
| Brand | Mucitler Makina |
|---|---|
| Model Type |
ESFA2-SCV-HS |

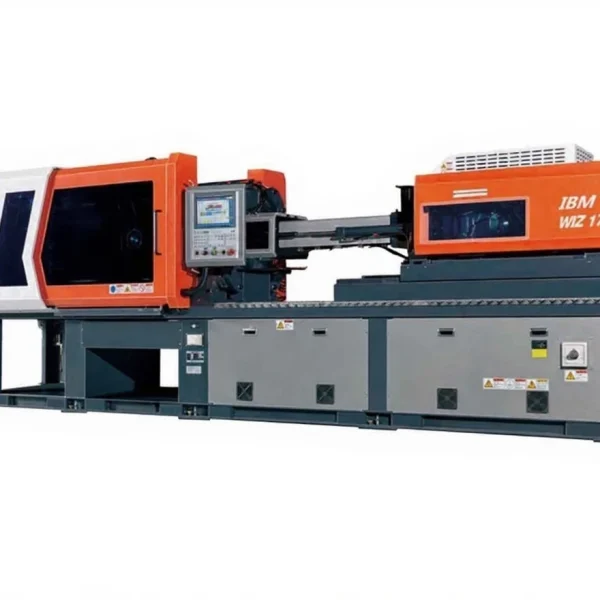

Electric Blow Molding Injection Machine Ls Mtron Wiz Isbm Series
