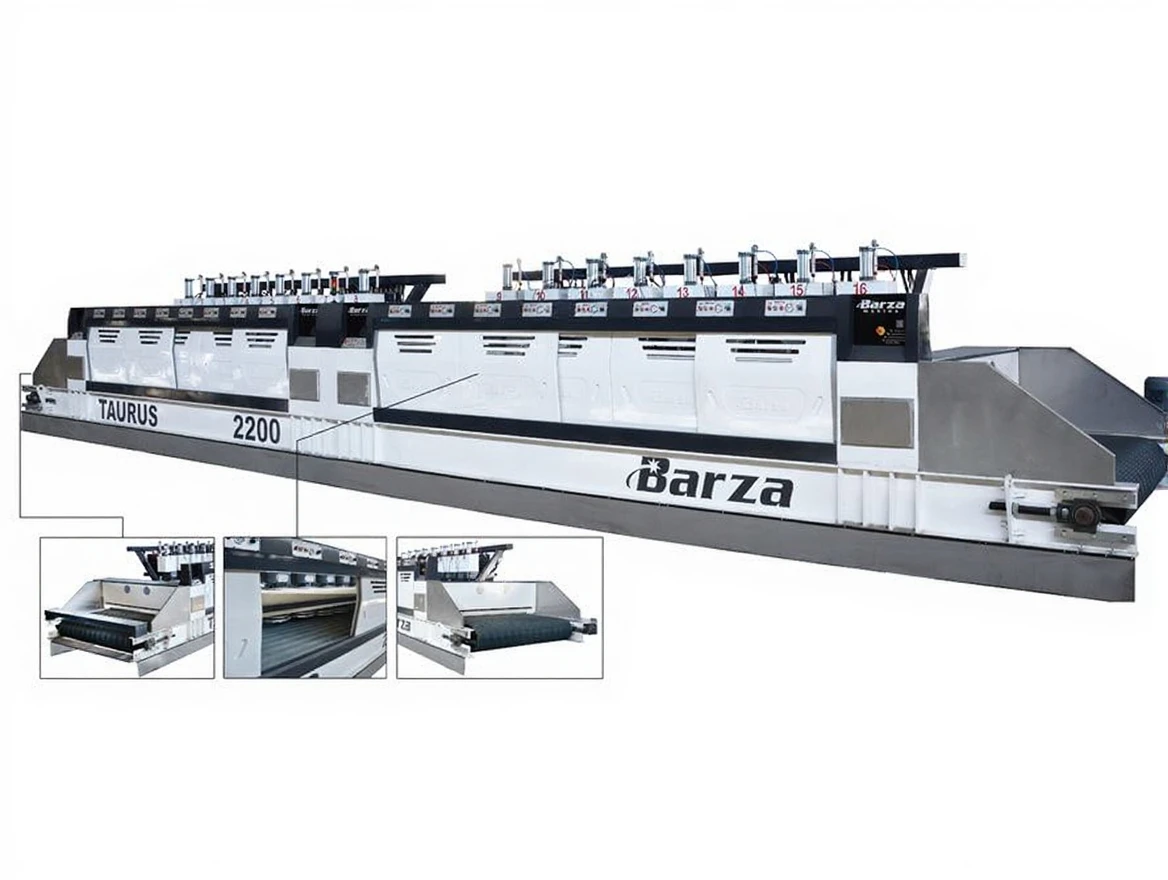

4+6 Head Marble Calibrating and Polishing Machine
| Brand | Barza |
|---|---|
| Model Type |
KSM 4+6 |
4+6 Head Marble Calibration Grinding Machine
The Marble Calibration Grinding Machine is a high-performance machine used to smooth and polish the surface of marble, granite, and other natural stones. It eliminates surface irregularities, processes stones to an even thickness, and prepares an ideal surface for subsequent polishing operations.
With its durable structure and powerful motor system, it offers long-term use in intensive production lines. The high-precision grinding heads ensure a smooth and homogeneous stone surface, while the automatic control systems minimize operator intervention.
Areas of Use
-
Marble and Granite Processing: Used for leveling and calibrating cut slabs' surfaces.
-
Interior Decoration: Processes stones for smooth surfaces in floorings, kitchen, and bathroom countertops.
-
Construction and Building Industry: Ensures the flattening of cut stones for large-scale marble and granite projects.
-
Furniture and Design Applications: Used in the surface treatment of marble tables, countertops, and decorative stone panels.
-
Landscape and Outdoor Applications: Flattens and calibrates natural stones used in outdoor spaces.
|
TECHNICAL SPECIFICATION |
FEATURES |
|
Number of Heads |
4+6 |
|
Number of Calibration Heads |
2+6 |
|
Power of Calibration Head |
0.18 Kw |
|
Power of Calibration Motor |
22 Kw |
|
Calibration Tray Diameter |
700mm |
|
Number of Polishing Heads |
6 |
|
Power of Polishing Head |
7.5/11 Kw |
|
Polishing Tray Diameter |
500mm |
|
Number of Seal Heads |
1 |
|
Power of Seal Head |
11 Kw |
|
Seal Tray Diameter |
700mm |
|
Power of Moving Body Motor |
2.2 Kw |
|
Power of Conveyor Belt |
2.2 Kw |
|
Speed of Conveyor Belt |
0-4 m/min |
|
Power of Guard Motor |
0.55 Kw |
|
Power of Fan Motor |
2.2 Kw |
|
Minimum Stone Thickness |
10 mm |
|
Maximum Stone Thickness |
80 mm |
|
Maximum Stone Width |
650 mm |
|
PLC Control System |
PLC |
|
Width/Length/Height |
1800 / 10,000 / 2700 mm |
