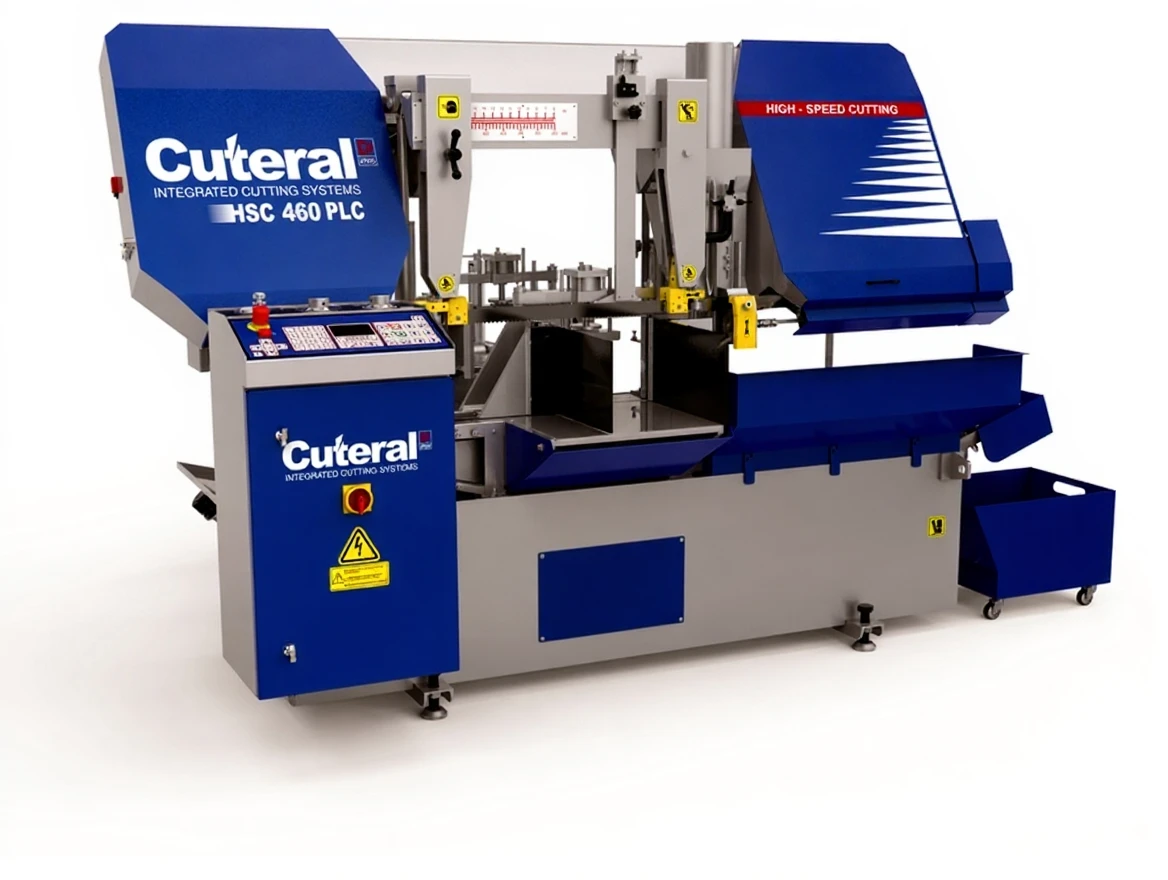

Cuteral HSC 460 PLC ALU

460 mm Fully Automatic Fast Cutting Column Band Saw Machine

A	1740 mm
A	1740 mm
B	2810 mm
B	2810 mm
C	2345 mm
C	2345 mm
D	2170 mm
D	2170 mm
E	710 mm
E	710 mm
hmax	1970 mm
hmax	1970 mm
Automatic
Automatic
Blade Size	41 x 1.3 x 5450 mm
Blade Size	41 x 1.3 x 5450 mm
Blade Motor	15 kW – 1400 rpm
Blade Motor	15 kW – 1400 rpm
Chip Brush Motor	0.09 kW – 1400 rpm
Chip Brush Motor	0.09 kW – 1400 rpm
Hydraulic Motor	1.1 kW – 1500 rpm
Hydraulic Motor	1.1 kW – 1500 rpm
Coolant Motor	0.37 kW – 2850 rpm
Coolant Motor	0.37 kW – 2850 rpm
Chip Conveyor Motor	0.18 kW – 1400 rpm
Chip Conveyor Motor	0.18 kW – 1400 rpm
Voltage	400 V
Voltage	400 V
Maximum Power	17.14 kW
Maximum Power	17.14 kW
Cutting Speed	75 m/min – 246 m/min
Cutting Speed	75 m/min – 246 m/min
Weight	2800 kg
Weight	2800 kg
Material Clamping System	Hydraulic
Material Clamping System	Hydraulic
Blade Tensioning System	Hydraulic
Blade Tensioning System	Hydraulic
Cutting Capacity 90° Length	460 mm
Cutting Capacity 90° Length	460 mm
Cutting Capacity 90° Width	500 mm
Cutting Capacity 90° Width	500 mm
Package Cutting Capacity 90° Length	120 – 230 mm
Package Cutting Capacity 90° Length	120 – 230 mm
Package Cutting Capacity 90° Width	195 – 310 mm
Package Cutting Capacity 90° Width	195 – 310 mm
Cut Material Angle	0°	460 mm	460 x 460 mm	460 x 500 mm
Package Cutting Capacity	0°	—-	230 x 230 mm	230 x 310 mm

Brand	Kesmak
Model Type	KMY 280
