5 Kn Bending Force Measurement Sensor
| Brand | Piezoquartz |
|---|---|
| Model Type |
FTW 05 |
Piezoquartz FTW 05 5 Kn Bending Force Measurement Sensor
Piezo quartz sensors are used to measure bending force during the production process of bending connections. These sensors are available in different versions and can be mounted on a pressing machine or attached to a press frame.

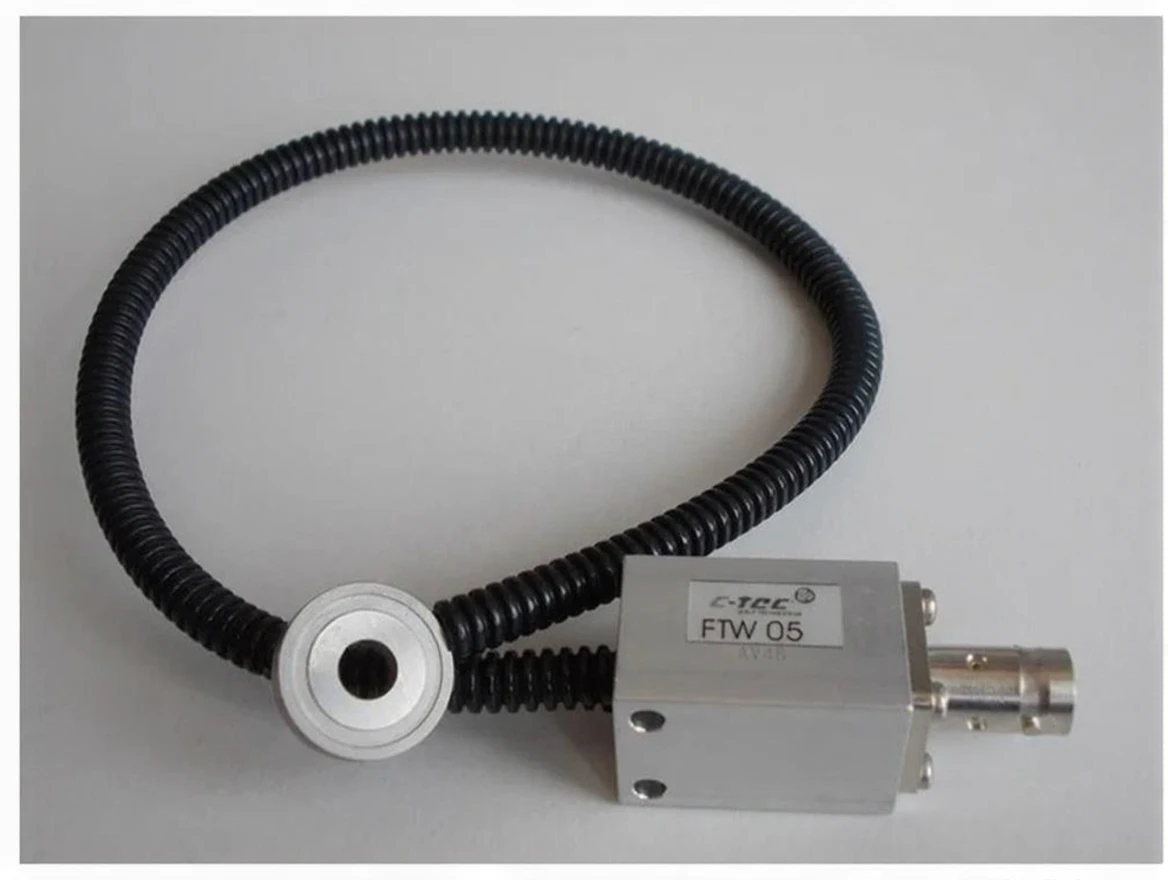

Piezo quartz ring sensor FTW05 can be mounted on a pressing machine and is ideal for measuring very small forces up to 5kn.
Performance Features of FTW 05
-Measurement range: up to 5 kn
-Sensitivity: 1.00 mV/N +/-10%
-Robust and sturdy construction
-Exceptional stability and repeatability
-Internal type amplifier for operation with constant current signal
-Wide linear dynamic measurement range
-High overload stability
-Sensor with fixed cable
-BNC connector
-Includes SC-40 connection cable
