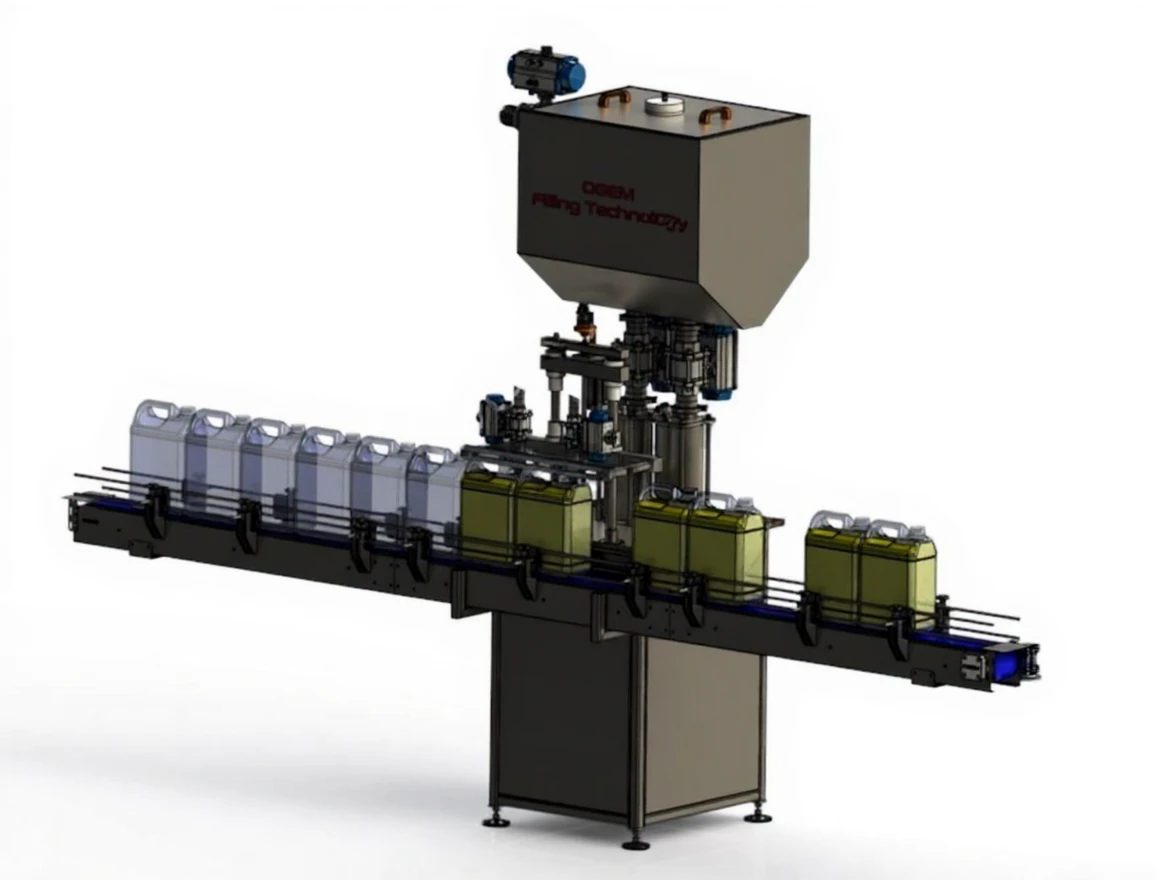

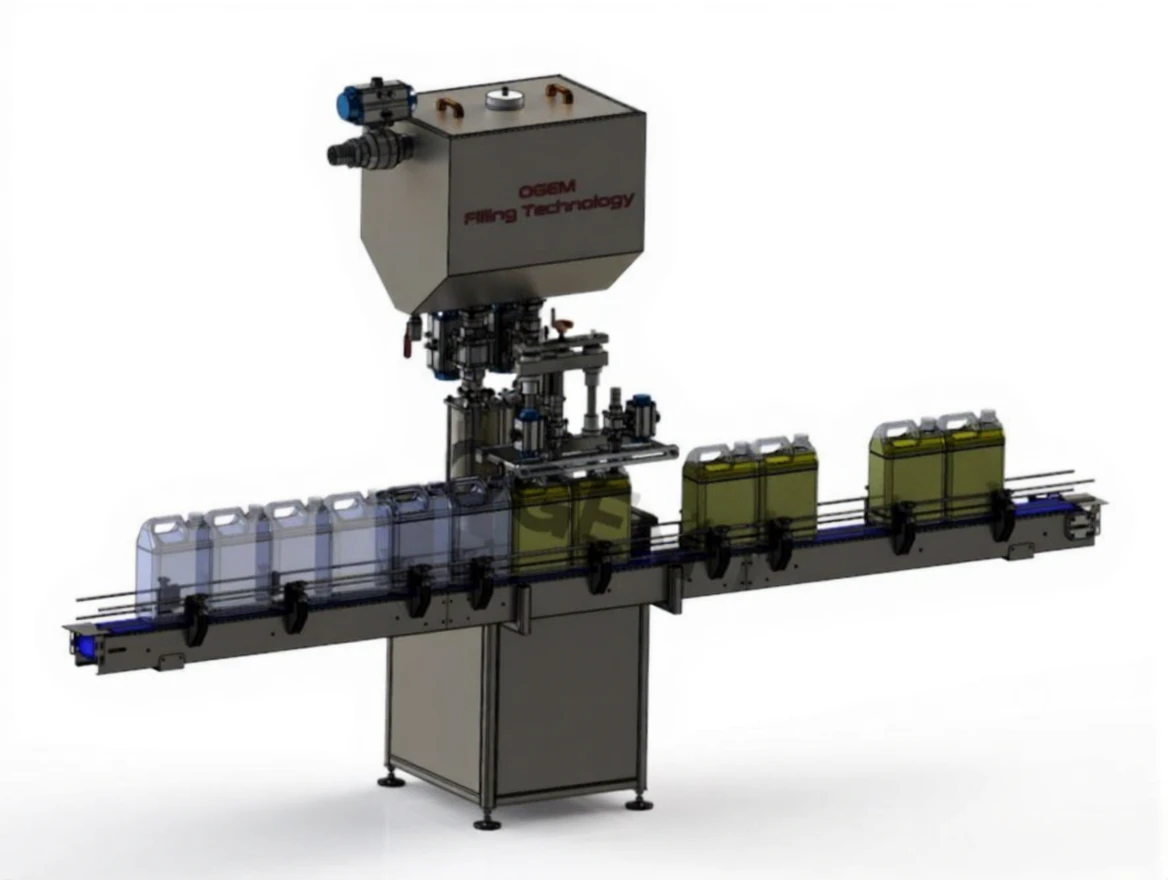

5 Liter Double Head Vertical Liquid Automatic Packaging Filling Machine

5 Liter Double Head Vertical Liquid Automatic Packaging Filling Machine

Technical Specifications

• Number of filling cylinders on the machine: 2

• The machine is a volumetric filling machine operated by a pneumatic system.

• Weight adjustment is easily set and recorded using a rotary knob and a numerator.

• The machine draws the product directly from the production tank.

• High surface smoothness and argon welding technology prevent bacterial growth and contamination.

• The sealing elements are made from Teflon, Viton, or polyethylene materials according to the chemical properties and temperature of the product to be filled.

• The parts on the machine are connected to each other with tri-clamps (clamps).

• The nozzle, valve, and filling piston are designed for easy cleaning.

• They can be easily disassembled without using any tools.

• Interchangeable filling nozzles are available according to the product, whether liquid, viscous, or granular.

• There is a filling tray platform for placing the packaging during the filling process; this platform can be easily adjusted up or down according to the height of the packaging.

• The machine stands on a stainless steel frame supported by 4 wheels.

• Thanks to its wheels, it can be easily and quickly prepared for filling in the desired location.

• Tabletop and wheeled models are available.

• The machine operates with 6-8 bar air pressure.

• No electrical or electronic systems are used in the machine.

• All surfaces in contact with the product to be filled are made of 316 stainless steel.

• The outer surfaces, protective covers, and legs are made of 304 stainless steel and aluminum.

Applications

Food and Beverage: Olive Oil, Sunflower Oil, Boza, Turnip Juice, Vinegar, Liquid Sauces, Tomato Paste, Appetizers, Sauce, Buttermilk, Yogurt, Jam, Honey, Marmalade, Pomegranate Syrup, Fruit Juice, Kefir, Buttermilk, Lemonade, etc.

Chemicals and Cosmetics: Liquid Detergent, Liquid Hand Soap, Liquid Dishwashing Detergent, Gel Detergent, Fabric Softener, Cologne, Bleach, Disinfectant, Shampoo, Liquid Fertilizer, Castile Soap, Shampoo, Lotion, Cream, Gel, Medical Liquids, etc.

Lubricants: Motor Oil, Fuel Additives, Antifreeze, All Lubricants, etc.

Paint: Paint, Solvent, Thinner, Solvent-based Paint, etc.
