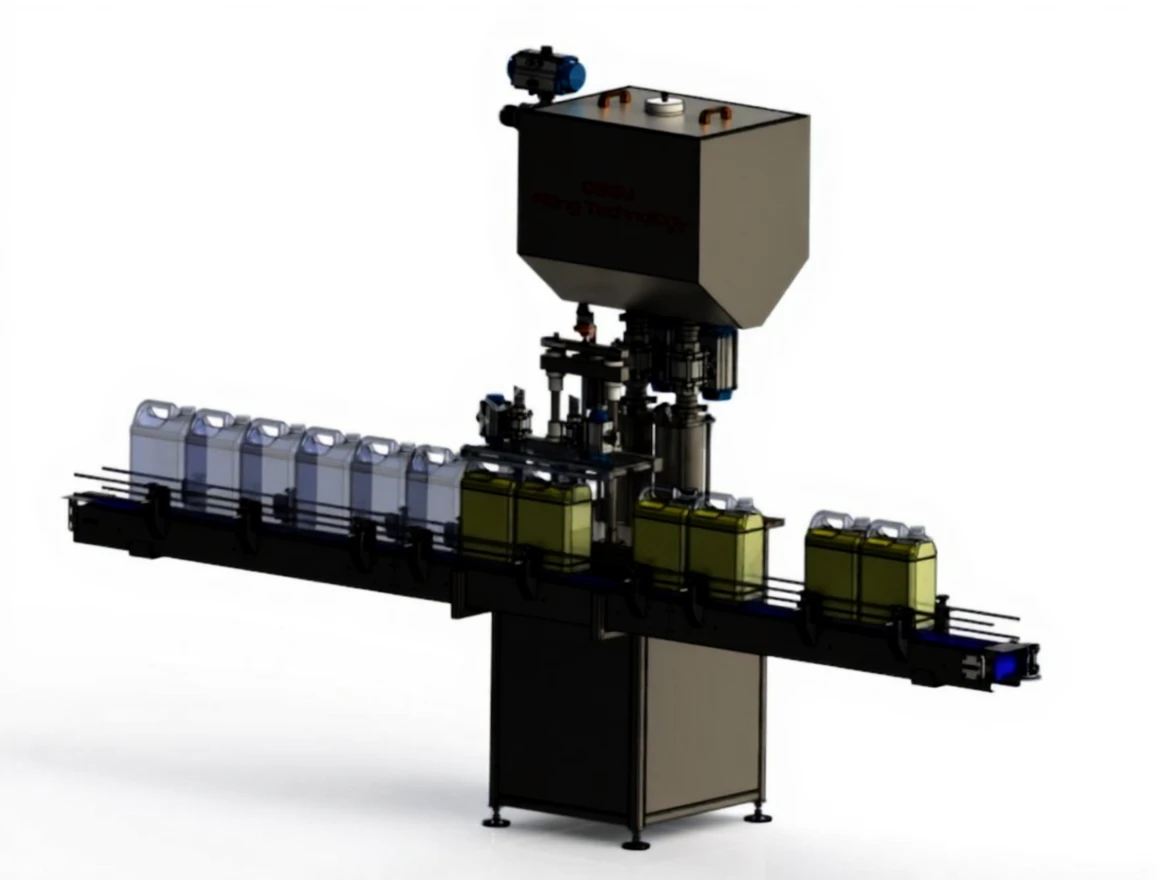

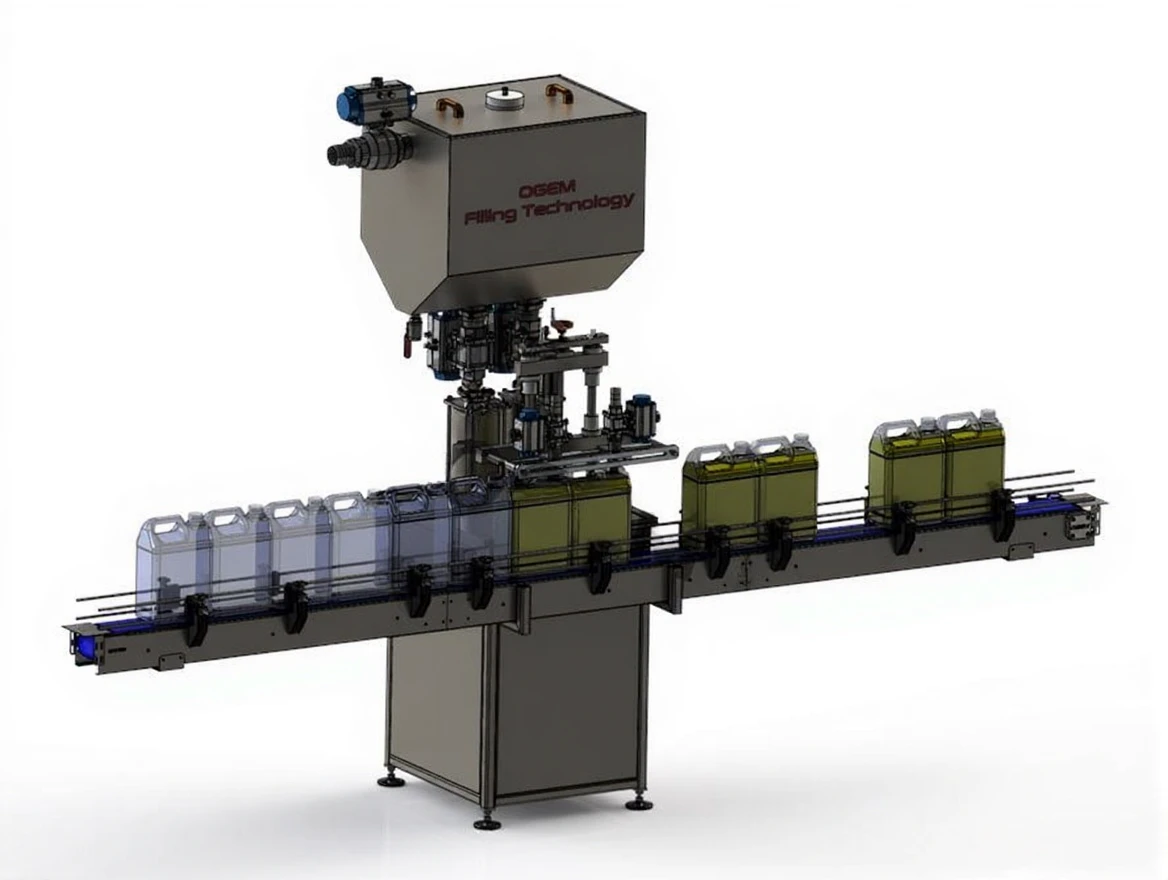

5 Litre Double-Headed Vertical Liquid Automatic Packaging Filling Machine

5 Litre Double-Headed Vertical Liquid Automatic Packaging Filling Machine

Technical Specifications

• Number of filling cylinders in the machine: 2

• The machine is a volumetric filling machine that operates with a pneumatic system.

• Weight adjustment is easily set and recorded with a turning lever and a counter.

• The product to be filled is directly taken from the production tank.

• Thanks to the high surface smoothness and argon welding technology, it prevents bacterial growth and contamination.

• The sealing elements are made of teflon, viton, or polyethylene material according to the chemical properties and temperature of the material to be filled.

• The parts on the machine are connected to each other with tri-clamp (clamps).

• The nozzle, valve, and filling piston are designed for easy cleaning.

• Can be easily disassembled without using any tools.

• Depending on the product, interchangeable filling nozzles for liquid, viscous, or granular materials are available.

• There is a filling tray platform to place the packages during the filling process, which can be easily adjusted up and down according to the height of the package.

• The machine stands on a stainless steel frame supported by 4 wheels.

• Thanks to its wheels, it can be easily and quickly made ready for filling at any desired location.

• Tabletop and wheeled models are available.

• The machine operates with 6-8 bar air.

• No electrical or electronic systems are used in the machine.

• All surfaces that come into contact with the product to be filled are made of 316 quality stainless steel.

• The outer surface, housing sheets, and legs are made of 304 quality stainless steel and aluminum.
