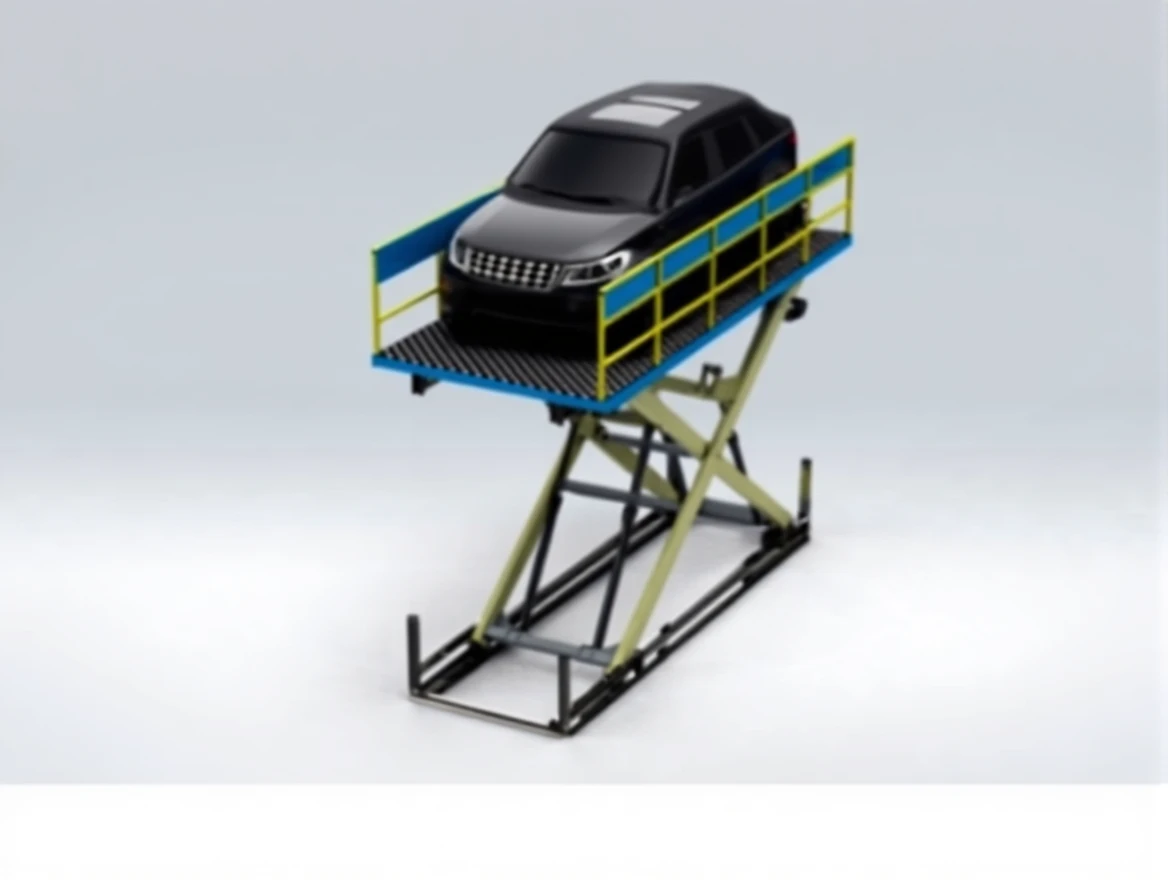

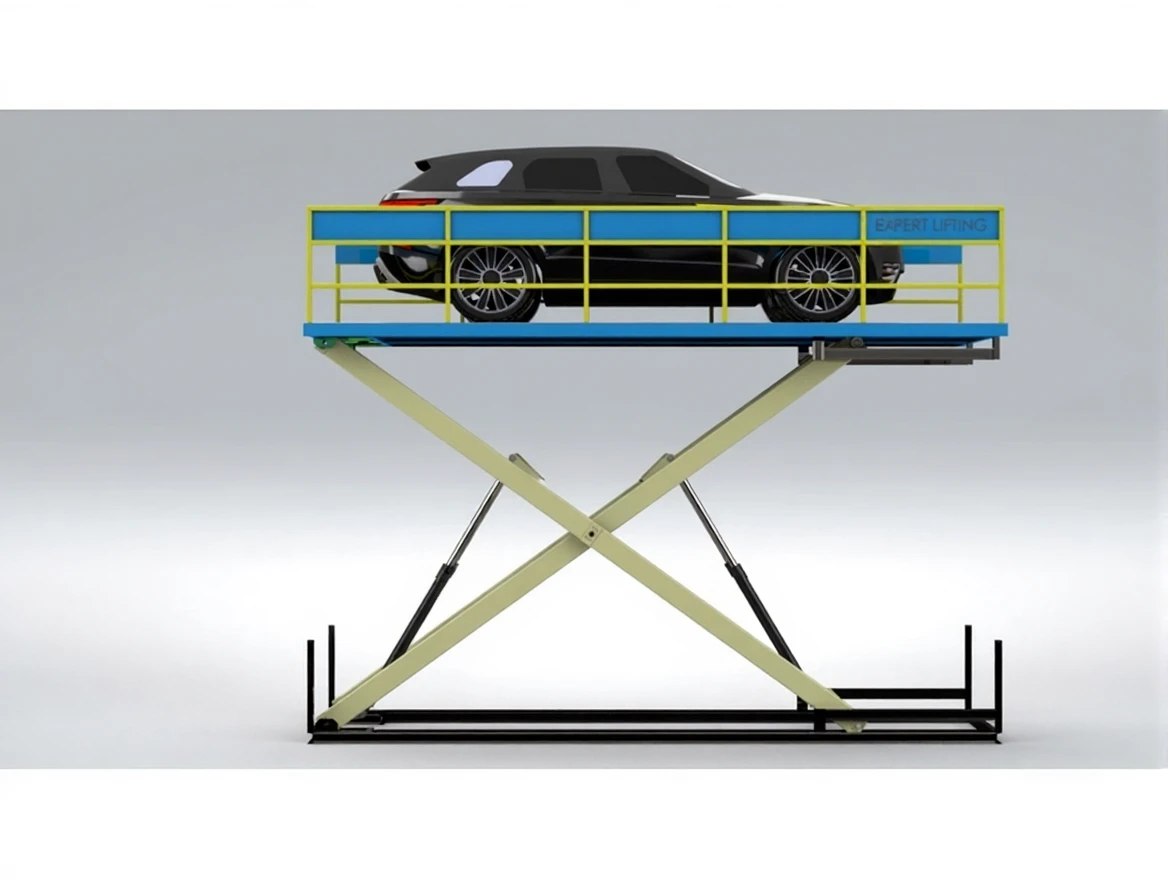

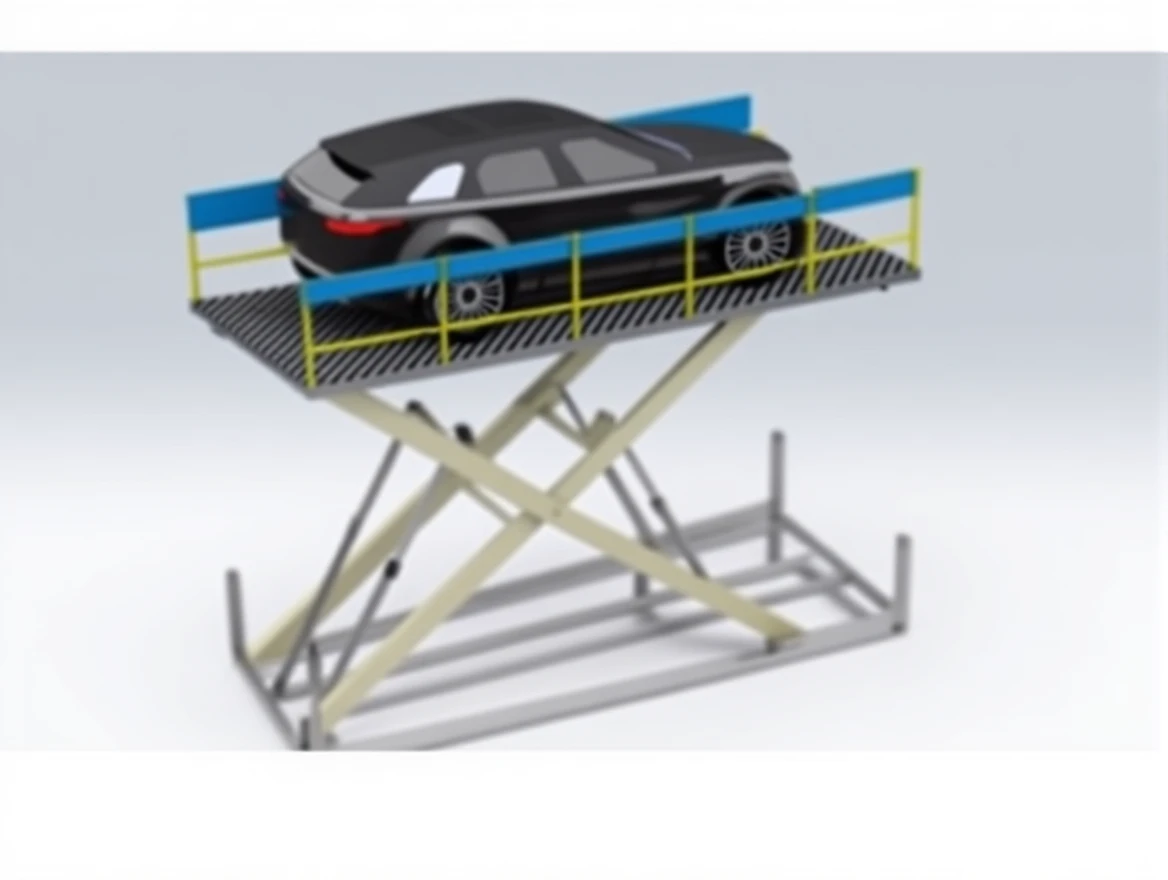

5 Ton Hydraulic Scissor Vehicle Platform
| Brand | Expert Lifting |
|---|---|
| Model Type |
EMAP-5 |
Ersam EMAP-5 5 Ton Hydraulic Scissor Disabled Vehicle Elevator
Provides safe and economical transportation between floors
Custom design option according to customer needs
Long-lasting and cost-effective use with hydraulic operating system
Quality optimization in design with computerized analysis method
24 VDC control unit
Easy to use with elevator type button panel
Extra safety with hose burst valve in the hydraulic system
Vehicle overstep warning system with electronic sensors on the platform
Safety with IP 54 protection class in the electrical system
Optional entrance-exit spiral door cabin application
Optional rotating table application on the platform
Optional mechanical lock system on floors
Overload by-pass valve on the hydraulic unit
In compliance with Machinery Safety Regulation 2006/42/EC
Ersam EMAP-5 Technical Specifications
|
MODEL |
CAPACITY (Kg) |
PLATFORM DIMENSIONS (mm) |
ENCLOSURE DIMENSIONS (mm) |
TRAVEL DISTANCE (mm) |
MAX SPEED (cm/sec) |
MOTOR (Kw) |
|
EMAP-3 |
3000 |
2500 X 5000 |
2600 X 5100 |
<3500 |
15 |
5.5 |
|
EMAP-5 |
5000 |
2500 X 6000 |
2600 X 6100 |
<4000 |
15 |
5.5 |
|
EMAP-8 |
8000 |
2500 X 7500 |
2600 X 7100 |
<5200 |
15 |
7.5 |
