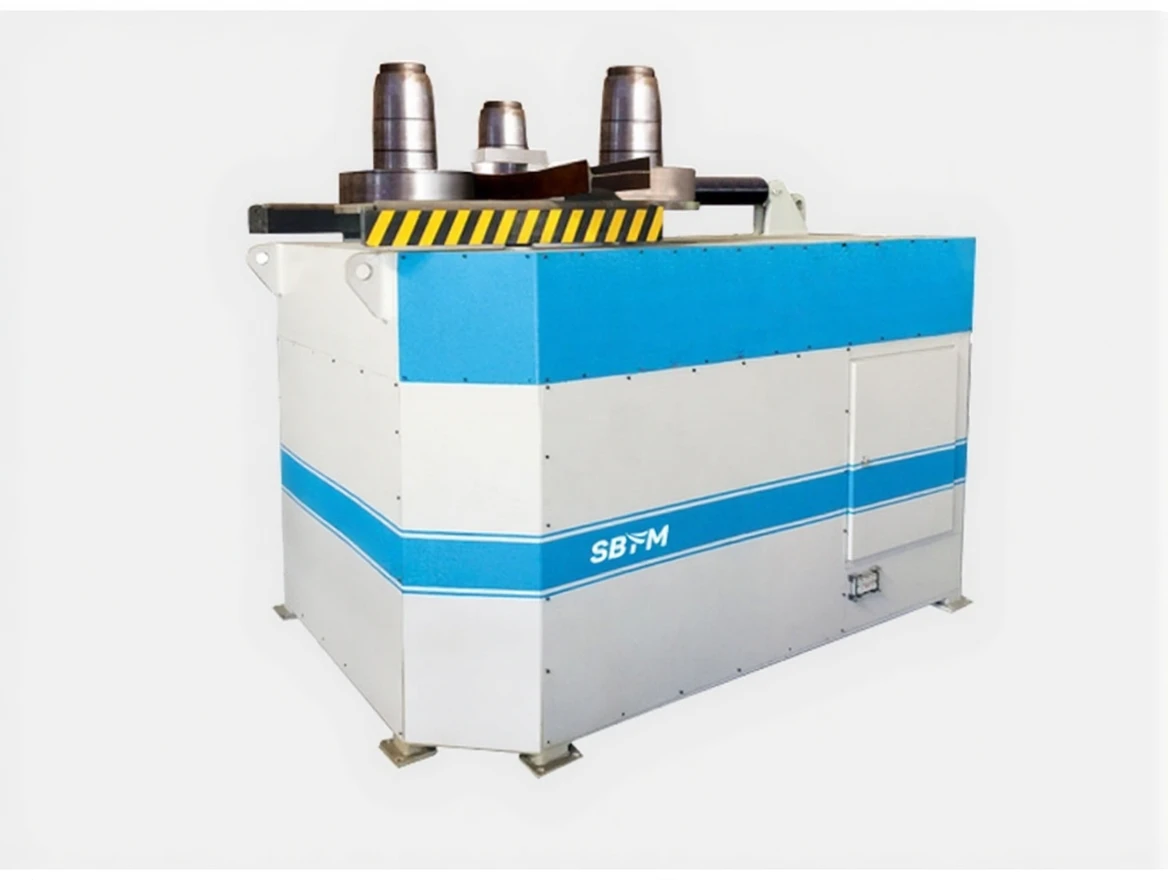

50-150 mm Pipe Profile Bending Machine



It is placed between the pipe or profile to be bent and the bending molds. After each stage, the molds are adjusted to make further bends, and this process continues until the desired bending dimensions are reached.

*Sheet bending capacity is given for steel with a yield strength of 24 kg/mm2.
*Dimensions are approximate values. SBFM can change the dimensions without notice.

• Food
• Silos
• Shipyards
• Oil Platforms
• Defense Industry
• Construction Machinery
• Construction

Biko Export SBB Series Technical Specifications:

Profile Type	SBB 50		SBB 60		SBB 80		SBB 100		SBB 120		SBB 150
	Size	Min diameter	Size	Min diameter	Size	Min diameter	Size	Min diameter	Size	Min diameter	Size	Min diameter
	60×10	600	80×20	1200	100×20	2000	100×20	800	125×25	1200	150×35	2500
	100×15	600	120×25	600	125×25	600	200×30	1200	200×50	1000	270×50	1500
	35×35	600	50×50	800	45×45	500	60×60	750	65×65	750	90×90	1500
	35	600	50	800	50	500	75	800	80	850	90	1800
	70×2	1200	100×2	1600	100×2.5	1200	125×2.5	1400	160×4	2800	150×4	6000
	2"x2.9	1000	3"x3.2	1600	3"x5.48	800	4"x6.02	1000	5"x6.35	1500	6"x7.11	3500
	70x30x3	1500	80x40x3	1400	80x25x3	800	100x40x4	1300	120x40x4	1800	150x50x5	4500
	50×3	1600	70×3	1600	70×3	1300	80×5	1500	90×5	1800	120×6	4000
	50x50x6	600	70x70x7	1000	80x80x8	800	100x100x12	1000	120x120x12	1200	150x150x18	2200
	50x50x6	900	70x70x7	1200	70x70x7	700	100x100x10	1000	100x100x10	1200	150x150x15	3000
	60×7	800	80×9	1000	80×9	800	100×11	1000	100×11	800	150×15	2000
	50×6	800	80×9	1200	70×8	800	90×10	1000	100×11	1000	130×15	2500
	60×7	800	80×9	1000	80×9	800	100×11	1000	100×11	800	150×15	2000
	UPN80	800	UPN120	800	UPN140	1600	UPN180	900	UPN220	1000	UPN280	2000
	UPN80	1200	UPN120	1200	UPN140	1600	UPN180	900	UPN220	1200	UPN280	3000
Spindle Diameter (mm)	50		60		80		100		120		150
Moment of Inertia	5		10		30		50		60		100
Mold Diameter (mm)	180		220		260		320		360		450
Bending Speed (m/min)	5		4		6		6		2-5		2-5
Motor Power (kW)	4		4		7.5		11		15		22
Machine Dimensions          LxWxH (mm)	850x850x1300		1000x1200x1500		1500x1200x1200		1800x1500x1500		2000x1600x1600		2300x2000x2000
Weight (kg)	800		1000		2200		4000		5000		9500
