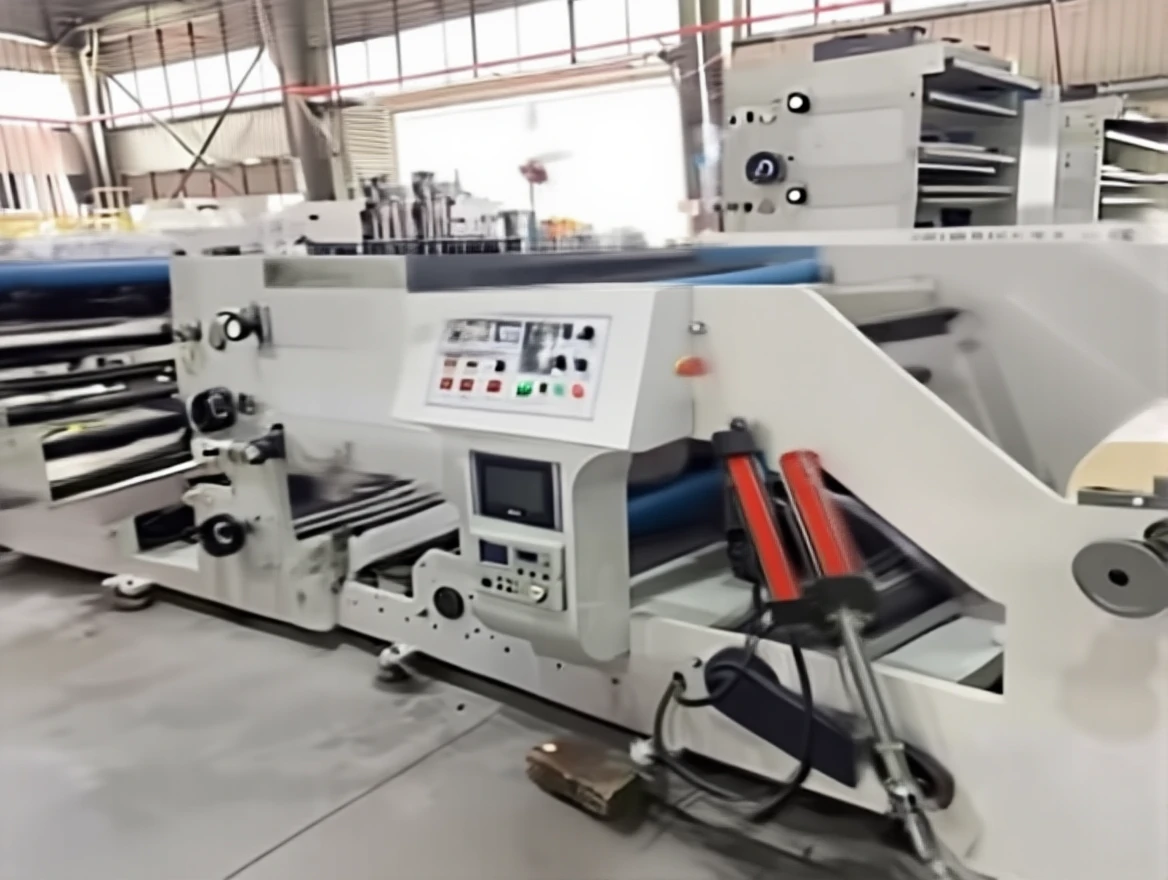

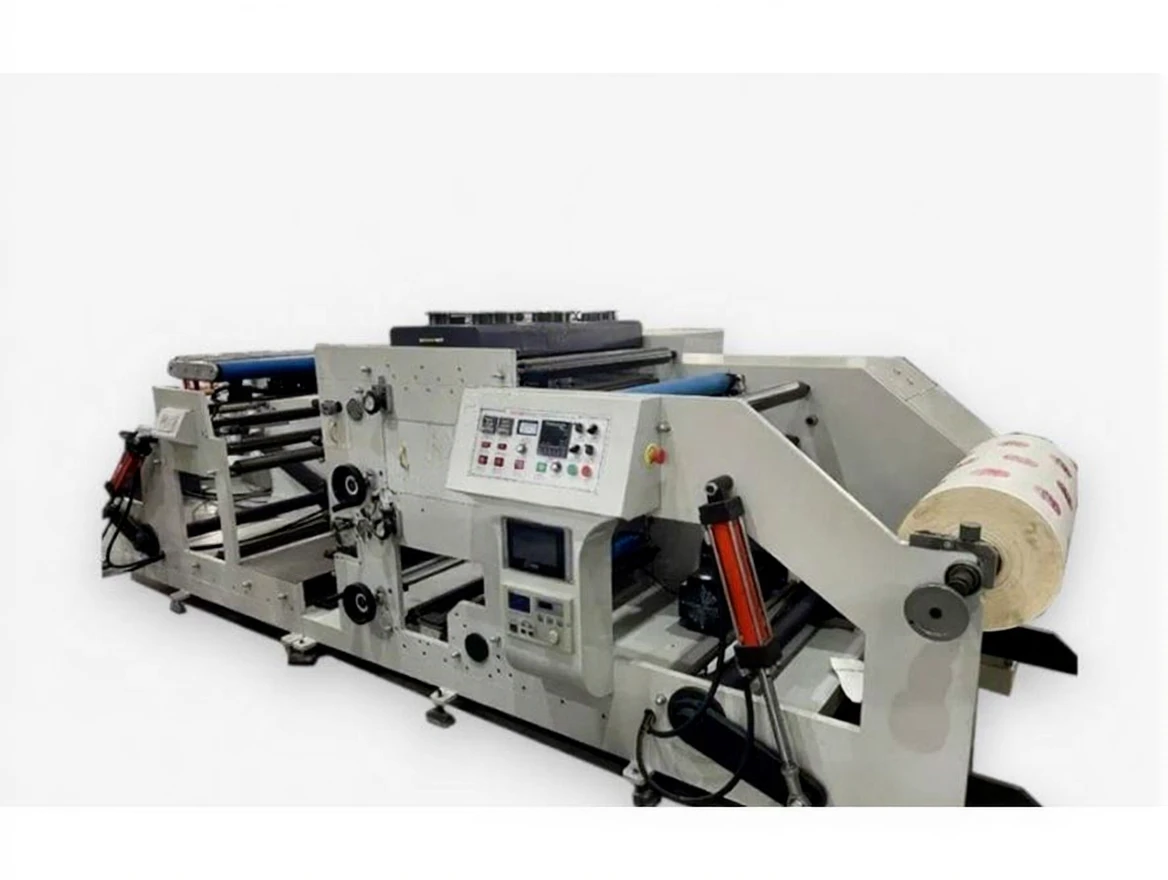

50-60 M./Min Packaging Flexo Printing Machine

1 – The flexo printing machine uses anilox rollers to spread the ink.

2 – The opening and rewinding of the flexo printing machine is controlled by a magnetic power brake and an asynchronous servo motor. The tension control is of automatic fixed type.

3 – The printing unit of the flexo printing machine adopts 360°’ for registration process.

4 – Each printing unit of the flexo printing machine has one IR dryer. UV dryer may be optional.

5 – The rubber roller of the flexo printing machine automatically prevents deterioration while parking and operating at low speed to prevent water from drying.

Sura Machine SM FP-1000-2C Technical Specifications

Model: SM FP1000 – 2C Flexo Printing Machine

Printing speed: 50-60 m./minute

Printing color: 2 Colors

Maximum printing width: 1000 mm

Maximum roll diameter: 1010 mm

Maximum rewinding diameter: 1300 mm

Printing length: 175-380 mm

Precision Chromatography: ±0.15 mm

Main motor: 4kw
